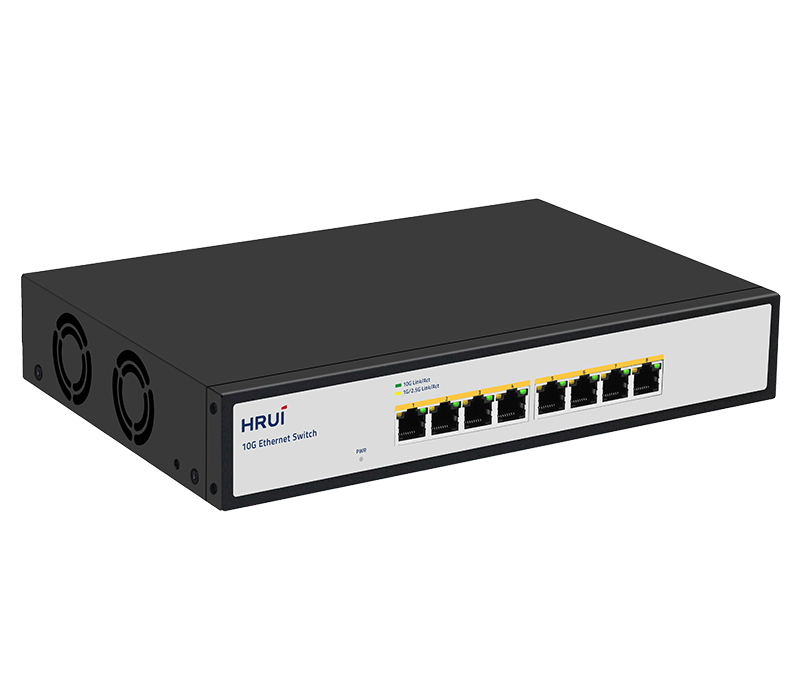

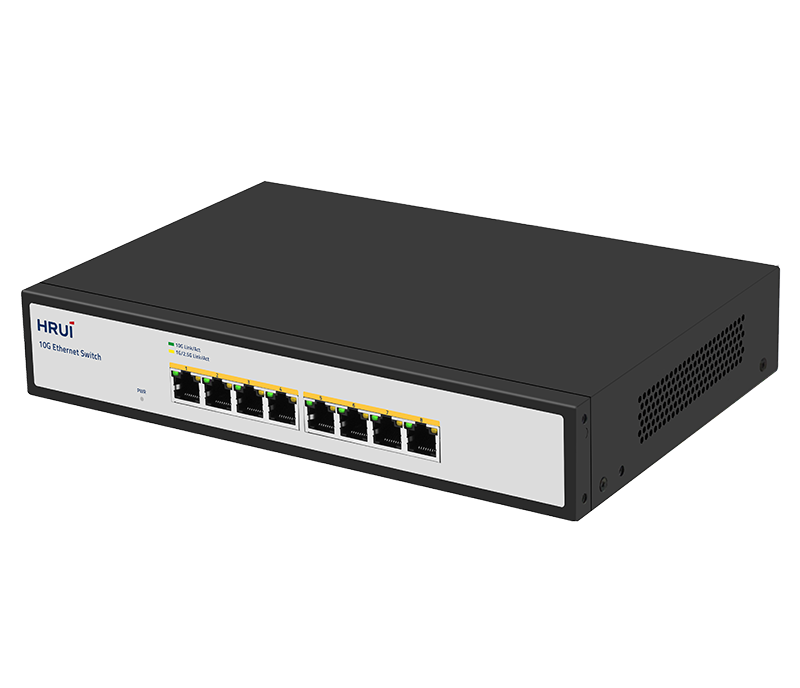

8-Port Full 10G Ethernet Switch: High-Speed Networking Redefined

The 8-Port Full 10G Ethernet Switch is designed to deliver exceptional performance and reliability for high-demand networking environments. Equipped with a premium, high-speed network chip solution, it features a full 10G network interface that ensures seamless data transmission and line speed forwarding.

Product Features:

Eight 10G Ethernet Ports: Each port supports adaptive rates of 100M, 1000M, 2500M, 5G, and 10G, making it versatile for varying network requirements.

Advanced Switching Mechanism: Utilizing a storage and forwarding architecture, the switch integrates a high-capacity cache to guarantee non-blocking line speed forwarding across all ports, even in demanding situations.

Robust Design: Constructed from high-strength steel and featuring a sturdy shell, this switch is built to withstand the rigors of operational environments. Its efficient heat dissipation system promotes stable and reliable performance, reducing the risk of overheating.

Versatile Applications: Ideal for a diverse range of applications, including security network video monitoring, hospitality, educational campuses, and the networking needs of large and medium-sized enterprises.

Technical Specifications:

Compliance: Supports industry standards including IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3.x, and IEEE 802.3az.

Self-Adaptive Ethernet Ports: Each of the Ethernet ports can automatically negotiate speeds of 100M, 1000M, 2500M, 5G, and 10G.

Port Auto MDI/MDIX Support: Simplifies connections and minimizes network setup complexity by automatically detecting the required configuration.

Monitoring Capabilities: Panel indicators provide real-time monitoring of operating conditions and facilitate quick fault analysis.

Flow Control and Surge Protection: Implements IEEE802.3x standard flow control for full duplex, along with back-pressure standards for half duplex. Additionally, it includes surge protection rated at 6KV for common mode and 8KV air/6KV contact for ESD (Electrostatic Discharge), ensuring durability and safety.

Features and Highlights

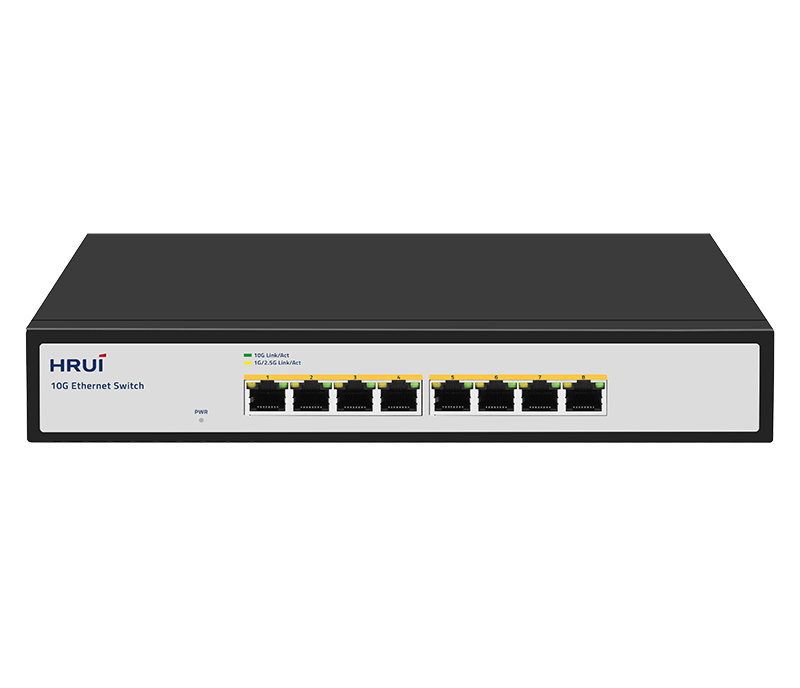

• 8 *10G RJ45 ports
• Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3 bz, IEEE 802.3 ae, IEEE 802.3. x, IEEE 802.3az
• RJ45 port supports 100/1000Mbps/2.5G/5G/10G adaptive
• Supports automatic port flipping (automatic MDI/MDIX)
• The panel indicator lights will monitor the working status and assist in fault analysis
• Flow control mode, full duplex using IEEE802.3x standard, half duplex using backpressure standard
