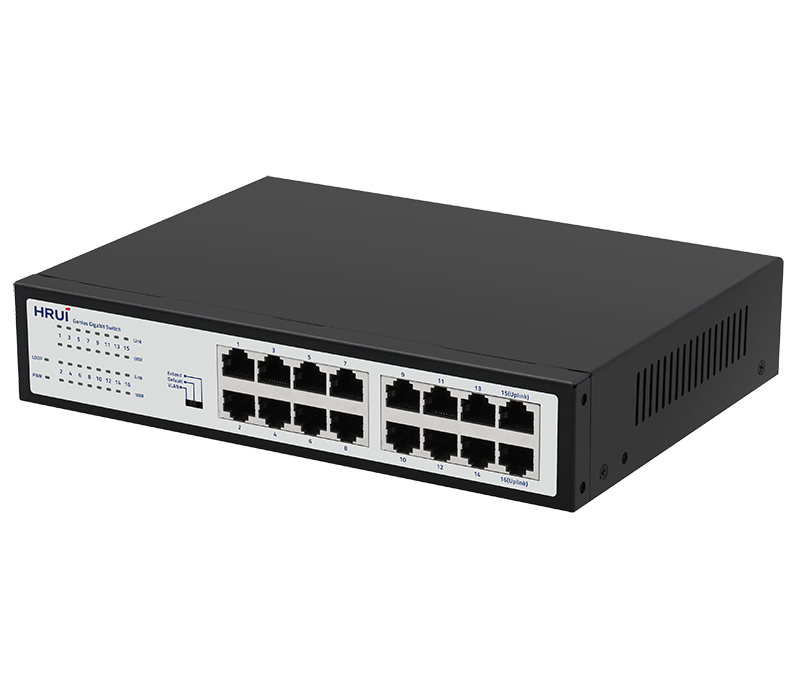

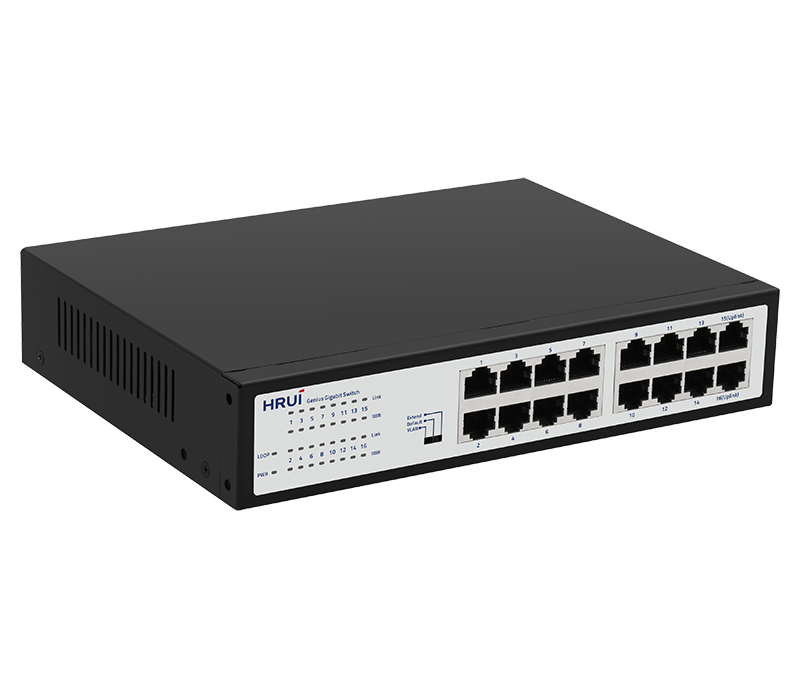

HR-SWG10160D-M - 16-Port Gigabit Ethernet Switch
Enhance your network performance with the HR-SWG10160D-M 16-Port Gigabit Ethernet Switch. Designed for seamless connectivity and superior data transfer rates, this robust switch is perfect for both small and medium-sized businesses, as well as home networks. With its advanced features and user-friendly design, you can ensure efficient network management and optimal usage of your bandwidth.
- Feature sand Benefits
- Parameter
- Product structure
- Application topology
Enhance your network performance with the HR-SWG10160D-M 16-Port Gigabit Ethernet Switch. Designed for seamless connectivity and superior data transfer rates, this robust switch is perfect for both small and medium-sized businesses, as well as home networks. With its advanced features and user-friendly design, you can ensure efficient network management and optimal usage of your bandwidth.
Product Features:
16 Gigabit RJ45 Ports: Equipped with 16 high-speed 1G RJ45 ports for a robust and scalable network solution.
Industry Standards Compliance: Fully compliant with IEEE802.3, IEEE802.3u, and IEEE802.3ab standards to ensure compatibility and reliability.
Port Adaptation: Each RJ45 port supports automatic adaptation to 10M, 100M, and 1G speeds, ensuring optimal performance for all connected devices.
Auto MDI/MDIX Technology: Automatically detects and configures the appropriate cable type, eliminating the need for manual crossover cables.
LED Status Indicators: Convenient panel LED indicators provide real-time monitoring of working status, simplifying fault diagnosis and management.
Multiple Operating Modes: Supports VLAN, Default, and Extend modes for versatile networking options tailored to your specific needs.
Advanced Flow Control: Adopts IEEE802.3x standard for full-duplex flow control and Backpressure standard for half-duplex, ensuring a stable data transfer environment.
Quality of Service (QoS): Ports 1-8 are equipped with QoS data priority support, optimizing network performance for critical applications.
Loop Alarm Feature: Integrated loop alarm functionality helps detect and alert users of loop issues, enhancing network reliability.
Description | Specification |
Model | HR-SWG10160D-M |
Interface | 16 *1G RJ45 ports |
Port Standard | IEEE802.3 (Ethernet) |
IEEE802.3u (Fast Ethernet) | |
IEEE802.3ab (Gigabit Ethernet) | |
IEEE802.3x (Flow Control) | |
Bandwidth | 32Gbps |
Packet Forwarding Rate | 23.8Mpps |
Packet Buffer | 4.1Mbit |
MAC Address Table | 8K |
Transmission Method | Store and Forward |

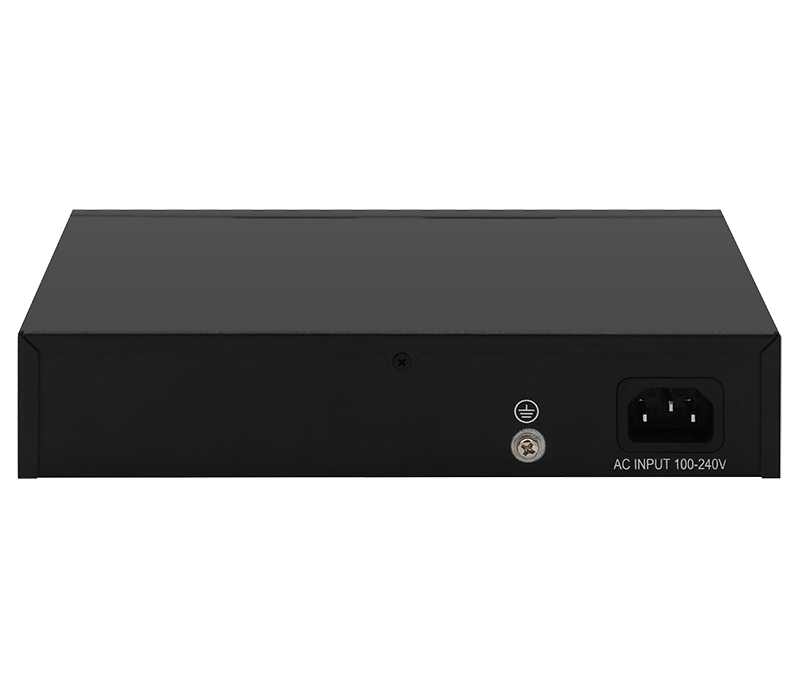

Power Supply | AC 100-240V , 50/60Hz |
DC 12V 1A | |
Mainboard Power Consumption | 6.78W |

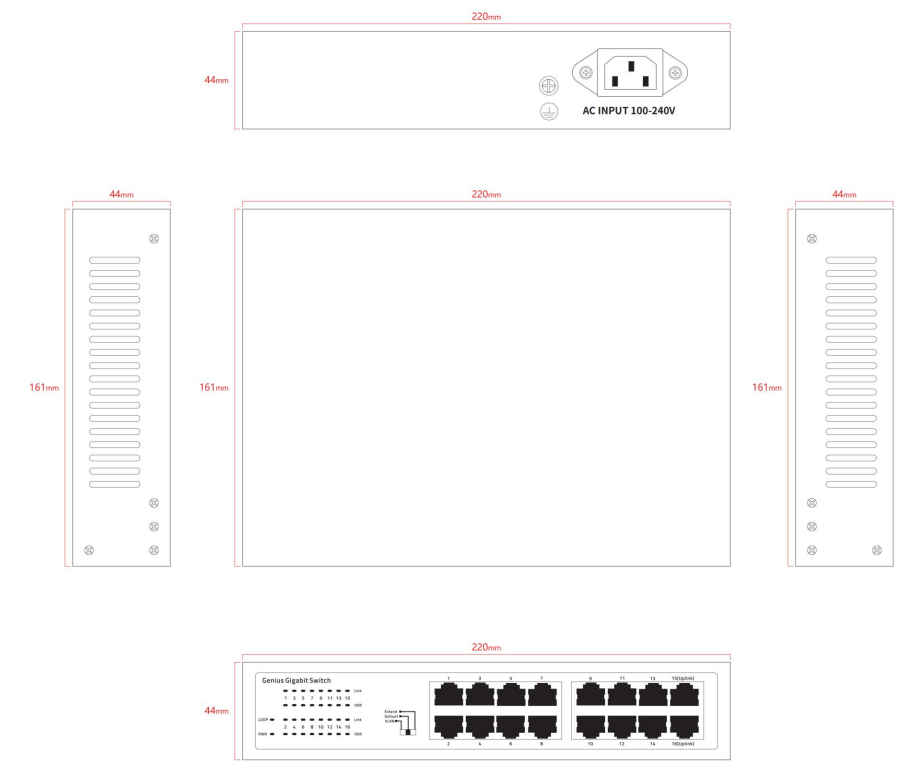

Structure Information | Product Dimensions :220*161*44.5mm |
Packaging Dimensions :315*215*85mm | |
Product Net Weight:0.90KG | |
Product Gross Weight:1.42KG (with hanging ears) 1.24KG (without hanging ears) | |
Packing Information | Carton Dimensions :445*445*335mm |
Packing Quantity: 10PCS | |
Packing Weight: 15.2KG (with hanging ears) 13.4KG (without hanging ears) | |
Package Contents | Switch 1pcs, power cord 1pcs, manual 1pcs,certificate of qualification 1pcs |
Fan Quantity | 0 |
Installation | Desktop |
Surge Protection | Port Surge: Common mode 4KV, differential mode 2KV |
Electrostatic ESD: Air 8KV, Contact 6KV | |
Operating Temperature | 0~40°C |
Storage Temperature | -40 °C to 70 °C |
Operation Humidity | 10%~90%,non condensing |
Storage Humidity | 5%~95%,non condensing |
PWR LED | Green LED On: Powered on |
Green LED Off: Powered off | |
Loop LED | Green LED On:Closed loop |
Green LED Off: Not looped | |
Link LED | Green LED On:10M/100M link normal |
Green LED Off: Link blocked | |
Flashing: Data transmitting | |
1000M LED | Green LED On:1G Link normal |
Green LED Off:10/100M Link normal | |
Flashing: Data transmitting | |
VLAN/Default/Extend Modes Buttons | VLAN (port isolation): 1-14 ports are isolated from each other and all communicate with 15-16 ports; |
Default (default mode): All ports communicate with each other; | |
Extend (monitoring mode): 1-14 ports support 100Mbps speed reduction negotiation, support 250 meters in 10Mbps mode, and 15/16 ports serve as aggregation; |
