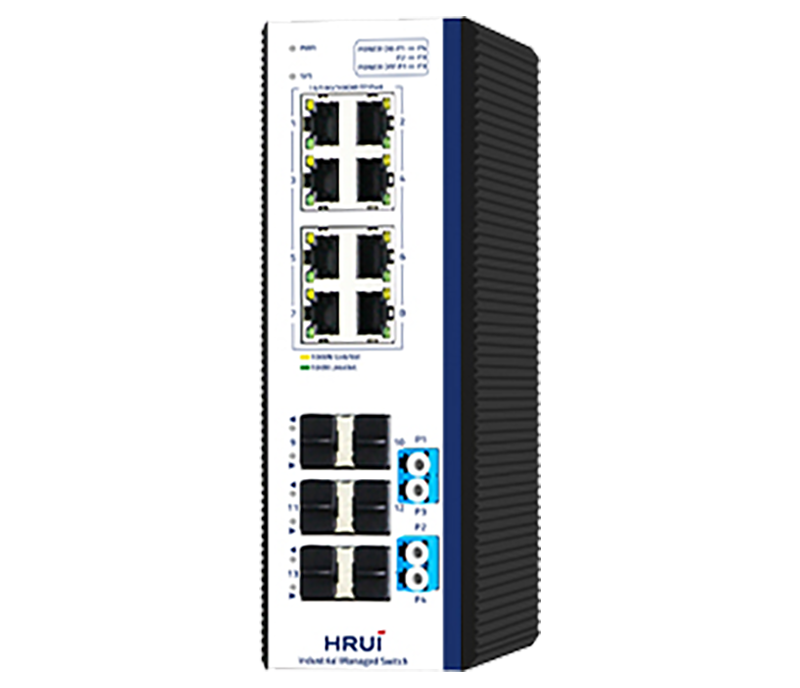

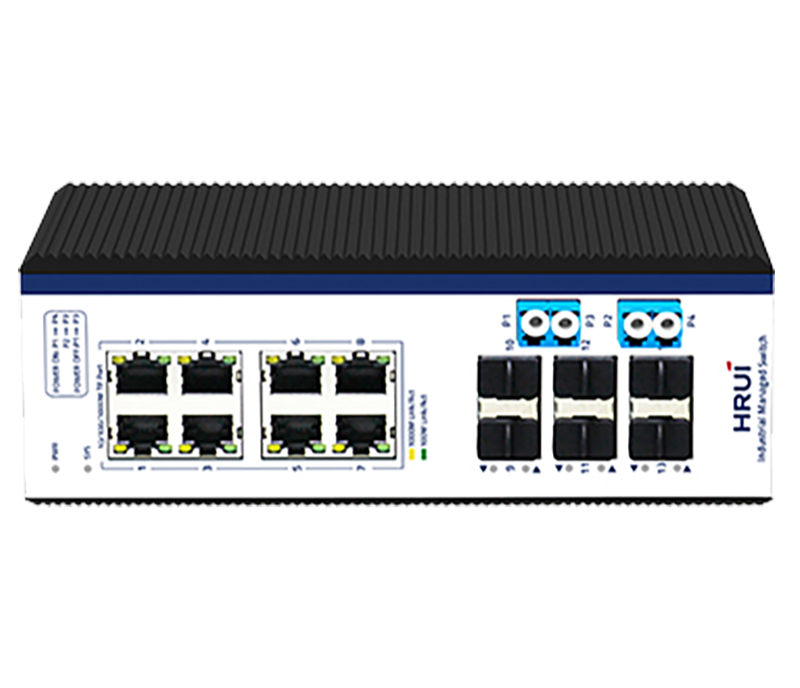

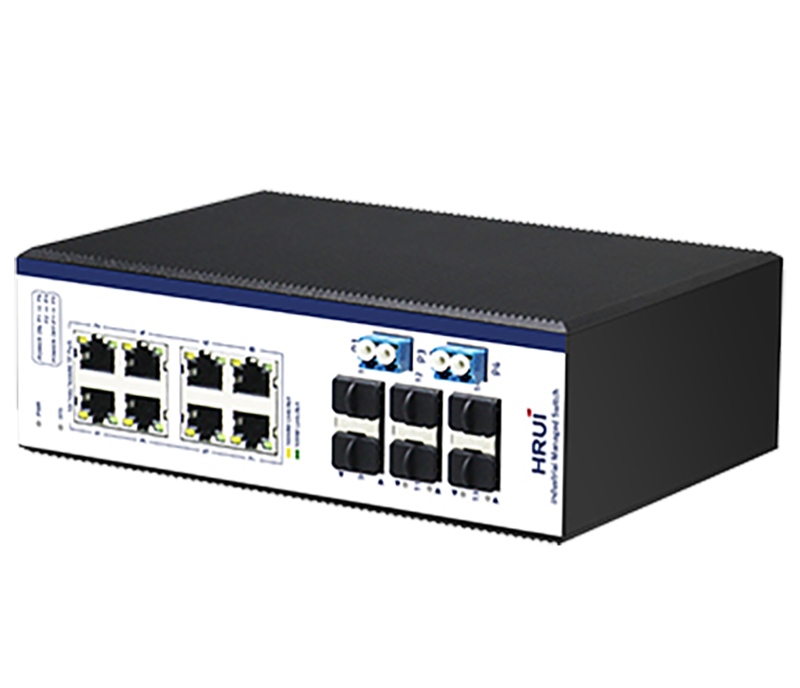

The HR600-SWG2086AS-BP is a robust 14-Port Gigabit Industrial Ethernet Switch designed for high-performance networking in demanding industrial environments. It offers a versatile configuration with 8 Gigabit ports and 6 Gigabit SFP ports (ports 13 and 14 supporting 2.5G, compatible with 1.25G/155M), plus a dedicated console port. The switch supports both DIN rail and wall mounting for flexible installation options.

Built to withstand extreme conditions, this industrial switch operates within a -40 to 75°C temperature range and features dual power input (DC12-55V). It meets rigorous industrial certifications, including FCC, CE, CCC, and RoHS, ensuring compliance with international standards for quality and reliability. The HR600-SWG2086AS-BP is ideal for use in a variety of sectors, including wind power, electric power, assembly automation, subway passenger information systems (PIS), electric power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transport, and military applications.

This energy-efficient switch incorporates advanced network management features such as rapid redundancy protocols, loop protection, VLAN support, Quality of Service (QoS), speed control, port mirroring, and online firmware upgrades. Its rugged design and industrial-grade components guarantee stable operation, thereby ensuring the integrity of automation systems even in challenging conditions.

Product Features:

Flexible Port Configuration: 8 Gigabit Ports + 6 Gigabit SFP Ports (Ports 13-14 support 2.5G, compatible with 1.25G/155M), plus 1 Console Port.

Compliance with Standards: Supports IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab, IEEE802.1q, IEEE802.1p, IEEE802.1d/w.

Spanning Tree Protocols: Includes STP (802.1D), RSTP (802.1w), 802.1s (MSTP), and ERPS for increased network reliability.

Advanced Management: Compatible with SNMP v1/v2/v3 for network management, IGMP Snooping, Static multicast filtering, and MLD Snooping.

Enhanced Security Features: Supports 802.1x port authentication with AAA certification to enhance network security.

User-friendly Management Interfaces: Manage via WEB, Telnet, CLI, or SSH.

Durable Design: IP40 protection rating with a rugged metal housing ideal for industrial applications. DIN35 rail mounting support.

EMC Compliance: EMC grade 4 design, ensuring performance stability in electromagnetic environments.

Extreme Temperature Operation: Designed to function within a wide -40 to 75°C temperature range.

Redundant Power Supply: Supports redundant power supply connections with anti-reverse connection features.

Lightning Protection: Integrated port lightning protection with Surge ratings of 6KV (Common Mode) and 2KV (Differential Mode), along with 15KV ESD protection, complying with EMC EN55032 standard.
