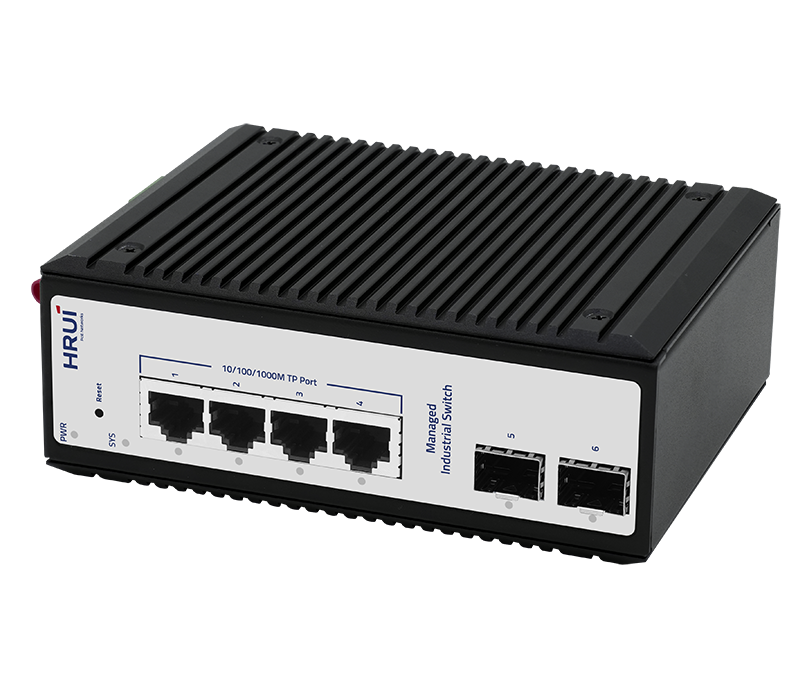

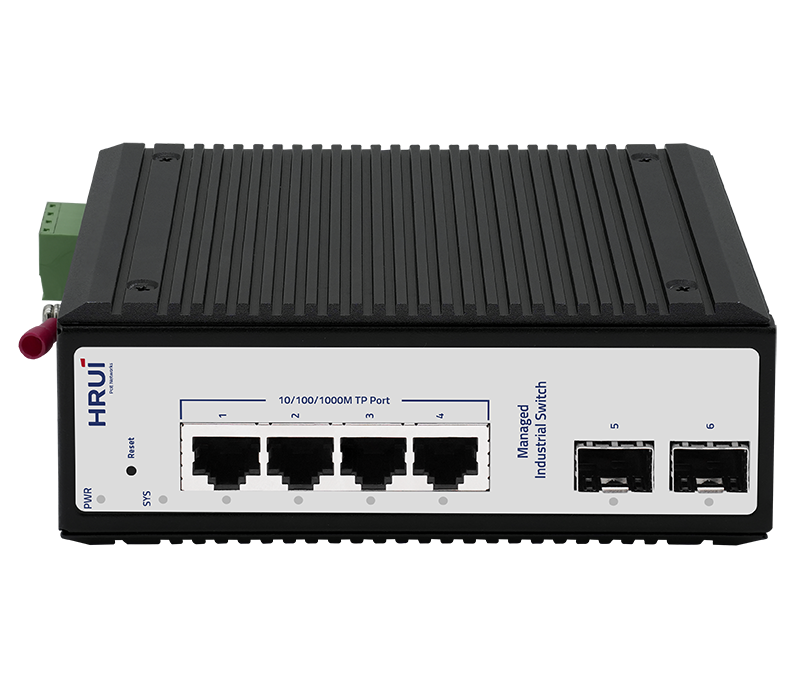

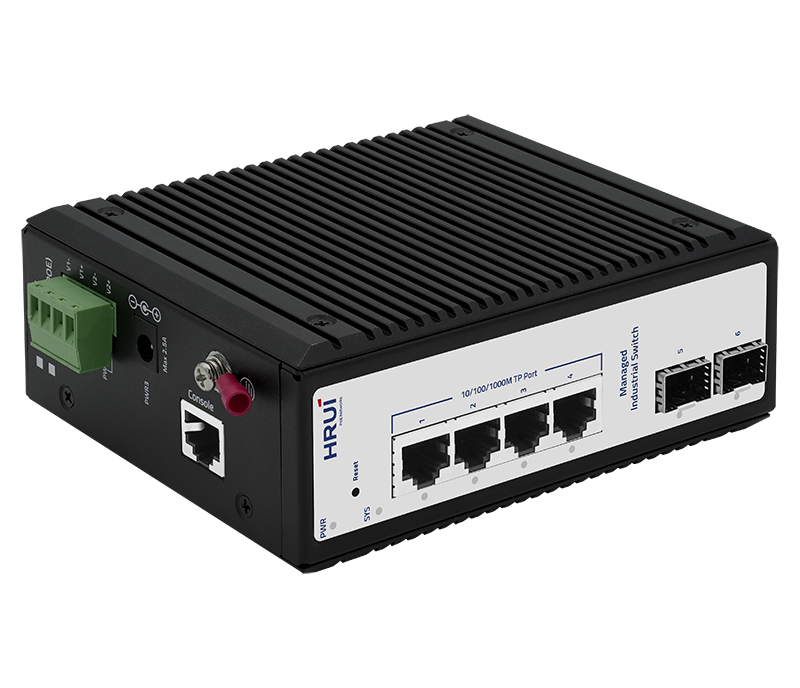

The HR722S-4T2GS is a high-performance, 6-port gigabit industrial managed switch designed for demanding applications in harsh environments. With its robust feature set and rugged design, this switch is ideal for industries that require reliable, high-speed networking.

Product Features:

Standards Compliance: Supports IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab, IEEE802.1Q, IEEE802.1p, and IEEE802.1d/w

Cloud Management: Utilize HRUI Cloud Management for remote monitoring and management, ensuring seamless network optimization and troubleshooting.

Network Management: Supports SNMP v1/v2/v3 Simple Network Management Protocol for efficient network administration.

Multicast Filtering: Features IGMP Snooping, static multicast filtering, and MLD Snooping filtering for optimized network performance.

Enhanced Security: Supports 802.1x port authentication and AAA authentication to ensure network security and integrity.

Management Options: Offers WEB, Telnet, CLI, and SSH management for flexibility and convenience.

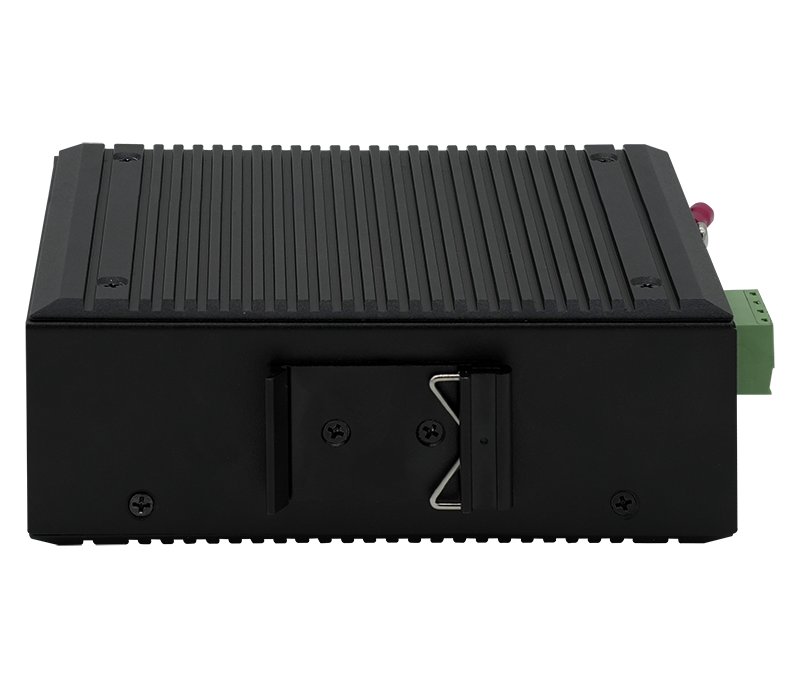

Durable Design: Constructed with an IP40 protection level and housed in a sturdy aluminum shell, this switch is engineered for DIN35 rail installation and can withstand harsh conditions.

Industrial-Grade Reliability: Designed for extreme environments with a 4-level industrial grade rating and operates effectively in temperatures ranging from -40°C to 75°C.

Redundant Power Supply: Offers redundant power supply connections with reverse polarity protection for uninterrupted operation.

The HRUI Gigabit Managed Industrial Switch Series is specifically designed to meet diverse application needs, offering flexible port combination solutions. This series of switches supports a rich set of L2+ management features, providing high operability and flexibility, while also supporting HRUI cloud management to ensure convenient remote monitoring and management for users.

Adhering to industrial-grade design, the products are equipped with redundant power input to ensure high system reliability. The high-strength IP40 aluminum casing not only provides excellent heat dissipation performance but also maintains stable operation under extreme conditions (-40°C to 75°C), meeting the rigorous requirements for high and low-temperature environments. With its outstanding performance and reliability, this series of switches is widely used in fields such as industrial automation, intelligent transportation, and security monitoring.

Flexible Port Combinations for Diverse Needs

Providing a variety of port types and configurations to meet various network connectivity requirements.

Supports L2+ Network Management

This product offers a comprehensive suite of L2+ network management features, including support for VLAN, port mirroring, traffic control, LACP, QoS, and DHCP Snooping, among others. It is designed to meet a variety of complex network requirements, enhancing network security, reliability, and scalability.

Unified Management in the Cloud: Accessible, Scalable, and Efficient

Provide cloud-based management for remote equipment monitoring and control, simplifying detection, configuration, deployment, and maintenance to reduce costs and improve efficiency and reliability.

Secure Networking

The products feature advanced cybersecurity measures, including SSHv2 and SNMPv3 protocols, to protect against cyber threats. Its robust security capabilities enhance switch management while maintaining cost-effective deployment for critical network operations.

Enhanced Fiber Module DDM Capabilities

Support for Fiber Module DDM (Digital Diagnostic Monitoring) includes tracking key parameters such as transceiver supply voltage, temperature, transmitter bias current, transmitter output power, and received optical power. By analyzing these metrics, you can effectively diagnose issues that may be affecting the transceiver optics performance.

Industrial Design Enabling Durable Applications

The products feature aluminum alloy casings, offering exceptional heat dissipation and mechanical strength. They are capable of stable operation across a broad temperature range (-40°C to 75°C), making them particularly suitable for application scenarios such as industrial sites and outdoor base stations.

Triple Power Input Design

The device features triple power inputs, enabling you to deploy multiple power sources for enhanced reliability and redundancy. This design guarantees that your system stays operational during power failures or unexpected shutdowns.

APPLICATION

SPECIFICATION
