HR600-AFGM-82S - 10-Port Gigabit Industrial Managed PoE Switch
Full Gigabit ring network industiral managed PoE switch, with 8*Gigabit PoE ports + 2*Gigabit uplink SFP ports + 1*Console port, bandwidth 20Gbps, Layer 2 management, support ERPS protocol, ring network redundancy, IP40 protection, Surge 6KV, ESD 15KV, DC48-55V power input, redundant power supply, adapt to -40°C~+85°C wide temperature
- Feature sand Benefits
- Parameter

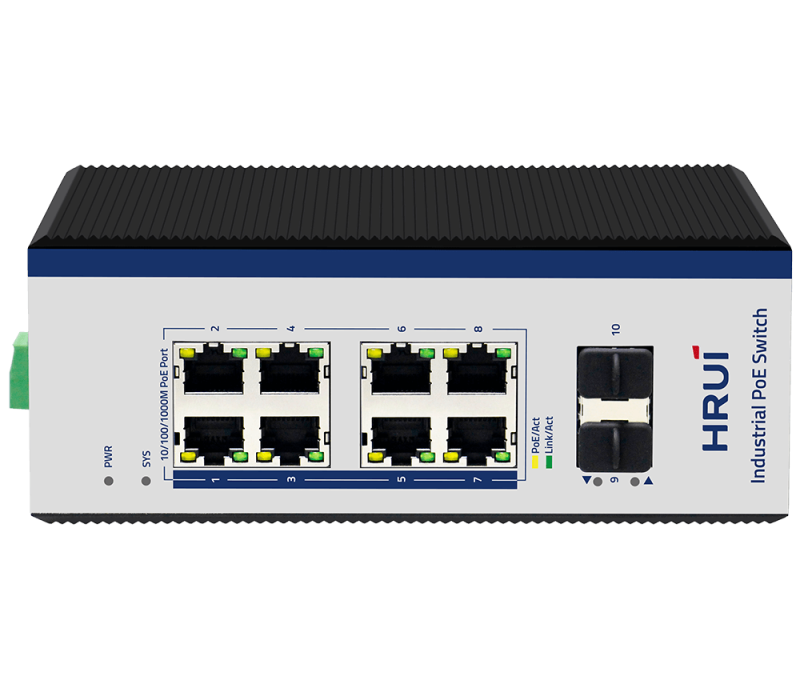

- Product structure
- Application topology

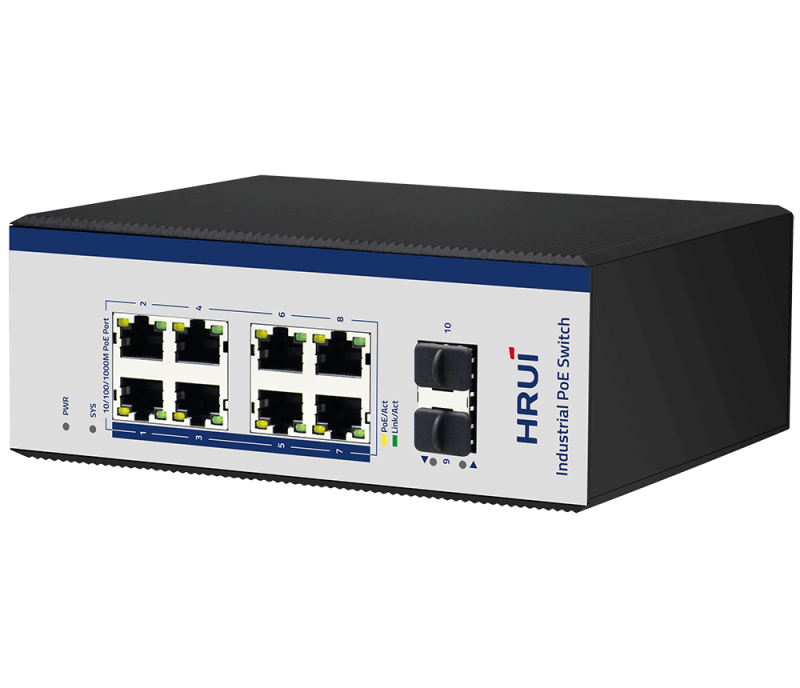

HR600-AFGM-82S, a robust full gigabit industrial managed PoE switch designed for demanding environments. This professional-grade switch features 8 Gigabit PoE ports, 2 Gigabit uplink SFP ports, and 1 console port, delivering a total bandwidth of 20Gbps. With comprehensive Layer 2 management capabilities, it supports the ERPS protocol for enhanced ring network redundancy. Built to withstand extreme conditions, the HR600-AFGM-82S offers IP40 protection, a surge tolerance of 6KV, ESD protection of 15KV, and operates efficiently within a wide temperature range of -40°C to +85°C. Additionally, it features dual DC48-55V power input with a redundant power supply for uninterrupted operation.
Product Features:
Standards Compliance: Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z/ab, IEEE 802.1Q, IEEE 802.1p, and IEEE 802.1d/w.
PoE Management: Features PoE power management and a PoE watchdog based on data flow detection for enhanced control.
Power Over Ethernet Support: Supports PoE standards IEEE802.3af (15.4W) and IEEE802.3at (30W) for versatile powering of devices.
Robust SNMP Management: Supports SNMP v1/v2/v3 for effective network management and monitoring.
Advanced Traffic Management: Includes IGMP Snooping, static multicast filtering, and MLD Snooping filtering to optimize network performance.
Network Redundancy Protocols: Compatible with STP (802.1D), RSTP (802.1w), MSTP (802.1s), and ERPS for reliable network operations.
Enhanced Network Security: Supports 802.1x port authentication and AAA authentication protocols to safeguard your network.
Multiple Management Interfaces: Management via WEB, Telnet, CLI, and SSH for user-friendly access and control.

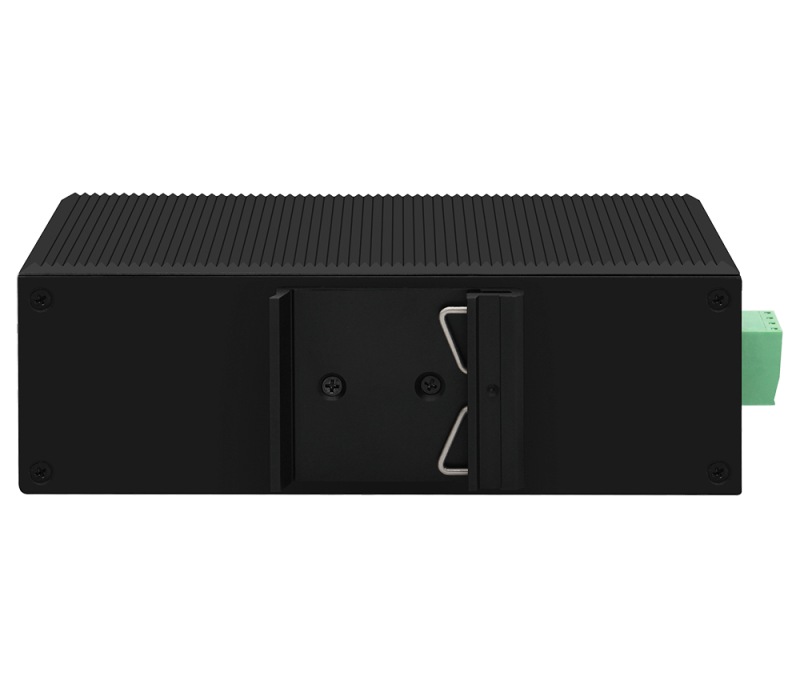

Durable Build Quality: With an IP40 protection level and a high-strength housing, it is designed for industrial-grade applications and can be mounted on DIN35 rails.
Extreme Operating Range: Specifically engineered for industrial environments, with an operational temperature range of -40°C to +75°C.
Reliable Power Supply Features: Supports redundant power supply connectivity with protection against reverse polarity connections for added safety.
| Description | Specification |
| Model | HR600-AFGM-82S |
| Interface | 8 *1G PoE ports |
| 2 *1G SFP ports | |
| 1 * Console port | |
| Port Standard | IEEE802.3 (Ethernet) |
| IEEE802.3u (Fast Ethernet) | |
| IEEE 802.3ab (Gigabit Ethernet) | |
| IEEE 802.3z (Gigabit Ethernet Fiber Standard) | |
| IEEE802.3x (Flow Control) | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| Bandwidth | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| Packet Buffer | 4.1Mbit |
| MAC Address Table | 8K |
| Jumbo Frame | Support |
| VLAN | VLAN range 1-4094, maximum active VLAN is 4K |
| Transmission Method | Store and Forward |
| PoE Standard | IEEE802.3af （15.4W） |
| IEEE802.3at （30W） | |
| PoE Port Output Voltage | DC 48-55V |
| PoE Ports | Port 1-8 PoE power output <30W |
| PoE Power Budget | According to the adapter |
| Power Supply | DC12～55V |
| DC48～55V (PoE) | |

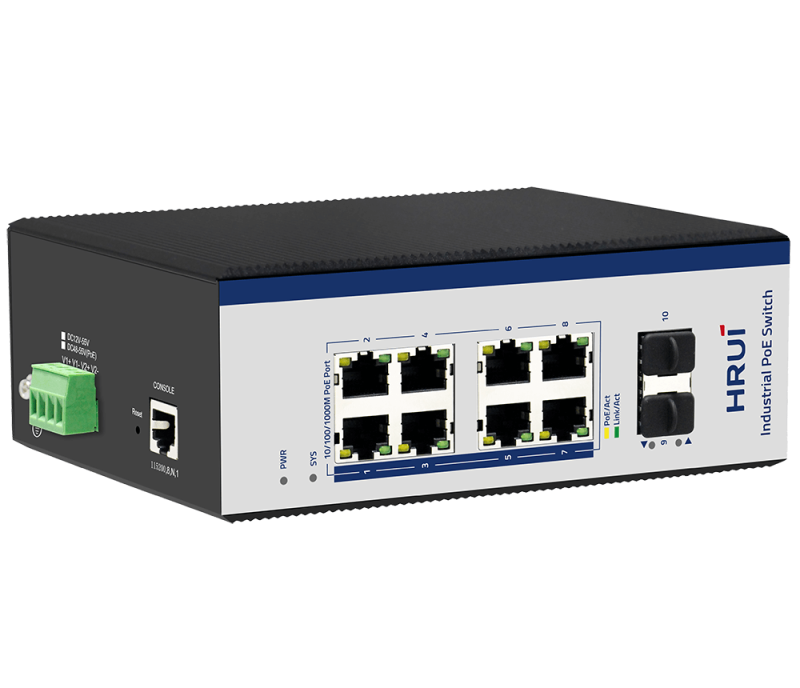

| Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-） | |
| Mainboard Power Consumption | 9.8W |

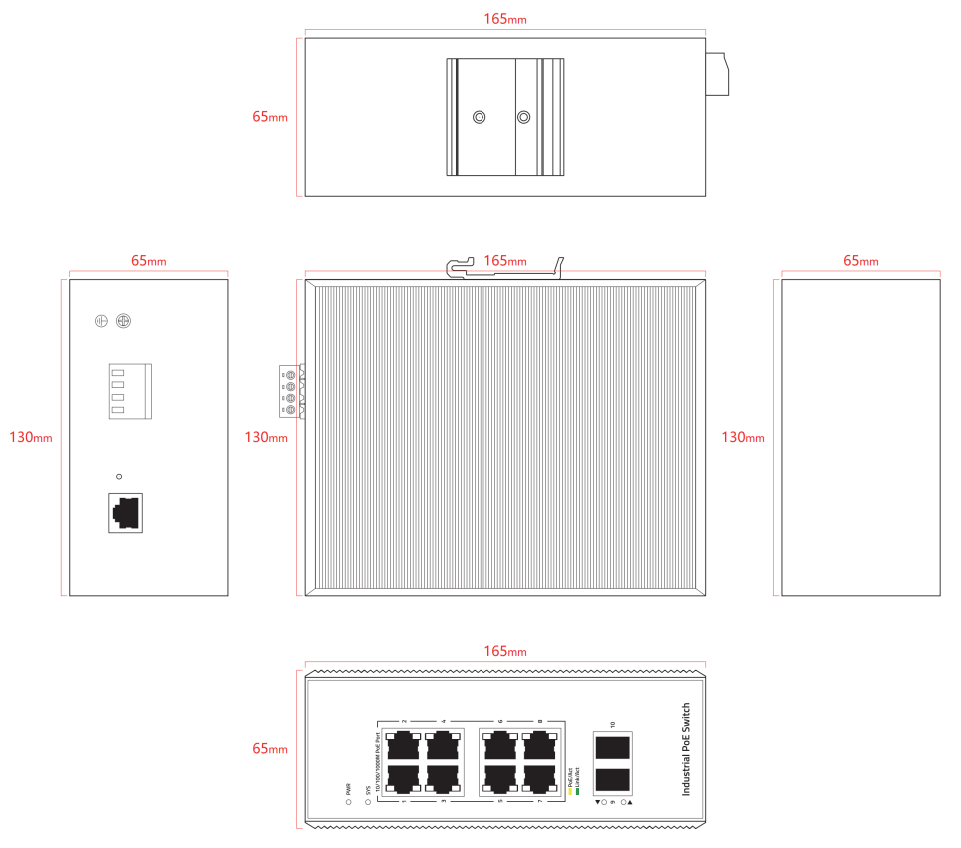

| Structure Information | Product Dimensions :165*130*65mm |
| Packaging Dimensions : 242*207*86mm | |
| Product Net Weight: 0.8KG | |
| Product Gross Weight: 1.1KG (excluding power supply) | |
| Packing Information | Carton Dimensions :445*445*510mm |
| Packing Quantity: 20PCS | |
| Packing Weight:23KG | |
| Package Contents | Switch 1pcs, Serial cable 1pcs,manual 1pcs,certificate of qualification 1pcs |
| Fan Quantity | 0 |
| Certification | CE、FCC、RoHS |
| Installation | Desktop,wall mounting installation, rail installation |
| Surge Protection | Port Surge: Common mode 6KV, differential mode 2KV |
| Electrostatic ESD: Air 15KV, Contact 8KV | |
| Operating Temperature | -40 ~ 75°C |
| Storage Temperature | -40～85℃ |
| Operation Humidity | 10%~90%，non condensing |
| Storage Humidity | 5%~95%，non condensing |
| PWR Green LED | On: Powered on |
| Off: Powered off | |
| SYS Green LED | On: The system is running normally |
| Off:The system is not running | |
| 1-8 Green LED | Slow Flashing: 10/100/1G Link normal |
| Off: Link blocked | |
| Fast Flashing: Data transmitting | |
| 1-8 Yellow LED | On: PoE powered on |
| Off: PoE powered off | |
| G9-G10 Green LED | On: 10/100/1G Link normal |
| Off: Link blocked | |
| Flashing: Link data transmission | |
| RESET | Long press for 6 seconds to restore factory settings |
| Software Features | |
| L2 Function | |
| IPv4 | IPv4 VLAN Interface |
| IPv4 Static Routes | |
| ARP | |
| Port | Port Switch configuration |
| Port Description configuration | |
| Port Speed configuration | |
| Port Duplex configuration | |
| Port Flow Control configuration | |
| Jumbo Frame | |
| EEE | |
| Fiber Module(DDM) | |
| Link Aggregation | Supports load balance policy; Base on MAC and IP-MAC |
| Static and Dynamic Group | |
| Supports LACP | |
| Storm Control | Boardcast suppression |
| Unknown Multicast | |
| Unknown Unicast | |
| Port Mirroring | One to one monitor |
| Many to one monitor | |
| Ingress/Egress/Both | |
| Port Security | MAC Address Constraints |
| Action: Trap/Shutdown | |
| Port Isolation | Support |
| Port Rate-limit | Support |
| Loopback Detection | Support |
| VLAN | Access/Trunk/Hybrid |
| VLAN Tunnel (Q-in-Q Tunnel) | |
| GVRP | |
| VLAN range 1-4094, maximum active VLAN is 4K | |
| MAC Address | Dynamic MAC address |
| Static MAC address | |
| Spanning Tree Protocol | STP/RSTP/MSTP |
| BPDU Filter | |
| BPDU Guard | |
| Edge Port | |
| ERPS | Major and sub ring |
| up to 16 rings | |
| Smart Ring | Private Ring |
| Major and sub ring | |
| Up to 16 rings | |
| PTP | Ordinary Clock |
| Boundary Clock | |
| Transparent clock | |
| LLDP | Support |
| Multicast | IGMP Snooping |
| IGMP V1/V2/V3 | |
| Router Port | |
| Static IGMP group address | |
| IGMP groups filtering | |
| Querier | |
| MLD Snooping | |
| QoS | Traffic classification based, Strict priority and WRR |
| Port Priority | |
| 802.1P Priority | |
| IP DSCP Priority | |
| Supports up to 8 queues per port | |
| Port Shaping | |
| PoE | |
| PoE Configuration | PoE Temperature |
| PoE Type/Level/Power/Voltage/Current query | |
| PoE Switch Configuration | |
| PoE Watchdog | |
| Total PoE power budget control | |
| PoE power management | |
| PoE port priority | |
| Per PoE port power limit | |
| PoE Schedule | Support |
| PoE Port Timer Reboot | Support |
| Services | |
| DHCP | DHCP Server |
| IP Pool | |
| Static Binding | |
| DHCP Relay | |
| Access Protocol | HTTP |
| Telnet | |
| SSH | |
| Manager ACL | |
| Security | |
| AAA | RADIUS |
| TACACS+ | |
| 802.1X | |
| Base on port/MAC/local/WEB | |
| DHCP Snooping | Support |
| IP Source Guard | Support |
| Dynamic ARP Inspection | Support |
| ACL | MAC ACL |
| Port ACL | |
| IPv4 ACL | |
| IPv6 ACL | |
| Diagnostics | |
| Syslog | Logging Message |
| Remote Server | |
| Ping | Support |
| Traceroute | Support |
| Cable Diagnositics | Support |
| Equipment Management | |
| Manager Access | Console |
| HTTP | |
| Telnet | |
| SSHv2 | |
| SNMP | |
| Manager IP | Static Address |
| DHCP Client | |
| Supports IPv4 and IPv6 address | |
| DNS | |
| Time Synchronization | SNTP |
| Manual Time | |
| SNMP | V1/V2C/V3 |
| Community | |
| V3 User | |
| Group | |
| Trap Host | |
| SNMP MIB | RFC 1213 MIB-II |
| RFC 1493 Bridge MIB | |
| RFC 1643 Ethernet MIB | |
| RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) | |
| RFC 2863 Interface MIB | |
| Private MIB | |
| RMON | Statistics |
| History Configuration | |
| Event Configuration | |
| Alarm Configuration | |
| User Management | Congurable user privilege level from 0 - 15; |
| Firmware Management | Firmware upgrade |
| Double Image; Swap between Active and Alternate firmware image. | |
| Configuration Management | Upload and download |
| Save | Support |
| Restart | Support |
| Factory Defaults | Support |
| Standard Compliance | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3ad port trunk with LACP | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1s Multiple Spanning Tree Protocol | |
| IEEE 802.1p Class of Service | |
| IEEE 802.1Q VLAN tagging | |
| IEEE 802.1x Port Authentication Network Control | |
| IEEE 802.1ab LLDP | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| RFC 768 UDP | |
| RFC 793 TFTP | |
| RFC 791 IP | |
| RFC 792 ICMP | |
| RFC 2068 HTTP | |
| RFC 1112 IGMP v1 | |
| RFC 2236 IGMP v2 | |
| RFC 3376 IGMP v3 | |
| RFC 2710 MLD v1 | |
| FRC 3810 MLD v2 | |
| ITU-T G.8032 ERPS Ring | |
