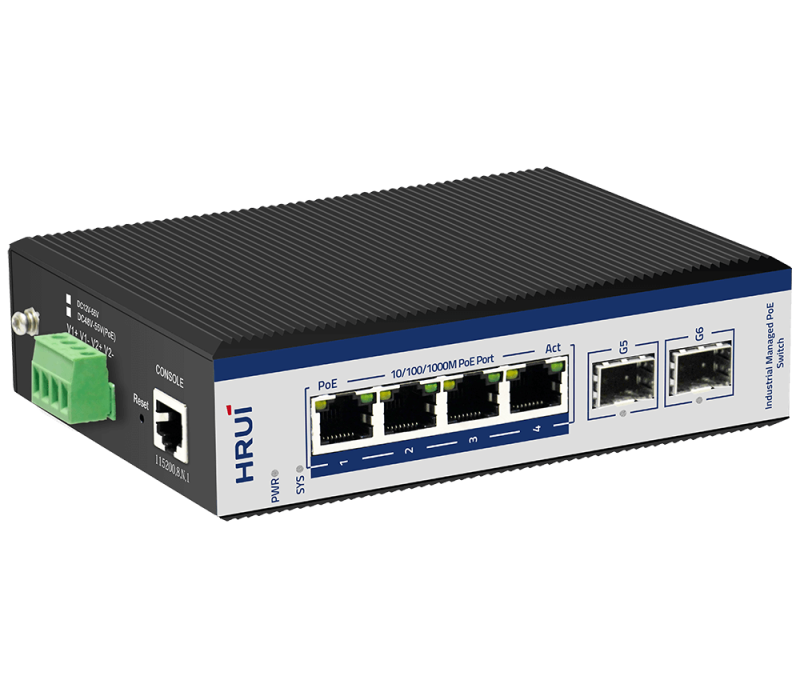

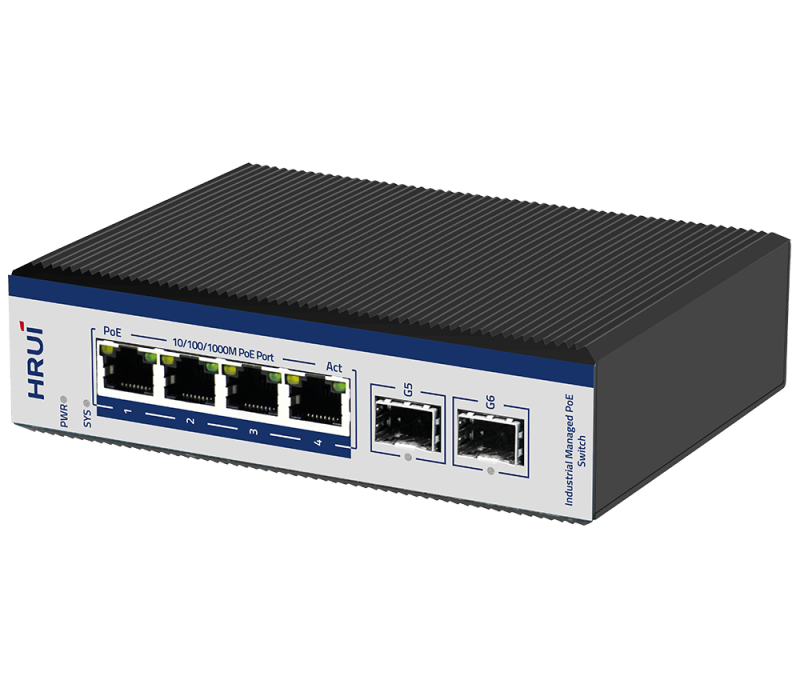

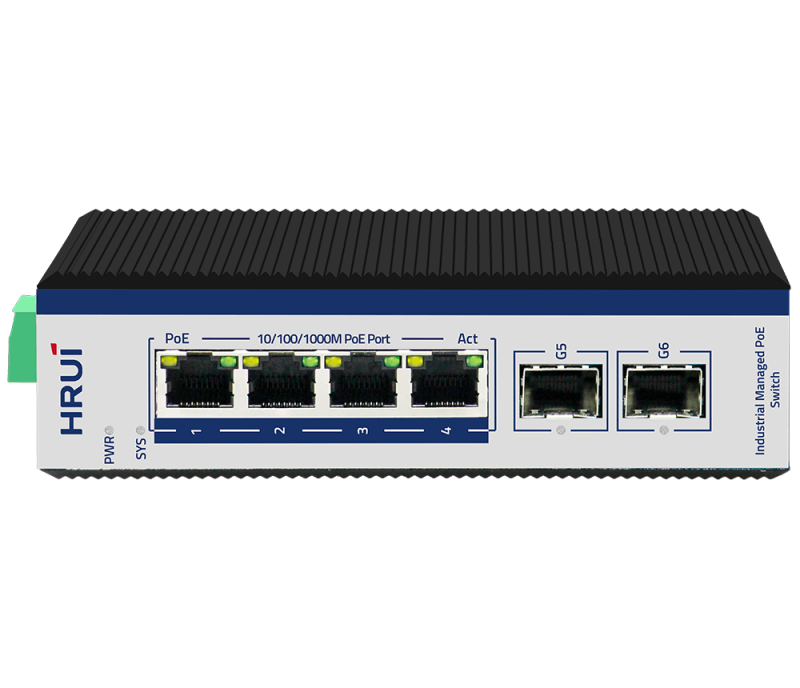

The HR600-AFGM-42S is a robust and efficient 6-Port Gigabit Industrial Managed PoE Switch designed for high-performance networking in demanding environments. Featuring a total of 4 Gigabit PoE ports, 2 Gigabit uplink SFP ports, and 1 console port, this switch supports a substantial bandwidth of 12 Gbps. With advanced Layer 2 management capabilities, it efficiently utilizes the ERPS protocol for ring network redundancy, ensuring uninterrupted connectivity.

Engineered to withstand extreme conditions, the HR600-AFGM-42S boasts an IP40 protection rating, safeguarding against dust and harsh environments. It is equipped with surge protection up to 6KV and ESD protection up to 15KV, making it ideal for industrial applications. The device operates on a DC power input of 48-55V and supports a redundant power supply, ensuring reliability. With an operating temperature range of -40°C to +85°C, this switch is built to perform in the toughest conditions.

Product Features:

Standards Compliance: Fully compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab, IEEE802.1Q, IEEE802.1p, and IEEE802.1d/w for compatibility and performance.

PoE Management: Offers PoE power management and innovative PoE watchdog functionality, allowing for intelligent power cycling based on data flow detection.

Power Over Ethernet Support: Compatible with IEEE802.3af (15.4W) and IEEE802.3at (30W) standards for efficient power distribution.

Network Management: Supports SNMP v1/v2/v3 for comprehensive monitoring, along with IGMP Snooping, static multicast filtering, and MLD Snooping filtering for enhanced traffic management.

Protocol Support: Incorporates STP (802.1D), RSTP (802.1w), MSTP (802.1s), and ERPS for advanced network redundancy and resilience.

Security Features: Security Features: Implements 802.1x port authentication and AAA authentication to fortify network security and prevent unauthorized access.

User-Friendly Management: Provides multiple management interfaces, including WEB, Telnet, CLI, and SSH for versatile and convenient operation.

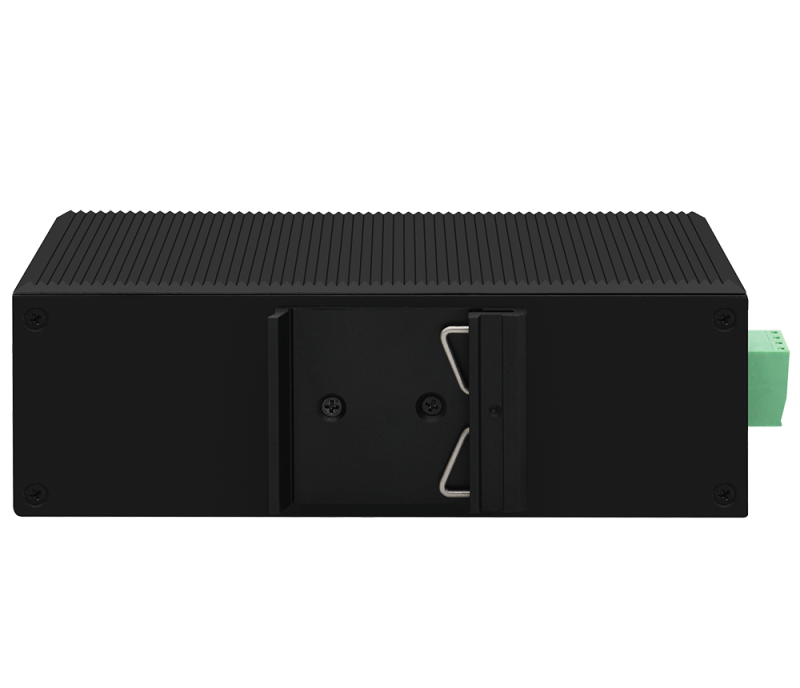

Robust Design: Features an IP40 protection rating and is housed in a high-strength casing, suitable for DIN35 rail installation, ensuring durability in industrial settings.

Extreme Temperature Operation: Designed for industrial grade applications with a temperature range of -40°C to +75°C, making it ideal for use in extreme conditions.

Redundant Power Supply: Facilitates secure connections for redundant power supplies while featuring anti-reverse connection capabilities to protect against erroneous wiring.
