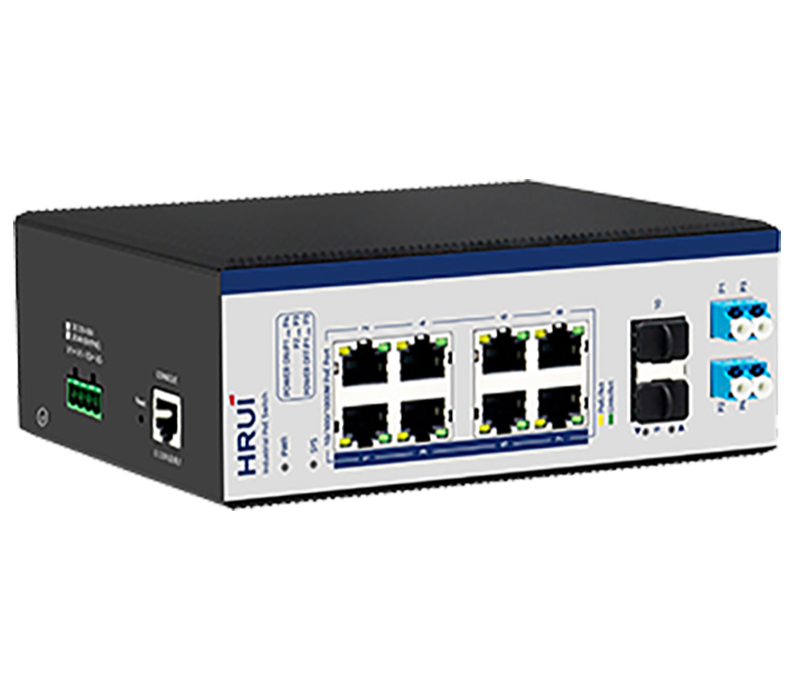

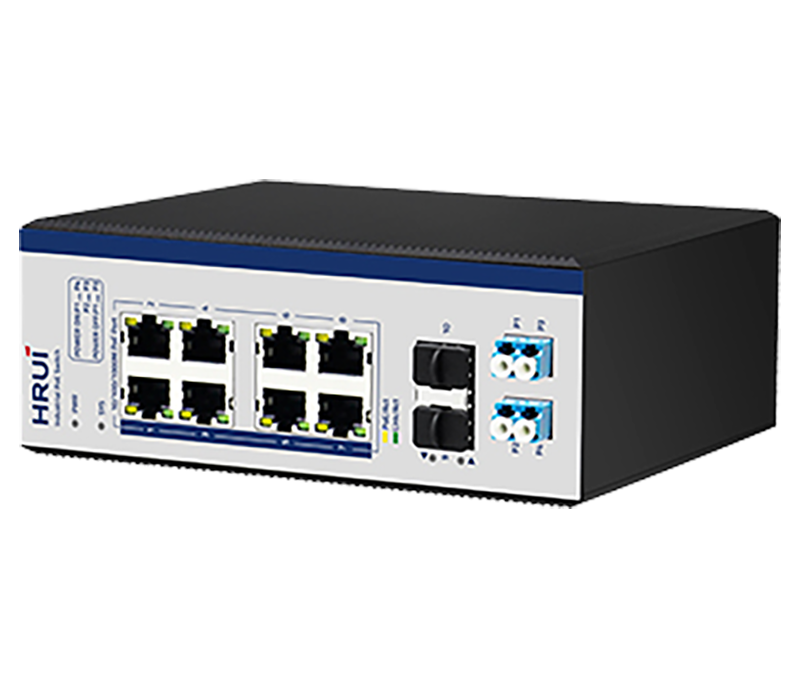

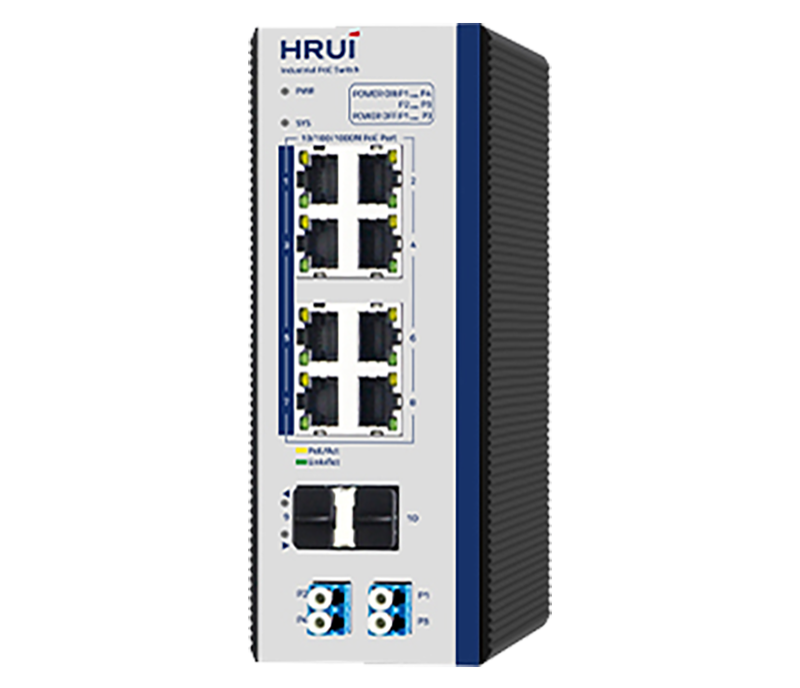

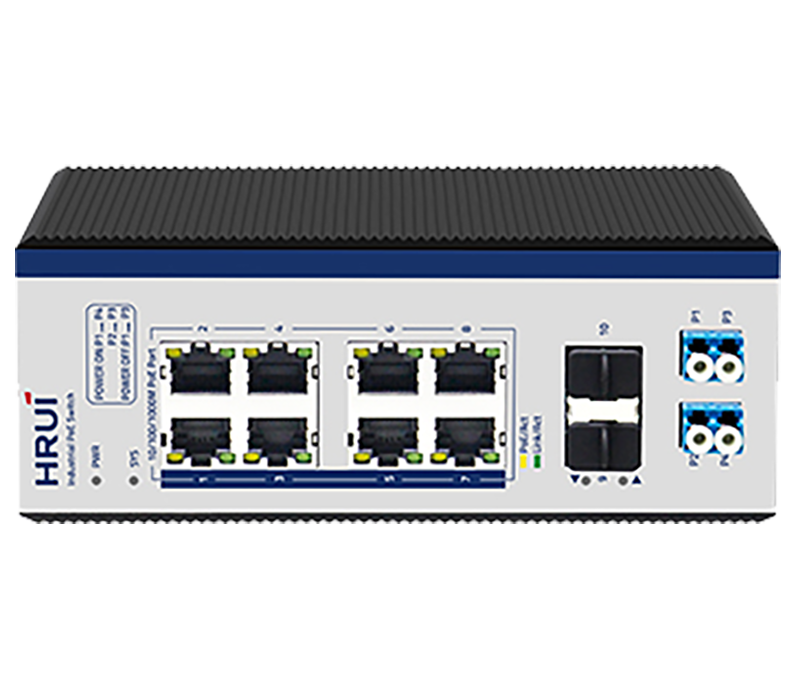

HR600-AFGM-82AS-BP, a robust 10-Port Gigabit Industrial Ethernet PoE Switch designed for seamless connectivity and reliability in demanding environments. This innovative switch features 8 Gigabit PoE Ports  and 2 *2.5G SFP Ports (fully compatible with 1.25G and 155M) along with an additional Console Port. It incorporates an integrated bypass protection function and offers versatile mounting options on Din rail or walls.

With dual power input support (DC 12-55V) and a wide operating temperature range of -40 to 75°C, this switch meets the rigorous standards of industrial environments, receiving certifications from FCC, CE, CCC, and RoHS. Its reliable industrial design ensures the stable operation of automation systems, making it suitable for various applications such as wind power, electric power, assembly automation, subway passenger information systems (PIS), electric power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military operations, and more. Additionally, it boasts energy-efficient performance, contributing to its status as a green, low-power industrial Ethernet switch.

The HR600 series is engineered with advanced network management capabilities, including redundant ring topology, loop protection, VLAN configuration, Quality of Service (QoS), speed control, port mirroring, and support for firmware online upgrades. Built with standardized industrial design principles, this switch fulfills the stringent requirements of industrial sites, ensuring enhanced reliability and uninterrupted safety communications through redundant, wide-voltage power inputs and outputs.

Product Features:

Port Configuration: 8 Gigabit PoE Ports + 2 *2.5G SFP Ports (compatible with 1.25G / 155M) + 1 Console Port.

Standards Compliance: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z / AB, IEEE802.1Q, IEEE802.1p, IEEE802.1d/w.

PoE Management: PoE Power Management with PoE Watchdog based on data stream detection.

Bypass Protection: Integrated bypass function for uninterrupted data flow.

PoE Standards Supported: IEEE802.3af (15.4W), IEEE802.3at (30W).

Spanning Tree Protocols: STP (802.1D), RSTP (802.1w), MSTP (802.1s), ERPS.

Network Security: Support for SNMP v1/v2/v3, IGMP snooping, static multicast filtering, and MLD snooping.

Authentication and Management: Supports 802.1x port access and AAA certification for enhanced security, with management options via WEB, Telnet, CLI, and SSH.

Durability: IP40 rated protection with a rugged, high-strength metal chassis, suitable for DIN35 rail mounting.

EMC Compliance: EMC grade 4 design, operating temperature range of -40 to 75°C.

Redundant Power Supply: Supports redundant power supply connections with anti-reverse protection.

Surge Protection: General 6KV, Differential 4KV; ESD ratings of 15KV (Air) and 8KV (Contact).

EMC Compliance: Adheres to EMC EN55032 standards for electromagnetic compatibility.
