HR600-AXGM-SWG20104AS-BP - 14-Port Gigabit Industrial 2.5G SFP Bypass Managed BT90W PoE Switch
2.5G ring network industiral managed BT90W PoE switch, integrated with Bypass protection function, 10*Gigabit PoE ports + 4*Gigabit uplink SFP ports + 1*Console port, 9-10 ports support BT90W power supply, 13-14 ports support 2.5G, bandwidth 34Gbps, Layer 2 management, support ERPS protocol, ring network redundancy, IP40 protection, Surge 6KV, ESD 15KV, DC48-55V power input, redundant power supply, adapt to -40°C~+85°C wide temperature
- Feature sand Benefits
- Parameter
- Product structure
- Application topology

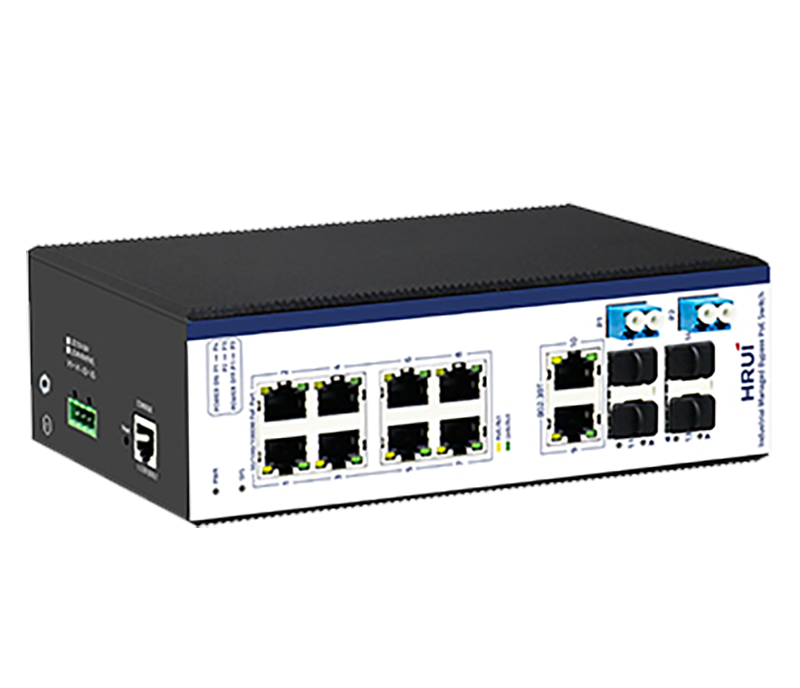

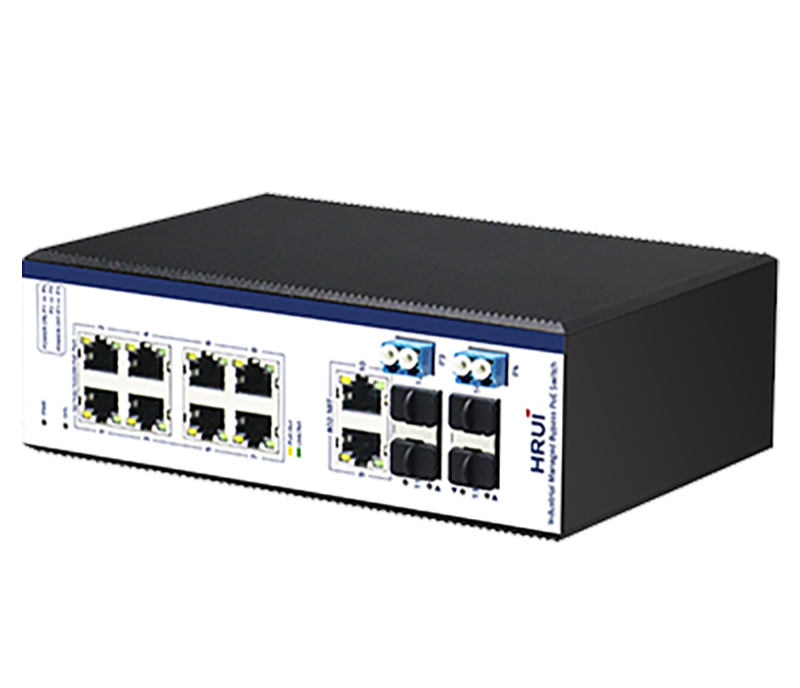

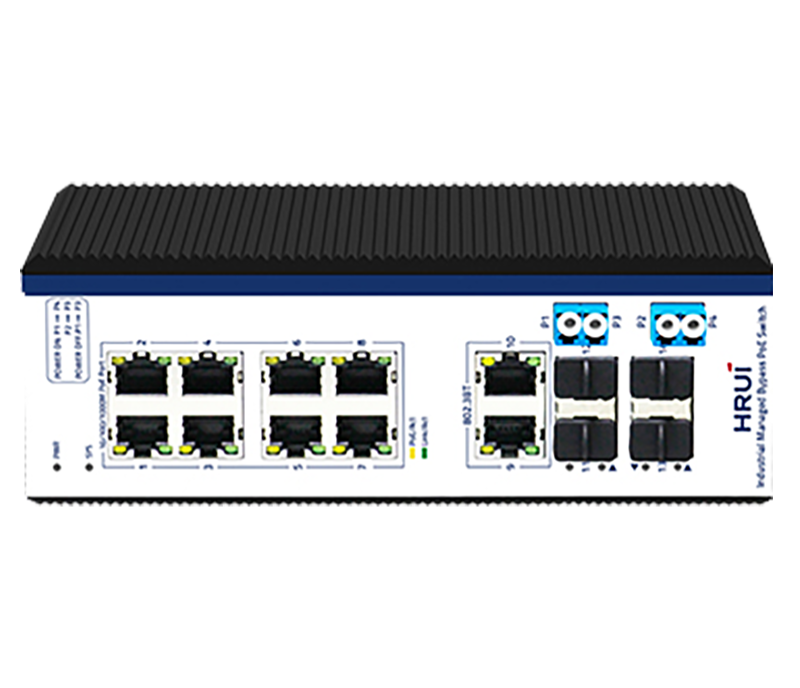

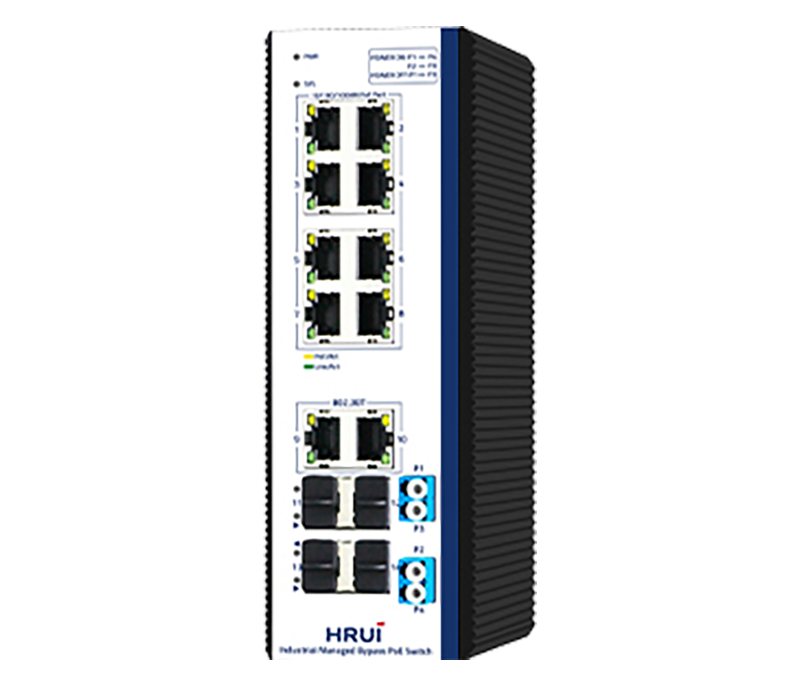

HR600-AXGM-SWG20104AS-BP, a 14-port Gigabit Industrial Ethernet PoE Switch. Featuring 10 Gigabit PoE ports (Ports 9-10 with BT support) and 4 Gigabit SFP ports (Ports 13-14 support up to 2.5G, also compatible with 1.25G/155M), along with an additional console port, this switch is engineered for demanding industrial environments.
Designed with an integrated bypass protection function, it ensures uninterrupted communication, making it ideal for critical automation applications. Mounting options include DIN rail and wall installations to suit various setups. The switch accommodates dual power inputs (DC48-55V) and operates seamlessly in extreme temperatures ranging from -40°C to 75°C. It complies with industrial standards and is certified by FCC, CE, CCC, and RoHS, guaranteeing dependable performance in harsh conditions.
The HR600 series is perfect for diverse applications, including wind power, electric power, assembly automation, subway public information systems (PIS), electric power SCADA, wastewater treatment, metallurgy, intelligent transportation, railways, and military operations. Recognized for its low-power, eco-friendly design, this switch is an ideal choice for green industrial automation.
Product Features:
Port Configuration: 10 Gigabit PoE ports (ports 9-10 support BT) + 4 Gigabit SFP ports (ports 13-14 support 2.5G and are compatible with 1.25G/155M) + 1 Console Port.
Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z/ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1d/w.
PoE Management: Features PoE power management and PoE watchdog utilizing data stream detection.
Spanning Tree Protocols: Supports STP (802.1D), RSTP (802.1w), MSTP (802.1s), and ERPS.
Network Management: Compatible with SNMP v1/v2/v3, IGMP Snooping, static multicast filtering, and MLD Snooping.
Security Features: 802.1X port-based access and AAA certification for enhanced security.
PoE Support: Compatible with IEEE802.3af (15.4W), IEEE802.3at (30W), and IEEE802.3bt (90W).
Management Interfaces: Access via WEB, Telnet, CLI, and SSH.
Durable Design: IP40 protection with a rugged, high-strength metal case, suitable for DIN35 Rail mounting.
Environmental Resistance: EMC grade 4 design, operational between -40°C and 75°C.
Redundant Power Supply: Supports redundant power supply connections with anti-reverse protection.
Surge Protection: General 6KV, Differential 4KV; ESD ratings of 15KV (Air) and 8KV (Contact).
EMC Compliance: Adheres to EMC EN55032 standards for electromagnetic compatibility.
| Conventional parameters | |||
| Product Name | 14 Ports Gigabit Industrial Managed PoE Switch | ||
| Product Model | HR600-AXGM-SWG20104AS-BP | ||
| Port Definition | 10 Gigabit PoE Ports(9-10 Port Support BT) + 4 Gigabit SFP Port (13-14 Port support 2.5G, Compatible with 1.25G/155M) + 1 Console Port | ||
| Network Protocols | IEEE802.3 | ||
| IEEE802.3u | |||
| IEEE802.3z | |||
| IEEE802.3ab | |||
| IEEE802.3x | |||
| IEEE802.1d | |||
| IEEE802.1w | |||
| POE Parameters | POE Standard: IEEE 802.3af / IEEE 802.3at/IEEE802.3bt | ||
| Single PoE Port Power Output: | |||
| Max: 15.4 W (IEEE 802.3af) | |||
| Max: 30 W (IEEE 802.3at) | |||
| Max：90 W (IEEE 802.3bt) | |||
| PoE Compatibility: IEEE 802.3af / at / bt adaptive | |||
| POE Power Output: DC 48-55V | |||
| POE Power in:1/2- ; 3/6+ （bt：1/2- 3/6+；4/5+ 7/8-） | |||
| Network Media | 10BASE-T: Cat3、4、5 UTP(≤100 M) | ||
| 100BASE-TX: Cat5 or above UTP(≤100 M) | |||
| 1000BASE-TX: Cat5 or above UTP(≤100 M) | |||
| Bypass | P1: Optical Fiber in or out Port (P3 and P4 are corresponding outlets, recommended to connect A ) | ||
| P3: Optical Fiber in or out Port (P1 and P2 as corresponding outlets, recommended to connect B ) | |||
| P2: SFP Module Fiber Port (P3 as corresponding outlets, recommended to connect A ) | |||
| P4: SFP Module Fiber Port (P1 as corresponding outlets, recommended to connect B ) | |||
| Fiber Media | Multi-mode：850nm,1310nm Transmission Distance: 550m/2Km | ||
| Single-mode：1310nm,1550nm Transmission Distance: 20/40/60/80/100/120Km | |||
| LED Indicator | PWR | Lighting：Powered | |
| Un-Light：No Power | |||
| SYS | Lighting：System is operating normally | ||
| Un-Light：System is not running | |||
| Yellow light | Lighting：PoE Powered | ||
| Un-Light：No PoE Powered | |||
| Green light | Lighting：Link normally | ||
| Un-Light：Link disconnect | |||
| 11-14 | Lighting：Fiber Connection is Normal | ||
| Un-Light：Disconnect | |||
| Power Supply | Input Voltage: DC48～55V | ||
| Type of input: 4 PIN terminal （block V1+V1- V2+ V2-） | |||
| Physical structure | Protect grade： IP40 | ||
| Installation：DIN Rail | |||
| Product weight： 1 KG Package weight：1.3KG（Without power） | |||
| Produc Dimensions(L×W×H): 188mm*130mm*64mm | |||
| Package Dimensions(L×W×H): 242mm×207mm×86mm | |||
| Standard packing(L×W×H): 445mm×445mm×510mm | |||
| Standard packing quantity：20 (PCS) | |||
| Working Environment | Operating temperature: -40～75℃ | ||
| Storage temperature: -40～85℃ | |||
| Humidity: 5%~95 % ( No condensation) | |||
| Industry Standard | EMI: FCC Part 15, CISPR (EN55032) class A | ||
| EMS: EN61000-4-2 (ESD) | |||
| EN61000-4-4 (EFT) | |||
| EN61000-4-5 (Surge) | |||
| Certification | CE , FCC , ROHS | ||
| MTBF | 100,000 Hours | ||
| Packing list | Industrial grade switch: 1 Set | ||
| Instruction manual: 1 PCS | |||
| Certificate, warranty card: 1 PCS | |||
| Serial cable：1PCS | |||
| Warranty | 5 years | ||
| Hardware Parameters | |||
| Bandwidth | 34Gbps | ||
| Packet Forwarding Rate | 25.29Mpps | ||
| RAM | 128MB | ||
| Flash | 16MB | ||
| Packet Buffer Memory | 4M | ||
| Jumbo frame | 9.6Kbytes | ||
| VLANs | 4096 | ||
| MAC | 8K | ||
| Forwarding Mode | Store-And-Forward | ||
| Menu Items | Submenus | Secondary Submenus | Triple Submenus |
| Information & Status | System Information | ||
| IP Status | |||
| Syslog | |||
| Detailed Syslog | |||
| MAC Table | |||
| VLANs | Membership | ||
| Ports | |||
| Ports | Traffic Overview | ||
| Detailed Statistics | |||
| LACP | System Status | ||
| Port Status | |||
| Port Statistics | |||
| Green Ethernet | |||
| LLDP | Neighbors | ||
| Port Statistics | |||
| Loop Protection | |||
| Spanning Tree | Bridge Status | ||
| Port Status | |||
| Port Statistics | |||
| IGMP Snooping | Status | ||
| Groups Information | |||
| IPv4 SFM Information | |||
| MLD Snooping | Status | ||
| Groups Information | |||
| IPv6 SFM Information | |||
| DHCP | Server | Statistics | |
| Binding | |||
| Declined IP | |||
| Snooping Table | |||
| Relay Statistics | |||
| Detailed Statistics | |||
| Security | Port Security | Switch | |
| Port | |||
| Access Management Statistics | |||
| 802.1X | Switch | ||
| Port | |||
| ACL Status | |||
| AAA | RADIUS Overview | ||
| RADIUS Details | |||
| QoS | QoS Statistics | ||
| QCL Status | |||
| Network Admin | IP Config | ||
| IP Status | |||
| DHCPServer | Mode | ||
| Excluded IP | |||
| Pool | |||
| NTP | |||
| Timezone | |||
| SNMP | System | ||
| Trap | |||
| Communities | |||
| Users | |||
| Groups | |||
| Views | |||
| Access | |||
| Syslog | |||
| Port Configure | Ports | ||
| Aggregation | Static | ||
| LACP | |||
| Mirroring | |||
| Green Ethernet | |||
| DDM | DDM Configuration | ||
| DDM Overview | |||
| DDM Detailed | |||
| PoE | PoE Setting | ||
| PoE Status | |||
| Advanced Configure | MAC Table | ||
| VLANs | |||
| GVRP | Global config | ||
| Port config | |||
| Port Isolation | Port Group | ||
| Port Isolation | |||
| Loop Protection | |||
| Spanning Tree | Bridge Setting | ||
| MSTI Mapping | |||
| MSTI Priorities | |||
| CIST Ports | |||
| MSTI Ports | |||
| IPMC Profile | Profile Table | ||
| Address Entry | |||
| MEP | |||
| ERPS | |||
| IGMP Snooping | Basic Configuration | ||
| VLAN Configuration | |||
| Port Filtering Profile | |||
| IPV6 MLD Snooping | Basic Configuration | ||
| VLAN Configuration | |||
| Port Filtering Profile | |||
| LLDP | |||
| Security Configure | Users | ||
| Privilege Levels | |||
| SSH | |||
| Port Security Limit | |||
| Access Management | |||
| 802.1X | |||
| ACL | Ports | ||
| Rate Limiters | |||
| Access Control List | |||
| DHCP | Snooping Setting | ||
| Snooping Table | |||
| Relay | |||
| Relay Statistics | |||
| Detailed Statistics | |||
| IP&MAC Source Guard | Configuration | ||
| Static Table | |||
| Dynamic Table | |||
| ARP Inspection | Port Configuration | ||
| VLAN Configuration | |||
| Static Table | |||
| Dynamic Table | |||
| AAA | RADIUS | ||
| TACACS+ | |||
| QoS Configure | Port Classification | ||
| Port Policing | |||
| Queue Policing | |||
| Port Scheduler | |||
| Port Shaping | |||
| Port Tag Remarking | |||
| Port DSCP | |||
| DSCP-Based QoS | |||
| DSCP Translation | |||
| DSCP Classification | |||
| QoS Control List | |||
| Storm Policing | |||
| Diagnostics | Ping | ||
| Cable Diagnostics | |||
| CPU Load | |||
| Maintenance | Restart Device | ||
| Factory Defaults | |||
| Firmware Upgrade | |||
| Firmware Select | |||
| Configuration | Download | ||
| Upload | |||
| Activate | |||
| Delete | |||
