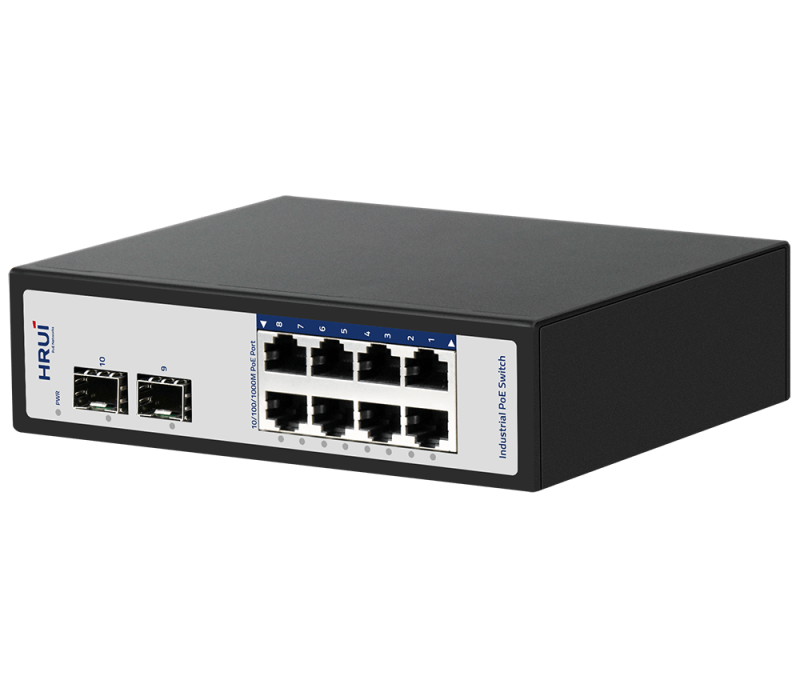

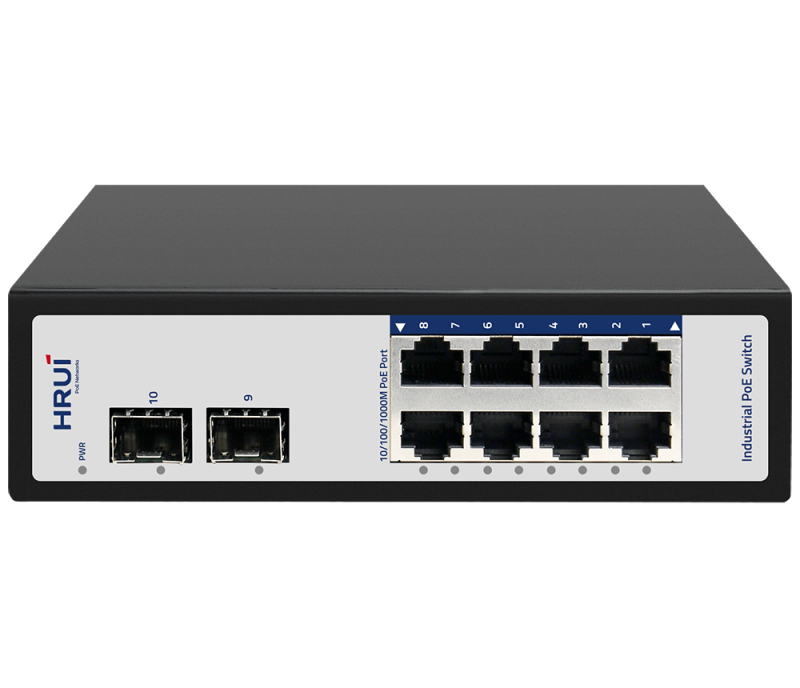

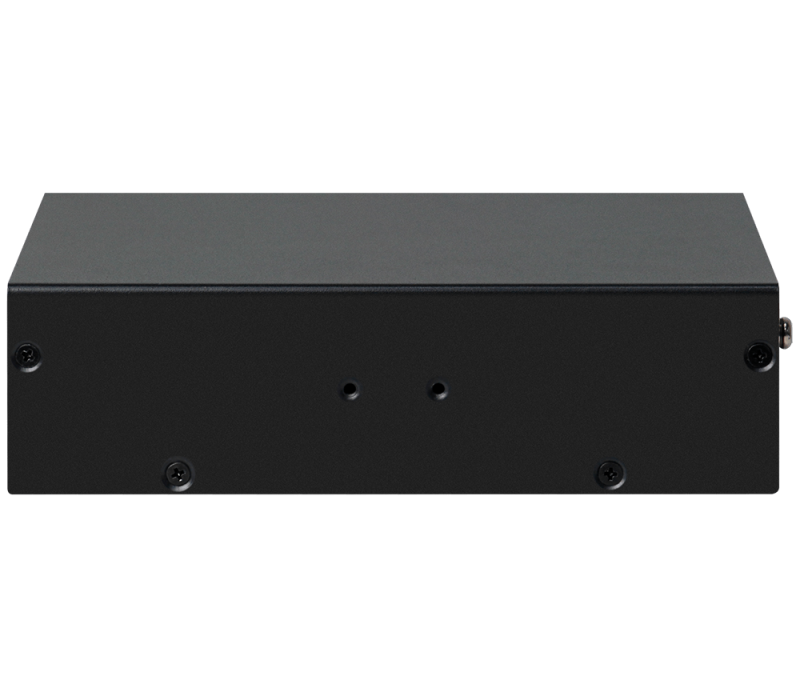

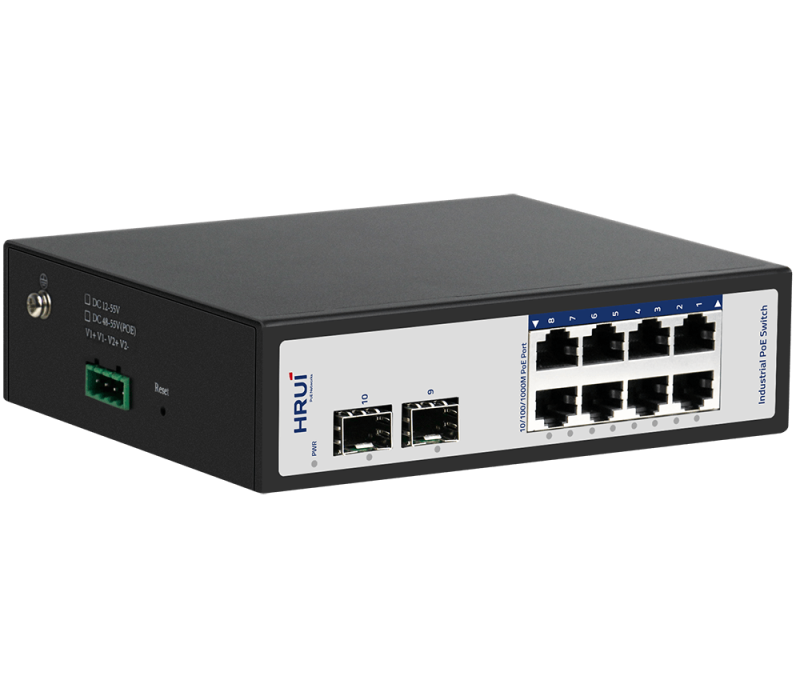

HR500-AFGW-82S, a pinnacle of innovation from HRUI, expertly designed for high performance and cost-effectiveness in industrial settings. This robust managed PoE switch features 8 Gigabit PoE ports and 2 Gigabit SFP ports, fully compliant with the IEEE 802.3af/at standards. Constructed with a durable iron housing and rated with IP40 protection, this switch is engineered to withstand the rigors of industrial environments.

With advanced features including 6KV surge protection and 15KV electrostatic discharge (ESD) protection, the HR500-AFGW-82S demonstrates exceptional resilience against interference and power anomalies. The switch supports DIN35 rail and wall mounting options, providing versatile installation suited for diverse applications. It operates on a redundant power input of DC48-55V and maintains reliable performance in extreme temperatures ranging from -40°C to +75°C. Compliance with industrial environment certifications and regulatory standards such as FCC, CE, and CCC guarantees that this switch offers a secure and stable operational foundation for your systems.

Tailored for industries such as wind and electric power, assembly automation, metro passenger information systems, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, and defense, the HR500-AFGW-82S is both a green and energy-efficient choice among industrial switches.

Product Features:

8 Gigabit PoE Ports + 2 Gigabit SFP Ports: Versatile connectivity options for your network configuration.

IEEE 802.3af/at Standard Support: Each PoE port delivers up to 30W of power, ensuring devices receive the necessary power for optimal performance.

Redundant Power Supply: Features dual redundant power supply support with a voltage input range of DC 48V to 55V.

Industrial-Grade Protection: EMC industrial-grade design including:
· Surge Protection: 6KV common mode and 2KV differential mode (Class B).
· Electrostatic Protection: 8KV air discharge and 6KV contact discharge (Class B).

Operating Temperature: Reliable performance in extreme conditions with an operating range of -40°C to +75°C.

Sturdy Construction: Iron housing with IP40 rating for enhanced durability and protection.

Flexible Installation: Easily mountable on DIN35 rail or walls to fit your space requirements.

Features and Highlights

• Support 8* Gigabit PoE Port+ 2* Gigabit SFP Port
• Support IEEE802.3af/at standard, Single Port PoE Power Max 30W
• DC48V~55V Input, Overvoltage, overload and anti-reverse connection
• 4PIN Industrial terminals, dual redundant power supply
• Iron housing, IP40 Defense
• EMC Industrial grade high strength protection design
• Surge  Protection: Common mode 6KV, differential mode 2KV (Class B), Electrostatic ESD: Air 8KV, Contact 6KV (Class B)
• Operating temperature range -40 to +75℃
• DIN35 rail/wall mounting installation

Application Environment

• Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
• Broadband Private Network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
• Multimedia Transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.
• Real-time Monitoring: Simultaneous transmission of real-time control signals, images and data.
• Resistance to Harsh Environment: Suitable for networking in harsh environment with strong electromagnetic interference and long distance.
