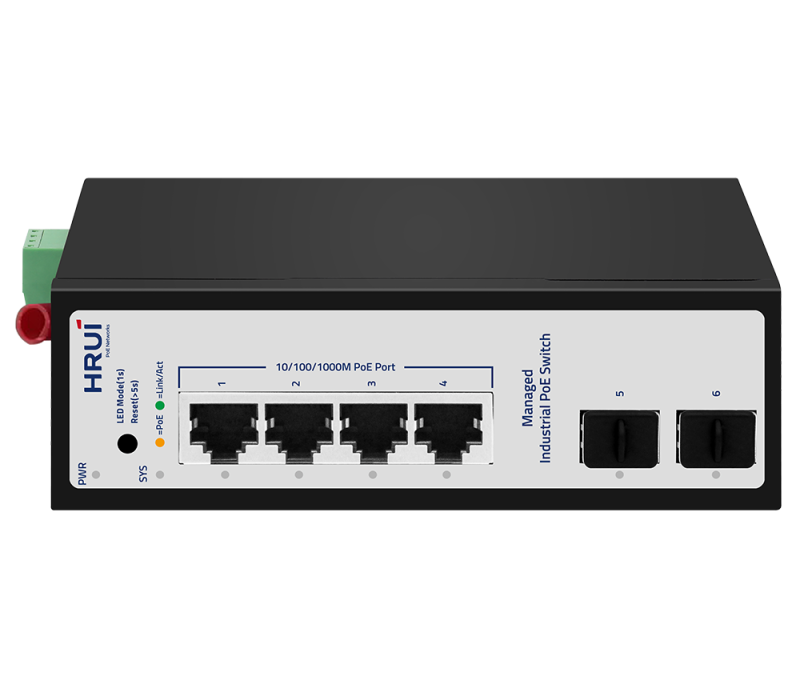

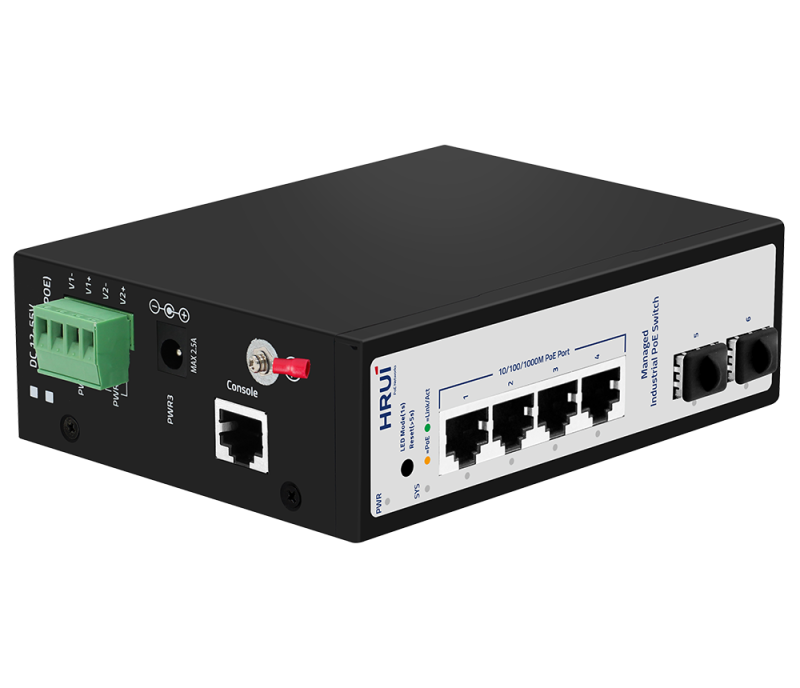

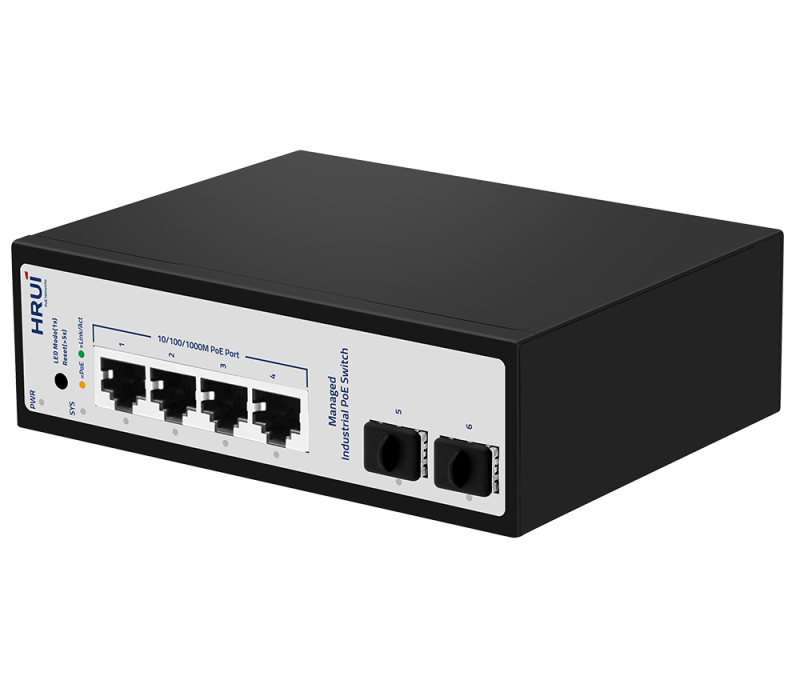

The HR500-AFGM-42S is a high-performance, robust 6-Port Gigabit Industrial Managed PoE Switch designed to meet the demanding needs of industrial environments. Engineered for durability and reliability, it provides seamless network connectivity with Power over Ethernet (PoE) capabilities, making it ideal for various applications including security cameras, wireless access points, and IoT devices. With advanced management features, including traffic monitoring and network security protocols, the HR500-AFGM-42S ensures efficient and secure data transmission in challenging conditions.

Product Features:

Protocol Compatibility: Fully compliant with IEEE standards: IEEE802.3, 802.3u, 802.3x, 802.3z/a/b, IEEE802.1Q, IEEE802.1p, IEEE802.1d/w

Power Over Ethernet (PoE) Management: Features advanced PoE management capabilities and PoE Watchdog functionality based on data flow detection to ensure optimal performance and reliability.

PoE Standards: Supports IEEE802.3af (up to 15.4W) and IEEE802.3at (up to 30W) for flexible power allocation.

Network Management: Supports SNMP v1/v2/v3 for streamlined network monitoring and management.

Traffic Management: Includes IGMP Snooping, static multicast filtering, and MLD Snooping filtering for efficient multicast traffic management.
Implements IGMP Snooping, static multicast filtering, and MLD Snooping filtering to optimize multicast traffic.
Provides 802.1x port authentication and AAA authentication to enhance network security and access control.

Flexible Management Options: Management can be performed via WEB, Telnet, CLI, or SSH to suit various user preferences.

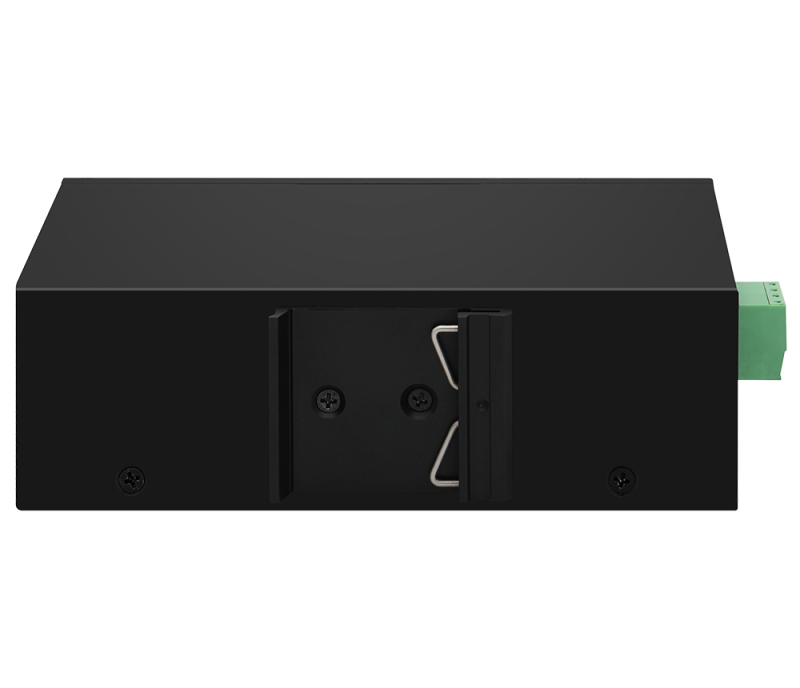

Durable and Reliable Design: Featuring an IP40 protection level and a high-strength housing, this switch is mountable on DIN35 rails, suitable for industrial applications.

Industrial-Grade Robustness: Designed for extreme conditions with an operating temperature range of -40°C to +75°C.

Redundant Power Supply: Supports redundant power supply connections and includes anti-reverse connection features for added safety and reliability.

Features and Highlights

• Support: IEEE802.3 IEEE802.3u，IEEE802.3x，IEEE802.3z / ab，IEEE802.1Q，IEEE802.1p，IEEE802.1d/w
• PoE Power Management, PoE Watchdog based on data stream detection
• Supports IEEE802.3af (15.4W) and IEEE802.3at (30W)
• Support STP(802.1D), RSTP(802.1w), MSTP(802.1s), ERPS
• Support SNMP v1/v2/v3
• Support IGMP Snooping, Static multicast filtering and MLD Snooping
• Support 802.1x port and AAA Certification, Enhance network security
• Support WEB, Telnet, CLI, SSH management
• IP40 protection, rugged high-strength metal case,DIN35 Rail mounting
• EMC grade 4 design,-40 to 75℃ working temperature
• Support Redundant power supply access, Support anti-reverse connection

Application Environment

• Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
• Broadband Private Network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
• Multimedia Transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.
• Real-time Monitoring: Simultaneous transmission of real-time control signals, images and data.
• Resistance to Harsh Environment: Suitable for networking in harsh environment with strong electromagnetic interference and long distance.
