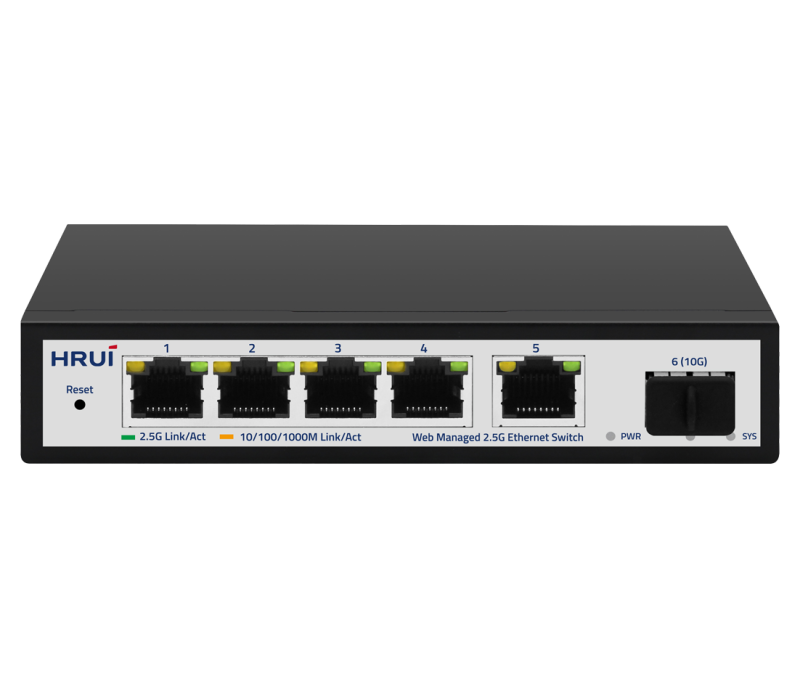

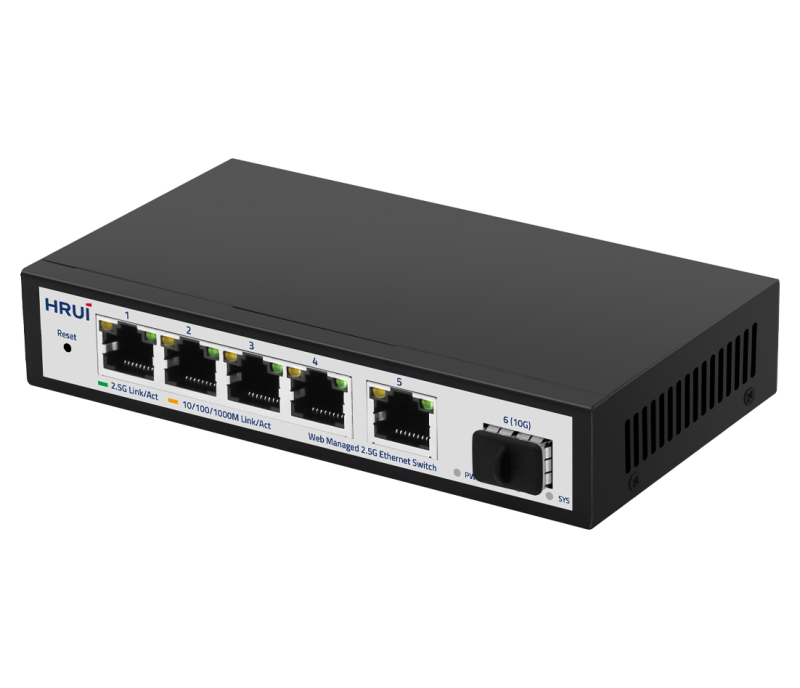

HR-SWTGW215AS - 6 Port 10G uplink 2.5G Web Managed Ethernet switch
6 Port 10G uplink 2.5G web managed Ethernet Switch, using high quality and high speed network chip solution, this product completely solves the problem of loud noise of small switches deployed in the office environment through the fanless silent design. This switch has 5* 100/1000/2500M RJ45 ports and 1* 10G SFP port, providing seamless connection to 100/1000/2500M Ethernet for easy management and maintenance. This switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.
- Feature sand Benefits
- Parameter
- Product structure
- Application topology
HR-SWTGW215AS, a robust 6-port Ethernet switch designed with a 10G uplink and 2.5G web management capabilities. Built with high-quality, high-speed networking chip technology, this switch addresses the common issue of noise pollution in office environments through its innovative fanless design, ensuring silent operation.
The switch features five 100/1000/2500M RJ45 ports and one 10G SFP port, facilitating seamless connectivity across multiple Ethernet standards for straightforward management and maintenance. Ideal for a variety of applications, the HR-SWTGW215AS is perfect for security network video surveillance, hotels, educational campuses, and the network engineering needs of small to medium-sized enterprises.
Product Features:
Port Configuration: 5 x 2.5Gbps RJ45 ports and 1 x 10Gbps SFP+ port for versatile and high-speed connections.
Standards Compliance: Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE802.3ae, and IEEE 802.3x standards, ensuring compatibility with a wide range of devices.
Self-Adaptive Ethernet Ports: Supports auto-sensing for 10M, 100M, 1G, and 2.5G speeds, allowing for seamless integration with existing networks.
Automatic Port Detection: Features Auto MDI/MDIX capabilities, simplifying cable connections and eliminating the need for cross-over cables.
Status Monitoring: Panel indicator LEDs provide real-time monitoring of operational status, aiding in quick fault analysis.
Flow Control: Implements IEEE 802.3x standard for full duplex and backpressure for half duplex to optimize network performance.
Quality of Service (QoS): Supports data priority settings for efficient bandwidth management.
| Description | Specification |
| Model | HR-SWTGW215AS |
| Interface | 5*2.5Gbps RJ45 ports |
| 1*10Gbps SFP+ port | |
| Port Standard | IEEE802.3 (Ethernet) |
| IEEE802.3u (Fast Ethernet) | |
| IEEE802.3ab (Gigabit Ethernet) | |
| IEEE802.3z (Gigabit Ethernet Fiber Standard) | |
| IEEE802.3bz (2.5G Ethernet) | |
| IEEE 802.3ae (10G Ethernet) | |
| IEEE802.3x (Flow Control) | |
| Switching Bandwidth | 45Gbps |
| Packet Forwarding Rate | 33.48Mpps |
| Packet Buffer | 8Mbit |
| MAC Address Table | 4K |
| Jumbo Frame | 12K |
| VLAN | VLAN range 1-4094, maximum active VLAN is 31 |
| Transmission Method | Store and Forward |
| Power Supply | AC 100-240V 50/60Hz |

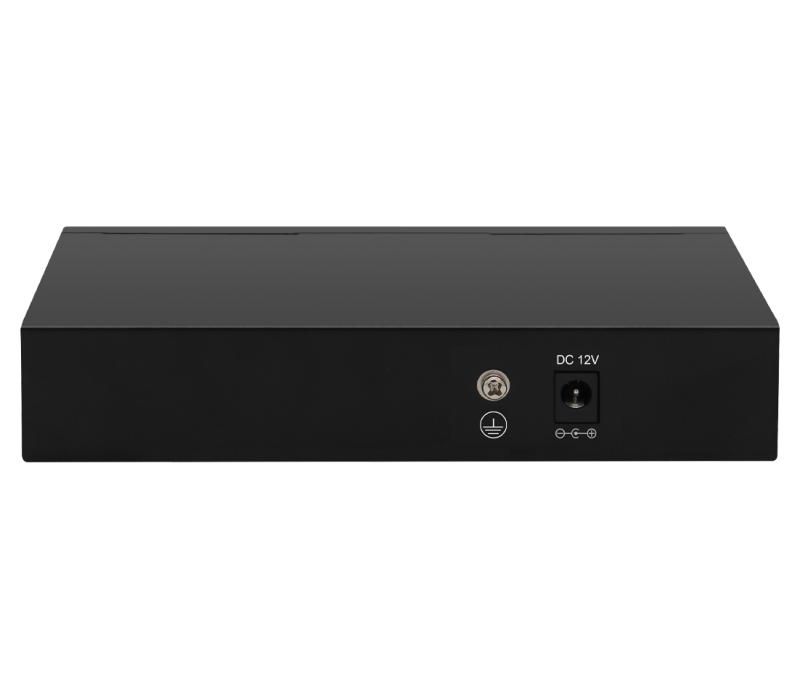

| DC 12V 1A | |
| Mainboard Power Consumption | 5.92W |

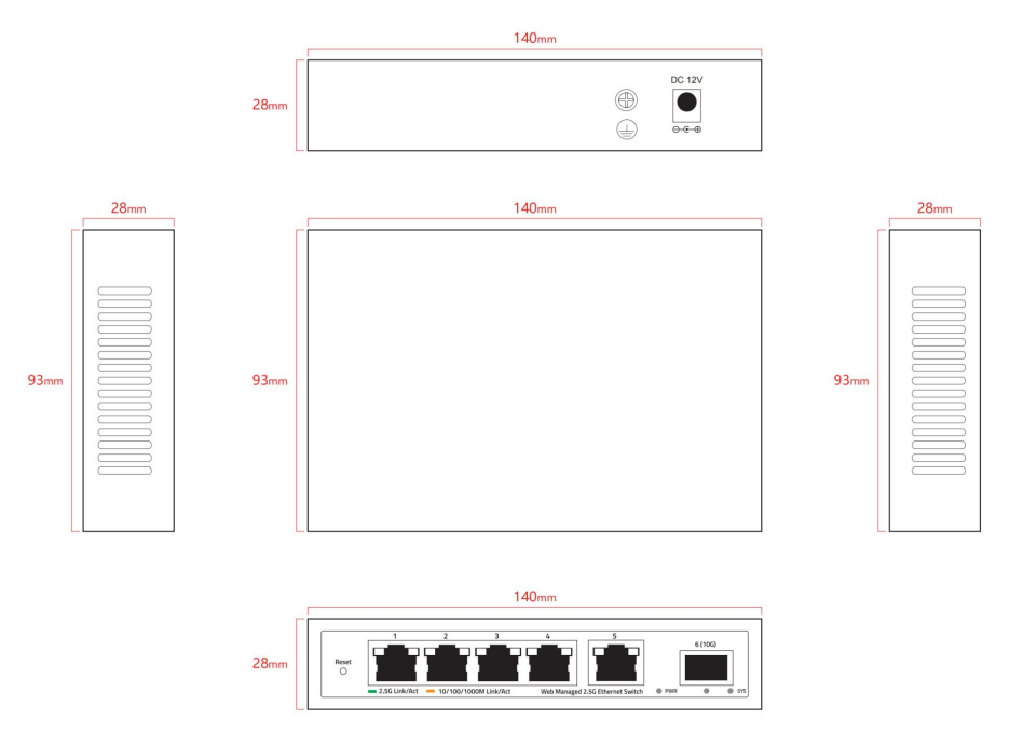

| Structure Information | Product Dimensions: 140*93*28mm |
| Packaging Dimensions: 203*160*55mm | |
| Product Net Weight: 0.33KG | |
| Product Gross Weight: 0.46KG | |
| Packing Information | Carton Dimensions: 580*335*445mm |
| Packing Quantity: 40PCS | |
| Packing Weight: 19.5KG | |
| Package Contents | Switch 1pcs, AC Adapter 1pcs, Manual 1pcs, Certificate of Inspection 1pcs |
| Fan Quantity | 0 |
| Installation | Desktop |
| Surge Protection | Port Surge: Common mode 6KV, Differential mode 2KV |
| Electrostatic ESD: Air 8KV, Contact 6KV | |
| Operating Temperature | 0~40°C |
| Storage Temperature | -40~70°C |
| Operation Humidity | 10%~90%, non condensing |
| Storage Humidity | 5%~95%, non condensing |
| PWR Green LED | On: Powered on |
| Off: Powered off | |
| Ports 1-5 | Green LED on: 2.5Gbps Link normal |
| Yellow LED on: 10/100/1000Mbps Link normal | |
| Off: Link blocked | |
| Flashing: Data transmitting | |
| Port 6 Green LED | On: 1G/2.5G/10Gbps Link normal |
| Off: Link blocked | |
| Flashing: Data transmitting | |
| SYS Green LED | On: The system is normal |
| Flashing: System startup in progress | |
| Reset | Long press for 6 seconds to restore factory settings |
| Software Features | |
| L2 Function | |
| Port | Port Switch configuration |
| Port Speed configuration | |
| Port Duplex configuration | |
| Port Flow Control configuration | |
| EEE | |
| Jumbo Frame | |
| Link Aggregation | Max. 4 members per group |
| Static Group | |
| LACP | |
| Up to 2 groups | |
| Storm Control | Boardcast suppression |
| Unknown Multicast | |
| Unknown Unicast | |
| Port Mirroring | Support |
| Port Security | MAC Address Constraints |
| Port Isolation | Support |
| Port Rate-limit | Support |
| VLAN | Access/Trunk/Hybrid |
| Congurable VID from 1 - 4094;Max. 31 static VLAN groups | |
| MAC Address | Dynamic MAC Address |
| Static MAC address | |
| Spanning Tree Protocol | STP/RSTP |
| Edge Port | |
| Multicast | IGMP Snooping |
| Router Port | |
| Static IGMP Join | |
| IGMP V1/V2 | |
| QoS | Traffic classification, Supporting SP and WRR scheduling |
| Port Priority | |
| Support up to 8 queues per port | |
| Services | |
| Access Protocol | HTTP |
| Diagnostics | |
| Port Statistics | Support |
| Equipment Management | |
| Manager Access | HTTP |
| Manager IP | Static Address |
| DHCP Client | |
| User Management | Support |
| Firmware Management | Firmware upgrade |
| Configuration Management | Upload/Backup Configuration |
| Save | Support |
| Restart | Support |
| Factory Defaults | Support |
| Standard Compliance | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1Q VLAN tagging | |
| RFC 768 UDP | |
| RFC 791 IP | |
| RFC 792 ICMP | |
| RFC 2068 HTTP | |
| RFC 1112 IGMP v1 | |
| RFC 2236 IGMP v2 | |
