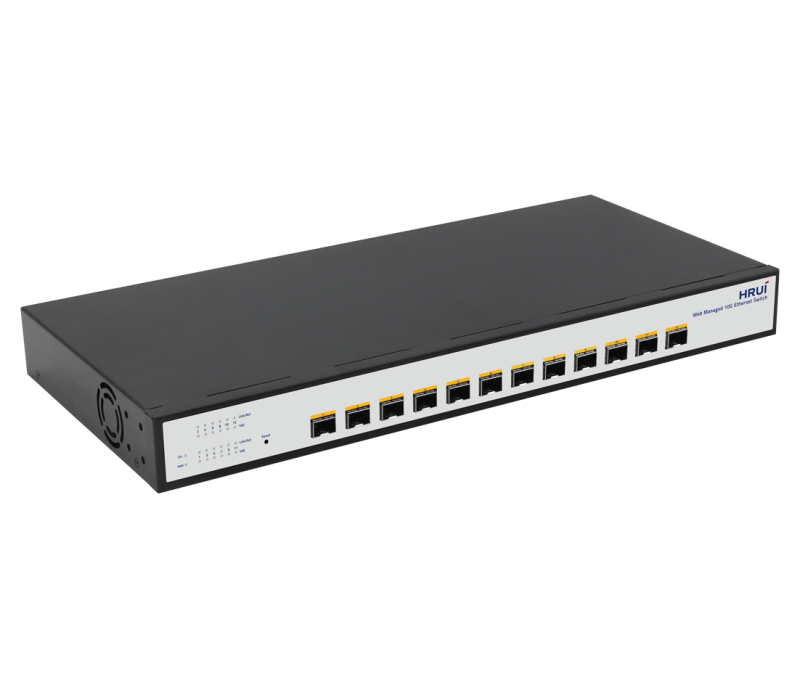

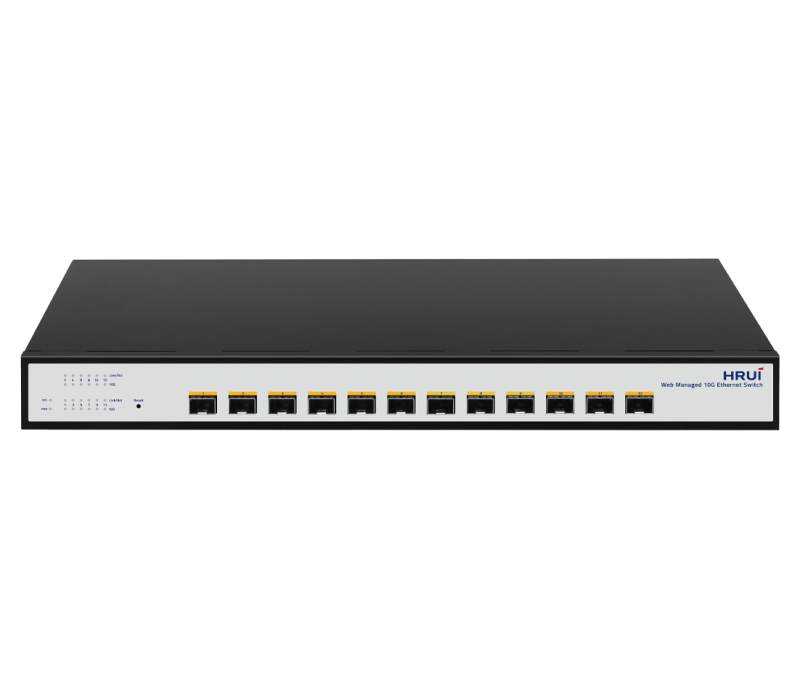

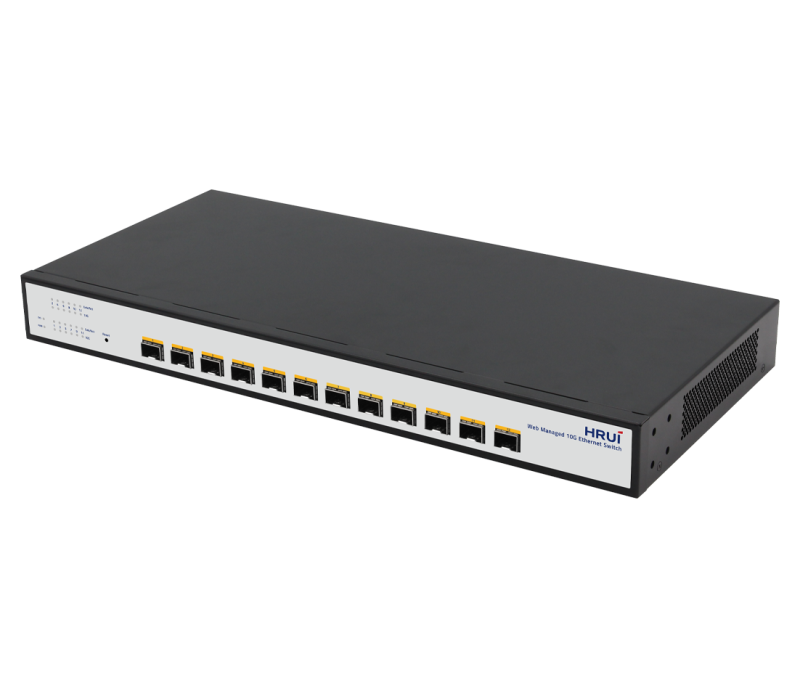

HR-SWTGW2C12F - 12-Port 10G SFP+ Web Managed Switch
HRUI Web Managed 12-Port 10G Switch is a high-performance switch with 12 10G SFP+ ports, which is ideal for high-speed connectivity between WiFi 7 access points, storage servers, and other devices. Meanwhile, the product supports a cloud management function, which allows remote maintenance work with management platforms such as HRUI Cloud, making network management easier and smarter. Therefore, this switch is perfect for usage scenarios that require faster network speeds.
- Feature sand Benefits
- Parameter
- Product structure
- Application topology
HRUI Web Managed 12-Port 10G Switch is a high-performance switch with 4 10G RJ-45 ports and 8 10G SFP+ ports, which is ideal for high-speed connectivity between WiFi 7 access points, storage servers, and other devices.
The product is easy to use, plug-and-play, and no configuration is required. Meanwhile, the product supports a cloud management function, which allows remote maintenance work with management platforms such as HRUI Cloud, making network management easier and smarter. Therefore, this switch is perfect for usage scenarios that require faster network speeds.
Why 10G Switch？
|
|
|
|
| Fast Transfer | High Bandwidth | Improved Latency | Future Scalability |
With 10G switch, data transfer speeds can be up to 10 times faster than traditional Gigabit switch that is limited to 1 Gbps, reducing latency and improving overall network performance. | As demand for bandwidth grows, 10G switches ensure a reliable and efficient network experience, particularly in data centers, cloud computing, and high-bandwidth applications, where increased traffic can be efficiently handled. | 10G switches typically have lower latency than Gigabit switches. This advantage makes it ideal for real-time applications such as video conferencing, online gaming, and VoIP. | Scalable and adaptable, the system can expand to meet growing business needs, supporting various port types and numbers, with dynamic adjustment of device and configuration numbers. |

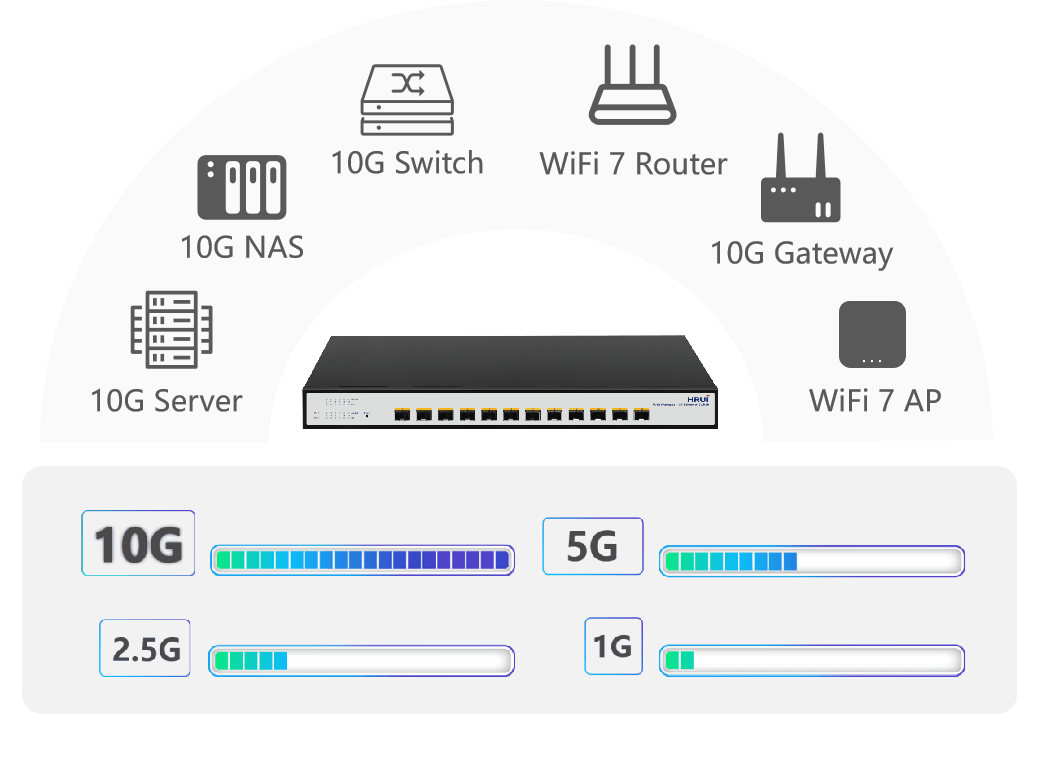

| • High-speed 10G Transmission |
Provide 10G RJ-45 or SFP+ ports to provide high-speed network connectivity for NAS and access servers, supporting self-negotiation of 10G/5G/2.5G/1G/100M multiple port rates. |
|
| • High Switching Capacity for High-Load Applications |
Enhances performance with increased concurrent connections, faster data transmission, and higher processing capacity, ideal for large-scale networks, ensuring smooth, high-speed, and stable data transmission. |
| • Smart Web Managed Feature to Optimize Your Network Efficiency |
The product offers advanced software features, including VLAN, port mirroring, flow control, LACP, QoS, and DHCP Snooping, to cater to diverse network demands and enhance network security, reliability, and scalability. |

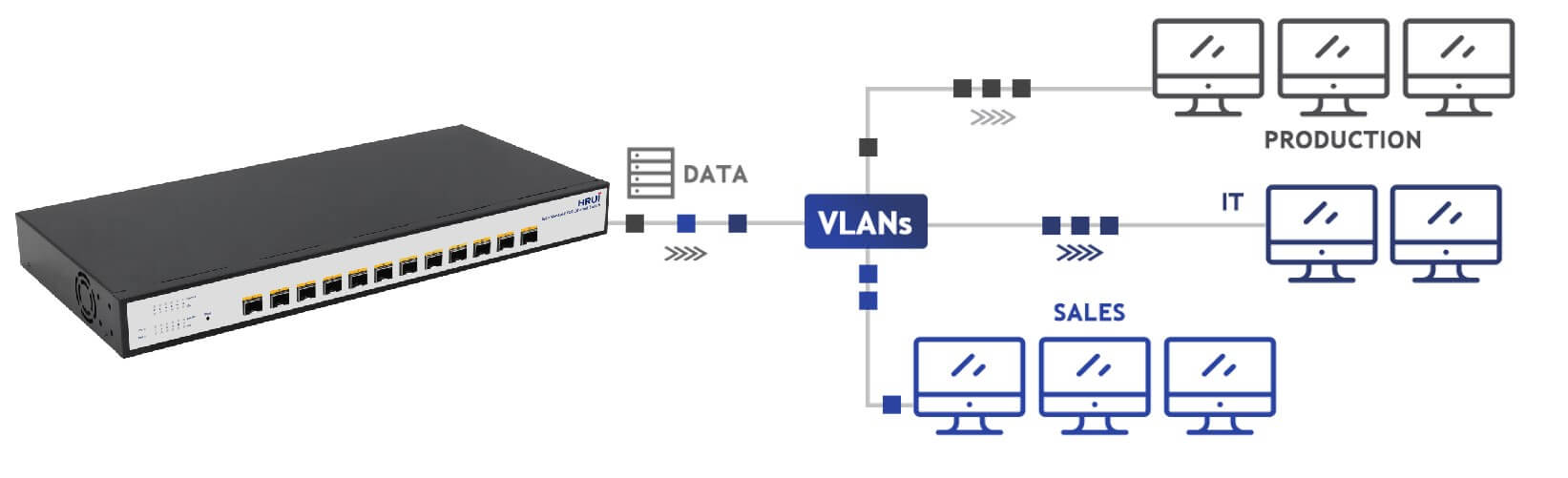

| • VLAN |
VLAN enables network devices to be grouped by function, department, or region, and isolated into logical networks, enhancing network management flexibility, scalability, and security while simplifying administration and boosting efficiency. |
|

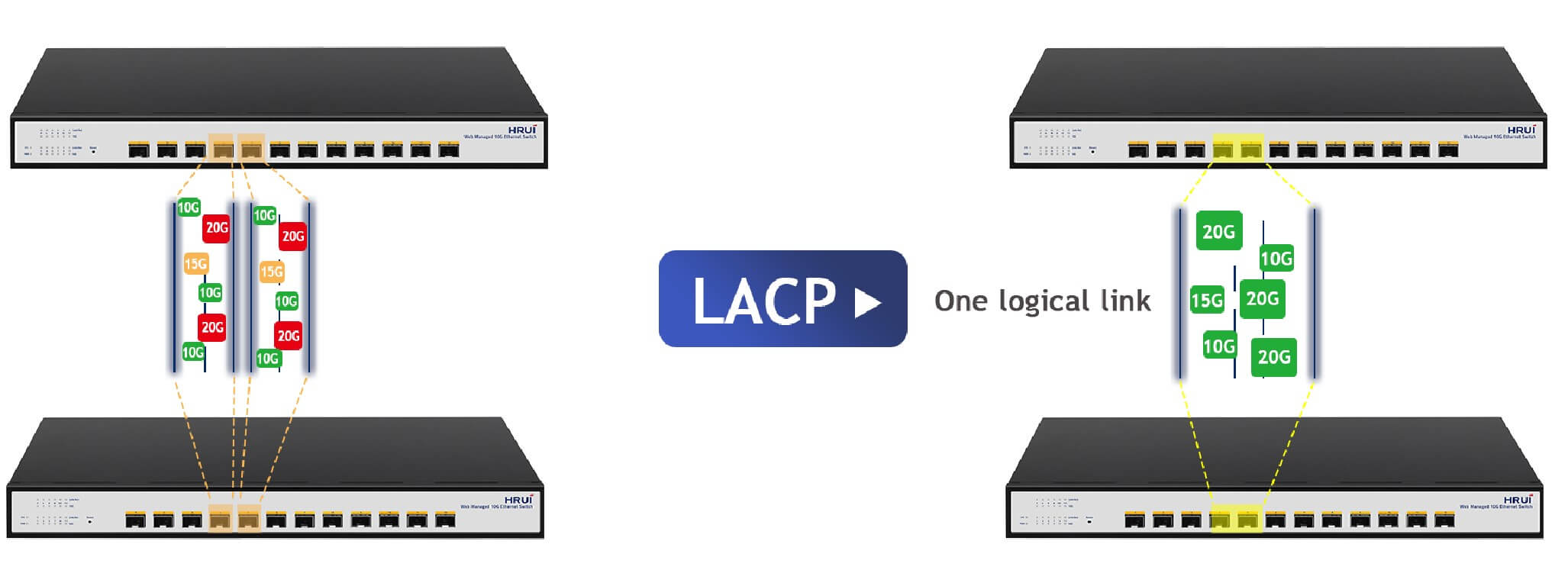

| • LACP |
LACP enables connection to NAS/routers for link aggregation and rate stacking, while also ensuring network availability, reliability, and security through link failover, reducing the risk of network interruptions and data loss. |
|
| • QoS |
Provide different QoS and prioritization for various types of traffic to ensure reliability and performance of critical services while reducing failure rates and network congestion. |
|
| • DHCP Snooping |
Detecting and preventing rogue DHCP servers ensures network security by preventing attacks, ensuring unique IP addresses, and protecting against unauthorized access. |
|
| • SNMP |
Support SNMP protocol for centralized management of network devices, compatible with various management platforms. |

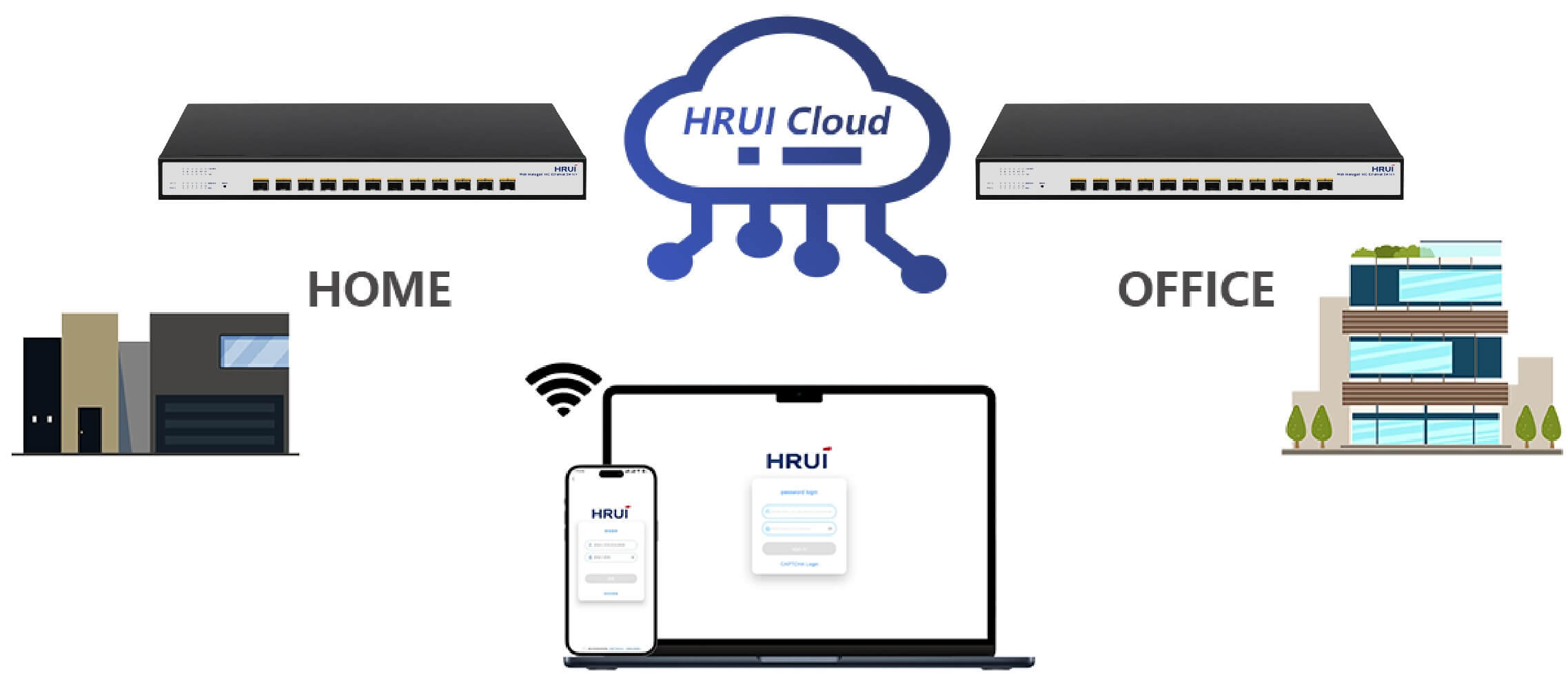

| • Unified Management in the Cloud: Accessible, Scalable, and Efficient |
Provide cloud-based management for remote equipment monitoring and control, simplifying detection, configuration, deployment, and maintenance to reduce costs and improve efficiency and reliability. |
|
| • Plug and Play | • Rock-solid Reliability |
No configuration is required. Simply plug a device into the network. It automation begins. | Support 4KV surge protection against harsh environments. |
| Description | Specification |
| Model | HR-SWTGW2C12F |
| Interface | 12*10G SFP+ ports |
| Port Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol |
| IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Fiber optic) | |
| IEEE 802.3x: Flow Control | |
| IEEE 802.3az (Efficient and Energy saving Ethernet) | |
| IEEE 802.3ae (10G Ethernet) | |
| IEEE802.3 bz (2.5G Ethernet standard) | |
| Bandwidth | 240Gbps |
| Packet Forwarding Rate | 178.56Mpps |
| Packet Buffer | 12Mbit |
| MAC Address Table | 32K |
| VLAN | VLAN range 1-4094, maximum active VLAN is 4K |
| Jumbo Frame | 10K |
| Transmission Method | Store and Forward |
| Surge Protection | Electrostatic ESD: Air 8KV, Contact 6KV (Class B) |
| Operating Temperature | 0~40°C |
| Storage Temperature | -40 °C to 70 °C |
| Operation Humidity | 10%~90%，non condensing |
| Storage Humidity | 5%~95%，non condensing |

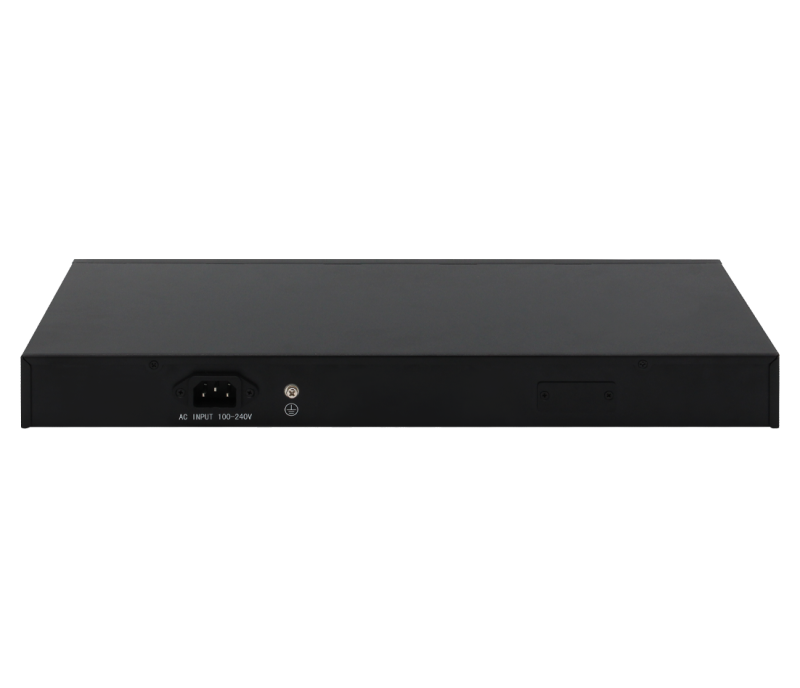

| Power Supply | AC 100-240V 50/60Hz |
| DC 12V 8A | |
| Mainboard Power Consumption | 29.6W |

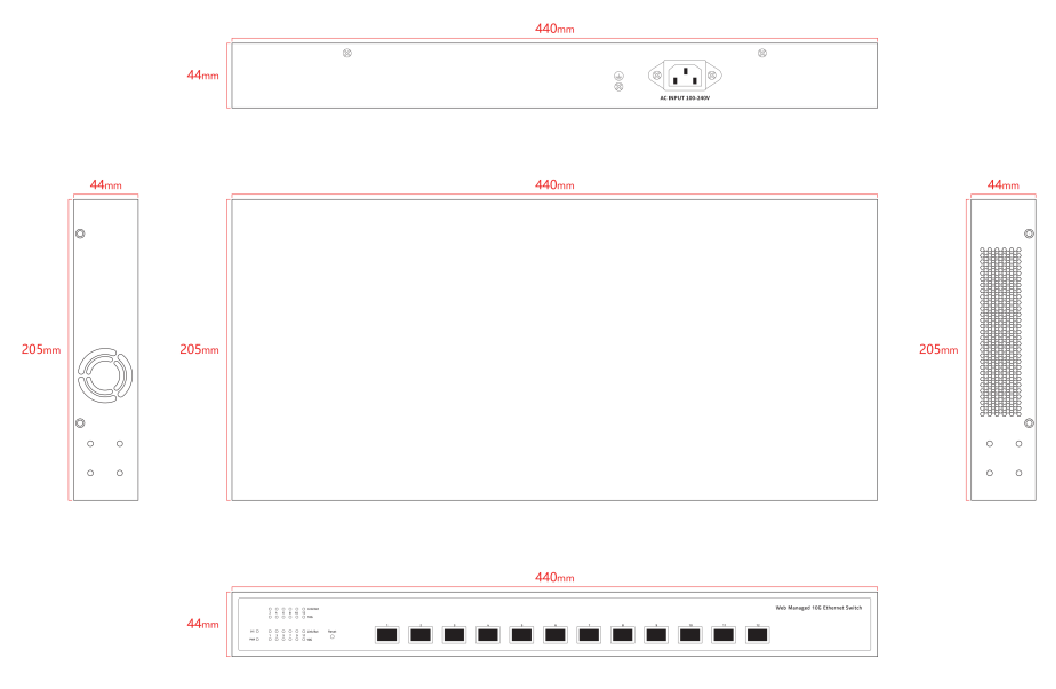

| Structure Information | Product Dimensions :440*205*44mm |
| Packaging Dimensions : 500*290*85mm | |
| Product Net Weight: 2.50KG | |
| Product Gross Weight: 3.12KG | |
| Packing Information | Carton Dimensions : 520*445*310mm |
| Packing Quantity: 5PCS | |
| Packing Weight: 16.6KG | |
| Package Contents | Switch 1pcs, power cord 1pcs,manual 1pcs，certificate of qualification 1pcs |
| Fan Quantity | 1 |
| Installation | Desktop |
| PWR Green LED | On: Powered on |
| Off: Powered off | |
| SYS Green LED | On: The system is normal |
| Flashing: System startup in progress | |
| 10G Green LED | On: 10G Link norma |
| LinK/ACT Green LED | On: Link normal |
| Off: Link blocked | |
| Flashing: Data transmitting | |
| RESET | Long press for 6 seconds to restore factory settings |
| Software Features | |
| L2 Function | |
| Port | Port Switch configuration |
| Port Description configuration | |
| Port Speed configuration | |
| Port Duplex configuration | |
| Port Flow Control configuration | |
| Jumbo Frame | |
| Link Aggregation | Supports load balance policy; Base on MAC and IP-MAC |
| Static and Dynamic Group | |
| LACP | |
| Up to 8 groups | |
| Storm Control | Boardcast suppression |
| Unknown Multicast | |
| Unknown Unicast | |
| Port Mirroring | One to one monitor |
| Many to one monitor | |
| Ingress/Egress/Both | |
| Up to 4 session groups | |
| Port Security | MAC Address Constraints |
| Protect/Restrict/Shutdown | |
| Port Isolation | Support |
| Port Rate-limit | Support |
| VLAN | Access/Trunk/Hybrid |
| VLAN Tunnel (Q-in-Q Tunnel) | |
| VLAN range 1-4094, maximum active VLAN is 4K | |
| MAC Address | Filtering MAC Address |
| Static MAC address | |
| LLDP | LLDP |
| LLDP MED | |
| Spanning Tree Protocol | STP/RSTP |
| BPDU Filter | |
| BPDU Guard | |
| Edge Port | |
| Multicast | IGMP Snooping |
| Router Port | |
| Static IGMP Join | |
| IGMP V1/V2/V3 | |
| QoS | Traffic classification, Supporting SP and WRR scheduling |
| Port Priority | |
| 802.1P Priority | |
| IP DSCP Priority | |
| Priority Remarking | |
| Supports up to 8 queues per port | |
| ERPS | Main Ring |
| Services | |
| Access Protocol | HTTP |
| Session Timeout | |
| Security | DHCP Snooping |
| Diagnostics | |
| Ping | Support |
| Equipment Management | |
| Manager Access | HTTP |
| SNMP | |
| Manager IP | Static Address |
| Manager VLAN | |
| DNS | |
| DHCP Client | |
| SNMP | V1/V2C |
| Community | |
| Trap Host | |
| SNMP MIB | RFC 1213 MIB-II |
| RFC 1643 Ethernet MIB | |
| RFC 2863 Interface MIB | |
| User Management | Support |
| Firmware Management | Firmware upgrade |
| Configuration Management | Upload/Backup Configuration |
| Save | Support |
| Restart | Support |
| Factory Defaults | Support |
| Standard Compliance | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3ad port trunk with LACP | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1p Class of Service | |
| IEEE 802.1Q VLAN tagging | |
| RFC 768 UDP | |
| RFC 793 TFTP | |
| RFC 791 IP | |
| RFC 792 ICMP | |
| RFC 2068 HTTP | |
| RFC 1112 IGMP v1 | |
| RFC 2236 IGMP v2 | |
| RFC 3376 IGMP v3 | |

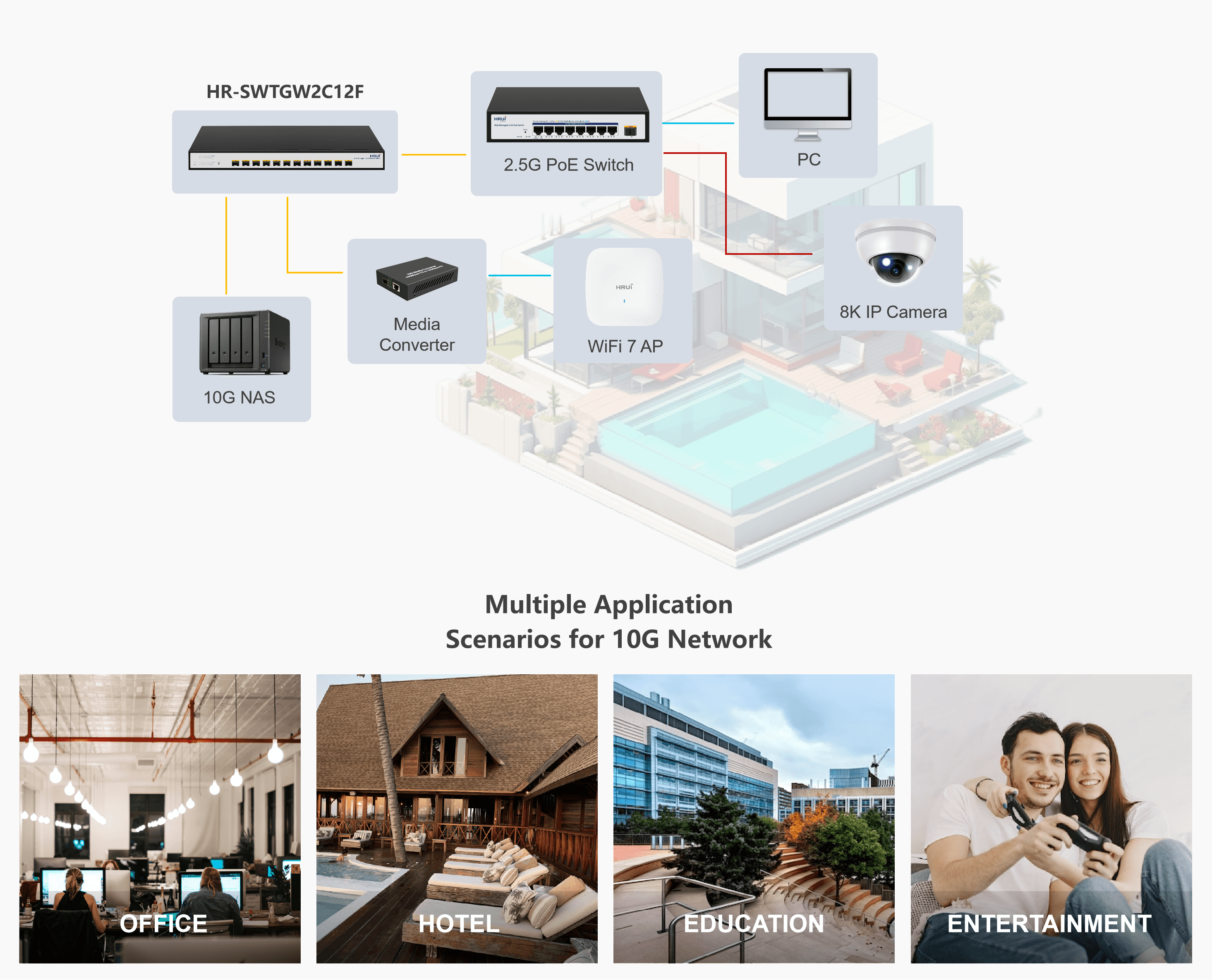

APPLICATION
