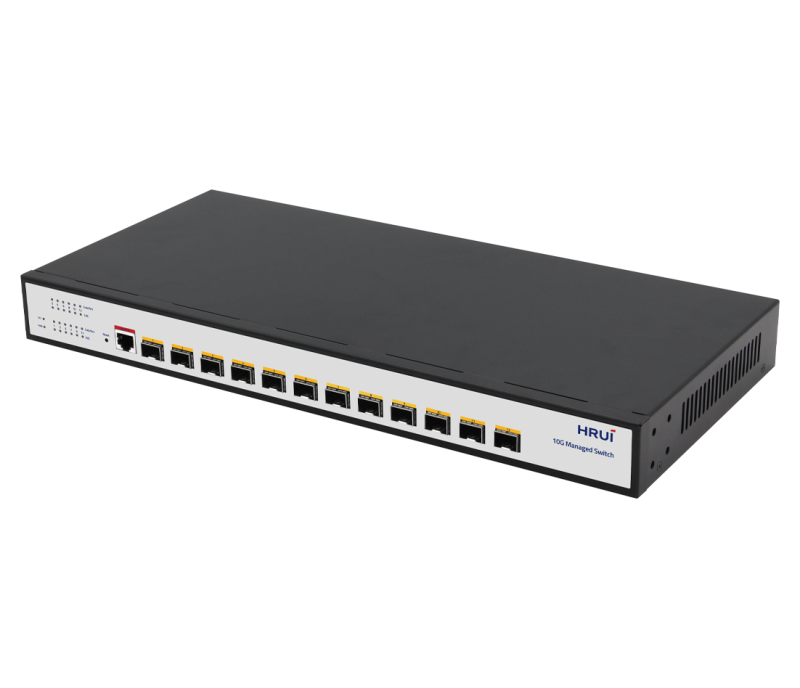

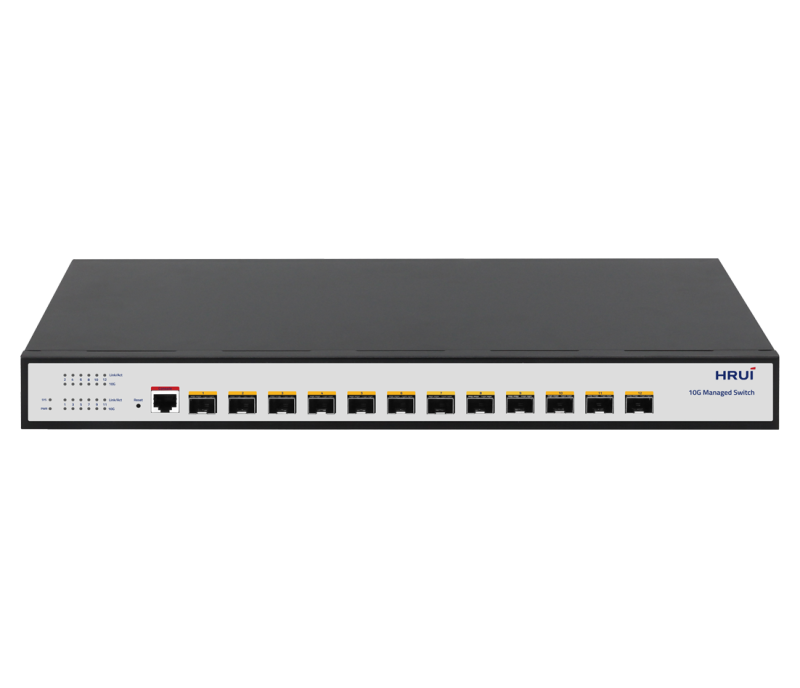

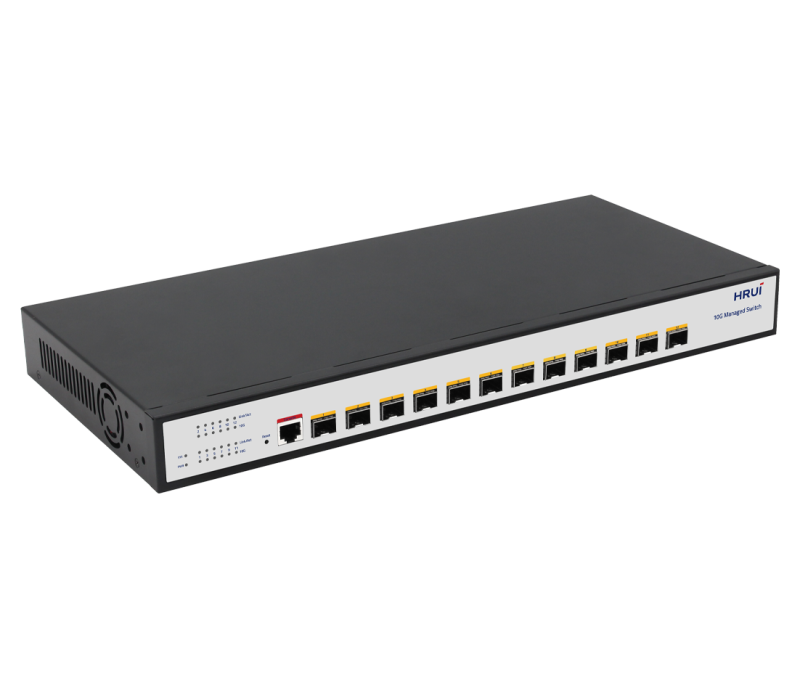

HR-SWTG3C12F - 12-Port 10G L3 Management Ethernet Switch
10G L3 Management Ethernet Switch. Support 12* SFP+ ports, 1* RJ45 console port. Perfect security control strategy and CPU protect policy, improve product fault tolerance, ensure stable network operation and link load balancing; Support automatic DoS attack prevention, SNMP, IEEE802.1q, spanning tree, rapid generation tree protocol, link aggregation and other functions. Advanced security features and advanced Quality of Service (QoS), can be used as a core, distribution or access layer switch, with high port density, easy to manage, it is an ideal choice for a variety of commercial network applications.
- Feature sand Benefits
- Parameter
- Product structure
- Application topology
The HR-SWTG3C12F is a powerful 12-Port 10G L3 Managed Ethernet Switch designed to meet the demands of modern network environments. Featuring 12 SFP+ ports along with an RJ45 console port, this switch offers robust performance and flexible connectivity options.
Engineered with advanced security measures, it includes a comprehensive control strategy and CPU protection policy that enhance fault tolerance, ensuring stable network operations and optimized link load balancing. It automatically prevents DoS attacks and supports key network protocols such as SNMP, IEEE 802.1Q (VLAN tagging), Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Link Aggregation.
The HR-SWTG3C12F not only excels in security but also delivers advanced Quality of Service (QoS), making it suitable for core, distribution, or access layer functionalities. With its high port density and user-friendly management capabilities, this switch is the ideal choice for a wide range of commercial network applications.
Product Features:
Standards Compliance: Meets IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, and IEEE 802.3ae standards.
Layer 3 Management: Supports dynamic routing with L3 management functions, including DHCP Server, Quality of Service (QoS), ACL control, and SNMP versions (V1/V2/V3).
Advanced Protocols: Compatible with Spanning Tree Protocol (STP/RSTP/MSTP), ensuring loop detection, self-healing capabilities, and remote monitoring/control for effective network management.
VLAN Support: Facilitates multiple VLAN partitions, including MAC VLAN and protocol VLAN, enhancing network segmentation and security.
Security Features: Implements IP address, MAC address, VLAN, and port binding, along with DHCP Snooping, IP source guard, and DAI protection for fortified network defense.
Routing Protocols: Fully supports IPV4 and IPV6, including routing protocols such as RIP v1/v2 and OSPFv2 for efficient data handling.
| Description | Specification |
| Model | HR-SWTG3C12F |
| Interface | 12*10Gbps SFP+ ports |
| 1*Console port | |
| Port Standard | IEEE802.3u (Fast Ethernet) |
| IEEE 802.3ab (Gigabit Ethernet) | |
| IEEE 802.3z (Gigabit Ethernet Fiber Standard) | |
| IEEE 802.3ae (10G Ethernet) | |
| IEEE802.3x (Flow Control) | |
| IEEE 802.3az (Efficient and Energy saving Ethernet) | |
| IEEE 802.3ad (Link Aggregation) | |
| IEEE 802.1AB LLDP/LLDP MED (Link Layer Discovery Protocol) | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1s Multiple Spanning Tree Protocol (Fast Spanning Tree) | |
| IEEE 802.1Q (Virtual Local Area Network) | |
| IEEE 802.1p (VLAN Tag) | |
| IEEE 802.1X (User Authentication) | |
| Switching Bandwidth | 240Gbps |
| Packet Forwarding Rate | 178.56Mpps |
| Packet Buffer | 16Mbit |
| MAC Address Table | 32K |
| Jumbo Frame | 10K |
| VLAN | VLAN range 1-4094, maximum active VLAN is 4K |
| Transmission Method | Store and Forward |

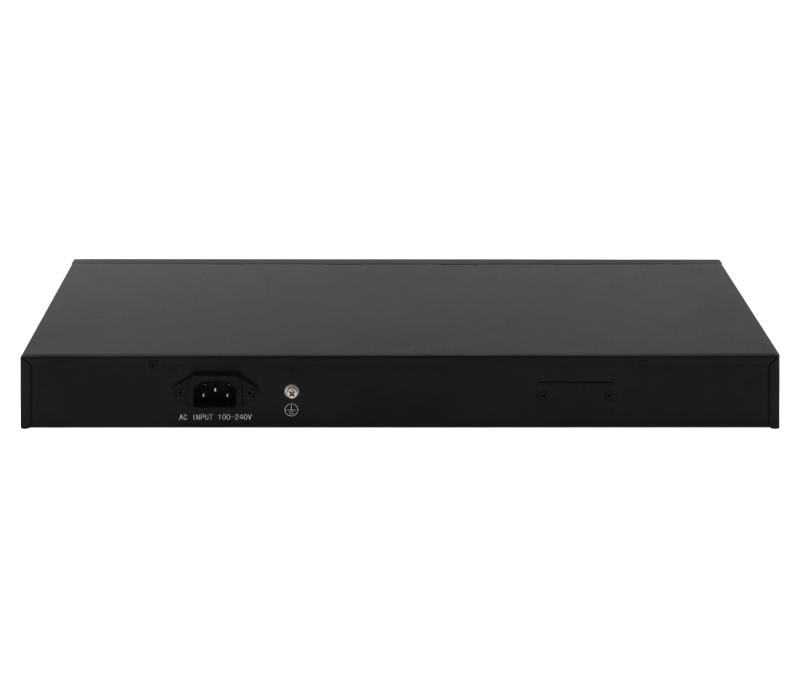

| Power Supply | AC 100-240V 50/60Hz |
| DC 12V 8A | |
| Mainboard Power Consumption | 29.6W |
| Structure Information | Product Dimensions: 440*205*44mm |
| Packaging Dimensions: 500*290*85mm | |
| Product Net Weight: 2.50KG | |
| Product Gross Weight: 3.12KG | |
| Packing Information | Carton Dimensions: 520*445*310mm |
| Packing Quantity: 5PCS | |
| Packing Weight: 16.6KG | |
| Package Contents | Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs, Rack-mounted kit 1 pair |
| Fan Quantity | 1 |
| Installation | Desktop, Rack-mounting |
| Surge Protection | Electrostatic ESD: Air 8KV, Contact 6KV (Class B) |
| Operating Temperature | 0~40°C |
| Storage Temperature | -40~70°C |
| Operation Humidity | 10%~90%, non condensing |
| Storage Humidity | 5%~95%, non condensing |
| PWR Red LED | On: Powered on |
| Off: Powered off | |
| SYS Green LED | Flashing: System startup in progress |
| On: The system is running normally | |
| Link/ACT Green LED | On: Link normal |
| Off: Link blocked | |
| Flashing: Data transmitting | |
| 10G Green LED | On: Link normal |
| Off: Link blocked | |
| Flashing: Data transmitting | |
| Reset | Long press for 6 seconds to restore factory settings |
| Software Features | |
| L3 Function | |
| IPv4 | IPv4 VLAN Interface |
| IPv4 Static Routes | |
| ARP | |
| IPv6 | IPv6 VLAN Interface |
| IPv6 Static Routes | |
| IPv6 ND | |
| RIP | V1/V2 |
| OSPF | Router-ID |
| Authentication | |
| V2 | |
| L2 Function | |
| Port | Port Switch configuration |
| Port Description configuration | |
| Port Speed configuration | |
| Port Duplex configuration | |
| Port Flow Control configuration | |
| Support 10G/2.5G | |
| Jumbo Frame, Up to 10K | |
| EEE | |
| Fiber Module(DDM) | |
| Link Aggregation | Support load balance policy; Base on MAC and IP-MAC |
| Static and Dynamic Group | |
| Support LACP | |
| Up to 8 groups | |
| Storm Control | Boardcast suppression |
| Unknown Multicast | |
| Unknown Unicast | |
| Port Mirroring | One to one monitor |
| Many to one monitor | |
| Ingress/Egress/Both | |
| Up to 4 session groups | |
| Port Security | MAC Address Constraints |
| Port Security MAC Address | |
| Protect/Restrict/Shutdown | |
| Port Isolation | Support |
| Port Rate-limit | Support |
| Loopback Detection | Support |
| VLAN | Access/Trunk/Hybrid |
| VLAN Tunnel (Q-in-Q Tunnel) | |
| VLAN range 1-4094, maximum active VLAN is 4K | |
| Voice VLAN | |
| MAC VLAN | |
| Surveillance VLAN | |
| Protocol VLAN | |
| GVRP | |
| MAC Address | Dynamic MAC address |
| Static MAC address | |
| Filtering MAC Address | |
| Spanning Tree Protocol | STP/RSTP/MSTP |
| BPDU Filter | |
| BPDU Guard | |
| Edge Port | |
| LLDP | LLDP |
| LLDP MED | |
| Multicast | IGMP Snooping |
| IGMP V1/V2/V3 | |
| Router Port | |
| Static IGMP group address | |
| IGMP groups filtering | |
| Querier | |
| MLD Snooping | |
| MVR | |
| QoS | Traffic classification based, Strict priority and WRR |
| Port Priority | |
| 802.1P Priority | |
| IP TOS Priority | |
| IP DSCP Priority | |
| Support up to 8 queues per port | |
| Priority Remarking | |
| ERPS | Only SFP port |
| Services | |
| DHCP | DHCP Server |
| IP Pool | |
| Static Binding | |
| Option 43 | |
| DHCP Relay | |
| Access Protocol | HTTP |
| HTTPS | |
| Telnet | |
| SSHv2 | |
| Manager ACL | |
| Session Timeout | |
| Password Retry Count | |
| Silent Time | |
| Security | |
| AAA | RADIUS |
| TACACS+ | |
| 802.1X | |
| Base on port/MAC/local/WEB | |
| DHCP Snooping | Global/VLAN |
| Option 82 | |
| Circuit ID | |
| IP Source Guard | Support |
| Dynamic ARP Inspection | Support |
| DoS | Support |
| ACL | MAC ACL |
| IPv4 ACL | |
| IPv6 ACL | |
| Diagnostics | |
| Syslog | Logging Message |
| Remote Server | |
| Ping | Support |
| Traceroute | Support |
| UDLD | Support |
| Equipment Management | |
| Manager Access | Console |
| HTTP/HTTPS | |
| Telnet | |
| SSH | |
| SNMP | |
| Manager IP | Static Address |
| DHCP Client | |
| Support IPv4 and IPv6 address | |
| Manager VLAN | |
| DNS | |
| Time Synchronization | SNTP |
| Manual Time | |
| SNMP | V1/V2C/V3 |
| Community | |
| V3 User | |
| Group | |
| Trap Host | |
| SNMP MIB | RFC 1213 MIB-II |
| RFC 1493 Bridge MIB | |
| RFC 1643 Ethernet MIB | |
| RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) | |
| RFC 2863 Interface MIB | |
| LLDP | |
| Private MIB | |
| RMON | Statistics |
| History Configuration | |
| Event Configuration | |
| Alarm Configuration | |
| User Management | Support |
| Firmware Management | Firmware upgrade |
| Double Image; Swap between Active and Alternate firmware image | |
| Configuration Management | Upload and download |
| Upload and download via USB interface | |
| Save | Support |
| Restart | Support |
| Factory Defaults | Support |
| Standard Compliance | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3ad port trunk with LACP | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1s Multiple Spanning Tree Protocol | |
| IEEE 802.1p Class of Service | |
| IEEE 802.1Q VLAN tagging | |
| IEEE 802.1x Port Authentication Network Control | |
| IEEE 802.1ab LLDP | |
| RFC 768 UDP | |
| RFC 793 TFTP | |
| RFC 791 IP | |
| RFC 792 ICMP | |
| RFC 2068 HTTP | |
| RFC 1112 IGMP v1 | |
| RFC 2236 IGMP v2 | |
| RFC 3376 IGMP v3 | |
| RFC 2710 MLD v1 | |
| FRC 3810 MLD v2 | |
| RFC 2328 OSPF v2 | |
