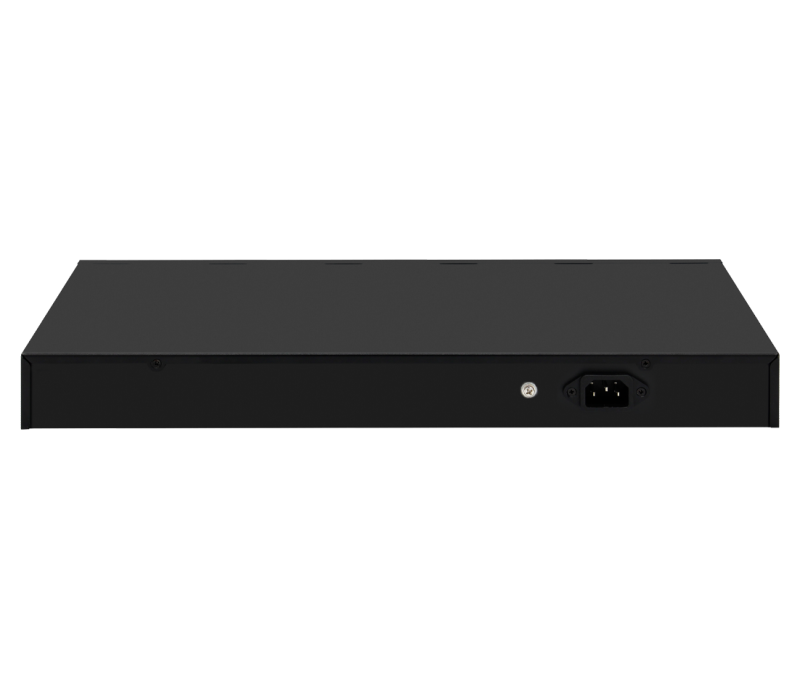

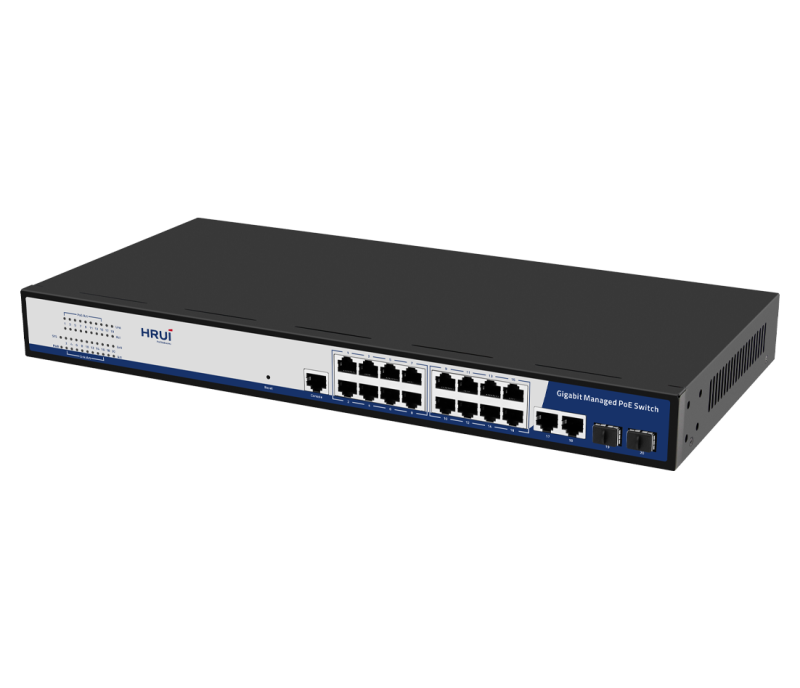

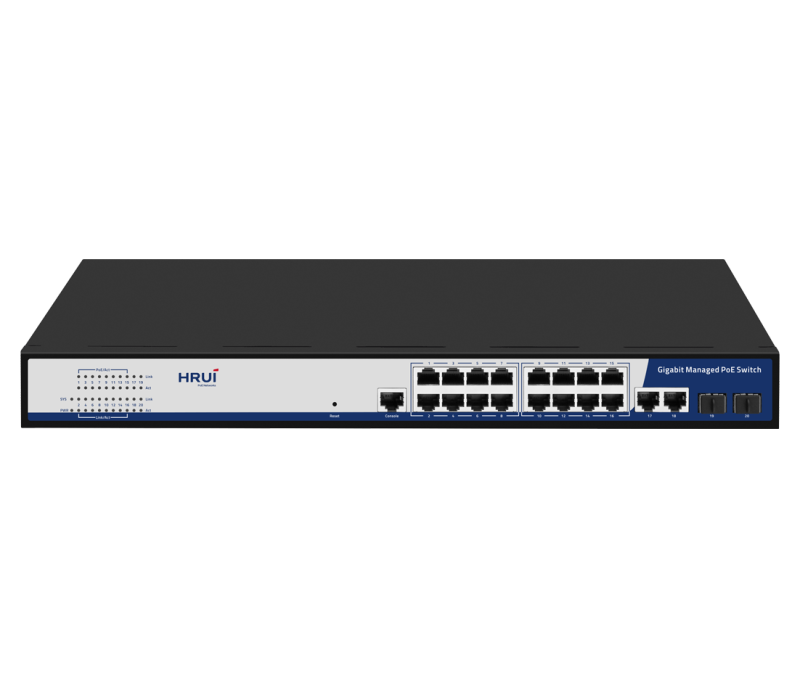

The HR-AFGM-1622S-300 is an advanced Layer 2 managed Power over Ethernet (PoE) switch designed to deliver robust connectivity and management capabilities for your network. Equipped with 16 Gigabit PoE ports, 2 Gigabit Ethernet ports, and 2 Gigabit SFP ports, this switch fully complies with IEEE 802.3af/at PoE standards, providing a total power budget of 300W. With a bandwidth capacity of 40Gbps and surge protection of up to 6KV, this switch ensures reliable operation even in demanding environments. It supports a generous transmission distance of up to 250 meters and operates efficiently in a wide temperature range of -10 to 50℃, making it an ideal solution for various applications.

Product Features:

Port Configuration: 16 * 1Gbps PoE ports, 2 * 1Gbps SFP ports, 2 * 1Gbps RJ45 ports, and 1 * Console port for versatile networking capabilities.

Standards Compliance: Fully supports IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3z protocols for seamless integration and interoperability.

PoE Standards: Complies with IEEE 802.3at (30W) and IEEE 802.3af (15.4W) power delivery specifications, ensuring optimal device support.

Adaptive Ethernet Ports: Each port automatically adjusts for 10/100/1000Mbps speeds, providing flexibility and efficiency.

Comprehensive PoE Management: Features PoE management tools and a PoE watchdog to monitor power status and device functionality.

Status Monitoring: LED indicators offer real-time monitoring of device status and assist in troubleshooting.

Enhanced Security: Supports 802.1x port authentication, with additional AAA and TACACS+ authentication for secure access control.

Flexible Management Interfaces: Manage the switch through WEB, TELNET, CLI, SSH, SNMP, and RMON for versatile administrative options.
