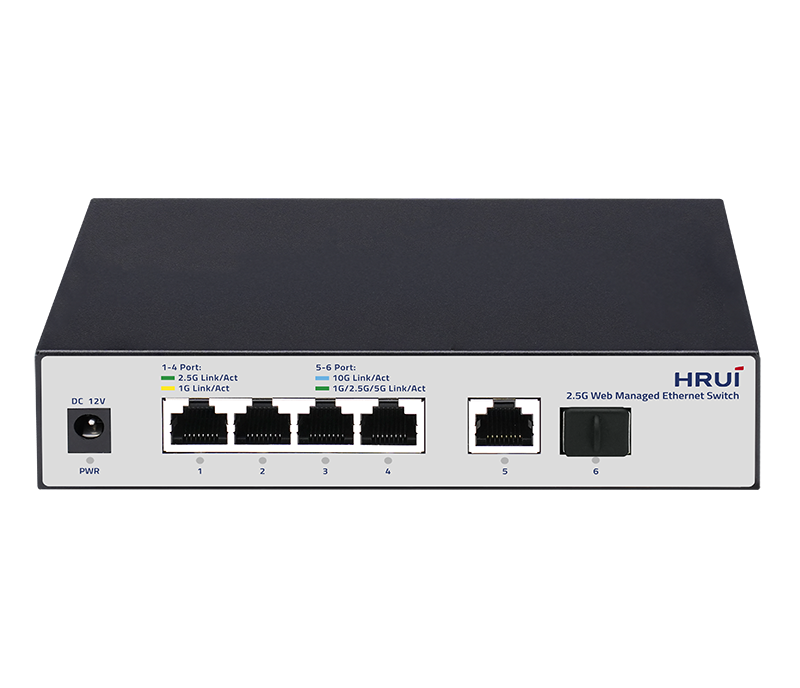

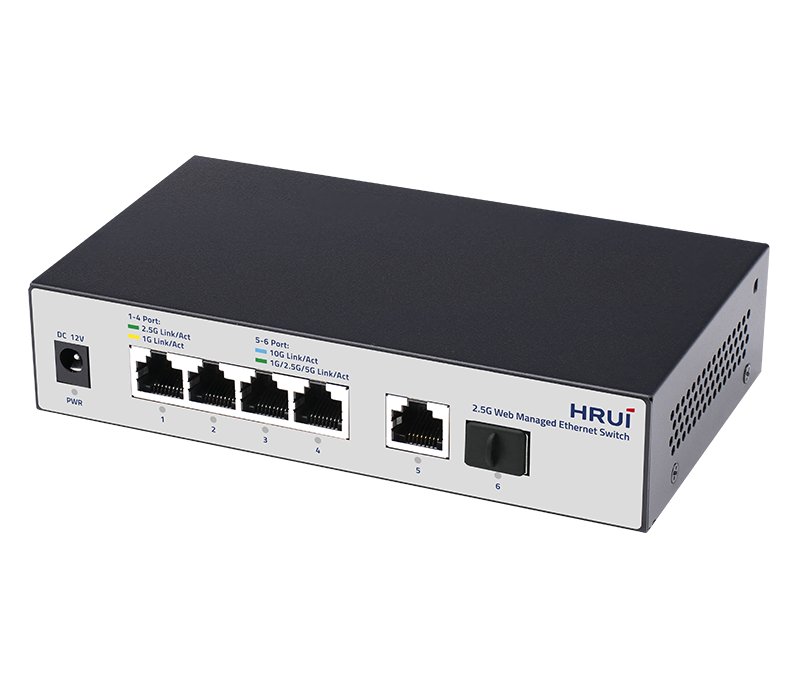

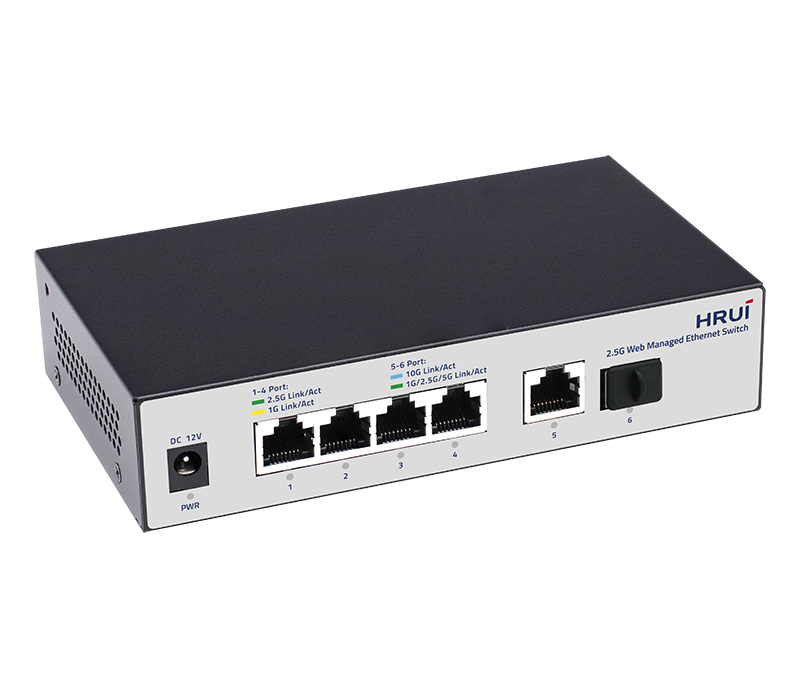

The HR310S-4T2XH Web-Managed Ethernet Switch is a versatile, future-ready networking solution designed to empower businesses with seamless connectivity and robust performance. Combining four 2.5G RJ45 ports, one 10G RJ45 port, and one 10G SFP+ fiber uplink, this switch delivers the flexibility and bandwidth required to support high-speed applications, from data-intensive workflows to multimedia streaming. Ideal for small to medium enterprises, creative studios, or growing networks, the HR310S-4T2XH bridges the gap between cost-efficiency and cutting-edge performance.

Product Features:

Hybrid Speed Configuration: 4×2.5G RJ45 ports handle high-bandwidth devices (e.g., NAS, workstations), while dual 10G ports (1×RJ45 + 1×SFP+) enable lightning-fast uplinks or backbone connectivity, supporting both copper and fiber cabling.

Intelligent Web Management: Simplify network control with an intuitive web interface for VLAN setup, QoS prioritization, and real-time traffic monitoring—all accessible remotely.

Universal Compatibility: Complies with IEEE 802.3bz (2.5G), IEEE 802.3ae (10G), and other key standards, ensuring seamless integration into existing networks.

Auto-Sensing Convenience: Ports auto-negotiate speeds (10M/100M/1G/2.5G) and auto-correct cabling (Auto MDI/MDIX), eliminating manual configuration.

Proactive Monitoring: LED status indicators provide at-a-glance diagnostics for ports, power, and system health, streamlining troubleshooting.

Optimized Traffic Flow: Advanced flow control (IEEE 802.3x full-duplex, Backpressure half-duplex) minimizes data loss during high-demand periods.

HRUI new-launched series of 2.5G smart web managed Ethernet switches designed to meet diverse application needs by offering flexible port combinations. These switches feature 10-Gigabit uplink ports, making them suitable for high-speed network applications in home networks, business offices, and multimedia transmission environments.

These switches offer reliability and efficient management, simplifying network configuration and monitoring. They ensure network stability and smoothness for both regular business traffic and high-demand scenarios, helping businesses create high-speed and reliable network environments. The 2.5G light-managed Ethernet switch series supports multiple network protocols and security features, enhancing network flexibility and security to address modern network challenges and support business developmemt.

2.5G + 10G Combination

Offer a rich combination of port types and quantities to flexibly meet various network connection needs.

Easily Connect High-speed Devices and Reduce Upgrade Costs

Utilizing existing wiring allows for easy connection of high-speed devices like WiFi 6 routers, AP, NAS, and gaming equipment, meeting growing network demands while reducing upgrade costs and ensuring efficient data transmission.

Smart Web Managed Feature to Optimize Your Network Efficiency

The product offers advanced features like VLAN, port mirroring, traffic control, LACP, QoS, and DHCP Snooping to address complex network needs and enhance security, reliability, and scalability.

Fanless Design

The device features a metal case with vent designs on both sides and the rear, providing improved and more stable heat dissipation.

Rock-solid Reliability

Support 4KV surge protection and 8KV ESD protection for reliable operation.

Plug and Play

Support automatic port flipping, easy to use, plug and play, no configuration needed.

APPLICATION

SPECIFICATION

Description	Specification
Model	HR310S-4T2XH
Interface	4*2.5Gbps RJ45 ports
	1*10Gbps RJ45 port
	1*10Gbps SFP+ port
Port Standard	IEEE802.3 (Ethernet)
	IEEE802.3u (Fast Ethernet)
	IEEE802.3ab (Gigabit Ethernet)
	IEEE802.3z (Gigabit Ethernet Fiber Standard)
	IEEE802.3bz (2.5G Ethernet)
	IEEE 802.3ae (10Gbps Ethernet)
	IEEE802.3x (Flow Control)
Switching Bandwidth	60Gbps
Packet Forwarding Rate	44.64Mpps
Packet Buffer	8Mbit
MAC Address Table	4K
VLAN	VLAN range 1-4094, maximum active VLAN is 4K
Jumbo Frame	10K
Transmission Method	Store and Forward
Surge Protection	Port Surge: Common mode 4KV, Differential mode 1KV(Class B)
	Electrostatic ESD: Air 8KV, Contact 6KV(Class C)
Operating Temperature	0~40°C
Storage Temperature	-40~70°C
Operation Humidity	10%~90%, non condensing
Storage Humidity	5%~95%, non condensing
Power Supply	AC 100-240V  50/60Hz
	DC 12V1A
Mainboard Power Consumption	9.84W

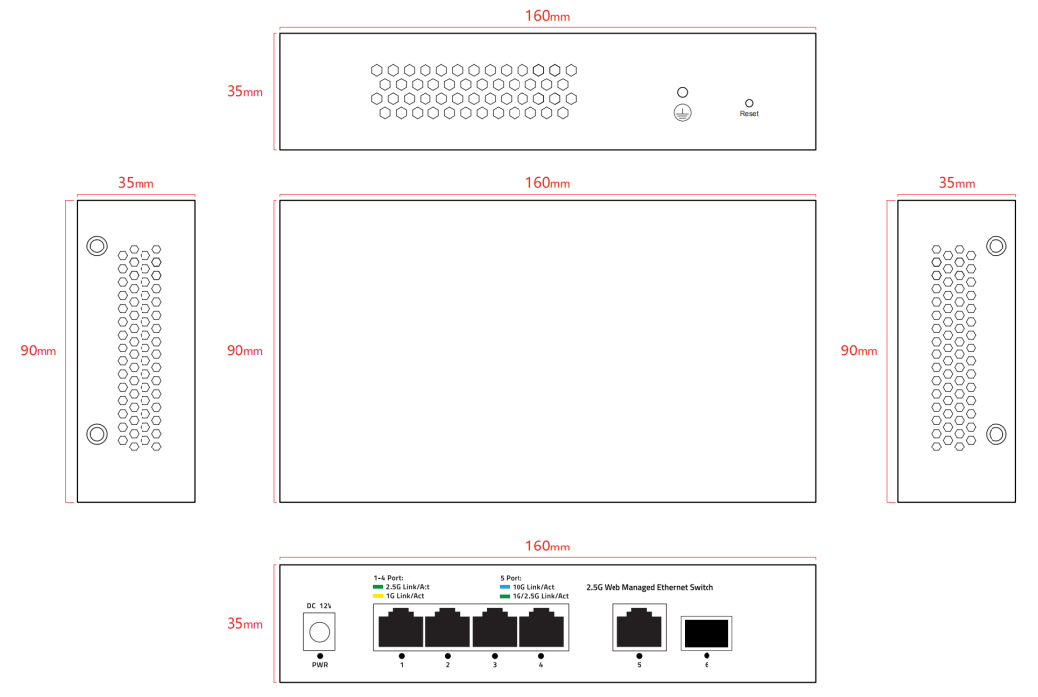

Structure Information	Product Dimensions: 160*90*35mm
	Packaging Dimensions: 175*120*73mm
	Product Net Weight: 0.35KG
	Product Gross Weight: 0.5KG
Packing Information	Carton Dimensions: 520*385*205mm
	Packing Quantity: 20PCS
	Packing Weight: 11KG
Package Contents	Switch 1pcs, AC Adapter 1pcs, Manual 1pcs, Certificate of Inspection 1pcs
Fan Quantity	0
Installation	Desktop, Wall-mounting
PWR Green LED	On: Powered on
	Off: Powered off
Ports 1-4	Green LED on: 2.5Gbps Link normal
	Yellow LED on: 10/100/1000Mbps Link normal
	Off: Link blocked
	Flashing: Data transmitting
Port 5	Blue LED on: 10Gbps Link normal
	Green LED on: 1G/2.5/5GGbps Link normal
	Off: Link blocked
	Flashing: Data transmitting
Port 6	Blue LED on: 10Gbps Link normal
	Green LED on: 1G/2.5Gbps Link normal
	Off: Link blocked
	Flashing: Data transmitting
Software Features
L2 Function
Port	Port Switch configuration
	Port Speed configuration
	Port Duplex configuration
	Port Flow Control configuration
	EEE
	Jumbo Frame
Link Aggregation	Max. 4 members per group
	Static Group
	LACP
	Up to 2 groups
Storm Control	Boardcast suppression
	Unknown Multicast
	Unknown Unicast
Port Mirroring	Support
Port Security	MAC Address Constraints
Port Isolation	Support
Port Rate-limit	Support
VLAN	Access/Trunk/Hybrid
	Congurable VID from 1 - 4094;Max. 31 static VLAN groups
MAC Address	Dynamic MAC Address
	Static MAC address
Spanning Tree Protocol	STP/RSTP
	Edge Port
Multicast	IGMP Snooping
	Router Port
	Static IGMP Join
	IGMP V1/V2
QoS	Traffic classification, Supporting SP and WRR scheduling
	Port Priority
	Support up to 8 queues per port
Services
Access Protocol	HTTP
Diagnostics
Port Statistics	Support
Equipment Management
Manager Access	HTTP
Manager IP	Static Address
	DHCP Client
User Management	Support
Firmware Management	Firmware upgrade
Configuration Management	Upload/Backup Configuration
Save	Support
Restart	Support
Factory Defaults	Support
Standard Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1Q VLAN tagging
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
