HR210P-16T2MS-300
6KV Port Surge protection | 8KV ESD protection | Dynamic LACP | IGMP Snooping | DHCP Snooping | IP DSCP/CoS Priority | PoE Budget Indicator | Mgmt VLAN & DNS | Enhanced PoE Setup
- Feature and Benefits
- Parameter
- Product structure
- Application topology

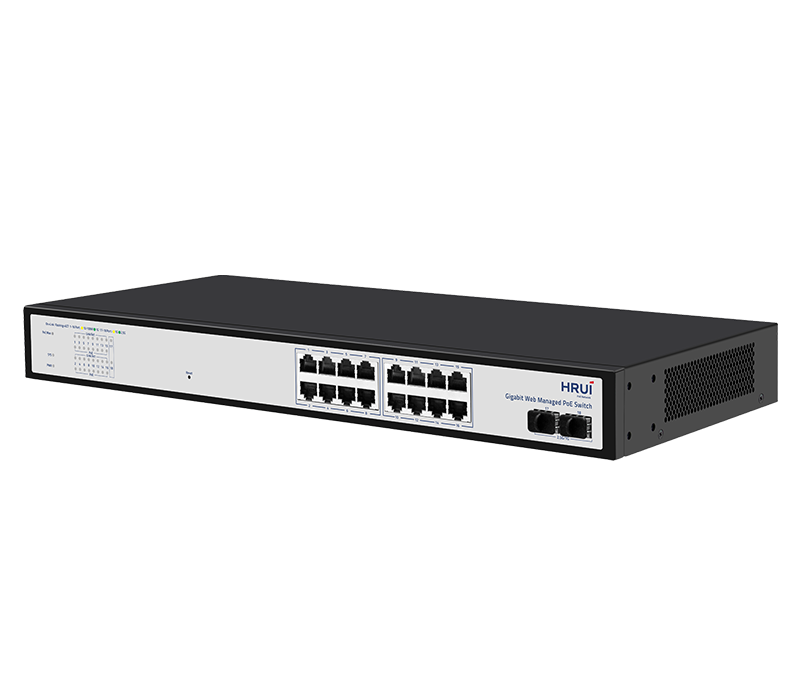

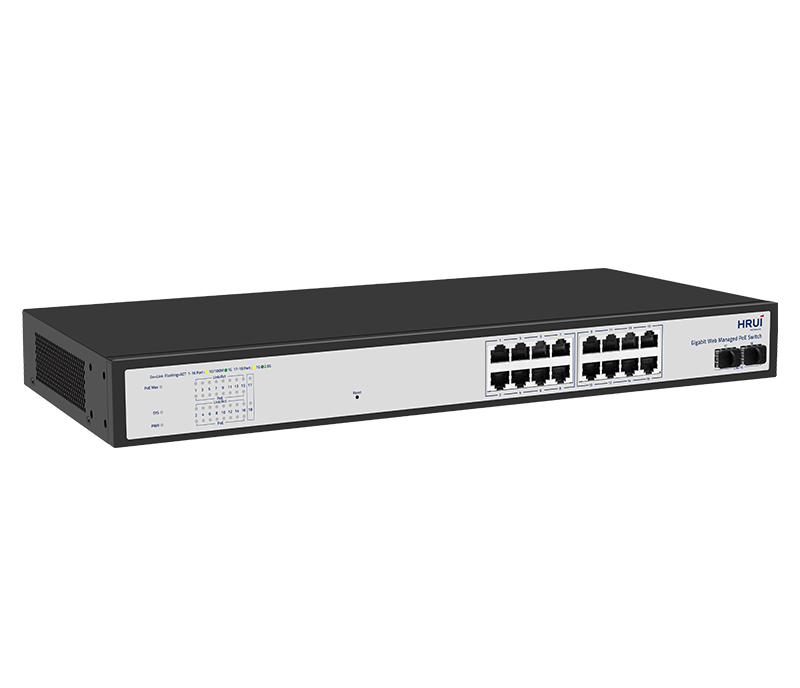

HR210P-16T2MS-300 is a member of the HRUI 210P 2.5G Uplink Gigabit Web-Managed PoE Switch series. It is a Layer 2 Web Managed Gigabit PoE Switch designed for SMB, enterprise and IP surveillance networks. Featuring 16 Gigabit PoE+ ports, dual 2.5G SFP uplinks and a 285W PoE budget, it delivers reliable power and high-speed connectivity for IP cameras, wireless access points, VoIP phones and other PoE devices. Advanced Layer 2 management including VLAN, QoS, LACP, STP/RSTP/MSTP, IGMP Snooping and PoE Watchdog ensures stable and efficient network operation.
Product Features:
■ Support 16*1Gbps PoE ports++2*2.5Gbps SFP ports significantly reduce congestion
■ Comply with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, and IEEE802.3z standards
■ Ethernet Ports support 10/100/1000Mbps self-adaptive
■ Support automatic port flipping (Auto MDI/MDIX)
■ Adopt a storage and forwarding exchange mechanism
■ All ports support line speed switching
■ The panel indicator LEDs will monitor the working status and assist in fault analysis
■ Support QoS data priority
■ Support web management
| Description | Specification |
| Model | HR210P-16T2MS-300 |
| Interface | 16*1Gbps PoE ports |
| 2*2.5Gbps SFP ports | |
| Port Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol |
| IEEE 802.3i: 10BASE-T Ethernet | |
| IEEE 802.3u: 100BASE-TX Fast Ethernet | |
| IEEE 802.3ab: 1000BASE-T GigabitEthernet | |
| IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Fiber optic) | |
| IEEE 802.3x: Flow Control | |
| Switching Bandwidth | 42Gbps |
| Packet Forwarding Rate | 31.24Mpps |
| Packet Buffer | 8.4Mbit |
| MAC Address Table | 16K |
| Jumbo Frame | 12Kbytes |
| VLAN | VLAN range 1-4094, maximum active VLAN is 31 |
| Transmission Method | Store and Forward |
| PoE Standard | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| PoE Port Output Voltage | DC 44-57V |
| PoE Ports | Ports 1-24 PoE power output <30W |
| PoE Power Budget | 285W |

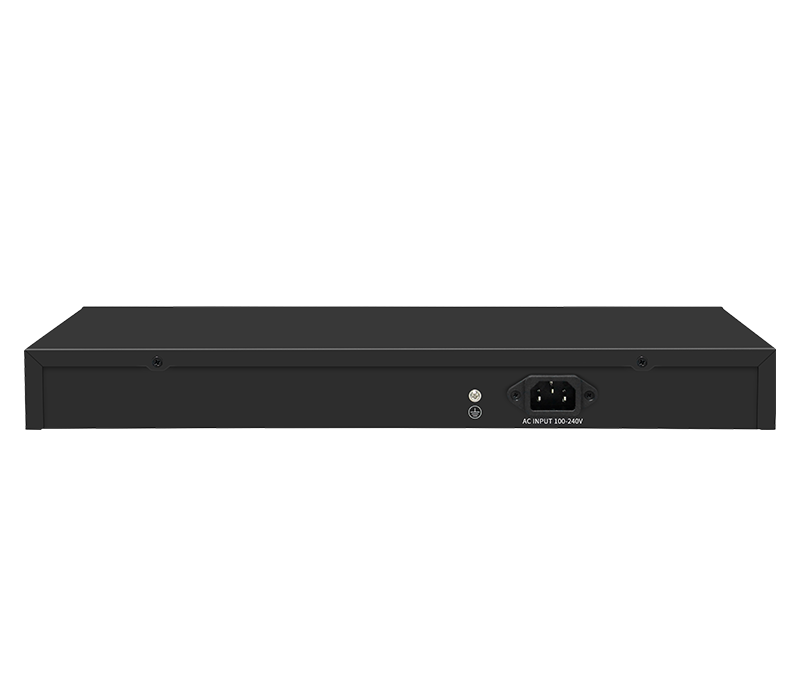

| Power Supply | AC 100-240V 50/60Hz |
| DC 53.5V7.5A | |
| Mainboard Power Consumption | 10.4W |

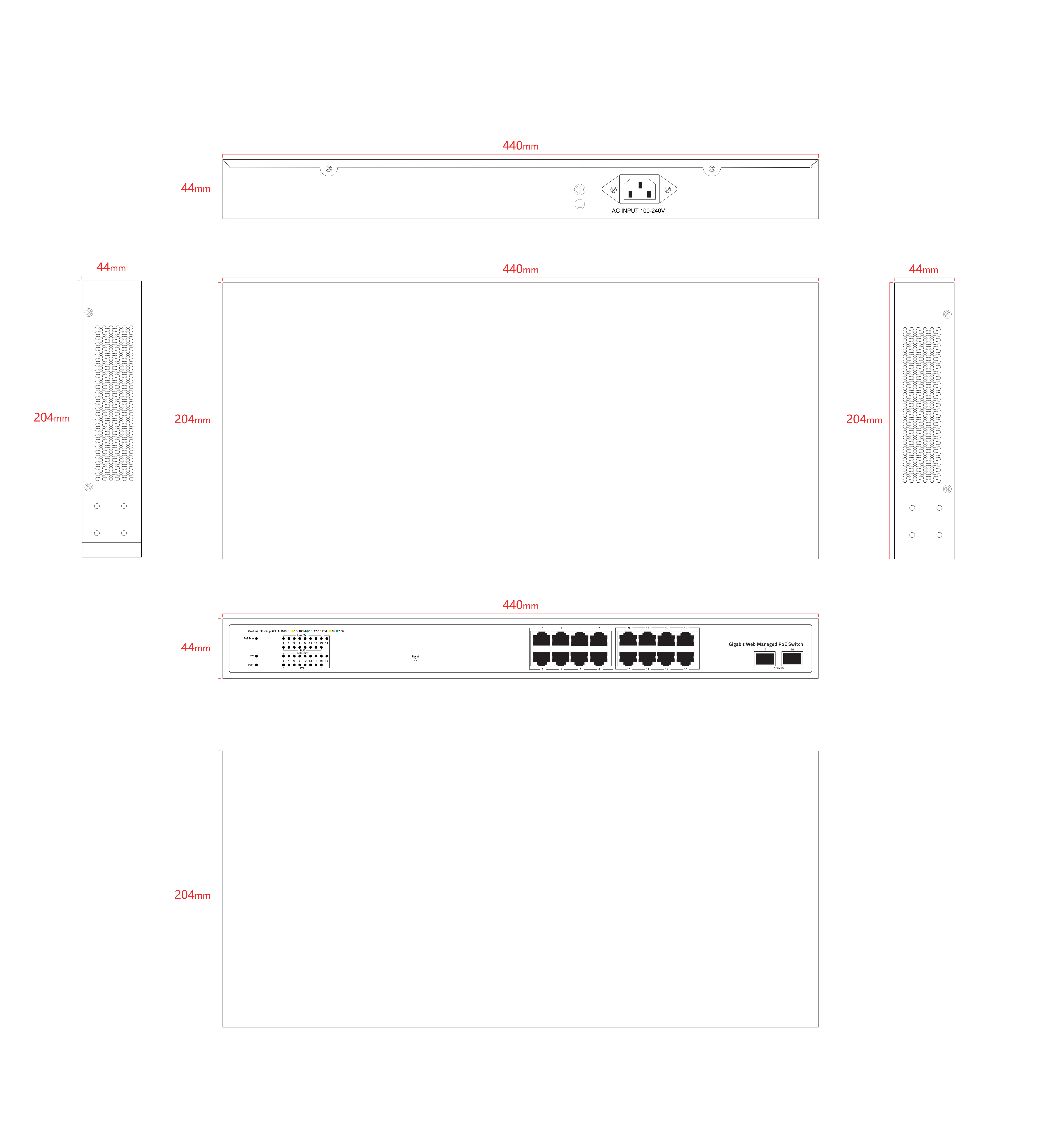

| Structure Information | Product Dimensions: 440*204*44mm |
| Packaging Dimensions: 500*290*85mm | |
| Product Net Weight: 2.8KG | |
| Product Gross Weight: 3.38KG | |
| Package Information | Carton Dimensions: 520*445*310mm |
| Packing Quantity: 5PCS | |
| Packing Weight: 18KG | |
| Package Contents | Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs, Rack-mounting kit 1 pair |
| Fan Quantity | 0 |
| Installation | Desktop, Rack-mounting |
| Surge Protection | Port Surge: Common mode 6KV, Differential mode 2KV (Class C) |
| Electrostatic ESD: Air 8KV, Contact 6KV (Class B) | |
| Power Supply: Common mode 4KV, Differential mode 2KV (Class C) | |
| Operating Temperature | 0~40°C |
| Storage Temperature | -40~70°C |
| Operation Humidity | 10%~90%, non condensing |
| Storage Humidity | 5%~95%, non condensing |

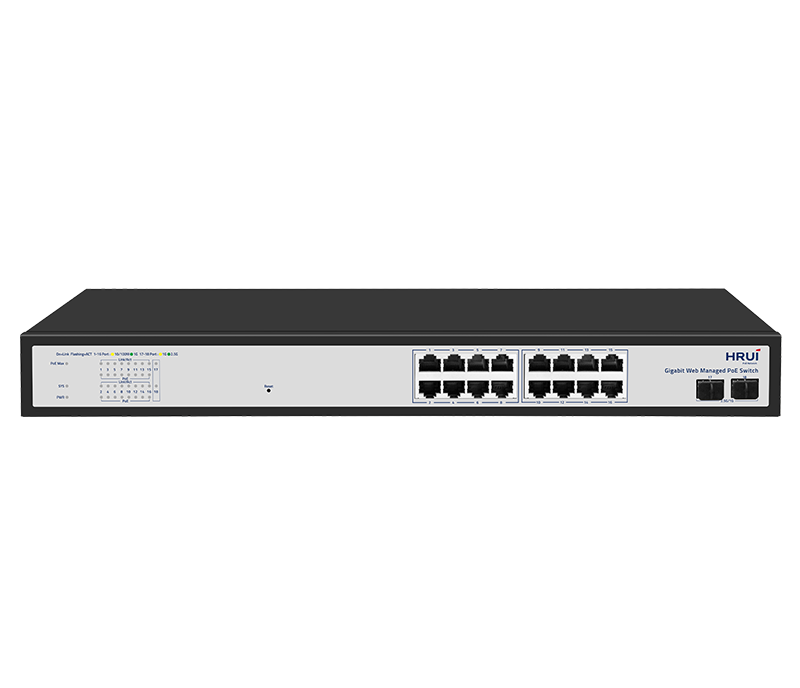

| PWR Green LED | On: Powered on |
| Off: Powered off | |
| SYS Green LED | Flashing: System startup in progress |
| On: The system is running normally | |
| Ports 1-24 Green LED | Green LED on: 1Gbps Link normal |
| Yellow LED on: 10/100Mbps Link normal | |
| Off: Link blocked | |
| Flashing: Data transmitting | |
| PoE Yellow LED | On: PoE powered on |
| Off: PoE powered off | |
| Ports 25-26 | Green LED on: 2.5Gbps Link normal |
| Yellow LED on: 1Gbps Link normal | |
| Off: Link blocked | |
| Flashing: Data transmitting | |
| PoE Max Green LED | Off: Indicate that the PoE power usage is less than 90% |
| Flashing(Once per second): Indicate that the PoE power usage of 90% ≤ P ≤ 95% | |
| On: Indicate that the PoE power is used at 95%<P<100% | |
| Reset | Long press for 6 seconds to restore factory settings |
| L2 Function | |
| Port | Port Switch configuration |
| Port Description configuration | |
| Port Speed configuration | |
| Port Duplex configuration | |
| Port Flow Control configuration | |
| Jumbo Frame | |
| Link Aggregation | Static Group |
| Up to 2 groups | |
| Up to 4 groups | |
| Max. 4 members per group | |
| Max. 8 members per group | |
| LACP | |
| Storm Control | Boardcast suppression |
| Unknown Multicast | |
| Unknown Unicast | |
| Port Mirroring | Support |
| Port Isolation | Support |
| Port Rate-limit | Support |
| Loopback Detection | Support |
| VLAN | Access/Trunk/Hybrid |
| VLAN range 1-4094, maximum active VLAN is 31 | |
| Port VLAN | |
| MAC Address | Dynamic MAC address |
| Static MAC address | |
| Address Lookup | |
| Spanning Tree Protocol | STP/RSTP/MSTP |
| Edge Port | |
| Multicast | IGMP Snooping |
| IGMP V1/V2 | |
| QoS | Traffic classification, supporting SP and WRR scheduling |
| Port Priority | |
| IP DSCP Priority | |
| COS Pirority | |
| Support up to 8 queues per port | |
| PoE | |
| PoE Configuration | PoE used power |
| PoE Type/Level/Power/Voltage/Current query | |
| PoE Switch Configuration | |
| PoE Watchdog | |
| Enlong Mode | |
| Force | |
| PoE power AF/AT adaptation | |
| PoE Priority | |
| Services | |
| Access Protocol | HTTP |
| Security | |
| DHCP Snooping | Global |
| Option 82 | |
| Circuit ID | |
| Diagnostics | |
| Port Statistics | Support |
| Copper Test | Support |
| Equipment Management | |
| Manager Access | HTTP |
| Manager IP | Static Address |
| DHCP Client | |
| Manager VLAN | |
| DNS | |
| User Management | Support |
| Firmware Management | Firmware upgrade |
| Configuration Management | Upload/Backup Configuration |
| Save | Support |
| Restart | Support |
| Factory Defaults | Support |
| Standard Compliance | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3ad port trunk with LACP | |
| IEEE 802.1D Spanning Tree Protocol | |
| IEEE 802.1w Rapid Spanning Tree Protocol | |
| IEEE 802.1s Multiple Spanning Tree Protocol | |
| IEEE 802.1Q VLAN tagging | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| RFC 768 UDP | |
| RFC 791 IP | |
| RFC 792 ICMP | |
| RFC 2068 HTTP | |
| RFC 1112 IGMP v1 | |
| RFC 2236 IGMP v2 | |
