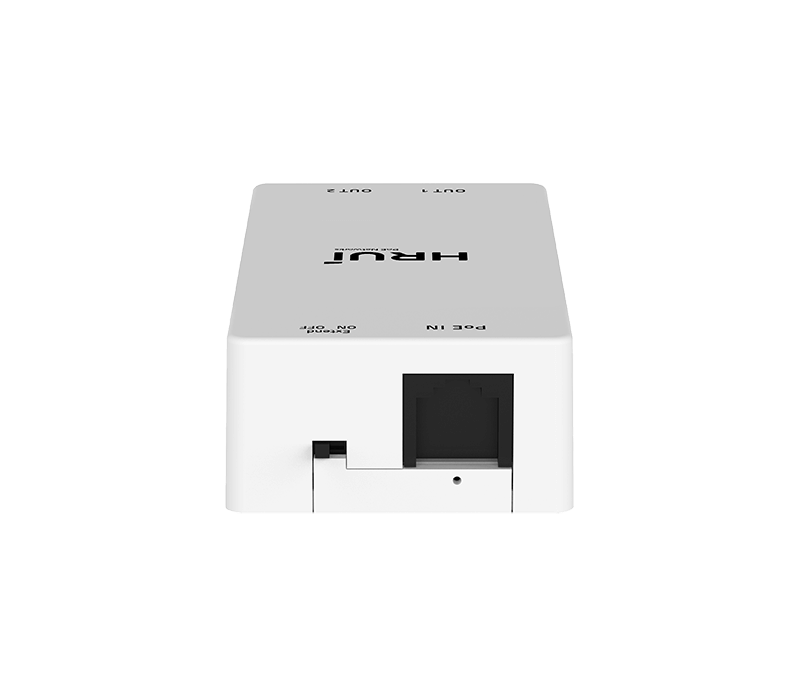

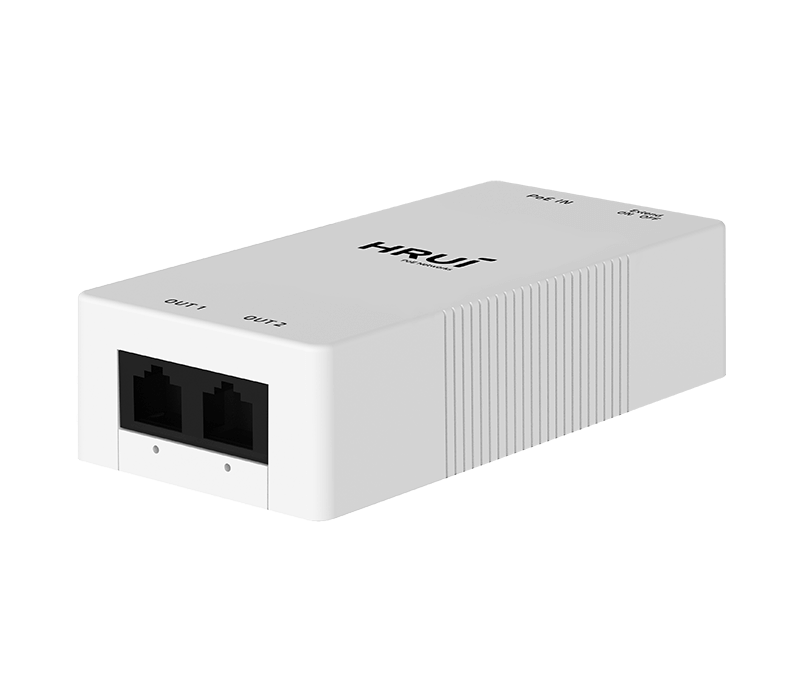

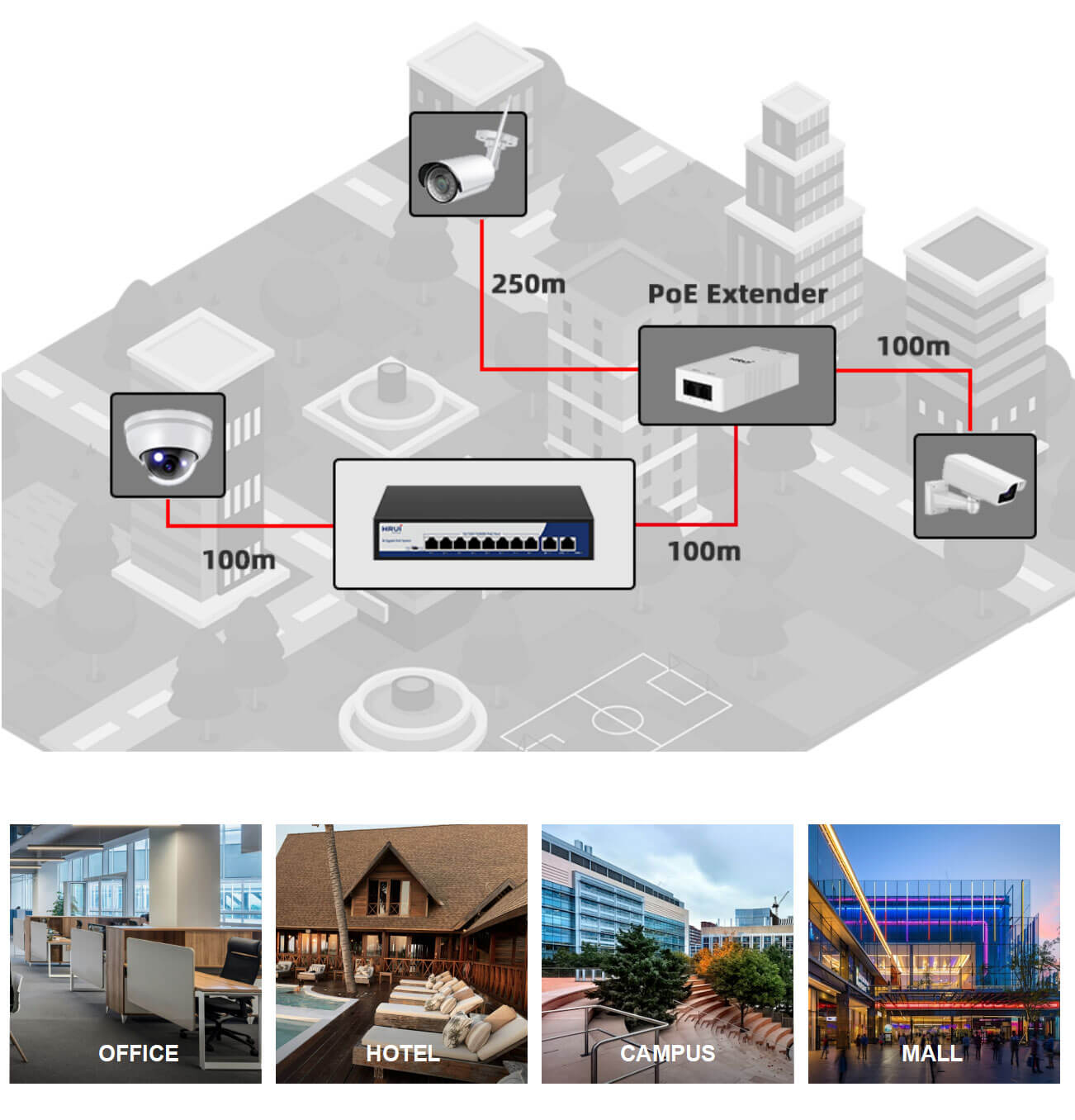

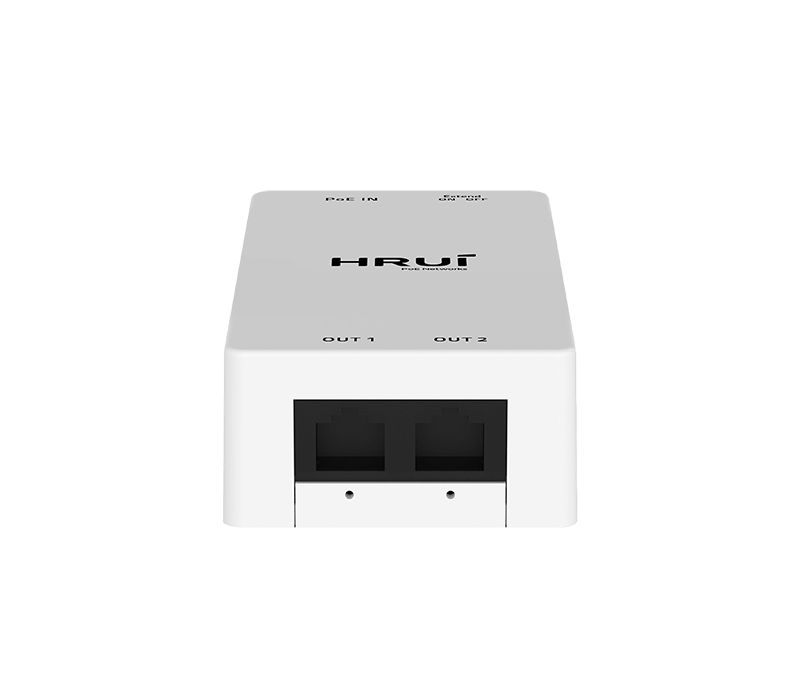

The HRUI 2-Port PoE Extender utilizes cutting-edge network cable technology and power supply innovations to extend the standard Ethernet transmission distance beyond 100 meters, reaching up to 250 meters. Compatible with PoE switches and PoE injectors that adhere to the IEEE802.3af/at standards, this product is ideal for applications in security PoE network monitoring and PoE network installations. Featuring high-quality, high-speed network ICs and the most reliable PoE chips, it guarantees the safe and stable operation of your network.
HR-AFGR-21+: 1*1000Mbps PoE input RJ45 port + 2*1000Mbps PoE output ports
HR-AFR-21+: 1*100Mbps PoE input RJ45 port + 2*100Mbps PoE output ports

PRODUCT FEATURES

SPECIFICATION

HR-AFR-21+		HR-AFGR-21+
Port Rate: 1*FE PoE Input + 2*FE PoE Output Extend Mode: 250 Meters Surge Protection: 4KV Plastic Case Working Temperature: 0~40℃		Port Rate: 1*GE PoE Input + 2*GE PoE Output Extend Mode: 250 Meters Surge Protection: 4KV Plastic Case Working Temperature: 0~40℃

Highlight

• 1* 1000Mbps PoE in RJ45 port+2 *1000Mbps PoE out ports
• Complies with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards
• Support IEEE802.3af/at power supply standard
• RJ45 port supports 10/100/1000Mbps adaptive and PoE functionality
• The panel indicator lights will monitor the working status and assist in fault analysis
• Supports automatic port flipping (Auto MDI/MDIX)
• One click intelligent activation of long-distance mode
• Having network and PoE relay extension roles
• Flow control method, full duplex adopts IEEE 802.3x standard, and half duplex adopts Back pressure standard
