HR-AFGR-41+
4*GE PoE Out + 1*GE PoE In | IEEE 802.3af/at/Hi-PoE(60W) | 4KV Port Surge protection | VLAN Port Isolation | PoE Watchdog | Rail Installation
- Feature and Benefits
- Parameter
- Product structure
- Application topology
Power More. Extend Further. Deploy Smarter.

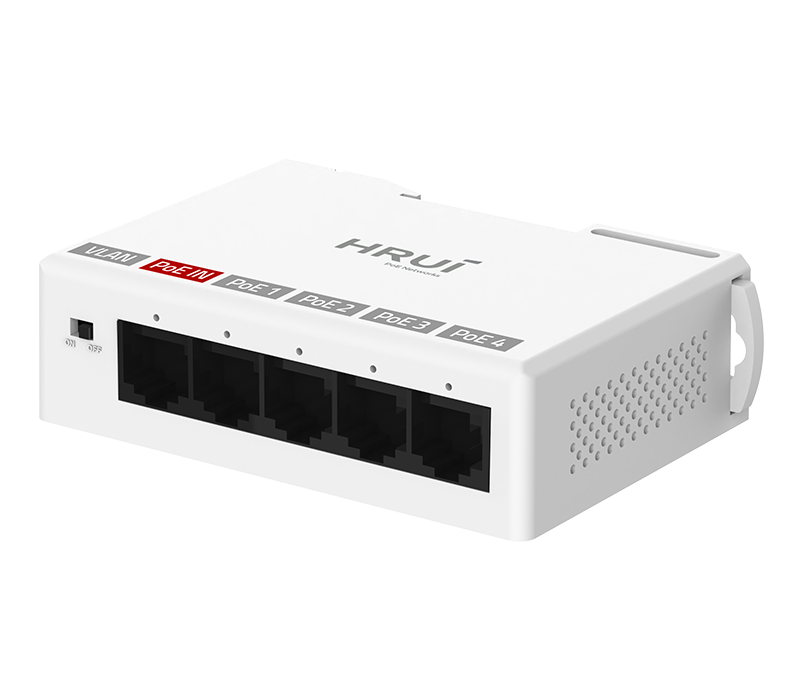

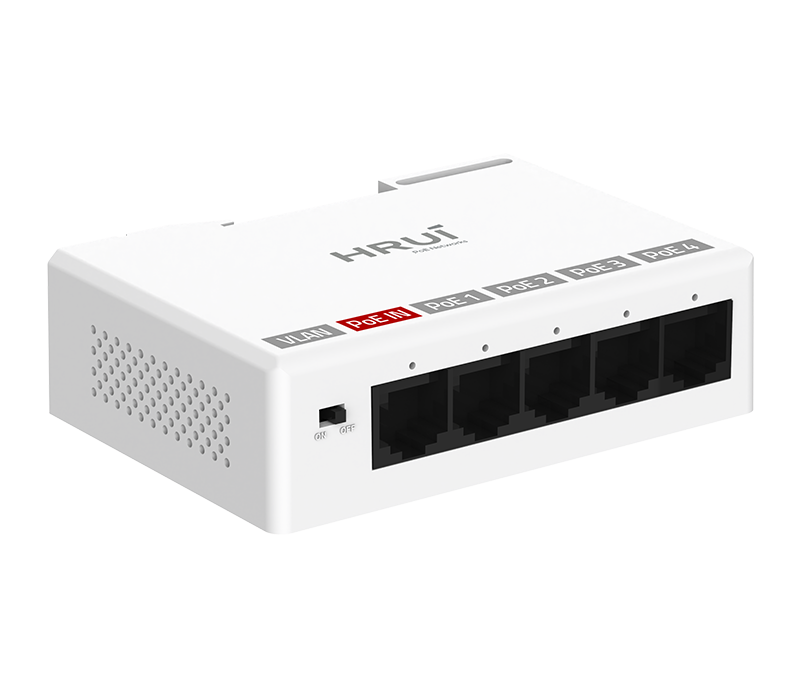

HR-AFGR-41+ is a Gigabit PoE Extender designed for efficient network and IP surveillance deployment. Featuring 1× Gigabit PoE IN port and 4× Gigabit PoE OUT ports, it extends both power and data over a single Ethernet cable, simplifying installation while reducing additional cabling costs. Supporting 60W HiPoE input and IEEE 802.3af/at PoE standards, it delivers stable power and Gigabit connectivity for IP cameras, APs, and other PoE-powered devices.
Compliant with IEEE 802.3/802.3u/802.3ab/802.3x standards, the extender supports 10/100/1000Mbps auto-negotiation, Auto MDI/MDIX, VLAN isolation, and PoE Watchdog functions for more stable and secure network operation. With real-time LED status indicators and flexible desktop, wall-mount, or DIN-rail installation, it is ideal for hotels, campuses, warehouses, and large-scale surveillance deployments.
Product Highlights:
• 1*1000Mbps PoE in port+4*1000Mbps PoE out ports.
• Comply with IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x standards.
• Support HiPoE 60W in.
• Support IEEE802.3af/at power supply standard.
• Ethernet Ports support 10/100/1000Mbps self-adaptive.
• The panel indicator LEDs will monitor the working status and assist in fault analysis.
• Support automatic port flipping (Auto MDI/MDIX).
• Support VLAN mode.
• Having network and PoE relay extension roles.
• Flow control method, full duplex adopts IEEE 802.3x standard, and half duplex adopts Back pressure standard.
| Description | Specification |
| Model | HR-AFGR-41+ |
| Interface | 1*1Gbps PoE in port |
| 4*1Gbps PoE out ports | |
| Port Standard | IEEE802.3 (Ethernet) |
| IEEE802.3u (Fast Ethernet) | |
| IEEE802.3ab (Gigabit Ethernet) | |
| IEEE802.3x (Flow Control) | |
| Switching Bandwidth | 10Gbps |
| Packet Forwarding Rate | 7.44Mpps |
| MAC Address Table | 2K |
| Transmission Method | Store and Forward |
| PoE Standard | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| PoE Port Output Voltage | DC 44-57V |
| PoE Ports | Port PoE out <30W |
| PoE Power Budget | 44W |
| Power Supply | IEEE802.3af/at/HiPoE |
| Mainboard Power Consumption | 1.59W |

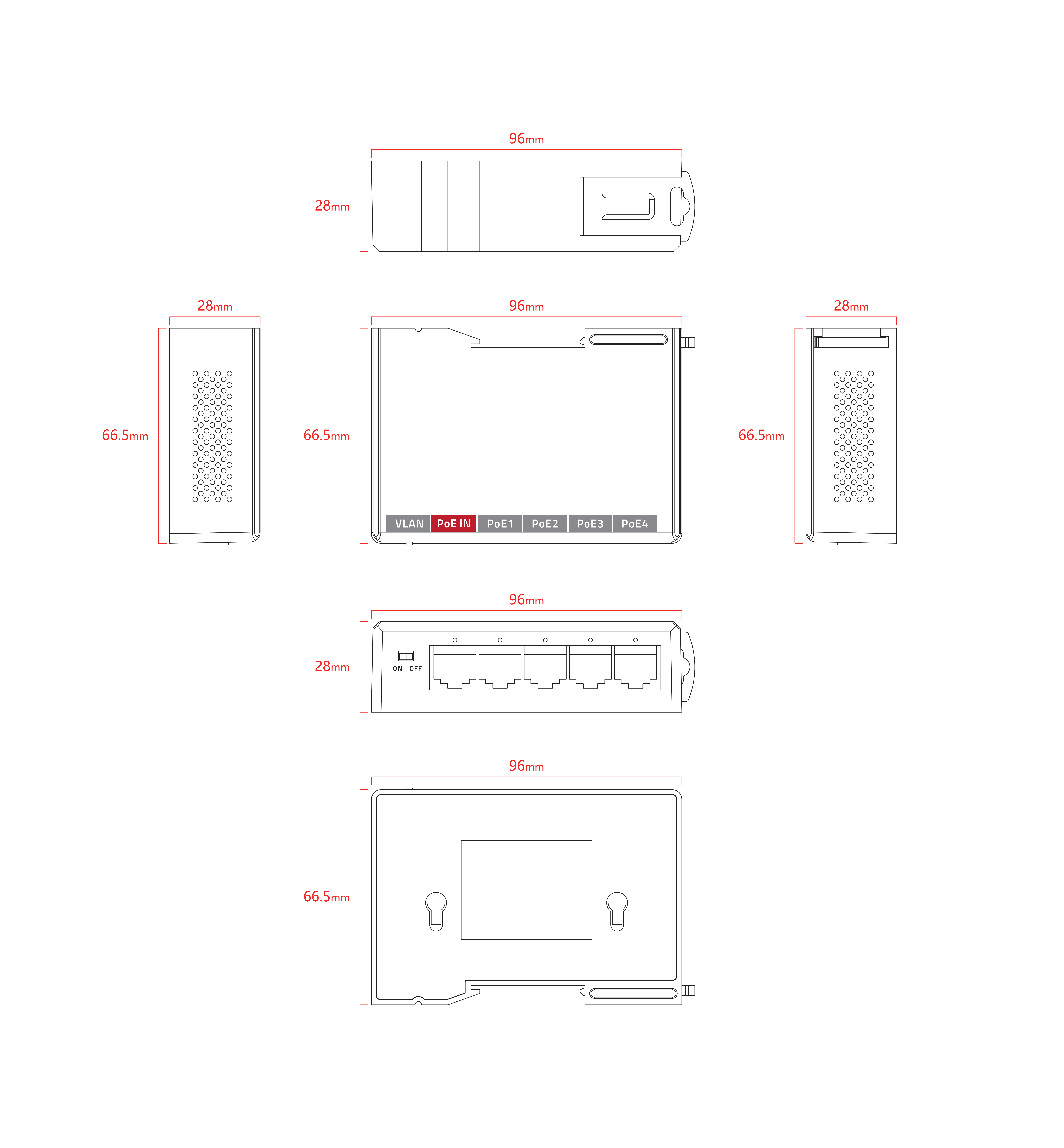

| Structure Information | Product Dimensions: 96*66.5*28mm |
| Packaging Dimensions: 100*72*31mm | |
| Product Net Weight: 0.08KG | |
| Product Gross Weight: 0.093KG | |
| Packing Information | Carton Dimensions: 375*335*220mm |
| Packing Weight: 10.3KG | |
| Package Contents | PoE Extender 1pcs, Certificate of Inspection 1pcs |
| Fan Quantity | 0 |

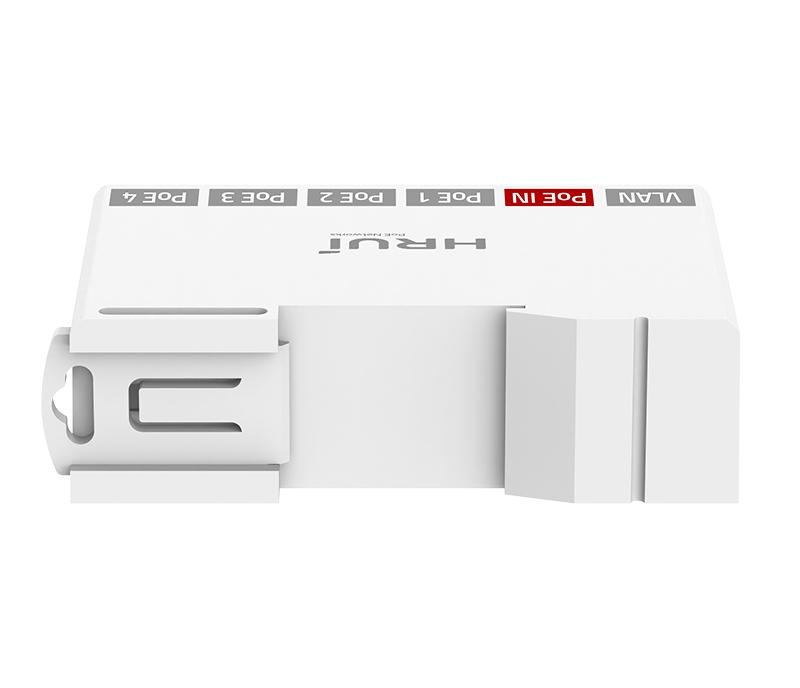

| Installation | Desktop, Wall mounting installation, Rail installation |
| Surge Protection | Port Surge: Differential mode 4KV (Class C) |
| Operating Temperature | 0~40°C |
| Storage Temperature | -40~70°C |
| Operation Humidity | 10%~90%, non condensing |
| Storage Humidity | 5%~95%, non condensing |
| Port Green LED | On: Link normal |
| Off: Link blocked | |
| Flashing: Data transmitting | |

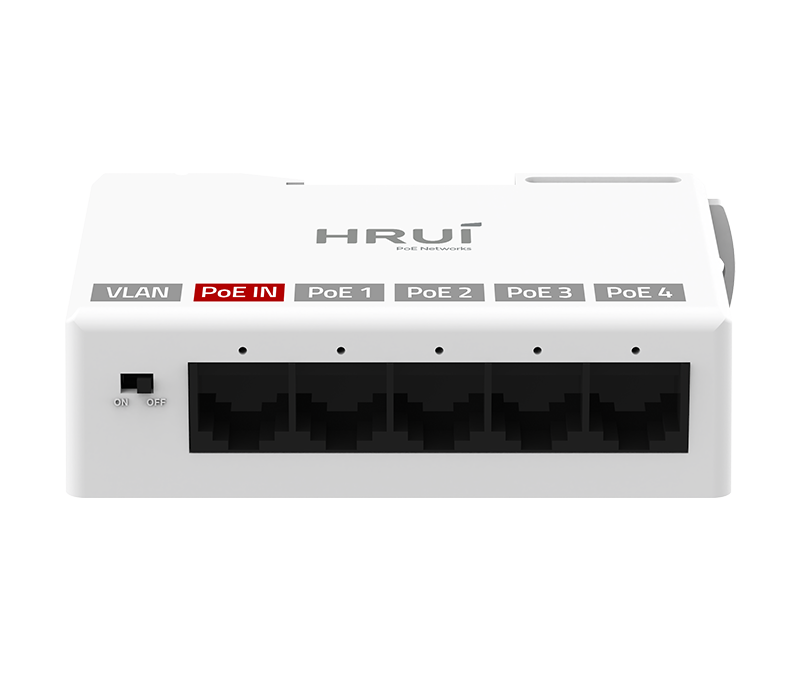

| OFF/ON Modes Buttons | OFF: Normal mode, all ports can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100//1000Mbps adaptive(PoE Watchdog off) |
| ON: VLAN mode, PoE ports are isolated from each other, communicating with uplink port, and automatically activate the PoE watchdog mode |
