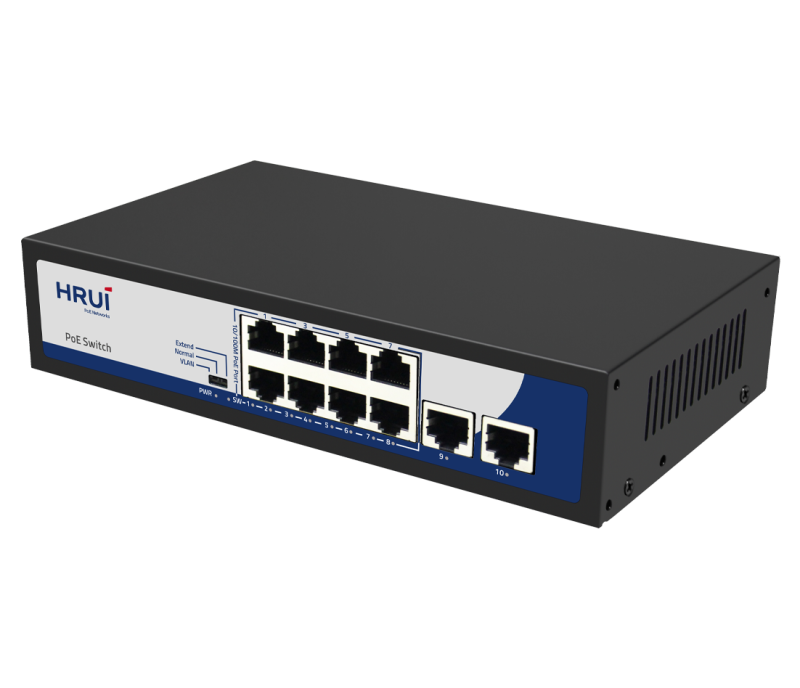

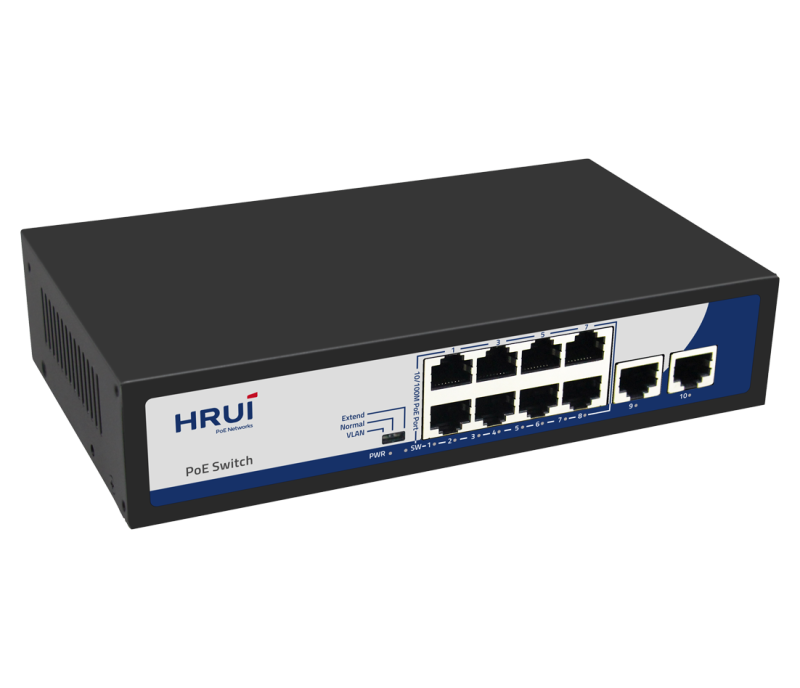

HR900-AF-82N - 10-Port 10/100M AI PoE Switch
This series of switches provides PoE ports, compliant with IEEE 802.3af/at, enabling simultaneous data and power transmission to devices via a single, convenient Ethernet cable. By integrating power delivery into a single cable, these switches streamline cabling infrastructure and eliminate the need for separate power sources, thereby providing an efficient and cost-effective solution for powering network devices.
- Feature sand Benefits
- Parameter
- Product structure
- Application topology
The HRUI AI PoE switches provide a range of models featuring both 100M/Gigabit PoE, RJ45, and SFP uplink ports. These switches meet the IEEE 802.3af/at/Hi-PoE standards for Power over Ethernet, with PoE port 1 capable of delivering a maximum output of 60W and other PoE ports capable of 30W. The devices offer three working modes: Default, VLAN (Port Isolation), and Extend. Additionally, the series supports PoE watchdog functionality in both VLAN and Extend modes, enabling the detection and automatic reboot of unresponsive or dropped PoE-powered devices.
With user-friendly installation and maintenance processes, these switches help establish a secure and high-performance network. HRUI AI PoE switches are ideal for various Ethernet access applications, including small to medium-sized enterprises, internet cafes, hotels, and schools.
FEATURES
| • Power Over Ethernet |
This series of switches provides PoE ports, compliant with IEEE 802.3af/at, enabling simultaneous data and power transmission to devices via a single, convenient Ethernet cable. By integrating power delivery into a single cable, these switches streamline cabling infrastructure and eliminate the need for separate power sources, thereby providing an efficient and cost-effective solution for powering network devices. |
|
| • Advanced Functions with DIP Switch |
VLAN: Downlink ports are isolated from each other, but can still communicate with uplink ports. This mode also enables PoE watchdog on ports. |
|
Default: All ports support communication with each other, with a transmission distance of up to 100 meters and an adaptive speed of 10/100Mbps. This mode disables PoE watchdog on ports. |
Extend: The downlink PoE & data transmission distance can reach up to 250 meters, with a speed of 10Mbps. This mode enables PoE watchdog on ports. |
|
| • AI PoE Watchdog |
Detect and reboot dropped or unresponsive PoE-powered devices. |
|
| • Plug and Play, Easy to Use |
All Ethernet ports on our switches support MDI/MDIX compatibility, allowing for easy setup with no software installation or configuration needed. |
|
| • 19 Inch Rack Mout | • High Reliable Design |
Support installed in a standard rack environment, easy to integrate with other equipment and manage cabling. | Support 4KV surge and 8KV ESD protection. |
|
|
HRUI AI PoE Switch Models
| HR900-AF-42N | HR900-AF-82N | HR900-AFG-82N | ||
 |  |  | ||
| Port Rate: 4*FE PoE + 2*FE PoE Standard: IEEE 802.3af/at Port 1-4 PoE power output ≤ 30W PoE Power Budget: 60W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 8*FE PoE + 2*FE PoE Standard: IEEE 802.3af/at Port 1-8 PoE power output ≤ 30W PoE Power Budget: 115W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 8*GE PoE + 2*GE PoE Standard: IEEE 802.3af/at/High PoE Port 1 PoE power output ≤ 60W, port 2-8 PoE power output ≤ 30W PoE Power Budget: 110W Surge Protection: 4KV Working Temperature: 0℃～40℃ | ||
| HR900-AF-2421GS-300 | HR900-AFG-1622S-200 | HR900-AFG-242S-400 | ||
 |  |  | ||
| Port Rate: 24*FE PoE + 2*GE + 1*1G SFP PoE Standard: IEEE 802.3af/at/High PoE Port 1 PoE power output ≤ 60W, port 2-24 PoE power output ≤ 30W PoE Power Budget: 290W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 16*GE PoE + 2*GE + 2*1G SFP PoE Standard: IEEE 802.3af/at/High PoE Port 1 PoE power output ≤ 60W, port 2-16 PoE power output ≤ 30W PoE Power Budget: 185W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 24*GE PoE + 2*1G SFP PoE Standard: IEEE 802.3af/at Port 1-24 PoE power output ≤ 30W PoE Power Budget: 380W Surge Protection: 4KV Working Temperature: 0℃～40℃ | ||
Highlight
• 8*100Mbps PoE ports+2*100Mbps uplink RJ45 ports
• Complies with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards
• RJ45 port supports 10/100Mbps adaptive
• PoE port automatically activates PoE watchdog mode in VLAN and Extend modes
• Flow control method: Full duplex uses IEEE 802.3x standard, while half duplex uses Back pressure standard
• Supports automatic port flipping (Auto MDI/MDIX)
• The panel indicator lights will monitor the working status and assist in fault analysis
• Supports three modes: VLAN, Default, and Extend
Description | Specification |
Model | HR900-AF-82N |
Interface | 8* 100Mbps PoE ports |
2 *100Mbps uplink RJ45 ports | |
Port Standard | IEEE802.3 (Ethernet) |
IEEE802.3u (Fast Ethernet) | |
IEEE802.3x (Flow Control) | |
Switching Capacity | 2Gbps |
Packet Forwarding Rate | 1.488Mpps |
Packet Buffer | 768Kbit |
MAC Address Table | 2K |
Transmission Method | Store and Forward |
PoE Standard | IEEE802.3af （15.4W） |
IEEE802.3at （30W） | |
PoE Port Output Voltage | DC 44-57V |
PoE Ports | Port 1-8 PoE power output <30W |
PoE Power Budget | 115W |
Surge Protection | Surge protection: common mode 4KV, differential mode 2KV(Class B) |
Electrostatic ESD: Air 8KV, Contact 6KV (Class B) | |
Operating Temperature | 0~40°C |
Storage Temperature | -40 °C to 70 °C |
Operation Humidity | 10%~90%，non condensing |
Storage Humidity | 5%~95%，non condensing |

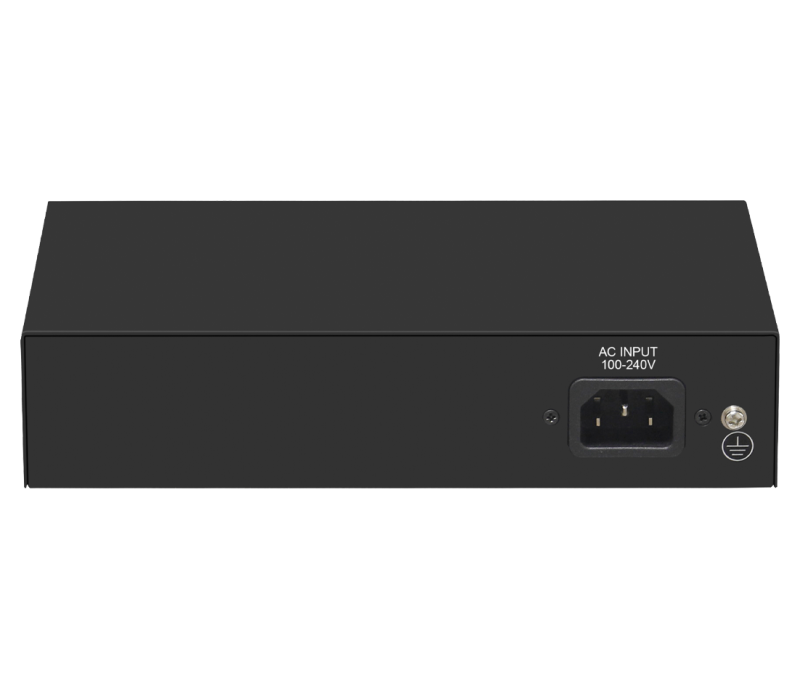

Power Supply | AC 100-240V 50/60Hz |
DC 52V 2.3A | |
Mainboard Power Consumption | 1.98W |

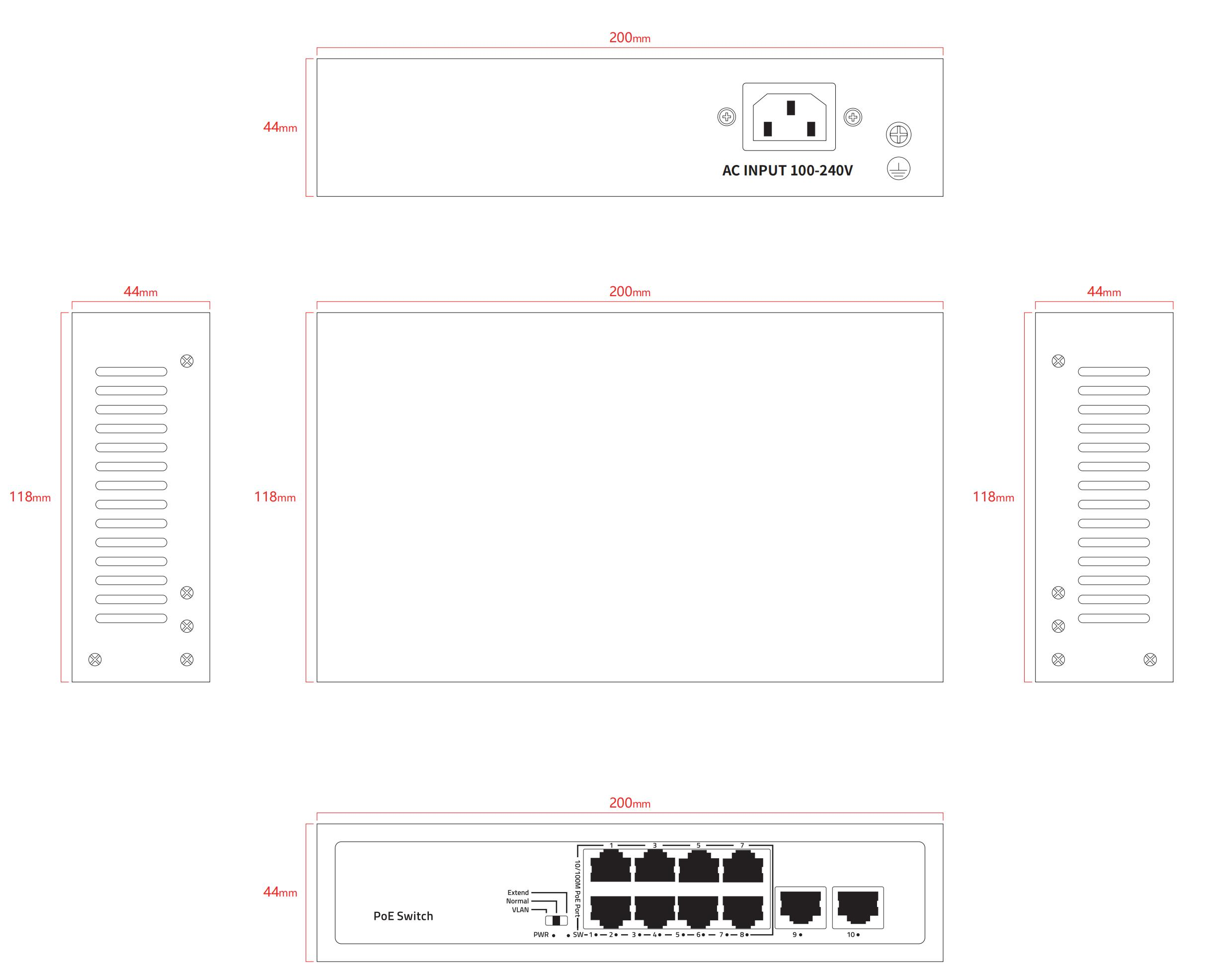

Structure Information | Product Dimensions: 200*118*44mm |
Packaging Dimensions: 245*190*60mm | |
Product Net Weight: 0.62 KG | |
Product Gross Weight: 0.93 KG | |
Packing Information | Carton Dimensions: 520*320*400mm |
Packing Quantity: 20PCS | |
Packing Weight: 19.6KG | |
Package Contents | Switch 1pcs, power cord 1pcs, manual 1pcs,certificate of qualification 1pcs |
Fan Quantity | 0 |
Installation | Desktop |

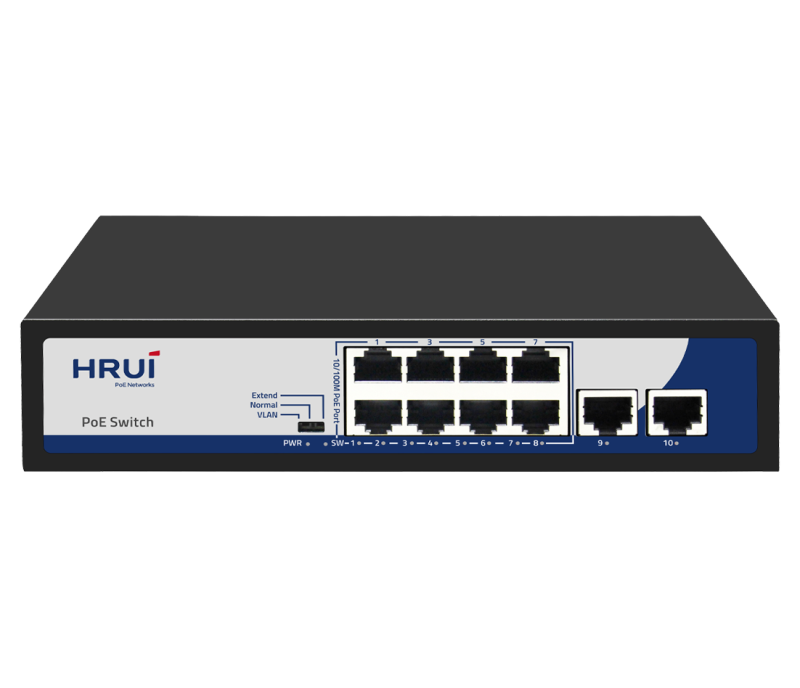

PWR | On: Powered on |
Off: Powered off | |
SW | On：VLAN |
Blinking：Extend | |
Off：Normal | |
1-10 Green Light | On: Link normal |
Off: Link blocked | |
Blinking: Data transmitting | |
VLAN/Normal/Extend Modes Buttons | VLAN: Isolation mode, 1-8 ports isolated from each other, communicating with 9-10 ports，and enable PoE watchdog mode on ports; |
Normal: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive， and port PoE watchdog mode turned off; | |
Extend: Link extension mode, 1-8 ports data transmission distance can be extended to 250 meters, transmission speed is 10Mbps，and enable PoE watchdog mode on ports; |
