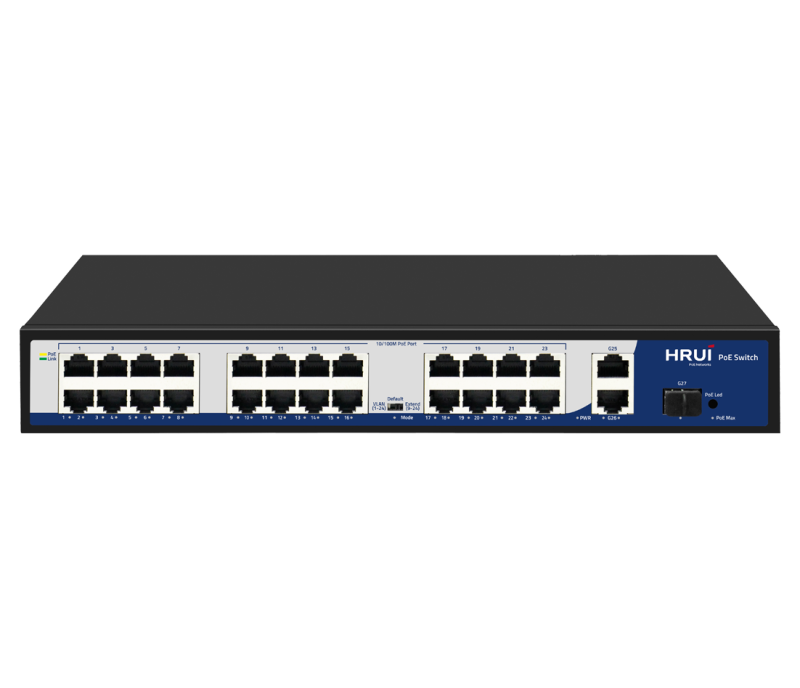

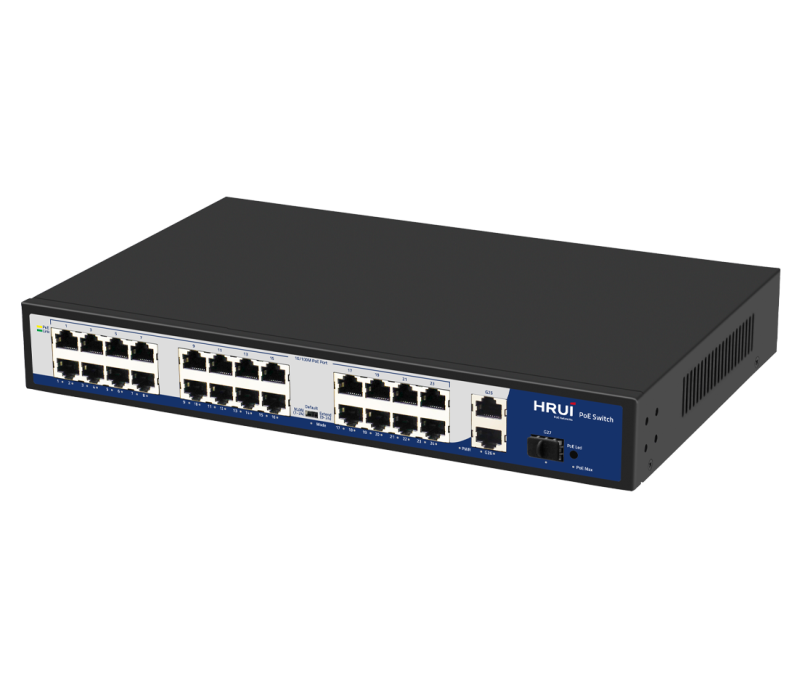

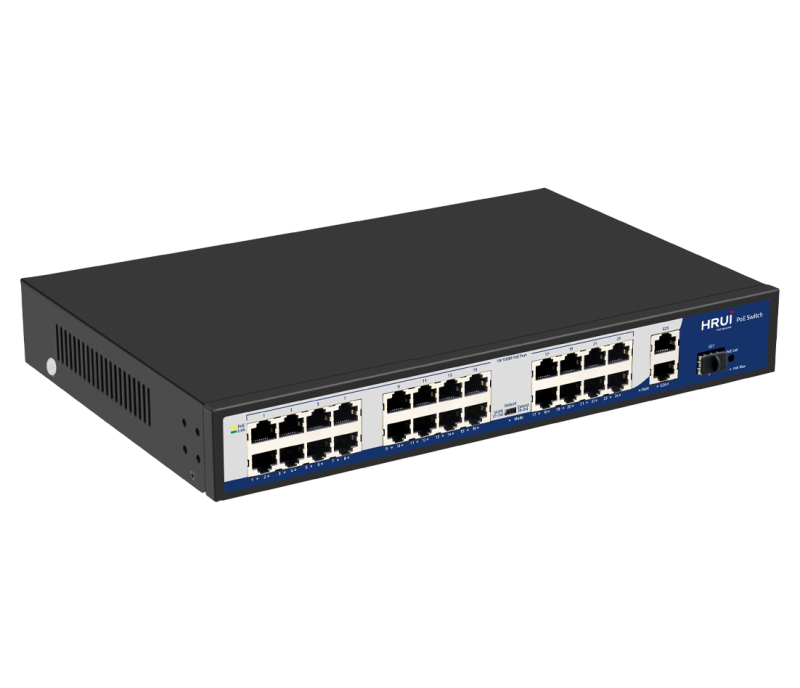

HR900-AF-2421GS-300 - 27-Port 100/1000M Intelligent PoE Switch
10/100/1000M intelligent PoE switch, with 24*10/100M PoE ports + 2*Gigabit uplink RJ45 ports + 1*Gigabit uplink SFP port, IEEE 802.3af/at standard, bandwidth 10.8Gbps, total power 300W, surpport port isolation and 250m transmission, support PoE MAX/ PoE LED indicator, suitable for -10~50℃ wide temperature environment.
- Feature sand Benefits
- Parameter
- Product structure

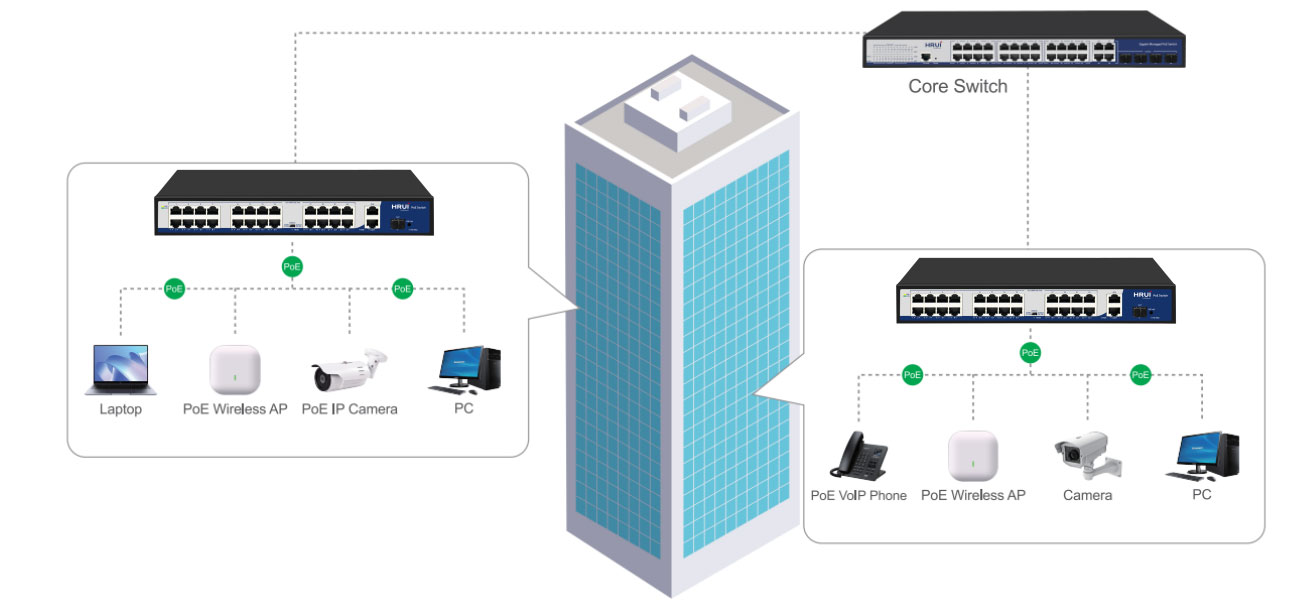

- Application topology
The HRUI AI PoE switches provide a range of models featuring both 100M/Gigabit PoE, RJ45, and SFP uplink ports. These switches meet the IEEE 802.3af/at/Hi-PoE standards for Power over Ethernet, with PoE port 1 capable of delivering a maximum output of 60W and other PoE ports capable of 30W. The devices offer three working modes: Default, VLAN (Port Isolation), and Extend. Additionally, the series supports PoE watchdog functionality in both VLAN and Extend modes, enabling the detection and automatic reboot of unresponsive or dropped PoE-powered devices.
With user-friendly installation and maintenance processes, these switches help establish a secure and high-performance network. HRUI AI PoE switches are ideal for various Ethernet access applications, including small to medium-sized enterprises, internet cafes, hotels, and schools.
FEATURES
| • Power Over Ethernet |

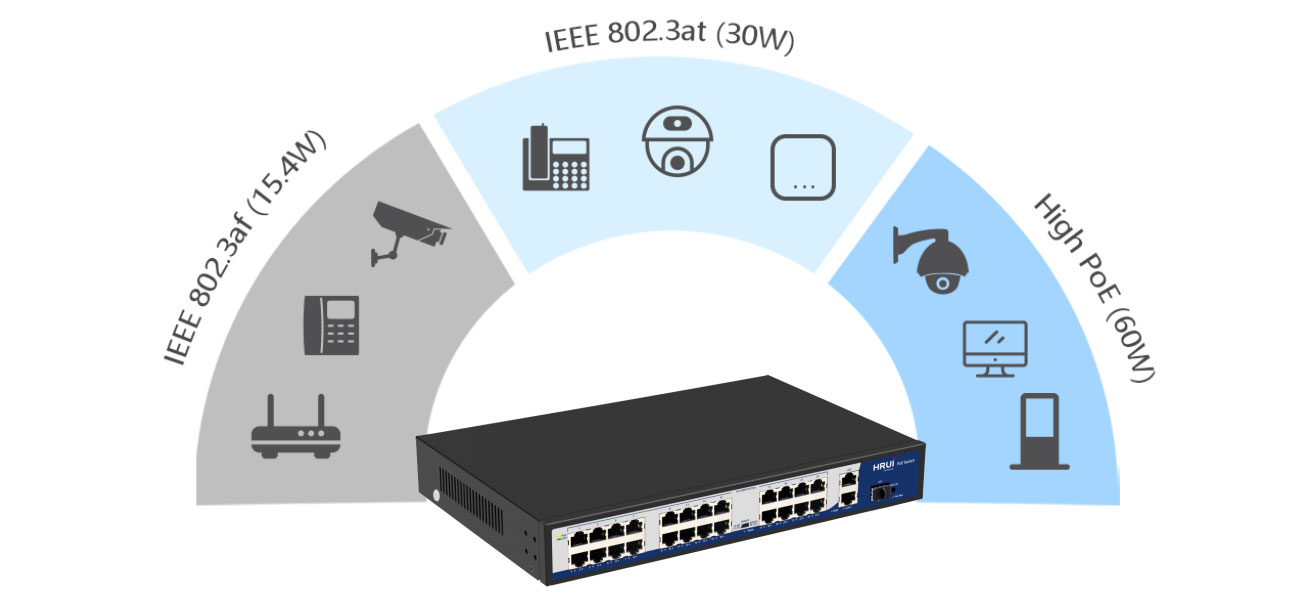

This series of switches provides PoE ports, compliant with IEEE 802.3af/at/high PoE, enabling simultaneous data and power transmission to devices via a single, convenient Ethernet cable. Specifically, PoE Port 1 offers a maximum output power of 60 watts, permitting the powering of high-power devices. By integrating power delivery into a single cable, these switches streamline cabling infrastructure and eliminate the need for separate power sources, thereby providing an efficient and cost-effective solution for powering network devices. |
|
| • Advanced Functions with DIP Switch |

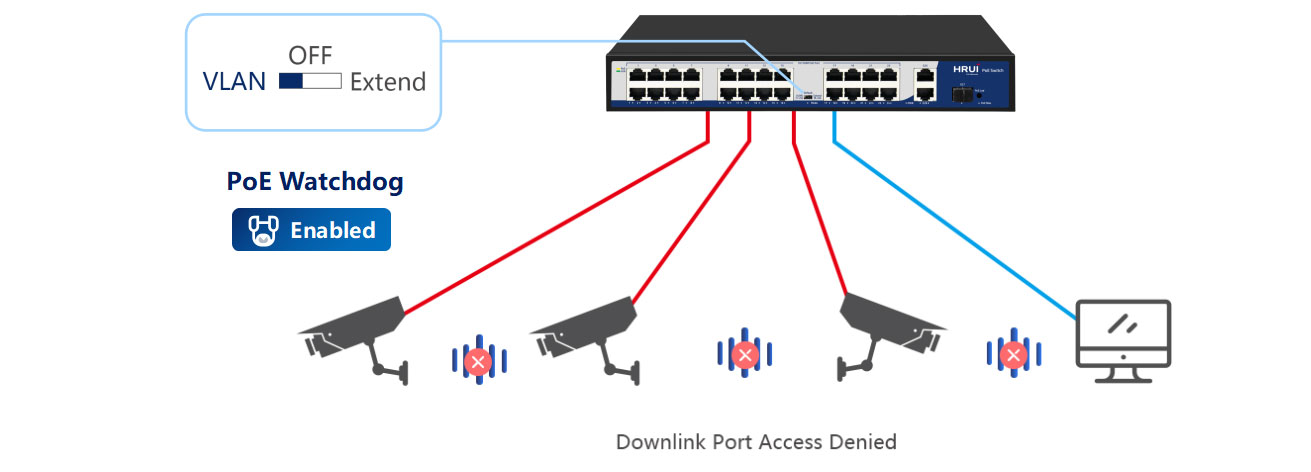

VLAN: Downlink ports are isolated from each other, but can still communicate with uplink ports. This mode also enables PoE watchdog on ports. |
|

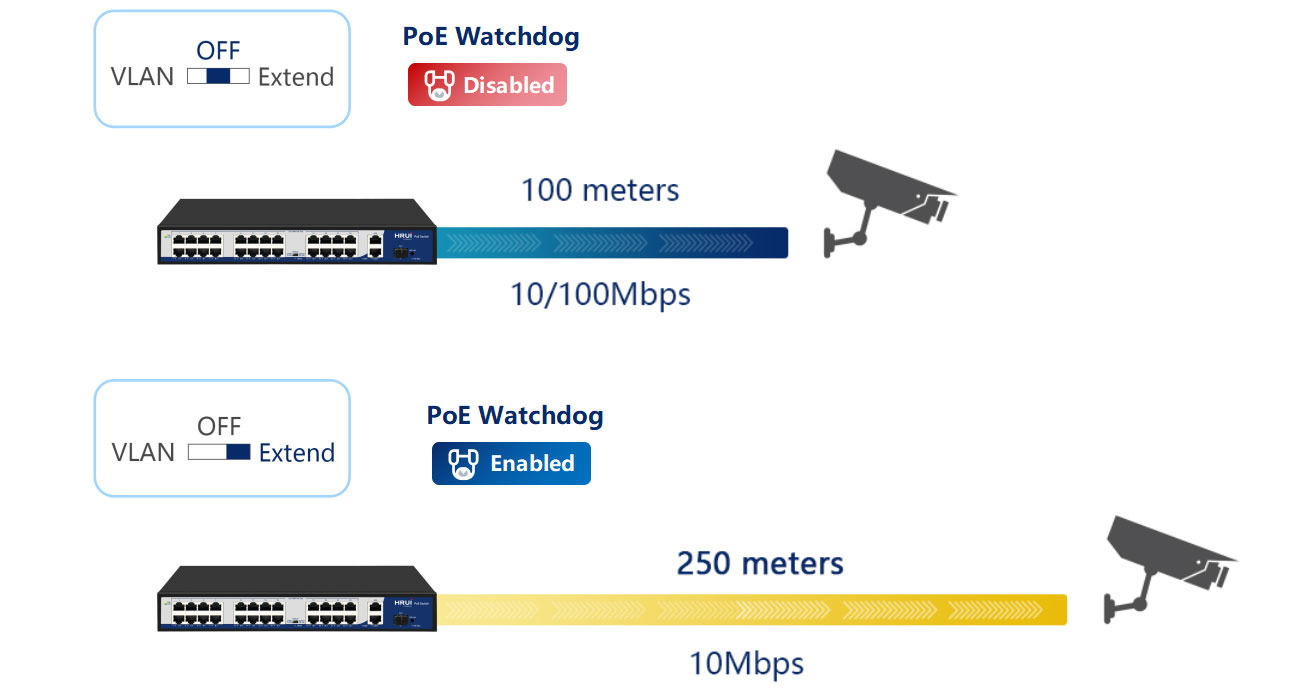

Default: All ports support communication with each other, with a transmission distance of up to 100 meters and an adaptive speed of 10/100Mbps. This mode disables PoE watchdog on ports. |
Extend: The downlink PoE & data transmission distance of 9-24 ports can reach up to 250 meters, with a speed of 10Mbps. This mode enables PoE watchdog on ports. |
|

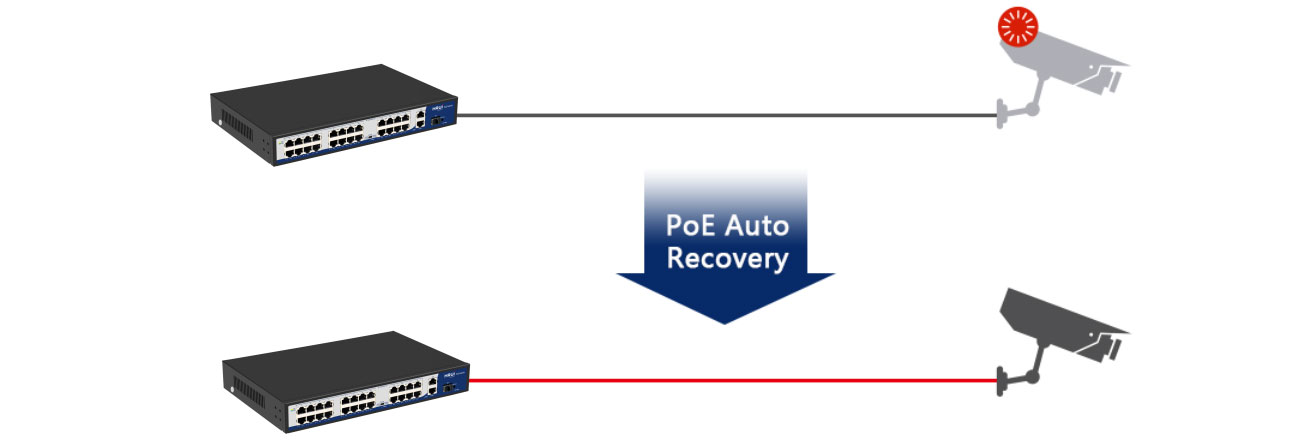

| • AI PoE Watchdog |
Detect and reboot dropped or unresponsive PoE-powered devices. |
|

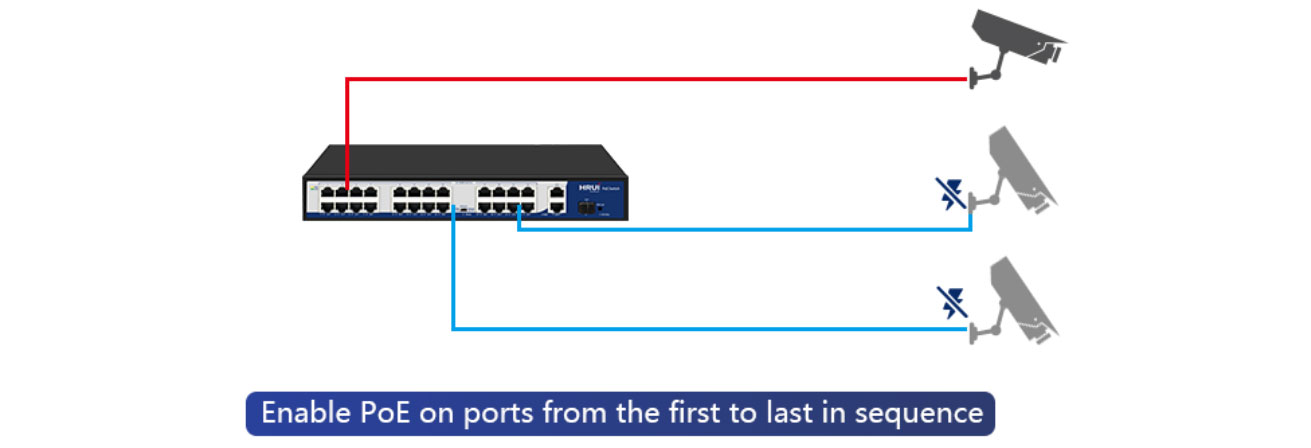

| • Safe PoE Smart Boot-up |
Support PoE Smart Boot-up that enables PoE on ports from the first to last in sequence to prevent damage to the power supply by sudden large currents. The function is enabled by default. |
|
| • A Clear View of Power Usage |
The product feature PoE Max indicators, allowing for easy monitoring of power consumption, enabling optimal power usage and ensuring efficient energy management. |
|

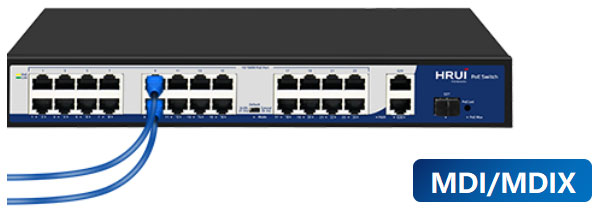

| • Plug and Play, Easy to Use |
All Ethernet ports on our switches support MDI/MDIX compatibility, allowing for easy setup with no software installation or configuration needed. |
|

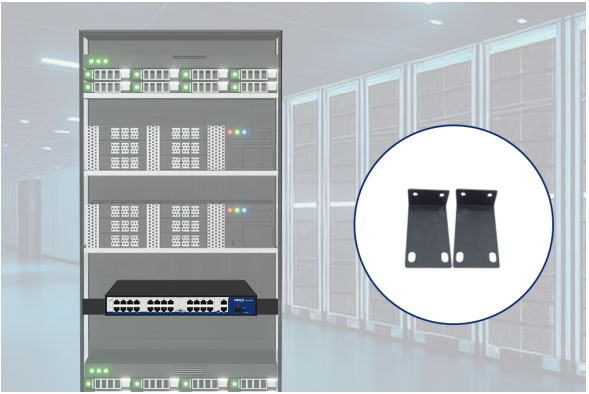

| • 19 Inch Rack Mout | • High Reliable Design |
Support installed in a standard rack environment, easy to integrate with other equipment and manage cabling. | Support 4KV surge and 8KV ESD protection. |
|
|
HRUI AI PoE Switch Models
| HR900-AF-42N | HR900-AF-82N | HR900-AFG-82N | ||
 |  |  | ||
| Port Rate: 4*FE PoE + 2*FE PoE Standard: IEEE 802.3af/at Port 1-4 PoE power output ≤ 30W PoE Power Budget: 60W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 8*FE PoE + 2*FE PoE Standard: IEEE 802.3af/at Port 1-8 PoE power output ≤ 30W PoE Power Budget: 115W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 8*GE PoE + 2*GE PoE Standard: IEEE 802.3af/at/High PoE Port 1 PoE power output ≤ 60W, port 2-8 PoE power output ≤ 30W PoE Power Budget: 110W Surge Protection: 4KV Working Temperature: 0℃～40℃ | ||
| HR900-AF-2421GS-300 | HR900-AFG-1622S-200 | HR900-AFG-242S-400 | ||
 |  |  | ||
| Port Rate: 24*FE PoE + 2*GE + 1*1G SFP PoE Standard: IEEE 802.3af/at/High PoE Port 1 PoE power output ≤ 60W, port 2-24 PoE power output ≤ 30W PoE Power Budget: 290W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 16*GE PoE + 2*GE + 2*1G SFP PoE Standard: IEEE 802.3af/at/High PoE Port 1 PoE power output ≤ 60W, port 2-16 PoE power output ≤ 30W PoE Power Budget: 185W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 24*GE PoE + 2*1G SFP PoE Standard: IEEE 802.3af/at Port 1-24 PoE power output ≤ 30W PoE Power Budget: 380W Surge Protection: 4KV Working Temperature: 0℃～40℃ | ||
Highlight
• 24*100Mbps PoE ports + 2*1000Mbps RJ45 ports + 1*1000Mbps SFP port
• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, and IEEE802.3z standards
• RJ45 port supports 10/100Mbps adaptation;
• When the PoE port is in Extend mode, ports 9-24 force 10Mbps to automatically activate the PoE watchdog mode
• PoE priority is enabled by default,with priority order from 1 to 24 ports
• Flow control method: IEEE 802.3x standard is used for full duplex, and Back pressure standard is used for half duplex
• The panel indicator lights will monitor the working status and assist in fault analysis
• Supports three modes: VLAN, Default, and Extend
• 1 port supports 60W
Description | Specification |
Model | HR900-AF-2421GS-300 |
Interface | 24*100Mbps PoE ports |
2*1000Mbps RJ45 ports | |
1*1000Mbps SFP port | |
Port Standard | IEEE802.3 (Ethernet) |
IEEE802.3u (Fast Ethernet) | |
IEEE802.3ab (1000Mbps Ethernet) | |
IEEE802.3x (Flow Control) | |
IEEE 802.3z (1000Mbps Ethernet Fiber Standard) | |
Switching Capacity | 10.8Gbps |
Packet Forwarding Rate | 8.03Mpps |
Packet Buffer | 768Kbit |
MAC Address Table | 2K |
Transmission Method | Store and Forward |
PoE Standard | IEEE802.3af （15.4W） |
IEEE802.3at （30W） | |
PoE Port Output Voltage | DC 44-57V |
PoE Ports | Port 2-24 PoE power output <30W，Port 1 PoE power output 60W |
PoE Power Budget | 290W |

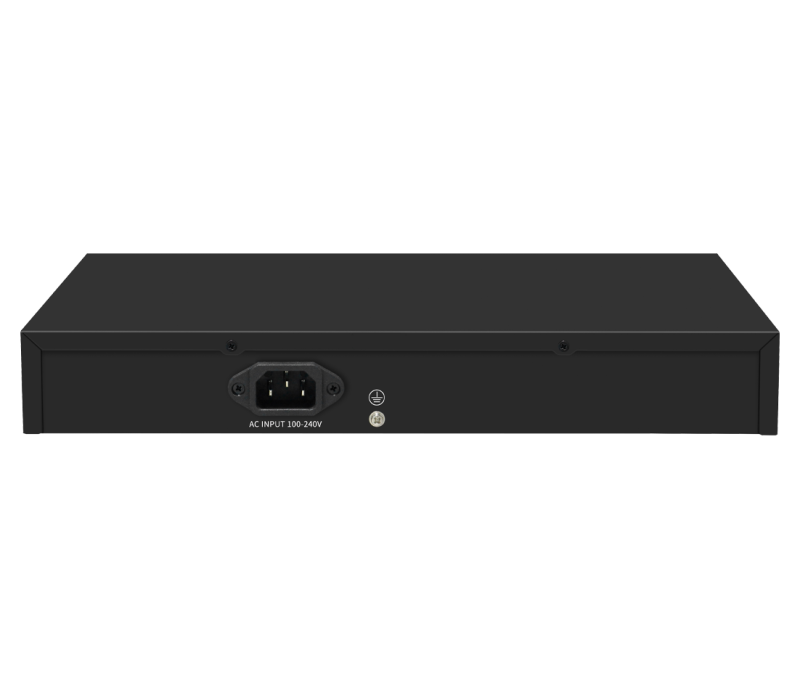

Power Supply | AC 100-240V 50/60Hz |
DC 52V 5.76A | |
Mainboard Power Consumption | 6.6W |
Structure Information | Product Dimensions : 320*207*45mm |
Packaging Dimensions : 370*290*85mm | |
Product Net Weight: 1.79KG | |
Product Gross Weight: 2.32KG | |
Packing Information | Carton Dimensions : 445*310*390mm |
Packing Quantity: 5PCS | |
Packing Weight: 12.6KG | |
Package Content | Switch 1pcs, power cord 1pcs, manual 1pcs，certificate of qualification 1pcs |
Fan Quantity | 0 |
Installation | Desktop |
Surge Protection | Surge protection: common mode 4KV, differential mode 2KV |
Electrostatic ESD: Air 8KV, Contact 6KV (Class B) | |
Operating Temperature | 0~40°C |
Storage Temperature | -40 °C to 70 °C |
Operation Humidity | 10%~90%，non condensing |
Storage Humidity | 5%~95%，non condensing |
PWR | On: Powered on |
Off: Powered off | |
Mode | On: VLAN |
Blinking: Extend | |
Off: Default | |
1-27 Green Light | On: Link normal |
Off: Link blocked | |
Blinking: Data transmitting | |
1-24 Yellow Light (PoE) | On: PoE power on |
Off: PoE powered off | |

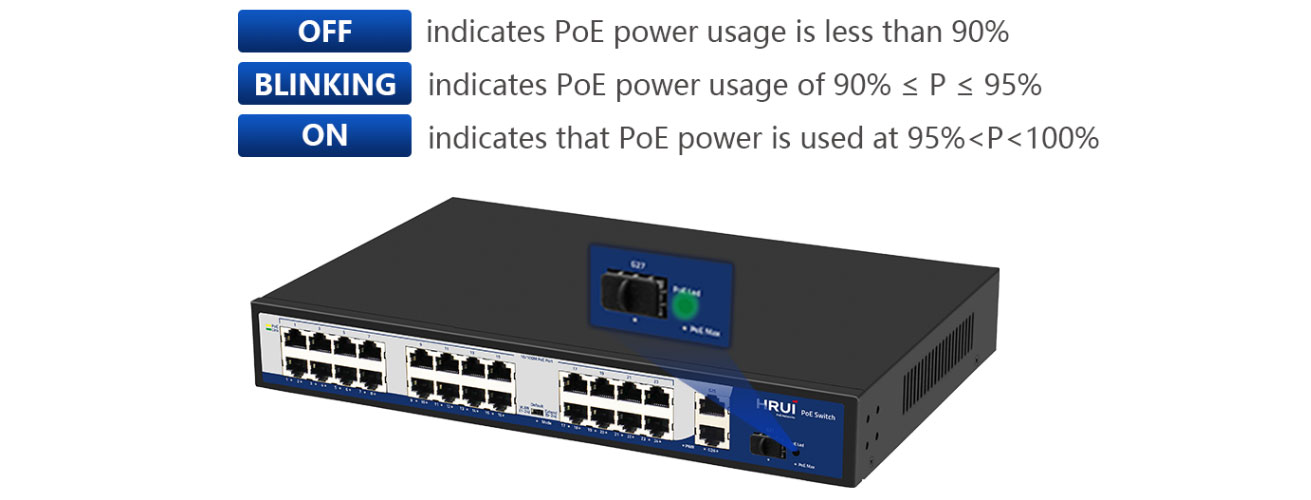

PoE Max | Off: indicates PoE power usage is less than 90% |
Blinking: indicates PoE power usage of 90% ≤ P ≤ 95% | |
On: indicates that PoE power is used at 95%<p<100%< span=""> | |
PoE LED Buttons | Dual color light selection: default green (link data), switch yellow light (PoE) |
VLAN/Default/Extend Modes Buttons | VLAN: Isolation mode, 1-24 ports isolated from each other, communicating with 25-27 ports, port PoE watchdog mode enabled |
Default: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive, port PoE watchdog mode is turned off | |
Extend: Link extension mode, 9-24 ports PoE power supply and data transmission distance can be extended to 250 meters, transmission speed is 10Mbps, port PoE watchdog mode is enabled |
