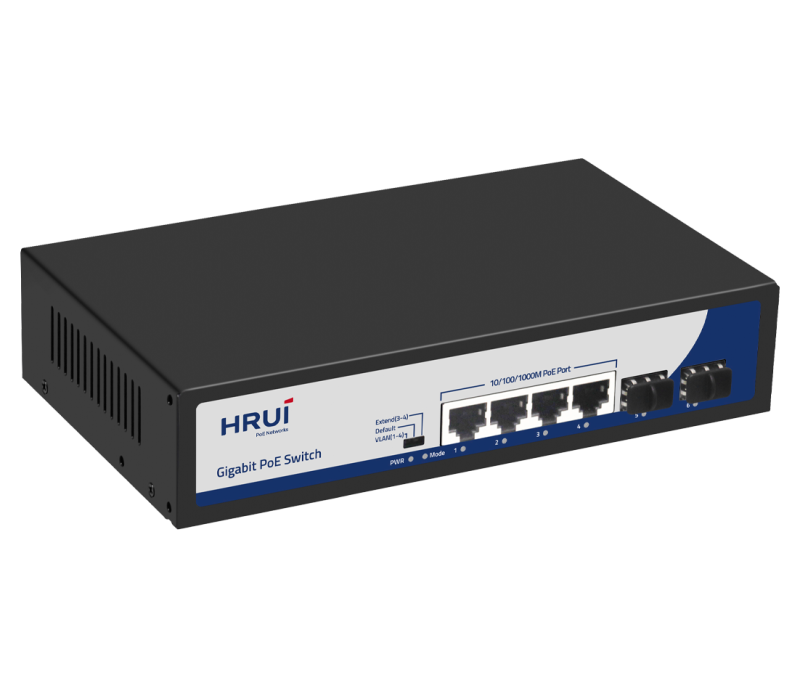

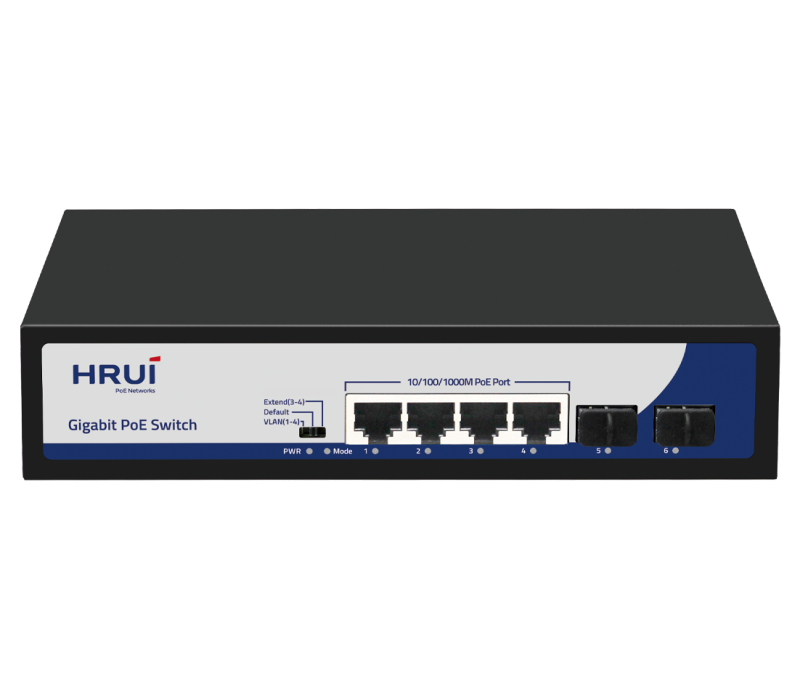

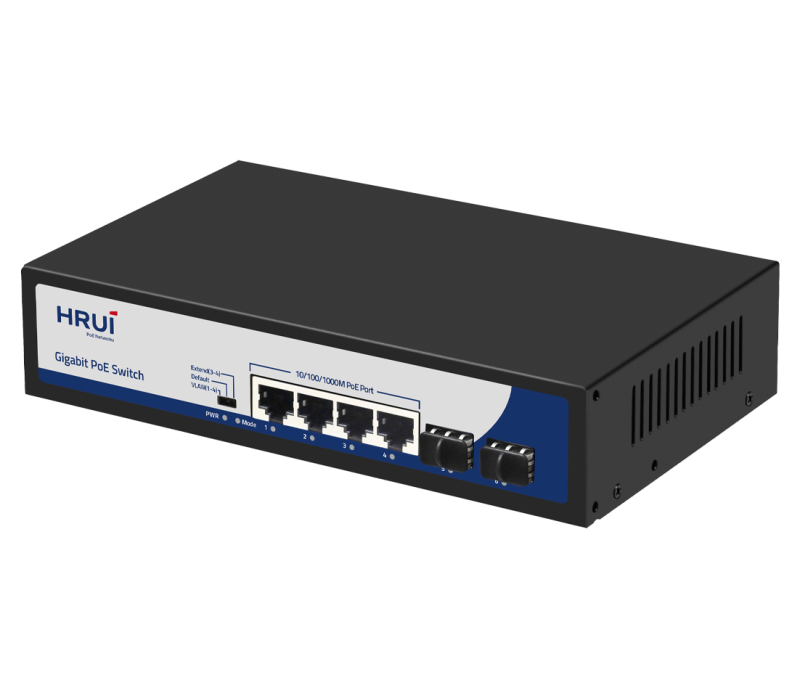

HR900-AFG-42NS-120 - 6-Port Gigabit PoE Switch
Gigabit PoE switch, with 4*Gigabit PoE ports + 2*Gigabit SFP ports, IEEE 802.3af/at standard, bandwidth 12Gbps, total power 120W, surpport port isolation and 250m transmission, suitable for -10~50℃ wide temperature environment, support surge protection 4KV, ESD 8KV.
- Feature and Benefits
- Parameter
- Product structure
- Application topology
The HR900-AFG-42NS-120 is a powerful Gigabit PoE switch designed to meet the demands of modern network environments. This switch features 4 Gigabit PoE ports and 2 Gigabit SFP slots, complying with IEEE 802.3af/at standards. With a total bandwidth of 12Gbps and a power budget of 120W, it ensures efficient power delivery and high-speed data transmission. The switch supports port isolation and offers an impressive transmission distance of up to 250 meters, making it ideal for a variety of applications. Built to operate in wide temperature ranges of -10°C to 50°C, the HR900-AFG-42NS-120 includes robust surge protection (4KV) and ESD protection (8KV) to safeguard your network equipment.
Product Features:
Port Configuration: Equipped with 4 1G PoE Ports + 2 1G SFP Ports.
Standards Compliance: Adheres to IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3x standards for reliable performance.
Flexible Connectivity: RJ45 ports support 10M, 100M, and 1G auto-negotiation for versatility.
Flow Control: Supports Full Duplex (IEEE 802.3x) and Half Duplex (Back Pressure) flow control methods.
Auto MDI/MDIX Support: Automatic port flipping capability eliminates the need for crossover cables, simplifying setup.
Advanced Mechanism: Utilizes a store-and-forward switching mechanism for optimal data handling.
Status Monitoring: The panel features LED indicators that monitor operational status and help with fault diagnosis.
Flexible Modes: Supports VLAN, Default, and Extend modes for customized network management.
Description | Specification |
Model | HR900-AFG-42NS |
Interface | 4 *1G PoE ports |
2* 1G SFP port | |
Port Standard | IEEE802.3 (Ethernet) |
IEEE802.3u (Fast Ethernet) | |
IEEE802.3ab (Gigabit Ethernet) | |
IEEE 802.3z (Gigabit Ethernet Fiber Standard) | |
IEEE802.3x (Flow Control) | |
Bandwidth | 12Gbps |
Packet Forwarding Rate | 8.928Mpps |
Packet Buffer | 1Mbit |
MAC Address Table | 2K |
Transmission Method | Store and Forward |
PoE Standard | IEEE802.3af (15.4W) |
IEEE802.3at (30W) | |
PoE Port Output Voltage | DC 44-57V |
PoE Ports | Port 1-4 PoE power output <30W |
PoE Power Budget | 115W |

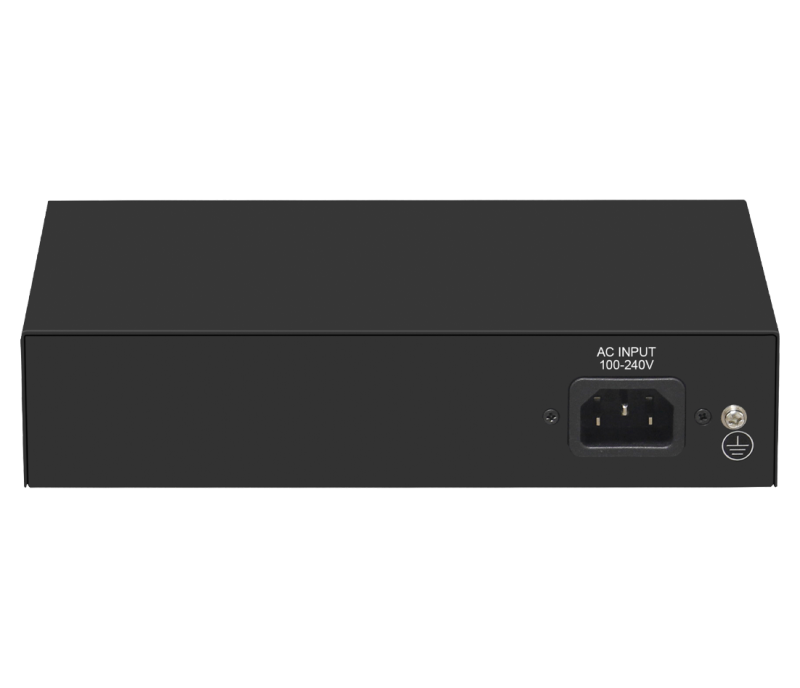

Power Supply | AC 100-240V 50/60Hz |
DC 52V 2.3A | |
Mainboard Power Consumption | 3.8W |

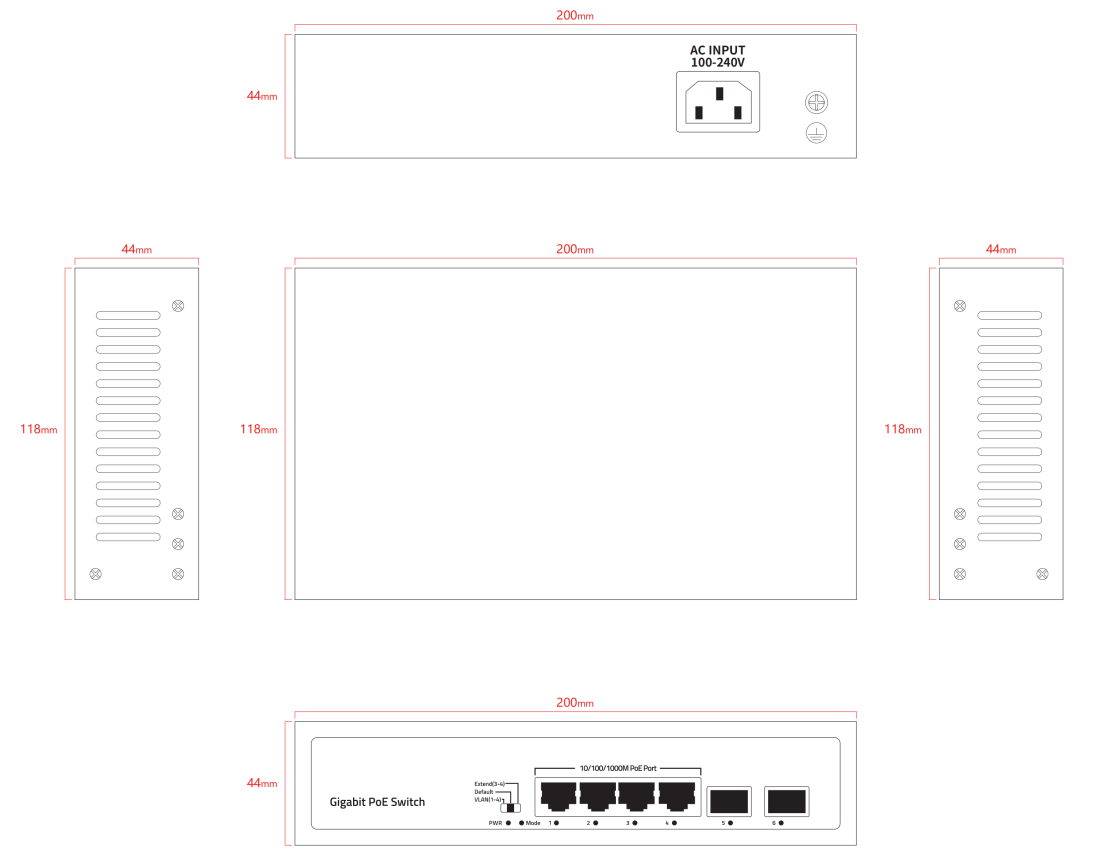

Structure Information | Product Dimensions :200*118*44mm |
Packaging Dimensions : 245*190*60mm | |
Product Net Weight:0.63Kg | |
Product Gross Weight:0.93Kg | |
Packing Information | Carton Dimensions :520*320*400mm |
Packing Quantity: 20PCS | |
Packing Weight: 19.6KG | |
Package Contents | Switch 1pcs, power cord 1pcs, manual 1pcs,certificate of qualification 1pcs |
Fan Quantity | 0 |
Installation | Desktop |
Surge Protection | Port Surge: common mode 4KV |
Electrostatic ESD: Air 8KV, Contact 6KV | |
Operating Temperature | 0~40°C |
Storage Temperature | -40 °C to 70 °C |
Operation Humidity | 10%~90%,non condensing |
Storage Humidity | 5%~95%,non condensing |
PWR Red LED | On: Powered on |
Off: Powered off | |
Mode Green LED | On:VLAN |
Flashing:Extend | |
Off:Default | |
1-6 Green LED | On:10M/100M/1G Link normal |
Off: Link blocked | |
Flashing: Data transmitting | |
VLAN/Default/Extend Modes Buttons | VLAN: Isolation mode, 1-4 ports isolated from each other, communicating with 5-6 ports |
Default: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive | |
Extend: Link extension mode, 3-4 port PoE power supply and data transmission distance can be extended to 250 meters, transmission speed is 10Mbps |
