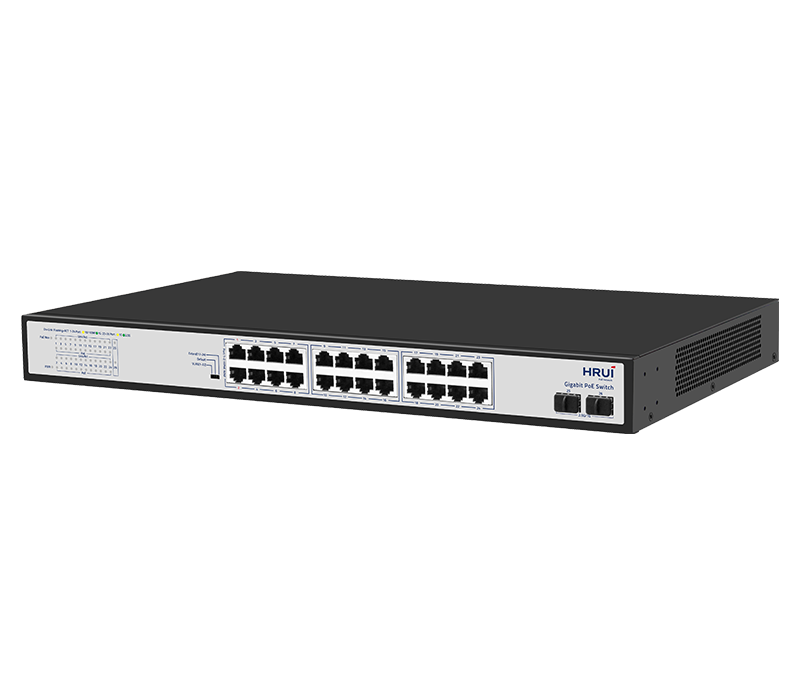

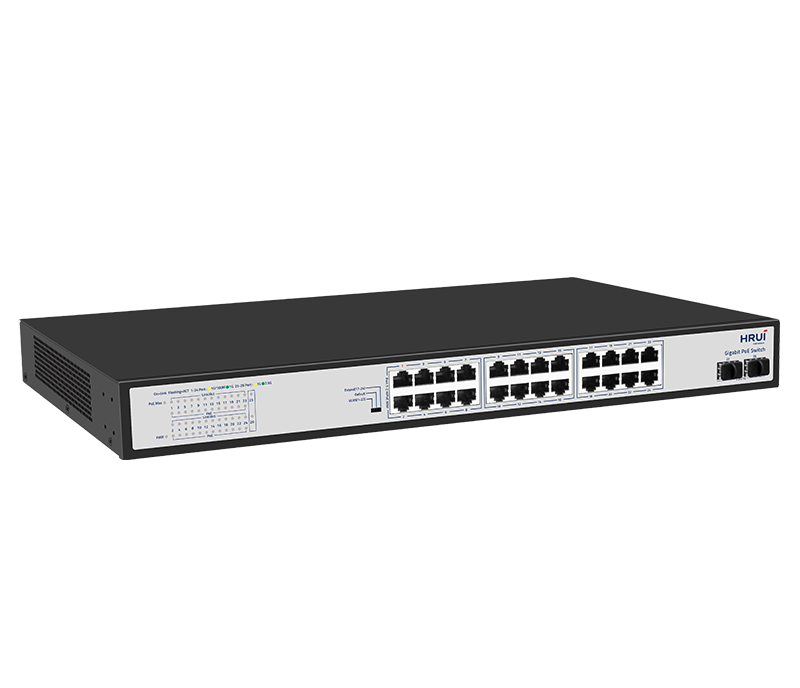

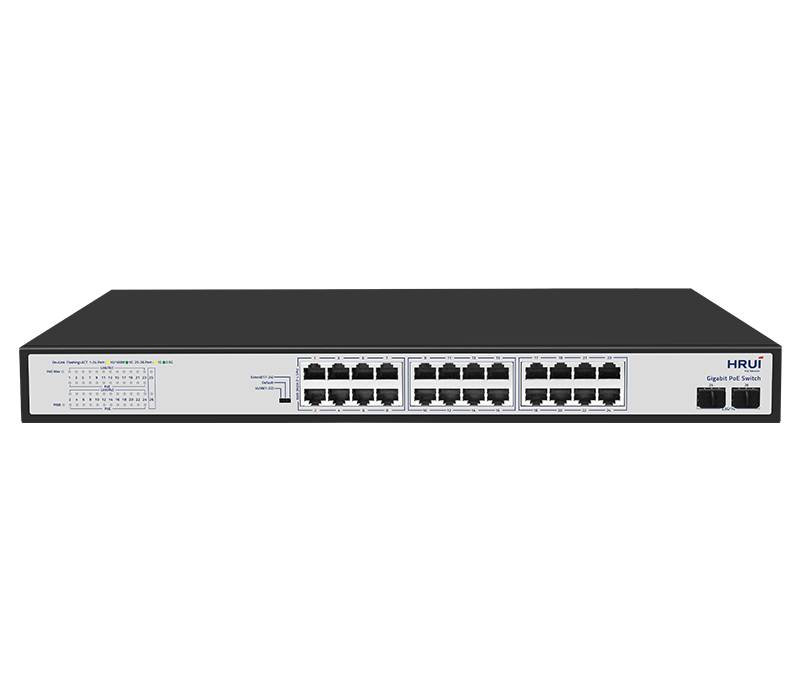

HR200P-24T2MS-400 is a high-performance 24-port Gigabit PoE switch designed for SMB, IP surveillance, and enterprise network deployments. It features 24× Gigabit PoE ports and 2× 2.5G SFP uplink ports, providing high-speed and reliable connectivity for bandwidth-intensive applications. With a 380W PoE power budget, IEEE 802.3af/at compliance, and HiPoE 60W capability on ports 1–2, it delivers flexible power support for IP cameras, wireless access points, VoIP phones, and other PoE-enabled devices.

Equipped with VLAN isolation, PoE Watchdog, and loop protection, the switch ensures enhanced network stability, security, and simplified maintenance. The extended transmission distance of up to 250 meters enables flexible deployment in large-scale surveillance and access network scenarios. Its fanless design provides silent operation while improving energy efficiency and long-term reliability.

Product Features:

■ Support 24*1Gbps PoE ports+2*2.5Gbps SFP ports

■ Comply with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, and IEEE802.3z standards

■ Ethernet Ports support 10/100/1000Mbps self-adaptive

■ Support automatic port flipping (Auto MDI/MDIX)

■ Adopt a storage and forwarding exchange mechanism

■ PoE ports automatically enable PoE watchdog mode in Extend and VLAN modes

■ Support loop protection function

■ The panel indicator LEDs will monitor the working status and assist in fault analysis

■ Ports 1-2 support HiPoE 60W

■ Support PoE priority to be enabled by default, with a priority order of 1-24
