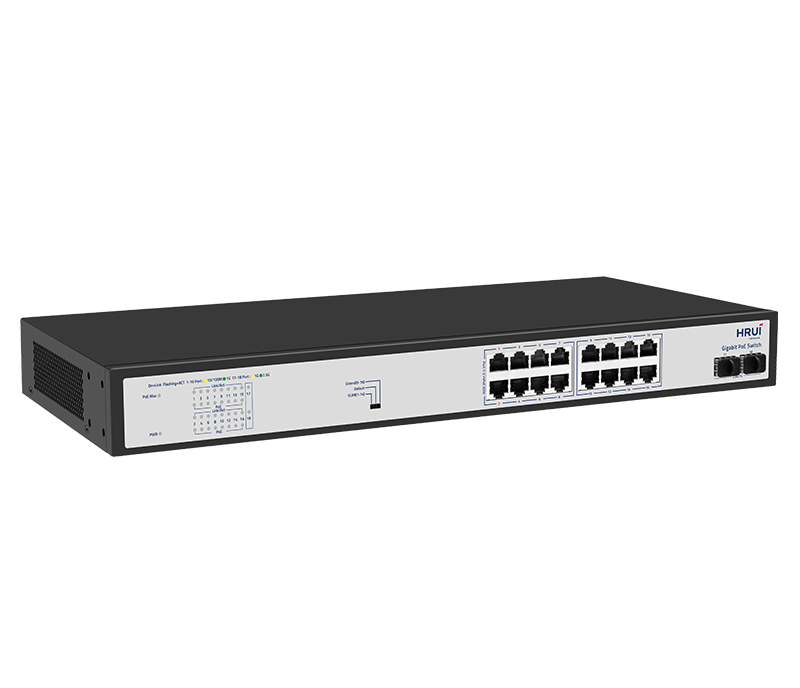

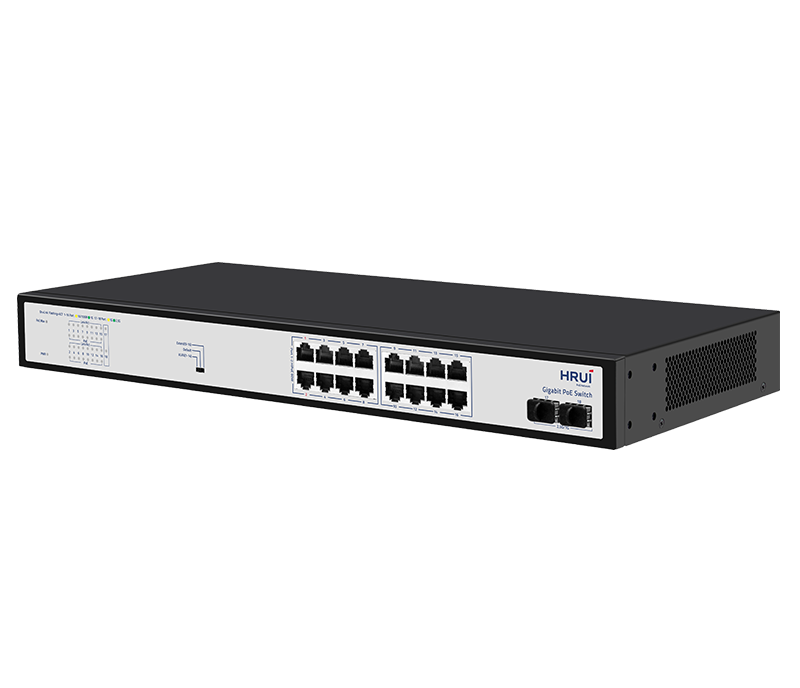

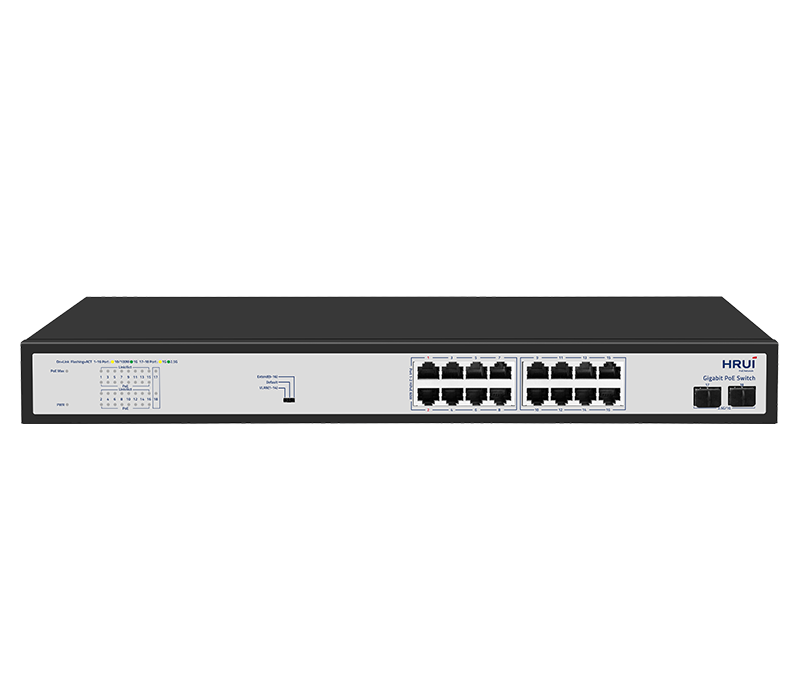

HR200P-16T2MS-280
HiPoE 60W | 6KV Port Surge protection | 8KV ESD protection | 4KV Input Protection | Loop Protection | VLAN | 250M Long-Distance Transmission | PoE Budget Indicator
- Feature and Benefits
- Parameter
- Product structure
- Application topology
Engineered for reliable business connectivity, the HR200P-16T2MS-280 integrates high-speed Gigabit switching with intelligent PoE capabilities. It offers 16 Gigabit PoE ports, dual 2.5G SFP uplinks, and a 265W PoE budget with IEEE 802.3af/at compliance and 60W HiPoE support on ports 1–2. Intelligent network features, including VLAN isolation, PoE Watchdog, loop protection, and long-range transmission up to 250 meters, ensure consistent performance for surveillance, wireless, and enterprise edge deployments.
Product Features:
■ Support 16*1Gbps PoE ports+2*2.5Gbps SFP ports
■ Comply with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, and IEEE802.3z standards
■ Ethernet Ports support 10/100/1000Mbps self-adaptive
■ Support automatic port flipping (Auto MDI/MDIX)
■ Adopt a storage and forwarding exchange mechanism
■ PoE ports automatically enable PoE watchdog mode in Extend and VLAN modes
■ Support loop protection function
■ The panel indicator LEDs will monitor the working status and assist in fault analysis
■ Ports 1-2 support HiPoE 60W
■ Support PoE priority to be enabled by default, with a priority order of 1-16
| Description | Specification |
| Model | HR200P-16T2MS-280 |
| Interface | 16*1Gbps PoE ports |
| 2*2.5Gbps SFP ports | |
| Port Standard | IEEE 802.3: Ethernet Media Access Control (MAC) Protocol |
| IEEE 802.3i: 10BASE-T Ethernet | |
| IEEE 802.3u: 100BASE-TX Fast Ethernet | |
| IEEE 802.3ab: 1000BASE-T GigabitEthernet | |
| IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Fiber optic) | |
| IEEE 802.3x: Flow Control | |
| Switching Bandwidth | 42Gbps |
| Packet Forwarding Rate | 31.Mpps |
| Packet Buffer | 8.4Mbit |
| MAC Address Table | 16K |
| Jumbo Frame | 12Kbytes |
| VLAN | VLAN range 1-4094, maximum active VLAN is 31 |
| Transmission Method | Store and Forward |
| PoE Standard | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| PoE Port Output Voltage | DC 44-57V |
| PoE Ports | Ports 3-24 PoE power output <30W |
| Ports 1-2 supports HiPoE 60W | |
| PoE Power Budget | 265W |

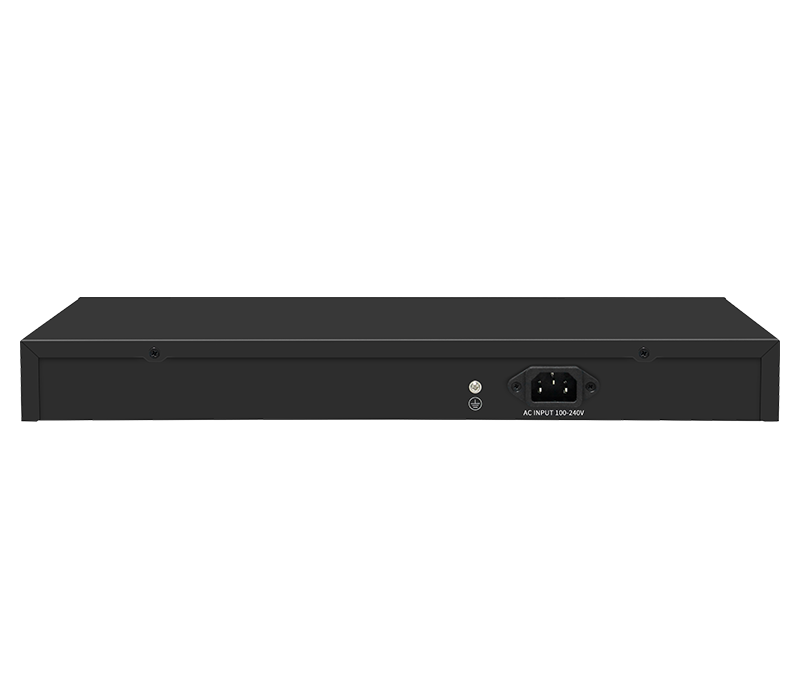

| Power Supply | AC 100-240V 50/60Hz |
| DC 53.5V 5.2A | |
| Mainboard Power Consumption | 10.4W |
| Structure Information | Product Dimensions: 440*204*44mm |
| Packaging Dimensions: 500*290*85mm | |
| Product Net Weight: 2.84KG | |
| Product Gross Weight: 3.38KG | |
| Package Information | Carton Dimensions: 520*445*310mm |
| Packing Quantity: 5PCS | |
| Packing Weight: 18.1KG | |
| Package Contents | Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs, Rack-mounting kit 1 pair |
| Fan Quantity | 1 |
| Installation | Desktop, Rack-mounting |
| Surge Protection | Port Surge: Common mode 6KV, Differential mode 2KV (Class C) |
| Electrostatic ESD: Air 8KV, Contact 6KV (Class B) | |
| Power Supply: Common mode 4KV, Differential mode 2KV (Class C) | |
| Operating Temperature | 0~40°C |
| Storage Temperature | -40~70°C |
| Operation Humidity | 10%~90%, non condensing |
| Storage Humidity | 5%~95%, non condensing |
| PWR Green LED | On: Powered on |
| Off: Powered off | |
| Ports 1-24 | Green LED on: 1Gbps Link normal |
| Yellow LED on: 10/100Mbps Link normal | |
| Off: Link blocked | |
| Flashing: Data transmitting | |
| Slow Flashing: When a local or cross-product loop is detected, the port will flash slowly | |
| PoE Yellow LED | On: PoE powered on |
| Off: PoE powered off | |
| Ports 25-26 | Green LED on: 2.5Gbps Link normal |
| Yellow LED on: 1Gbps Link normal | |
| Off: Link blocked | |
| Flashing: Data transmitting | |
| PoE Max Green LED | Off: Indicate that the PoE power usage is less than 90% |
| Flashing(Once per second): Indicate that the PoE power usage of 90% ≤ P ≤ 95% | |
| On: Indicate that the PoE power is used at 95%<P<100% | |
| VLAN/Default/Extend Modes Buttons | VLAN: VLAN mode, ports 1-22 are isolated from each other, communicating with ports 25-26, and automatically activate the PoE watchdog mode |
| Default: Normal mode, all ports can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100//1000Mbps adaptive(PoE Watchdog off) | |
| Extend: Extend mode, when the PoE port is in Extend mode, ports 17-24 force 10Mbps to extend the transmission distance to 250meters, and automatically activate the PoE watchdog mode |
