In the increasingly interconnected world we live in, reliable and high-speed internet connectivity is a necessity for both professional and personal use. With various Ethernet cable options available, CAT6A cables have gained significant popularity.
The difference between CAT6 cables and CAT6A cables.
CAT5 cables are seldom used nowadays; for gigabit network transmission, at least they are necessary. Those with a bigger budget might option for CAT6 or CAT6A cables. Is it really essential to use those cables?
Let's first take a look at the parameters.

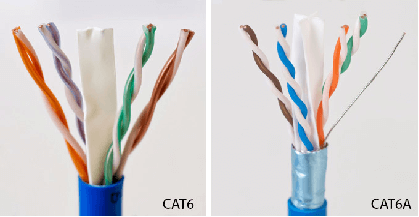

CAT6 cable has a transmission frequency of 250MHz, making it most suitable for applications with transmission rates exceeding 1Gbps, primarily used for Gigabit Ethernet (1000Mbps). The appearance and structure of CAT6 twisted pair cable differ from that of CAT5 or CAT5E twisted pair cables, as it not only features an enhanced insulated cross structure that places the four pairs of wires into the four grooves of the cross, but the diameter of the cable is also thicker.
CAT6A: The transmission frequency is 500 MHz, and the maximum transmission speed can reach 10 Gbps. CAT6A cables are an improved version of CAT6 cables and can be divided into two types: F/UTP cables and U/UTP cables.
U/UTP twisted pair: This refers to what is commonly known as UTP twisted pair, which is unshielded twisted pair.
F/UTP twisted pair: This type has a total shielding layer made of aluminum foil, and it is a twisted pair without shielding for the individual pairs.
Conclusion
|
|
|
| Speed | Price | Material |
CAT6A cables have a higher transmission frequency and bandwidth (500 MHz) compared to CAT6 cables (250 MHz), enabling speeds of 10 Gbps versus 1 Gbps for CAT6. | CAT6A cables are significantly more expensive than CAT6 cables, with a 100-meter CAT6 costing about 40% less. | The conductor materials vary: non-shielded CAT6 cables use 0.545±0.02mm conductors, while other types and CAT6A cables use 0.57±0.02mm conductors. |
The application of CAT6A cables.
However, before investing in these cables, it's essential to evaluate whether they are necessary for your specific needs. Here are four key considerations to help you make an informed decision.
Bandwidth and Speed Requirements
One primary consideration when choosing cabling is your bandwidth and speed requirements. CAT6A cables support up to 10 Gigabits per second (Gbps) data rates over a maximum distance of 100 meters, providing a robust option for data-intensive applications. If your network demands high-speed internet access for streaming, gaming, large file transfers, or supporting multiple devices concurrently, CAT6A is advantageous.
In contrast, if your usage is limited to basic tasks like web browsing, email, and light streaming, then lower-grade cables such as CAT5E or CAT6 may suffice. Assessing your current and future bandwidth needs is essential to determine if investing in CAT6A is necessary for optimal performance.
Cost vs. Benefit
Finally, the cost versus benefit of CAT6A cables is a vital point of consideration. While they provide superior performance and durability compared to CAT5E and CAT6, CAT6A cables typically come at a higher price point. Organizations and individuals must weigh the upfront investment against the anticipated benefits, including improved performance, increased bandwidth, and future-proofing capabilities.
It’s essential to conduct a cost-benefit analysis to determine if the additional expense aligns with your needs. Small businesses or households with limited networking requirements might find the cost of CAT6A unjustifiable, while larger enterprises or tech-savvy users may see the value in a more capable and robust solution.
Future-Proofing Your Network
As internet speeds and technology continue to advance, investing in future-proofing your network becomes imperative. CAT6A cables are designed to handle emerging technologies and higher data rates, making them a solid choice for long-term investment.
If you foresee expanding your network or implementing high-bandwidth applications such as virtual reality, cloud computing, or data centers, CAT6A is capable of accommodating these advancements seamlessly. Investing in CAT6A cables is a proactive step towards ensuring that your network remains competitive and reliable in the face of rapid technological evolution.
Installation Environment
Consider the installation environment when choosing cabling. CAT6A cables are thicker and less flexible than their predecessors due to their design, which includes additional shielding to reduce interference and crosstalk. While this added shielding is beneficial for performance in high-interference environments, it can pose challenges in cramped spaces or when bending is involved.
If you're installing cables in tight places, such as walls or tight bends, opt for low-profile solutions or consider the implications of CAT6A's size and rigidity. Understanding your installation environment can significantly influence your decision on whether to invest in CAT6A or an alternative with greater adaptability.
Conclusion
Deciding whether you need CAT6A cables depends on a variety of factors including your speed requirements, plans for future growth, potential interference in your environment, and your existing infrastructure. As high-speed internet becomes more vital in both business and domestic settings, it may be wise to invest in CAT6A cables to future-proof your network.
Additionally, pairing them with a powerful switch like the HRUI 2.5G/10G Ethernet Switch can propel your network capabilities to new heights, ensuring you're well-prepared for whatever the digital future holds.
