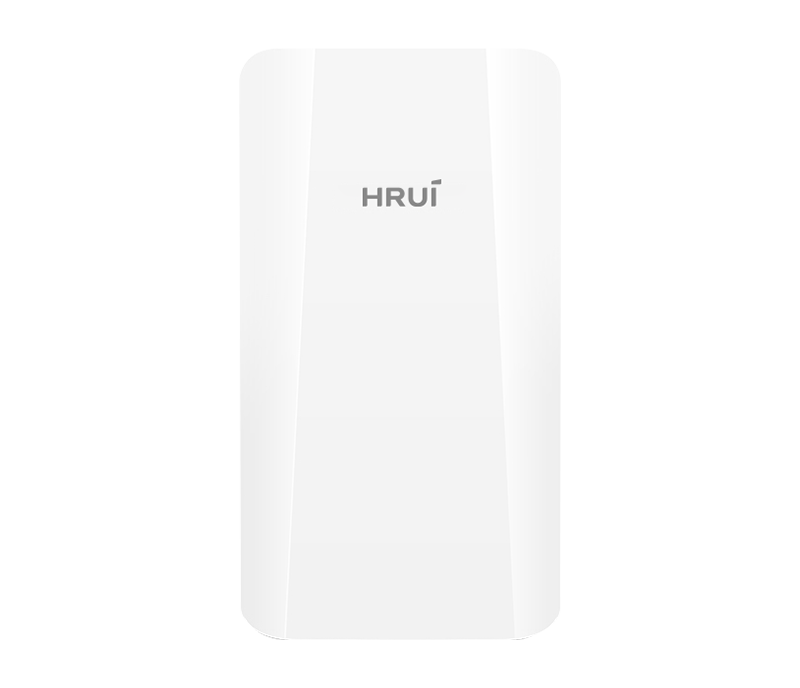

HR-CPE30A-1 - 300Mbps Outdoor Wireless Digital Bridge
Elevate your network performance with the HR-CPE30A-1 Wireless Digital Bridge, a robust solution designed for seamless connectivity in even the most challenging outdoor environments. With its IP65-rated protection level, this wireless bridge is built to withstand the elements, ensuring reliable operation in rain, dust, and extreme temperatures.
- Feature sand Benefits
- Parameter
- Product structure
- Application topology
Elevate your network performance with the HR-CPE30A-1 Wireless Digital Bridge, a robust solution designed for seamless connectivity in even the most challenging outdoor environments. With its IP65-rated protection level, this wireless bridge is built to withstand the elements, ensuring reliable operation in rain, dust, and extreme temperatures.
Key Features:
Power Over Ethernet (PoE) Support: Equipped with a 10/100Mbps PoE port, the HR-CPE30A-1 simplifies installation by allowing for remote power supply over Ethernet. The device supports 24V PoE for remote setups, as well as a 12V DC local power supply option for flexible connectivity.
High-Speed Wireless Transmission: Experience impressive wireless speeds with support for 802.11b/g/n WiFi protocols, delivering up to 300Mbps transmission. Ideal for streaming, online gaming, and more.
Extended Transmission Range: Paired with high-gain antennas, the HR-CPE30A-1 transmits data over distances of up to 1 kilometer in open environments, ensuring strong connectivity across larger areas.
Versatile Installation Options: Designed for easy installation, this wireless bridge supports both wall-mounted and pole-mounted setups, accommodating various deployment scenarios with minimal effort.
Multiple Point Interconnection: Maximize your network capabilities with support for up to eight interconnected points, making it perfect for expanding your coverage across large properties or outdoor venues.
Whether you’re enhancing connectivity for a bustling outdoor event or extending network reach across a remote site, the HR-CPE30A-1 Wireless Digital Bridge stands ready to deliver exceptional performance and reliability. Upgrade your network infrastructure today with this versatile and durable solution!
The HRUI Wireless Outdoor Digital Bridge is a cutting-edge networking solution engineered to deliver dependable, high-speed connectivity across long distances. These bridges are crucial for organizations needing reliable outdoor connections, making them ideal for diverse applications in multiple sectors.
Thanks to their durable design and extensive range, HRUI digital bridges improve communication networks for various uses, including smart city projects, agricultural efforts, and remote monitoring and surveillance. Their adaptability enables them to effectively address contemporary connectivity challenges, ensuring that organizations remain connected and efficient in any environment.
PRODUCT FEATURES
• Advanced Solutions for Long-Distance Transmission
HRUI wireless bridges adopt high gain directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 1km/5km.
• Smart Pairing
By simply pressing the physical button, you can easily set the same channel for pairing multiple wireless bridges, eliminating the need for complex web configurations.
• User-friendly Design for Visual Experiences

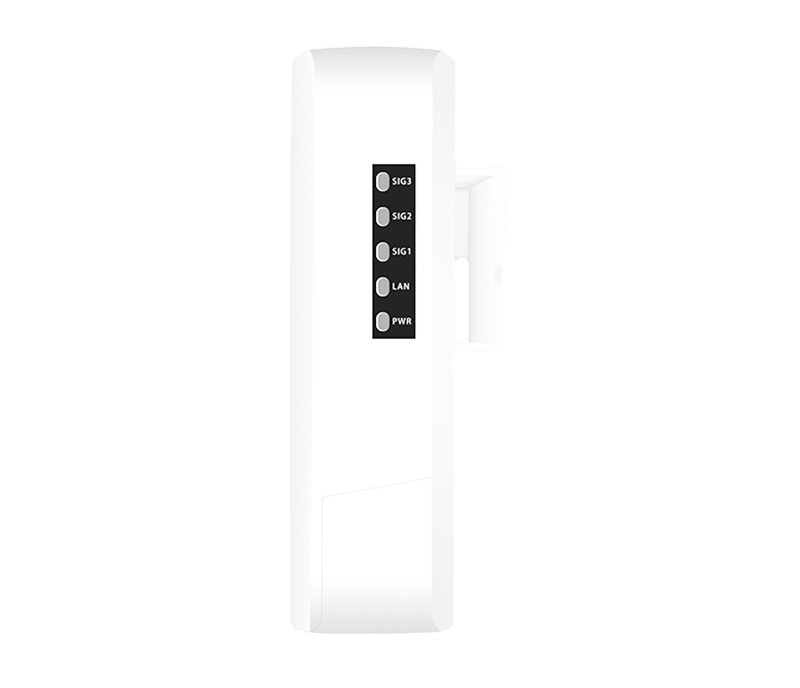

You can learn the signal strength status, Ethernet status, and power status of the devices through the indicator lights.
• Support DC/24V PoE Powered
Support both DC and 24V PoE power sources, offering greater convenience and flexibility for installation.
• Industrial-Grade Design for Long-Lasting Stability
Support IP65 protection, dust-proof and water-proof, allowing for stable operation in harsh environments. It can work reliably in temperatures ranging from -30°C to 55°C (-22°F to 122°F) and is suitable for various environmental conditions. The product is made of high-quality ABS materials with excellent durability. Additionally, the device supports two installation methods: wall-mounted and pole-mounted, allowing users to choose the installation method that best suits their needs.
HRUI WIRELESS BRIDGES
 |  |  |
|
2.4GHz 300Mbps 1Km |
5GHz 450Mbps 1Km |
5GHz 900Mbps 5Km |
Features and Highlights
• 1*10/100Mbps PoE port
• Supporting IP65 protection level shell design, easily adapting to various harsh outdoor environments
• Supports 24V PoE remote power supply and DC 12V local power supply
• Supports 802.11b/g/n WiFi 300M wireless transmission
• Paired with high gain antennas, the transmission distance can reach 1km in an open and unobstructed environment
• Supports wall mounted and pole mounted installation methods, with simple construction
• Maximum support point to eight point interconnection
| Hardware Features & Performance | |
| Model | HR-CPE30A-1 |
| Wireless Technology | 802.11b/g/n 300Mbps MIMO technology |

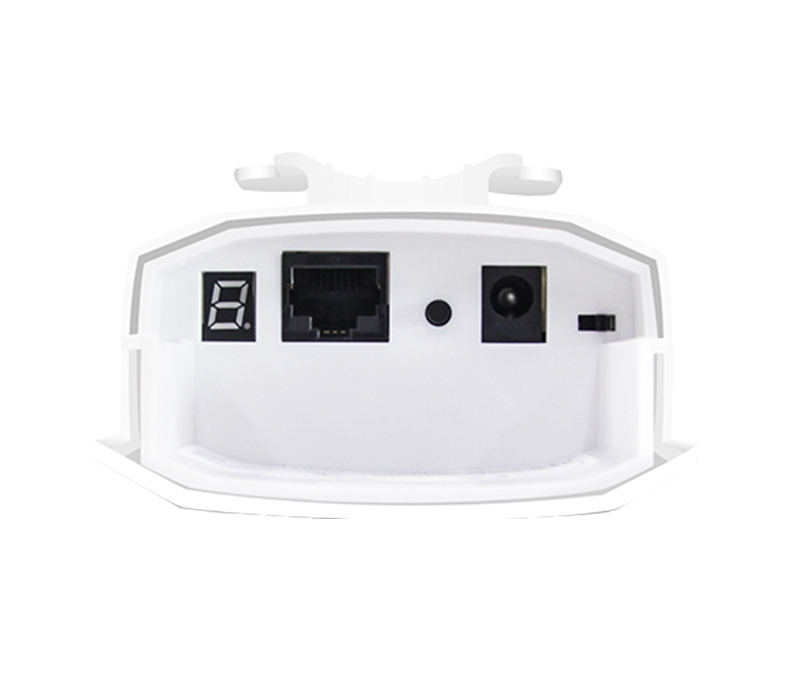

| Interface | LAN 1* 10/100Mbps adaptive RJ45 port |
| DC power interface, suitable for connecting power plugs with an outer diameter of 5.5mm and an inner diameter of 2.1mm and a length of 9.5mm or more | |
| Button | Reset to factory/digital composite button, short press to adjust digital tube value, long press for 5 seconds to restore factory settings |
| Indicator Light | PWR power indicator light, LAN port status indicator light |
| SIG1/SIG2/SIG3 signal strength indicator light, digital tube | |
| Antenna | Built in dual polarized 8dBi directional plate antenna (horizontal lobe angle 90 °, vertical lobe angle 90 °) |
| Power supply | 24V/0.5A PoE remote power supply |
| DC 12V/1A, external positive and internal negative | |

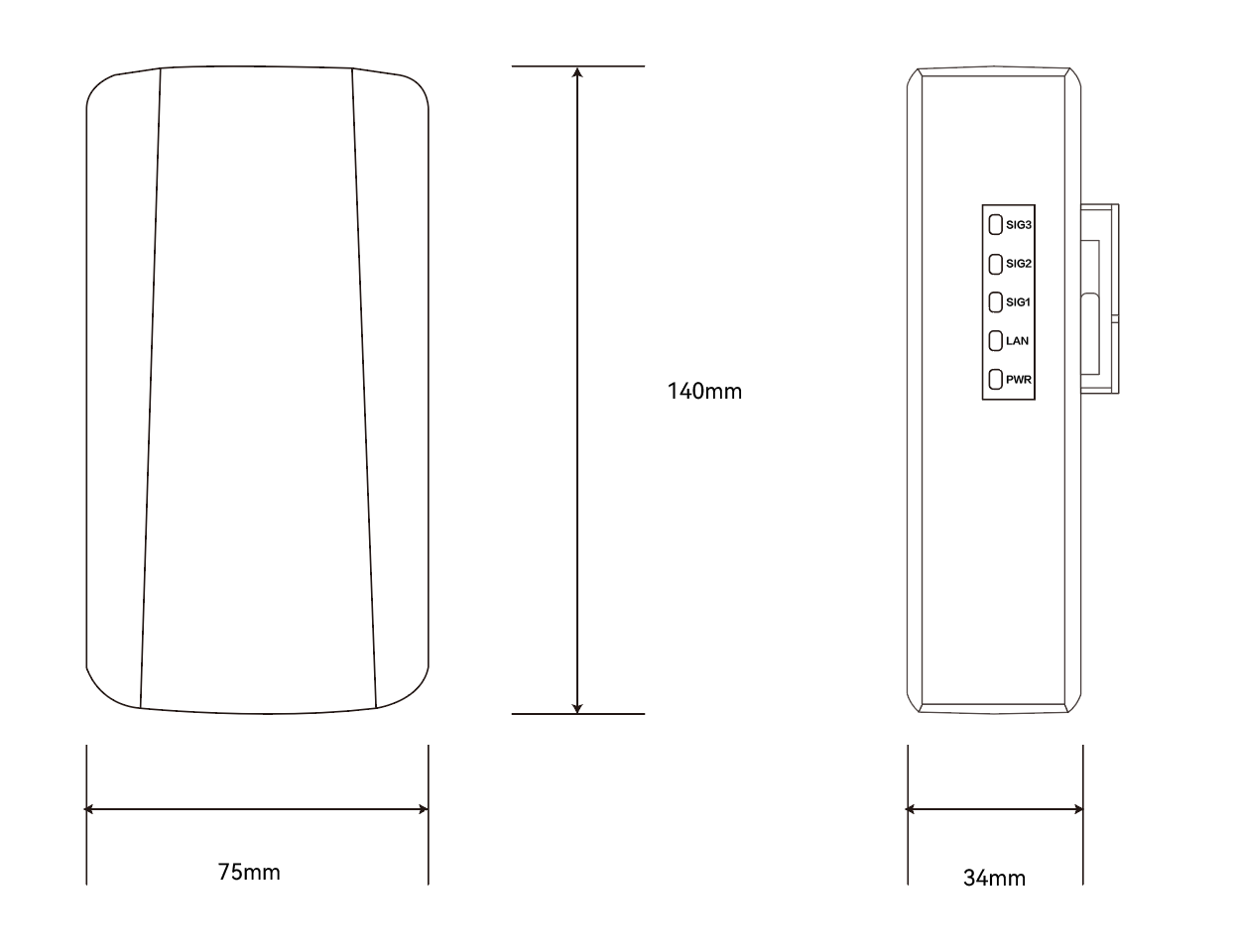

| Structure Information | Product Dimensions :140*75*34mm |
| Packaging Dimensions :145*196*90mm | |
| Product Net Weight:0.15kg | |
| Product Gross Weight:0.65kg | |
| Packing Information | Carton Dimensions :465*310*425mm |
| Packing Quantity: 20pair | |
| Packing Weight: 14.06kg | |
| Package Contents | Wireless Digital Bridge*1，24V PoE power adapter * 1, plastic clamp * 2,Ethernet cable * 1, manual (including warranty card)*1 |
| Installation | Pole mounted installation |
| Operating Temperature | -30℃～55℃ |
| Storage Temperature | -40 °C to 70 °C |
| Operation Humidity | 10%~90%，non condensing |
| Storage Humidity | 5%~95%，non condensing |
| Hardware Features & Performance | |
| Frequency Range | 802.11b/g/n:2.4~2.4835GHz |
| Channel Distribution | 1、2、3、4、5、6、7、8、9、10、11、12、13 |
| Modulation Mode | 802.11b: DSSS (DQPSK, DBPSK, CCK) |
| 802.11g: OFDM (BPSK, QPSK,16-QAM) | |
| 802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM) | |
| Transmission Speed | 11b maximum 11Mbps, 11g maximum 54Mbps, 11n maximum 300Mbps |
| Receiving Sensitivity | 11b：≤-90±1.5dBm / 1Mbps，≤-84±1.5dBm / 11Mbps |
| 11g：≤-86±1.5dBm / 6Mbps，≤-69±1.5dBm / 54Mbps | |
| 11n 20MHz：≤-85±1.5dBm / MCS0，≤-67±1.5dBm / MCS7 | |
| 11n 40MHz：≤-82±1.5dBm / MCS0，≤-64±1.5dBm / MCS7 | |
| Transmission Power | 11b: ≥17±1.5dBm / 11Mbps |
| 11g: ≥15dBm±1.5dBm / 54Mbps | |
| 11n: ≥14dBm±1.5dBm / MCS7 | |
| Transmission Distance | 1km |
| Software Features & Performance | |
| Working Mode | Bridge access point, bridge client |

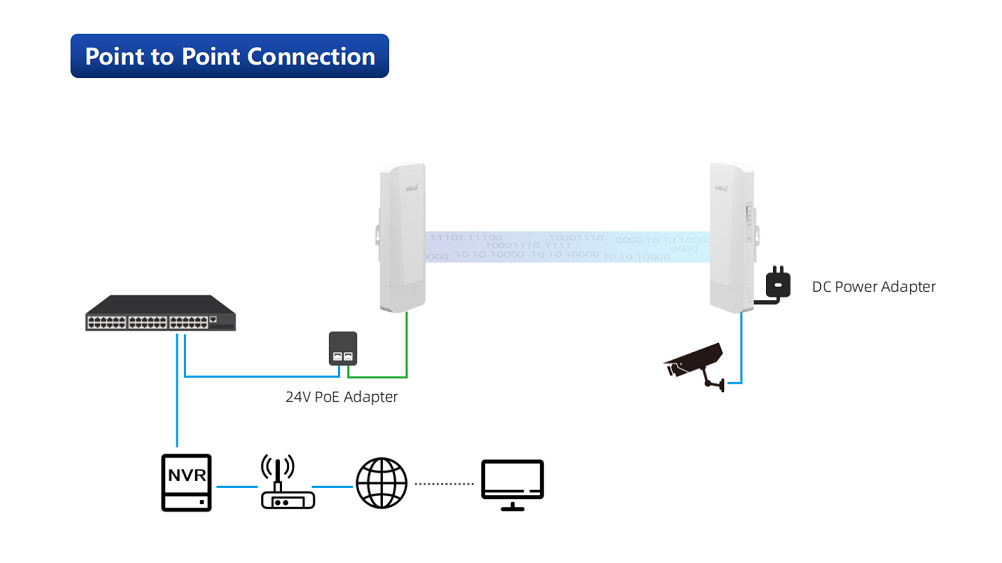

| Networking Method | Point to point, point to many points (within eight points) |
| Management Style | Chinese and English WEB management |
| State | System status, bridge status, interface status |
| Bridge Configuration | Wireless mode: Bridge access point/Bridge client |
| Bridge access point: bridging SSID, bridging password, wireless protocol, wireless bandwidth, wireless channel, wireless power | |
| Bridge client: bridging SSID, encryption method, bridging password, peer MAC address, wireless channel, wireless power | |
| Network Settings | Address acquisition method: automatic acquisition/static IP |
| IP address, subnet mask, gateway, DNS1, DNS2 | |
| System Management | System debugging, password modification, restart/reset/upgrade |
APPLICATION
