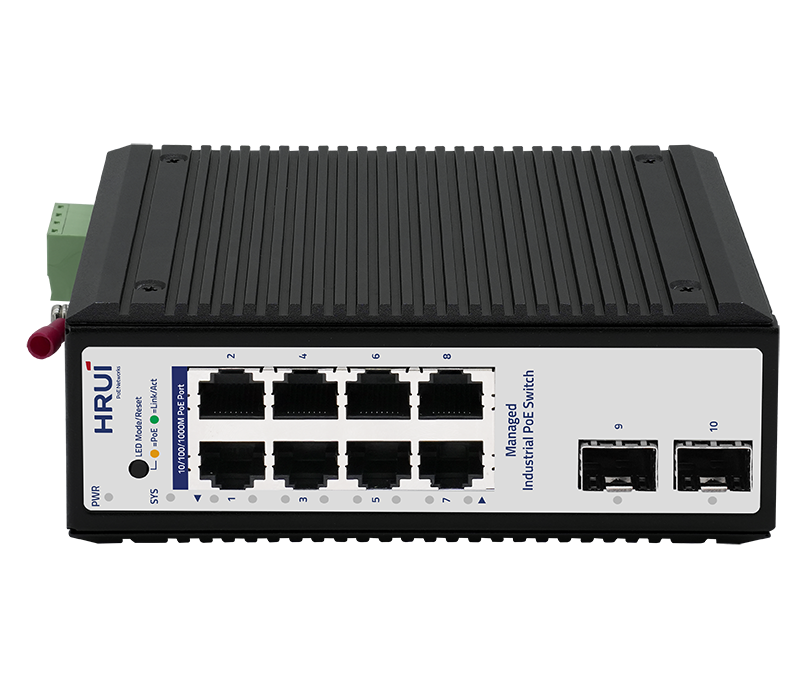

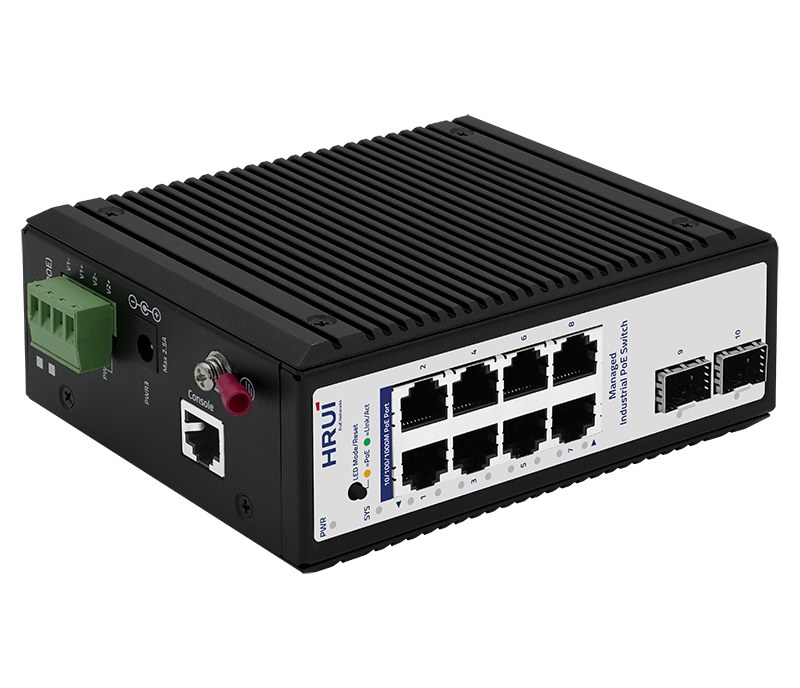

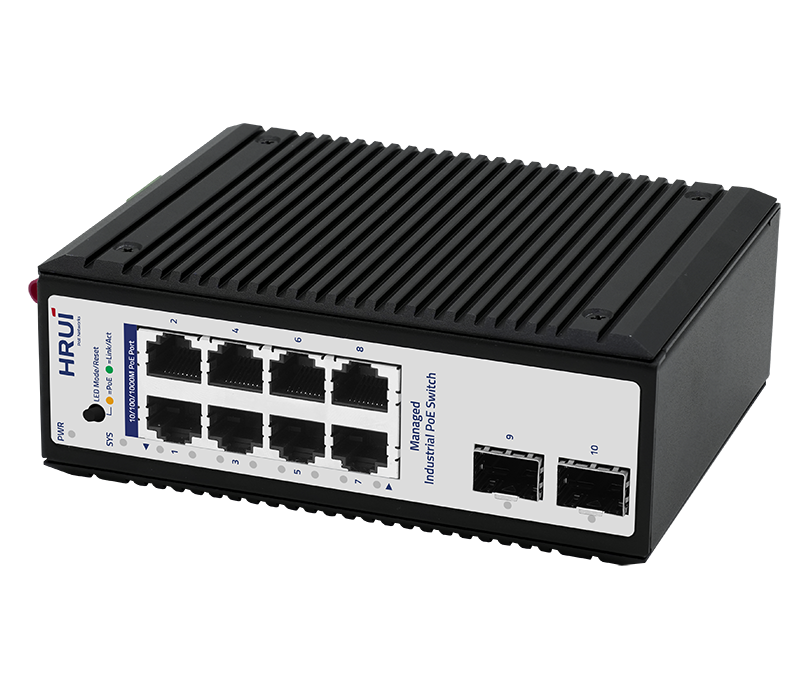

HR722P-8T2GS-A - 10-Port Gigabit Industrial Managed PoE Switch
The HR722P-8T2GS-A is a reliable and feature-rich industrial-grade managed PoE switch designed for demanding applications in harsh environments. With 81Gbps PoE ports, 21Gbps SFP ports, and 1*Console port, this switch provides a robust and scalable networking solution for industrial automation, surveillance, and communication systems.
- Feature sand Benefits
- Parameter
- Product structure
- Application topology
The HR722P-8T2GS-A is a reliable and feature-rich industrial-grade managed PoE switch designed for demanding applications in harsh environments. With 81Gbps PoE ports, 21Gbps SFP ports, and 1*Console port, this switch provides a robust and scalable networking solution for industrial automation, surveillance, and communication systems.
Product Features:
8x 1Gbps PoE Ports: Deliver up to 30W of power per port, supporting IEEE802.3af (15.4W) and IEEE802.3at (30W) standards.
2x 1Gbps SFP Ports: Expand your network with fiber optic connectivity for long-distance transmissions.
Console Port: Convenient management access via a dedicated console port.
Advanced Networking Features: Support for IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab, IEEE802.1Q, IEEE802.1p, IEEE802.1d/w protocols.
HRUI Cloud Management: Centralized management and monitoring through the HRUI Cloud platform.
PoE Power Management: Dynamic power allocation based on data flow detection to ensure optimal power utilization.
PoE Watchdog: Automatic shutdown of non-responding devices to prevent power waste and ensure network stability.
SNMP v1/v2/v3: Simple Network Management Protocol for easy network monitoring and management.
IGMP Snooping, Static Multicast Filtering, and MLD Snooping Filtering: Advanced multicast management features for efficient network traffic control.
802.1x Port Authentication and AAA Authentication: Enhanced network security through user authentication and access control.
Web, Telnet, CLI, SSH Management: Multiple management interfaces for flexible network management.
Durability and Reliability
IP40 Protection Level: High-strength aluminum shell provides excellent protection against dust and water ingress.

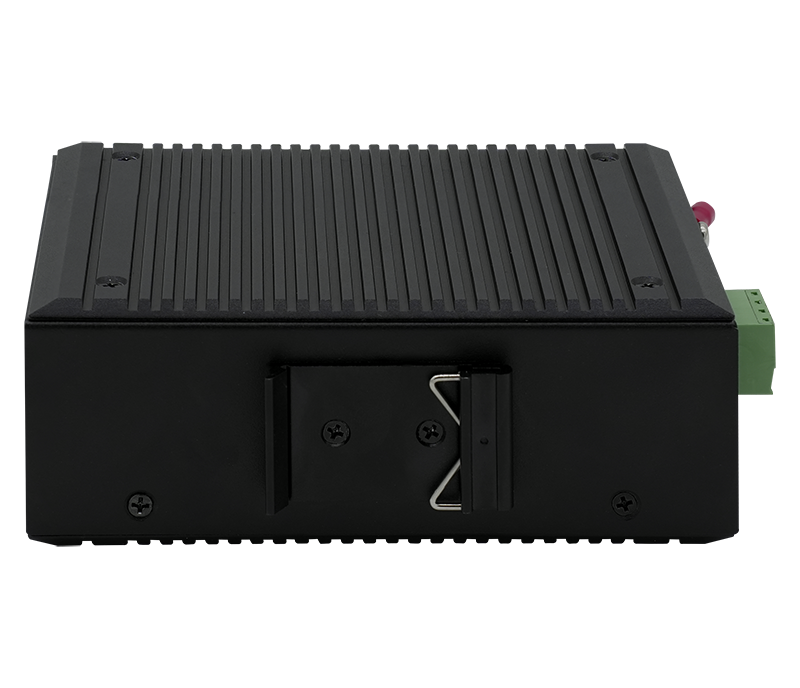

DIN35 Rail Installation: Easy mounting on DIN rail for compact and space-saving installation.
Industrial Grade 4-Level Design:: Designed to operate in harsh environments with temperatures ranging from -40°C to 75°C.
Redundancy and Safety
Redundant Power Supply Connection: Ensure continuous operation in case of power supply failure.
Anti Reverse Connection: Prevent damage caused by incorrect power supply connections.
The HRUI Gigabit managed industrial PoE switches offer a range of port configurations to suit various application requirements. Certain models support the IEEE 802.3af/at/bt standards, with select ports providing up to 90W PoE power for powering high-demanding PD devices.
These products provide robust L2+ management capabilities for enhanced control and operational flexibility. Furthermore, it supports HRUI cloud management, enabling convenient remote
monitoring and administration.
With the design of industrial-grade durability, these switches feature redundant power inputs for increased system reliability. The rugged IP40 aluminum alloy housing ensures efficient heat dissipation and the stable operation in a wide temperature range of -40°C to 75°C, which makes them suitable for extreme conditions. These switches are ideal for applications such as industrial automation, intelligent transportation systems, and security monitoring.
IEEE 802.3af/at/bt PoE Standard
These products use advanced PoE++ (IEEE 802.3af/at/bt) with up to 90W per port, ideal for high-power devices like wireless APs and PTZ cameras. They offer smart power management, real-time monitoring, and energy savings. Furthermore, they support SFP ports for fiber transmission up to 20km.
Integrated PoE Features for Managing PD
PoE Configuration
Provide configuration support for PoE settings, including parameters such as temperature, type, level, power, current, total PoE power budget management, PoE power control, port priority allocations, and individualized power limits for each PoE port. This thorough strategy will optimize PoE management, promote efficient resource utilization, and improve device reliability and performance.
PoE Schedule
Support for customizing the schedule to turn the PoE function on or off based on specific needs. This flexibility not only helps optimize energy consumption but also reduces operational costs, making it an efficient solution for energy management.
PoE Timer Management
Support rebooting the PoE function of port during a specified time. This will help reduce device crashes caused by buffer overflow, ensuring more reliable and stable performance during designated time intervals.
Supports L2+ Network Management
This product offers a comprehensive suite of L2+ network management features, including support for VLAN, port mirroring, traffic control, LACP, QoS, and DHCP Snooping, among others. It is designed to meet a variety of complex network requirements, enhancing network security, reliability, and scalability.
Unified Management in the Cloud: Accessible, Scalable, and Efficient
Provide cloud-based management for remote equipment monitoring and control, simplifying detection, configuration, deployment, and maintenance to reduce costs and improve efficiency and reliability.
Secure Networking
The products feature advanced cybersecurity measures, including SSHv2 and SNMPv3 protocols, to protect against cyber threats. Its robust security capabilities enhance switch management while maintaining cost-effective deployment for critical network operations.
Enhanced Fiber Module DDM Capabilities
Support for Fiber Module DDM (Digital Diagnostic Monitoring) includes tracking key parameters such as transceiver supply voltage, temperature, transmitter bias current, transmitter output power, and received optical power. By analyzing these metrics, you can effectively diagnose issues that may be affecting the transceiver optics performance.
Industrial Design Enabling Durable Applications
The products feature aluminum alloy casings, offering exceptional heat dissipation and mechanical strength. They are capable of stable operation across a broad temperature range (-40°C to 75°C), making them particularly suitable for application scenarios such as industrial sites and outdoor base stations.
Triple Power Input Design
The device features triple power inputs, enabling you to deploy multiple power sources for enhanced reliability and redundancy. This design guarantees that your system stays operational during power failures or unexpected shutdowns.
APPLICATION
SPECIFICATION
![]() | ![]() | ![]() | ||
![]() | ![]() | ![]() |
Description | Specification |
Model | HR722P-8T2GS-A |
Interface | 8*1Gbps PoE ports |
2*1Gbps SFP ports | |
1*Console port | |
Port Standard | IEEE802.3 (Ethernet) |
IEEE802.3u (Fast Ethernet) | |
IEEE 802.3ab (Gigabit Ethernet) | |
IEEE 802.3z (Gigabit Ethernet Fiber Standard) | |
IEEE802.3x (Flow Control) | |
IEEE 802.1D Spanning Tree Protocol | |
IEEE 802.1w Rapid Spanning Tree Protocol | |
Switching Bandwidth | 20Gbps |
Packet Forwarding Rate | 14.88Mpps |
Packet Buffer | 4.1Mbit |
MAC Address Table | 8K |
Jumbo Frame | 10Kbytes |
VLAN | VLAN range 1-4094, maximum active VLAN is 4K |
Transmission Method | Store and Forward |
PoE Standard | IEEE802.3af (15.4W) |
IEEE802.3at (30W) | |
PoE Port Output Voltage | DC 48-55V |
PoE Ports | Ports 1-8 PoE power output <30W |
PoE Power Budget | According to the adapter |
Power Supply | DC12~55V |
DC48~55V (PoE) | |
Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-) | |
Mainboard Power Consumption | 14.12W |

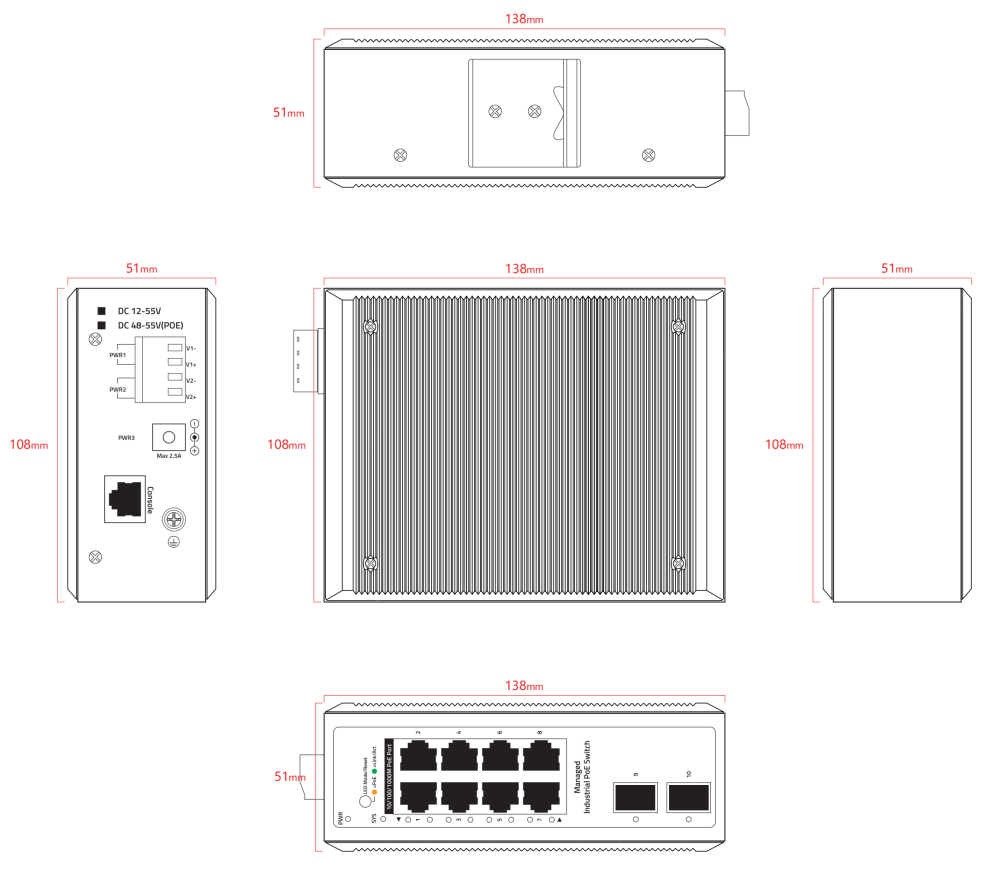

Structure Information | Product Dimensions: 138*108*51mm |
Packaging Dimensions: 245*190*70mm | |
Product Net Weight: 0.88KG | |
Product Gross Weight: 1.07KG (excluding power supply) | |
Packing Information | Carton Dimensions: 520*380*400mm |
Packing Quantity: 20PCS | |
Packing Weight: 22.4KG | |
Package Contents | Switch 1pcs, Serial cable 1pcs, Manual 1pcs, Certificate of Inspection 1pcs |
Fan Quantity | 0 |
Certification | CE, FCC, RoHS |
Installation | Desktop, Wall mounting installation, Rail installation |
Surge Protection | Port Surge: Common mode 6KV, Differential mode 2KV |
Electrostatic ESD: Air 8KV, Contact 6KV (Class B) | |
Operating Temperature | -40~75°C |
Storage Temperature | -40~85°C |
Operation Humidity | 10%~90%, non condensing |
Storage Humidity | 5%~95%, non condensing |
PWR Green LED | On: Powered on |
Off: Powered off | |
SYS Green LED | Flashing: System startup in progress |
On: The system is running normally | |
Ports 1-8 Green LED | Slow Flashing: 10/100/1000Mbps Link normal |
Off: Link blocked | |
Fast Flashing: Data transmitting | |
Ports 1-8 Yellow LED | On: PoE powered on |
Off: PoE powered off | |
Ports G9-G10 Green LED | On: 10/100/1000Mbps Link normal |
Off: Link blocked | |
Flashing: Data transmitting | |
LED Mode Button&Reset | Dual color LED selection: default green (link data), switch yellow LED(PoE) |
Long press for 6 seconds to restore factory settings | |
Software Features | |
L2+ Function | |
IPv4 | IPv4 VLAN Interface |
IPv4 Static Routes | |
ARP | |
IPv6 | IPv6 VLAN Interface |
IPv6 Static Routes | |
IPv6 ND | |
L2 Function | |
Port | Port Switch configuration |
Port Description configuration | |
Port Speed configuration | |
Port Duplex configuration | |
Port Flow Control configuration | |
Jumbo Frame | |
EEE | |
Fiber Module(DDM) | |
Link Aggregation | Support load balance policy; Base on MAC and IP-MAC |
Static and Dynamic Group | |
Up to 8 groups | |
Support LACP | |
Storm Control | Boardcast suppression |
Unknown Multicast | |
Unknown Unicast | |
Port Mirroring | One to one monitor |
Many to one monitor | |
Ingress/Egress/Both | |
Up to 4 session groups | |
Port Security | MAC Address Constraints |
Port Security MAC Address | |
Protect/Restrict/Shutdown | |
Port Isolation | Support |
Port Rate-limit | Support |
Loopback Detection | Support |
VLAN | Access/Trunk/Hybrid |
VLAN Tunnel (Q-in-Q Tunnel) | |
VLAN range 1-4094, maximum active VLAN is 4K | |
Voice VLAN | |
MAC VLAN | |
Surveillance VLAN | |
Protocol VLAN | |
GVRP | |
MAC Address | Dynamic MAC address |
Static MAC address | |
Filtering MAC Address | |
Spanning Tree Protocol | STP/RSTP/MSTP |
BPDU Filter | |
BPDU Guard | |
Edge Port | |
LLDP | LLDP |
LLDP MED | |
Multicast | IGMP Snooping |
IGMP V1/V2/V3 | |
Router Port | |
Static IGMP group address | |
IGMP groups filtering | |
Querier | |
MLD Snooping | |
MVR | |
QoS | Traffic classification based, Strict priority and WRR |
Port Priority | |
802.1P Priority | |
IP TOS Priority | |
IP DSCP Priority | |
Support up to 8 queues per port | |
Priority Remarking | |
ERPS | Only SFP port |
PoE | |
PoE Configuration | PoE Temperature |
PoE Type/Level/Power/Voltage/Current query | |
PoE Switch Configuration | |
PoE Watchdog Configuration | |
PoE power AF/AT adaptation | |
PoE Schedule | Support |
PoE Port Timer Reboot | Support |
Services | |
DHCP | DHCP Server |
IP Pool | |
Static Binding | |
Option 43 | |
DHCP Relay | |
Access Protocol | HTTP |
HTTPS | |
Telnet | |
SSHv2 | |
Manager ACL | |
Session Timeout | |
Password Retry Count | |
Silent Time | |
Security | |
AAA | RADIUS |
TACACS+ | |
802.1X | |
Base on port/MAC/local/WEB | |
DHCP Snooping | Global/VLAN |
Option 82 | |
Circuit ID | |
IP Source Guard | Support |
Dynamic ARP Inspection | Support |
DoS | Support |
ACL | MAC ACL |
IPv4 ACL | |
IPv6 ACL | |
Diagnostics | |
Syslog | Logging Message |
Remote Server | |
Ping | Support |
Traceroute | Support |
Copper Test | Support |
UDLD | Support |
Port Statistics | Support |
Equipment Management | |
Manager Access | Console |
HTTP/HTTPS | |
Telnet | |
SSH | |
SNMP | |
Manager IP | Static Address |
DHCP Client | |
Support IPv4 and IPv6 address | |
Manager VLAN | |
DNS | |
Time Synchronization | SNTP |
Manual Time | |
SNMP | V1/V2C/V3 |
Community | |
V3 User | |
Group | |
Trap Host | |
SNMP MIB | RFC 1213 MIB-II |
RFC 1493 Bridge MIB | |
RFC 1643 Ethernet MIB | |
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) | |
RFC 2863 Interface MIB | |
LLDP | |
Private MIB | |
RMON | Statistics |
History Configuration | |
Event Configuration | |
Alarm Configuration | |
User Management | Support |
Firmware Management | Firmware upgrade |
Configuration Management | Upload and download |
Save | Support |
Restart | Support |
Factory Defaults | Support |
Standard Compliance | |
IEEE 802.3x flow control and back pressure | |
IEEE 802.3ad port trunk with LACP | |
IEEE 802.1D Spanning Tree Protocol | |
IEEE 802.1w Rapid Spanning Tree Protocol | |
IEEE 802.1s Multiple Spanning Tree Protocol | |
IEEE 802.1p Class of Service | |
IEEE 802.1Q VLAN tagging | |
IEEE 802.1x Port Authentication Network Control | |
IEEE 802.1ab LLDP | |
IEEE 802.3af Power over Ethernet | |
IEEE 802.3at Power over Ethernet Plus | |
RFC 768 UDP | |
RFC 793 TFTP | |
RFC 791 IP | |
RFC 792 ICMP | |
RFC 2068 HTTP | |
RFC 1112 IGMP v1 | |
RFC 2236 IGMP v2 | |
RFC 3376 IGMP v3 | |
RFC 2710 MLD v1 | |
FRC 3810 MLD v2 |
