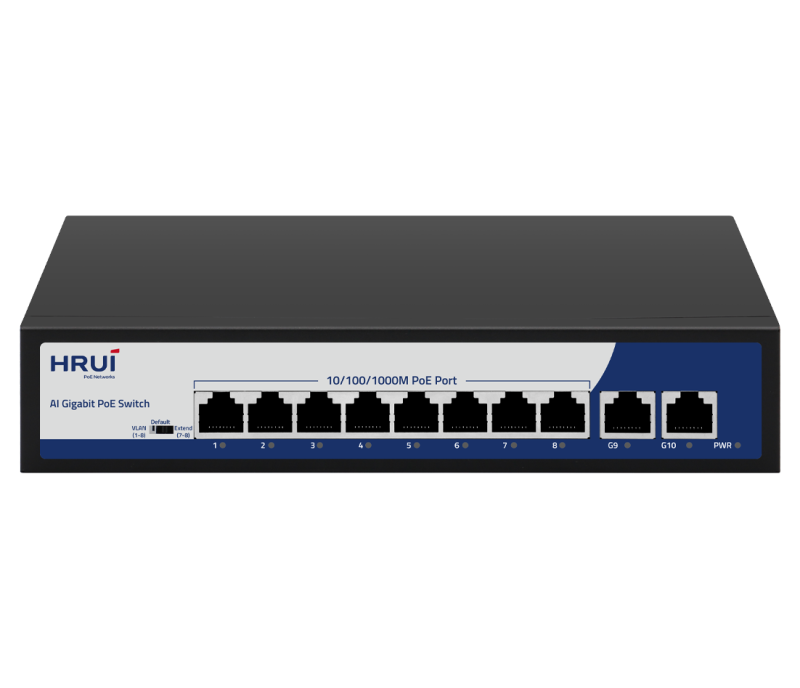

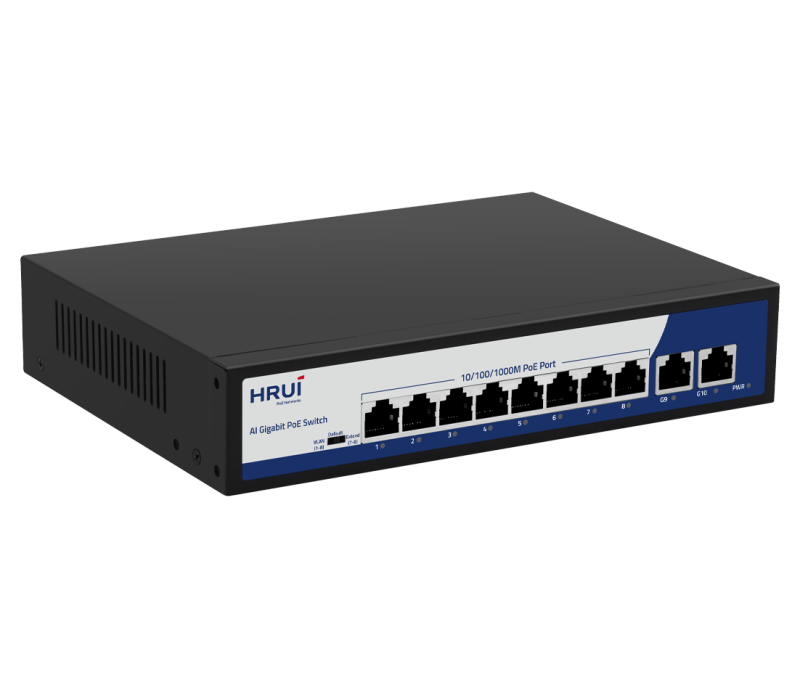

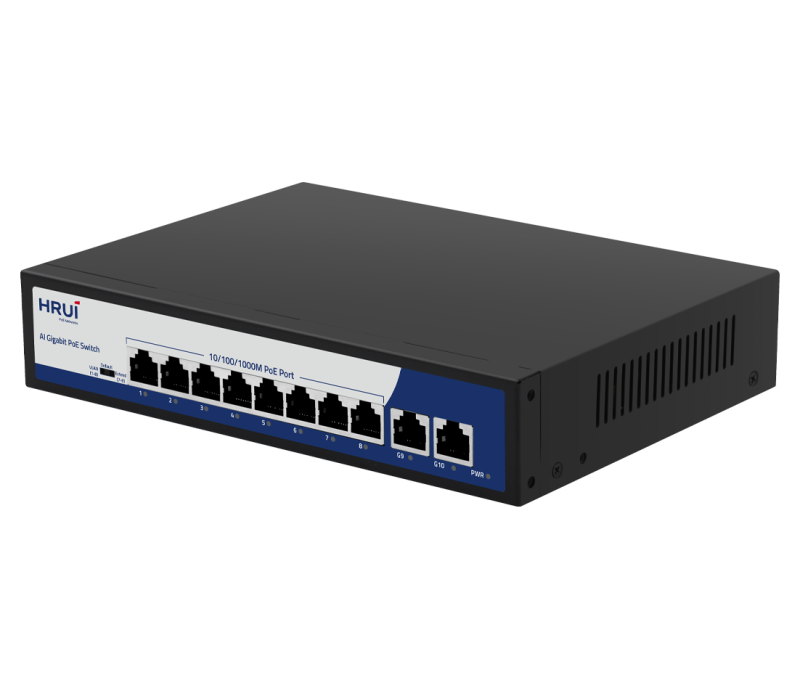

HR900-AFG-82N - 10 Port Gigabit Intelligent Standard PoE Switch
10 Port Full Gigabit Intelligent Standard PoE Switch, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100/1000M Ethernet. The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.
- Feature sand Benefits
- Parameter
- Product structure

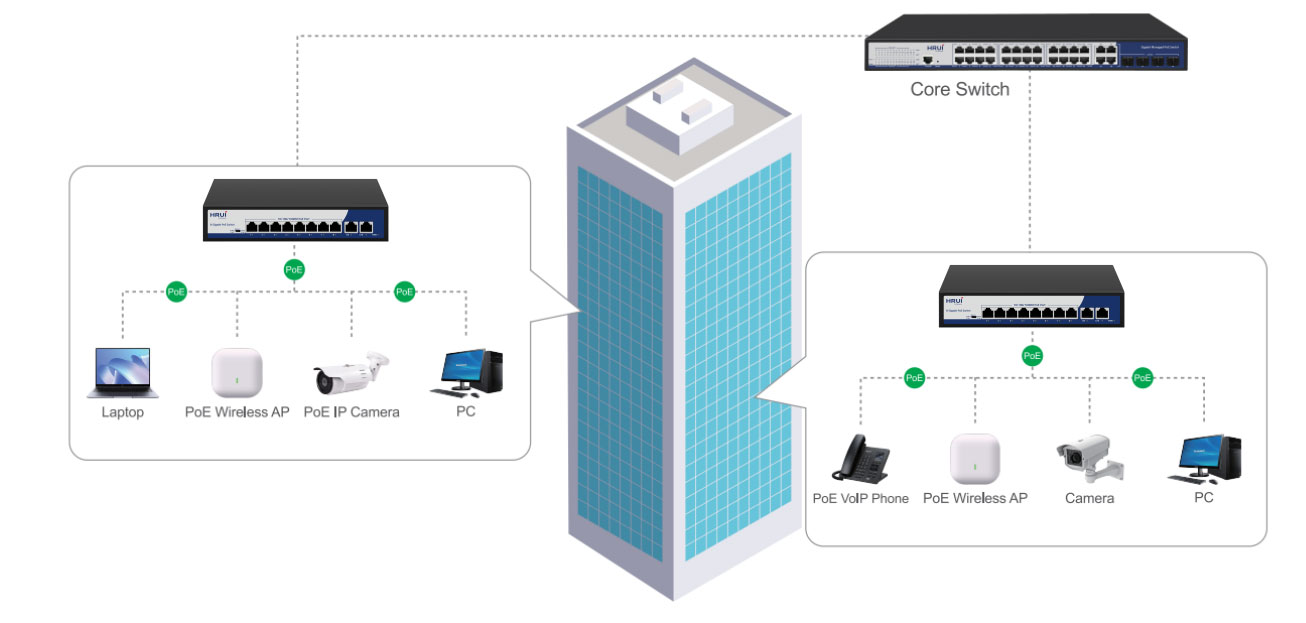

- Application topology
The HRUI AI PoE switches provide a range of models featuring both 100M/Gigabit PoE, RJ45, and SFP uplink ports. These switches meet the IEEE 802.3af/at/Hi-PoE standards for Power over Ethernet, with PoE port 1 capable of delivering a maximum output of 60W and other PoE ports capable of 30W. The devices offer three working modes: Default, VLAN (Port Isolation), and Extend. Additionally, the series supports PoE watchdog functionality in both VLAN and Extend modes, enabling the detection and automatic reboot of unresponsive or dropped PoE-powered devices.
With user-friendly installation and maintenance processes, these switches help establish a secure and high-performance network. HRUI AI PoE switches are ideal for various Ethernet access applications, including small to medium-sized enterprises, internet cafes, hotels, and schools.
FEATURES

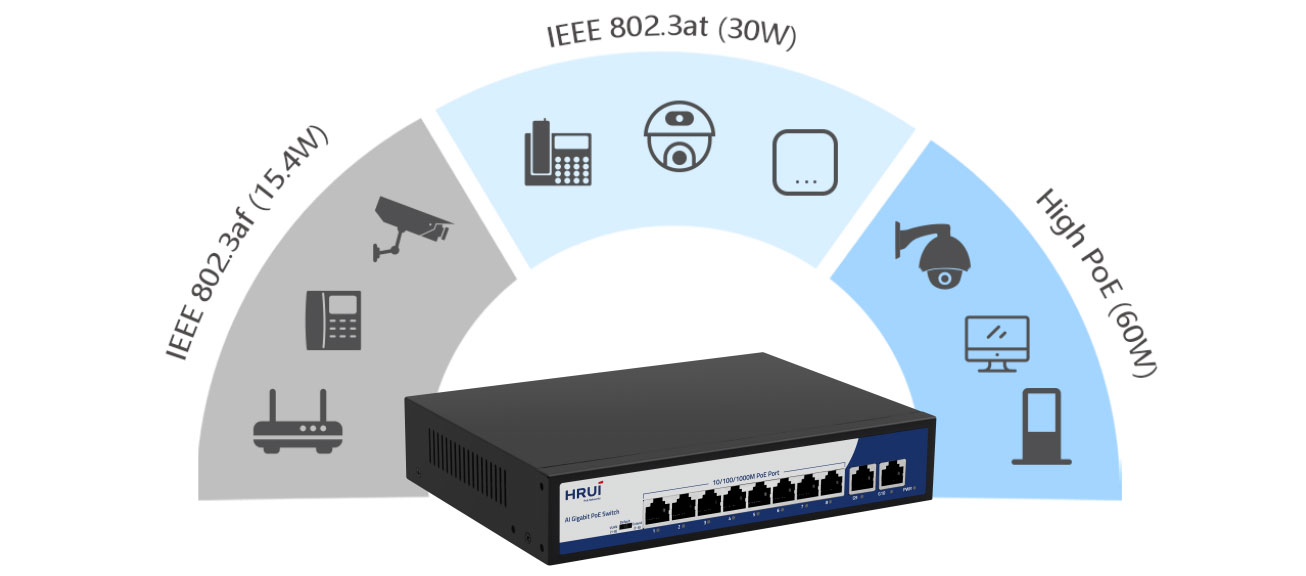

| • Power Over Ethernet |
This series of switches provides PoE ports, compliant with IEEE 802.3af/at/high PoE, enabling simultaneous data and power transmission to devices via a single, convenient Ethernet cable. Specifically, PoE Port 1 offers a maximum output power of 60 watts, permitting the powering of high-power devices. By integrating power delivery into a single cable, these switches streamline cabling infrastructure and eliminate the need for separate power sources, thereby providing an efficient and cost-effective solution for powering network devices. |
|
| • Advanced Functions with DIP Switch |

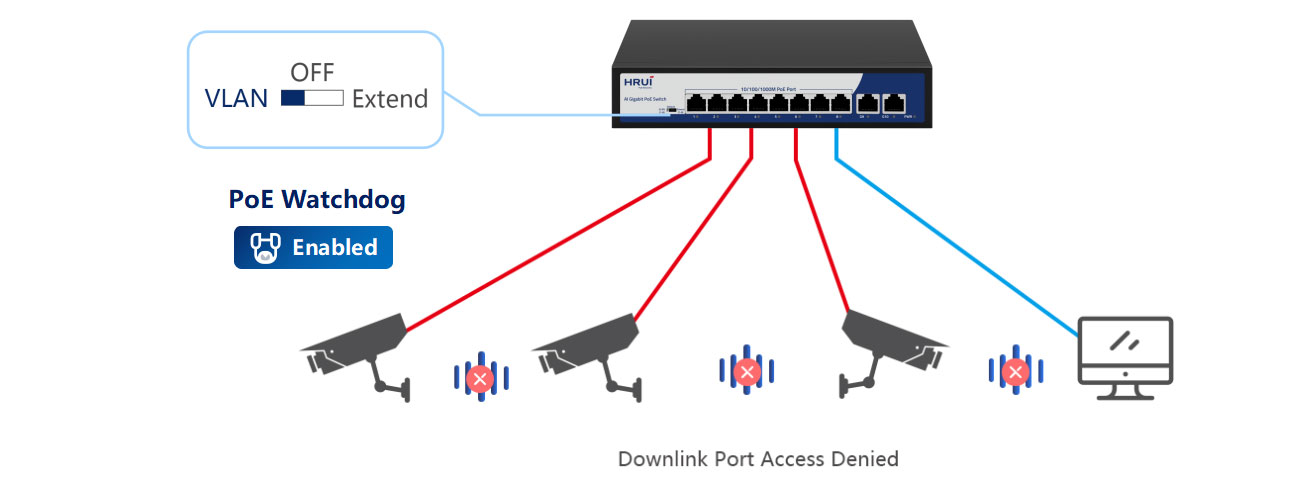

VLAN: Downlink ports are isolated from each other, but can still communicate with uplink ports. This mode also enables PoE watchdog on ports. |
|

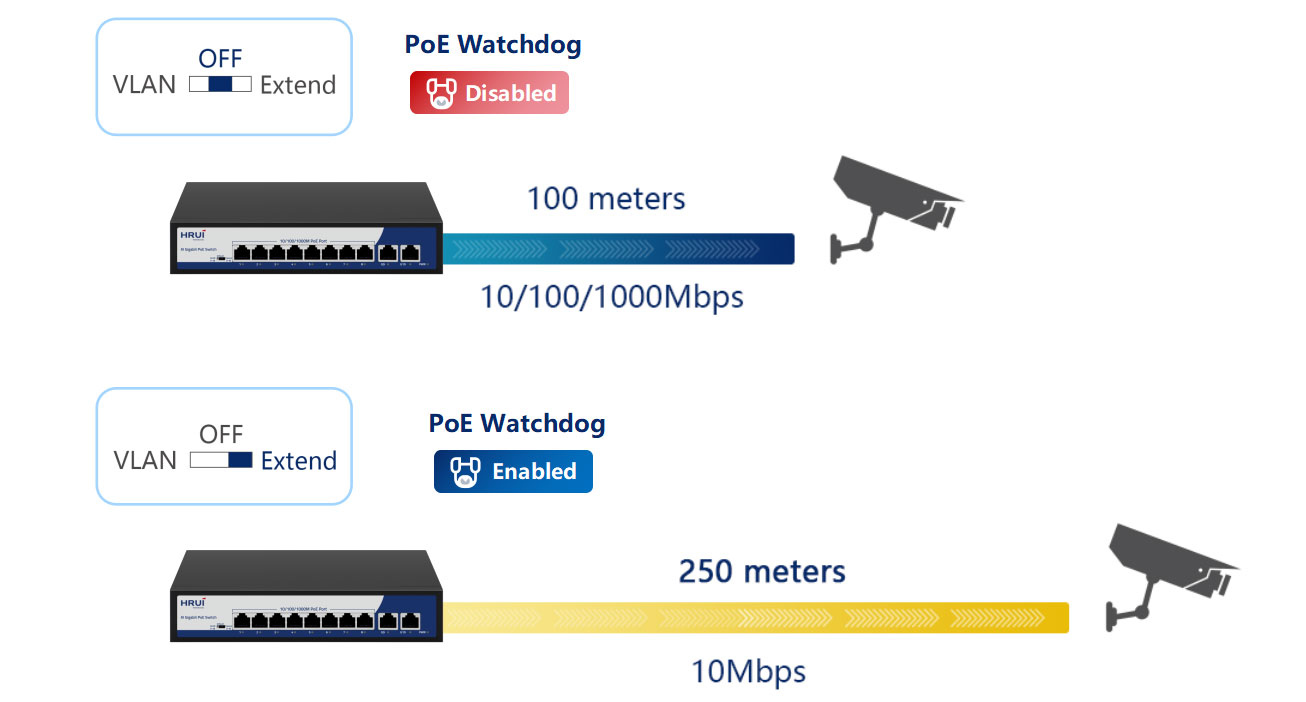

Default: All ports support communication with each other, with a transmission distance of up to 100 meters and an adaptive speed of 10/100/1000Mbps. This mode disables PoE watchdog on ports. |
Extend: The downlink PoE & data transmission distance of port 7-8 can reach up to 250 meters, with a speed of 10Mbps. This mode enables PoE watchdog on ports. |
|

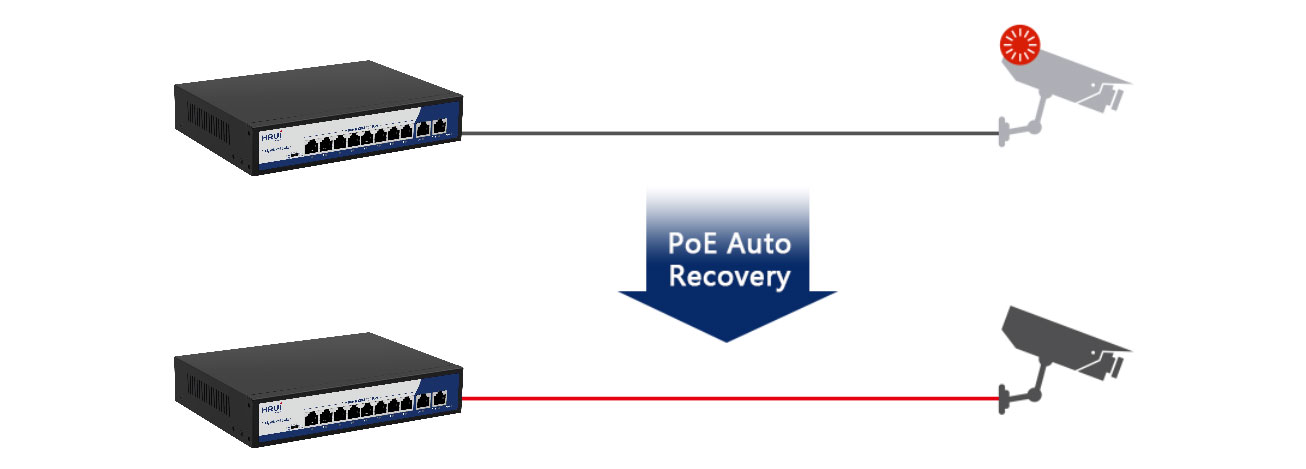

| • AI PoE Watchdog |
Detect and reboot dropped or unresponsive PoE-powered devices. |
|
| • Safe PoE Smart Boot-up |

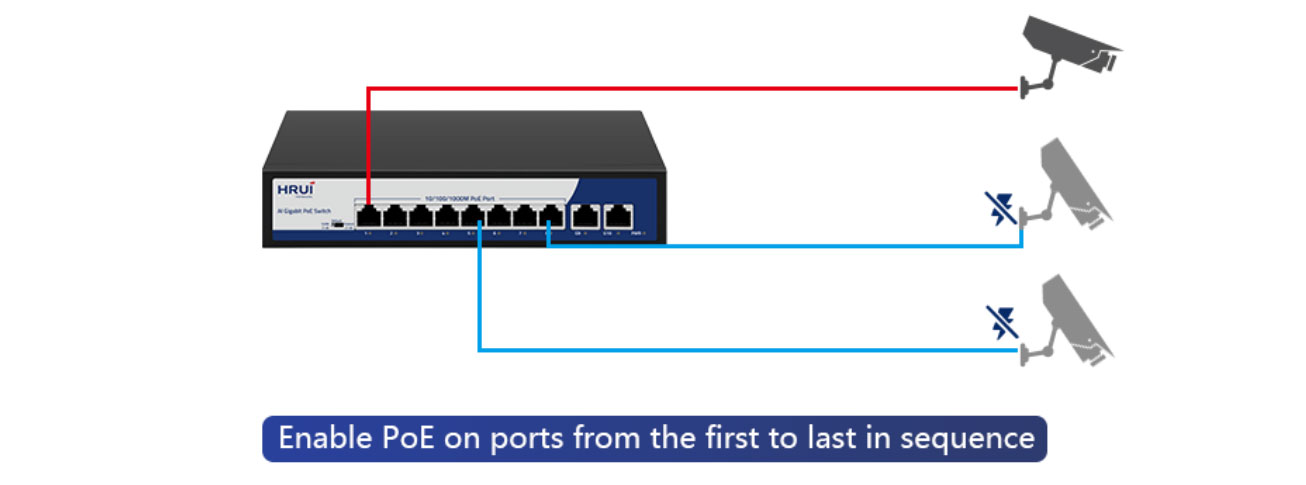

Support PoE Smart Boot-up that enables PoE on ports from the first to last in sequence to prevent damage to the power supply by sudden large currents. The function is enabled by default. |
|
| • Plug and Play, Easy to Use |

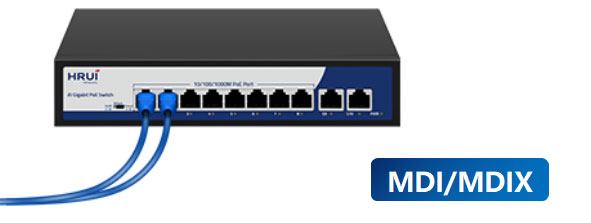

All Ethernet ports on our switches support MDI/MDIX compatibility, allowing for easy setup with no software installation or configuration needed. |
|

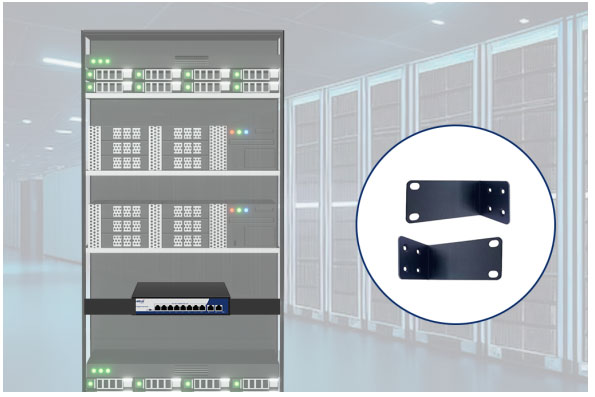

| • 19 Inch Rack Mout | • High Reliable Design |

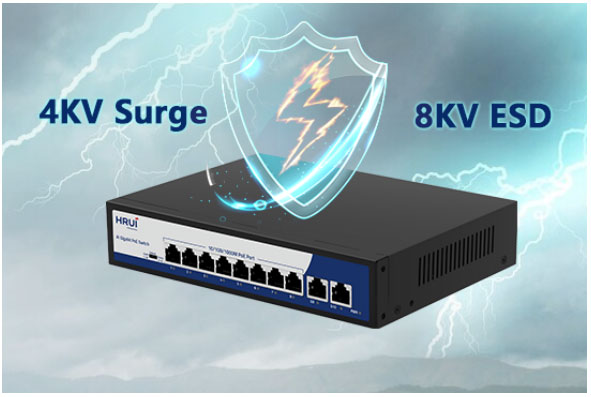

Support installed in a standard rack environment, easy to integrate with other equipment and manage cabling. | Support 4KV surge and 8KV ESD protection. |
|
|
HRUI AI PoE Switch Models
| HR900-AF-42N | HR900-AF-82N | HR900-AFG-82N | ||
 |  |  | ||
| Port Rate: 4*FE PoE + 2*FE PoE Standard: IEEE 802.3af/at Port 1-4 PoE power output ≤ 30W PoE Power Budget: 60W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 8*FE PoE + 2*FE PoE Standard: IEEE 802.3af/at Port 1-8 PoE power output ≤ 30W PoE Power Budget: 115W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 8*GE PoE + 2*GE PoE Standard: IEEE 802.3af/at/High PoE Port 1 PoE power output ≤ 60W, port 2-8 PoE power output ≤ 30W PoE Power Budget: 110W Surge Protection: 4KV Working Temperature: 0℃～40℃ | ||
| HR900-AF-2421GS-300 | HR900-AFG-1622S-200 | HR900-AFG-242S-400 | ||
 |  |  | ||
| Port Rate: 24*FE PoE + 2*GE + 1*1G SFP PoE Standard: IEEE 802.3af/at/High PoE Port 1 PoE power output ≤ 60W, port 2-24 PoE power output ≤ 30W PoE Power Budget: 290W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 16*GE PoE + 2*GE + 2*1G SFP PoE Standard: IEEE 802.3af/at/High PoE Port 1 PoE power output ≤ 60W, port 2-16 PoE power output ≤ 30W PoE Power Budget: 185W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 24*GE PoE + 2*1G SFP PoE Standard: IEEE 802.3af/at Port 1-24 PoE power output ≤ 30W PoE Power Budget: 380W Surge Protection: 4KV Working Temperature: 0℃～40℃ | ||
Highlight
• 8*Gigabit PoE ports + 2*Gigabit RJ45 ports
• Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3u, and IEEE 802.3x standards
• RJ45 port supports 10/100/1000Mbps adaptation
• PoE port in Extend mode, 7-8 ports force 10Mbps to automatically activate PoE watchdog mode
• PoE priority is enabled by default, with priority order from 1 to 8 ports
• Flow control method: Full duplex uses IEEE 802.3x standard, while half duplex uses Back pressure standard
• The panel indicator lights will monitor the working status and assist in fault analysis
• Supports VLAN, Default, and Extend modes
• 1 port supports 60W
Hardware Features & Performance | ||
Model | HR900-AFG-82N | |
General | Interface | 8* 1000Mbps PoE ports |
2* 1000Mbps uplink RJ45 port | ||
Port Standard | IEEE802.3 (Ethernet) | |
IEEE802.3u (Fast Ethernet) | ||
IEEE802.3ab (Gigabit Ethernet) | ||
IEEE802.3x (Flow Control) | ||
Performance | Switching Capacity | 20Gbps |
Packet Forwarding Rate | 14.88Mpps | |
Packet Buffer | 1Mbit | |
MAC Address Table | 2K | |
Transmission Method | Store and Forward | |
PoE | PoE Standard | IEEE802.3af (15.4W) |
IEEE802.3at (30W) | ||
POE Port Output Voltage | DC 44-57V | |
PoE Ports | Port 2-24 PoE power output <30W，Port 1 PoE power output 60W | |
PoE Power Budget | 110W | |

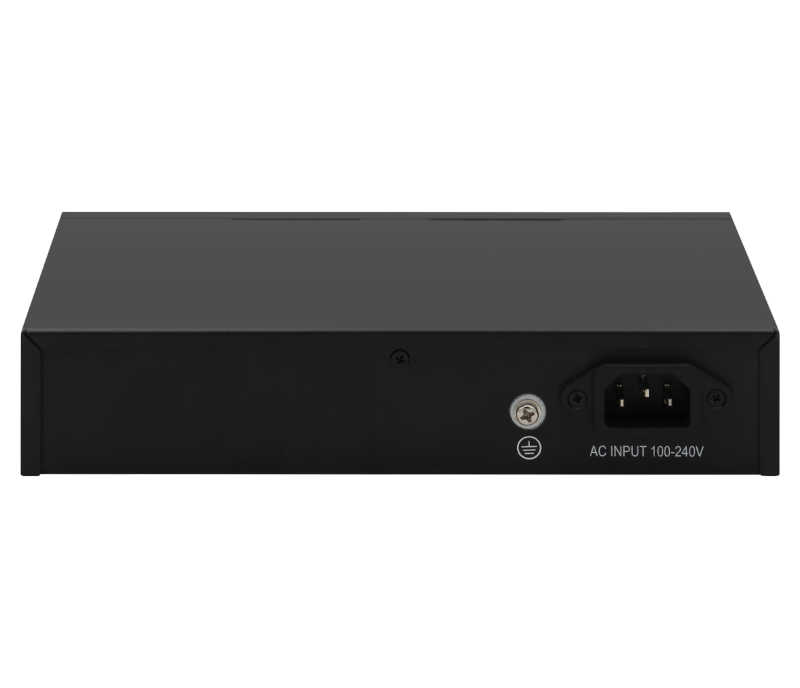

Physical | Power Supply | AC 100-240V 50/60Hz |
DC 52V 2.3A | ||
Mainboard Power Consumption | 6.5W | |

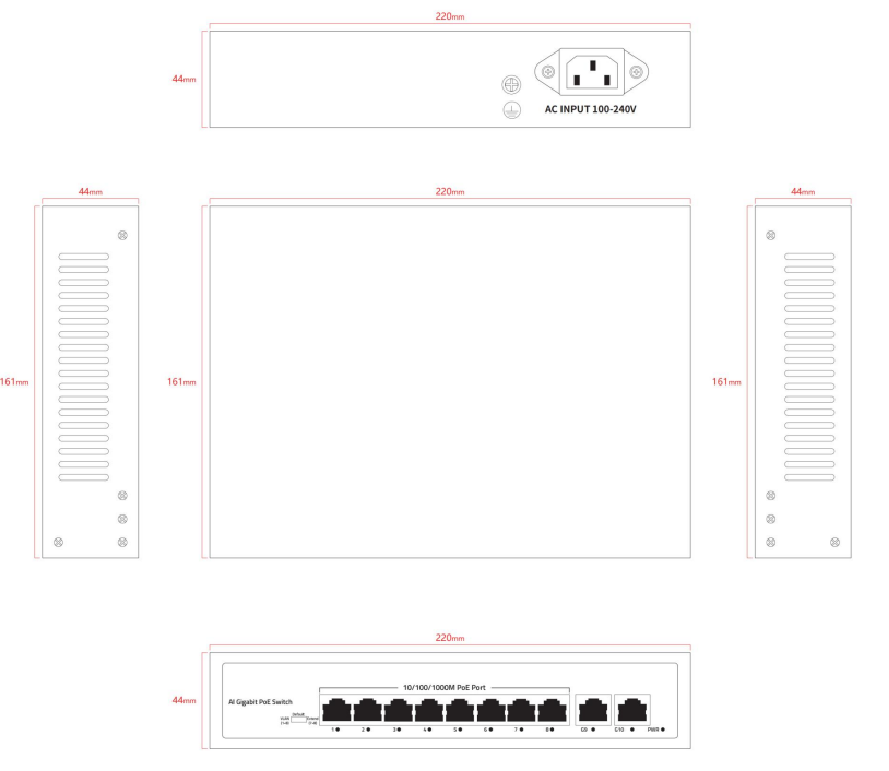

Structure Information | Product Dimensions :220*161*44mm | |
Packaging Dimensions: 315*215*85mm | ||
Product Net Weight:0.88KG | ||
Product Gross Weight:1.38KG | ||
Packing Information | Carton Dimensions :445*445*335mm | |
Packing Quantity: 10PCS | ||
Packing Weight: 14.8KG | ||
Packing List | Switch 1pcs, power cord 1pcs, instruction manual 1pcs，certificate of qualification 1pcs | |
Fan Quantity | 0 | |
Installation | Desktop | |
Environment | Surge Protection | Surge protection: common mode 4KV, differential mode 2KV |
Electrostatic ESD: Air 8KV, Contact 6KV (Class B) | ||
Operating Temperature | 0~40°C | |
Storage Temperature | -40 °C to 70 °C | |
Operation Humidity | 10%~90%，non condensing | |
Storage Humidity | 5%~95%，non condensing | |
Buttons & Indicator Lights | PWR | On: Powered on |
Off: Powered off | ||
1-10 Green Light | On: Link normal | |
Off: Link blocked | ||
Flashing: Data transmitting | ||
VLAN/Default/Extend Modes Buttons | VLAN: Isolation mode, 1-8 ports isolated from each other, communicating with 9-10 ports，and enable PoE watchdog mode on ports; | |
Default: Normal mode, all interfaces can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100/1000Mbps adaptive， and port PoE watchdog mode turned off; | ||
Extend: Link extension mode, 7-8 ports data transmission distance can be extended to 250 meters, transmission speed is 10Mbps，and enable PoE watchdog mode on ports; | ||
APPLICATION
