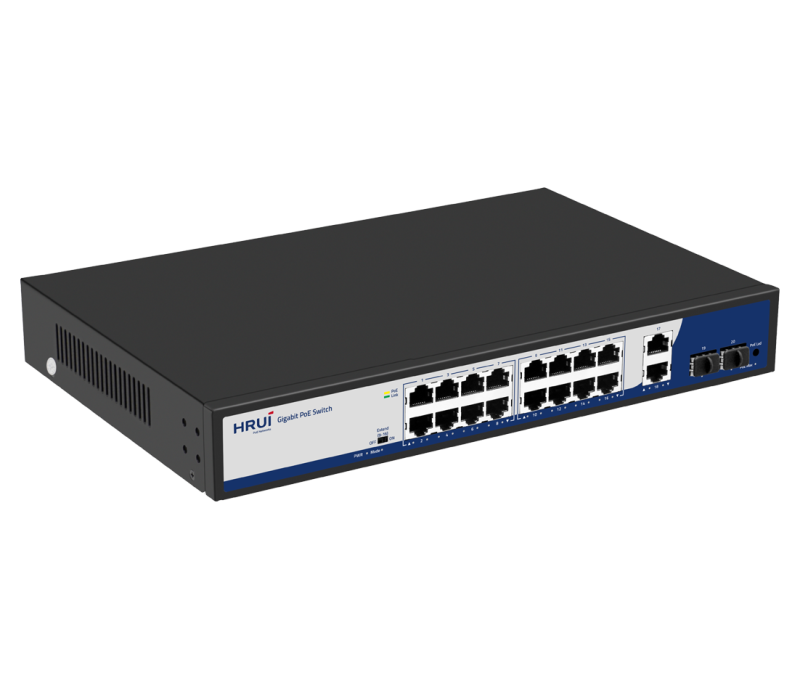

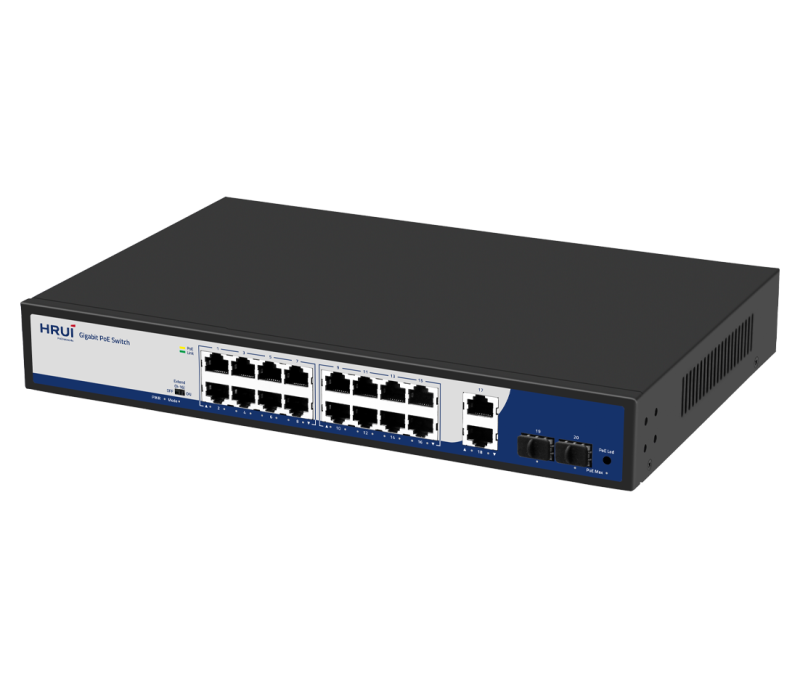

HR900-AFG-1622S-200 - 20 Port Gigabit Intelligent Standard PoE Switch
20 Port Gigabit Intelligent Standard PoE Switch, with high quality and high-speed network IC and the most stable PoE chips, support 16* 10/100/1000M PoE Ports+2*Gigabit Uplink+2* Gigabit SFP Ports, and provide seamless connections to 10/100/1000M Ethernet, and the PoE supply port can automatically detect and supply receiving devices meeting IEEE802.3af/at standard, non-PoE devices intelligently detect no power and only transmit data.
- Feature sand Benefits
- Parameter

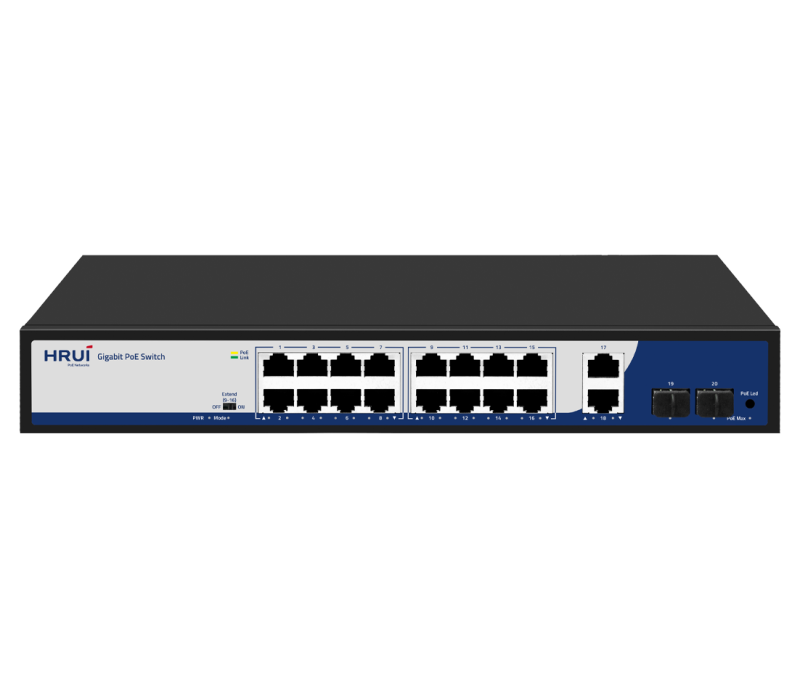

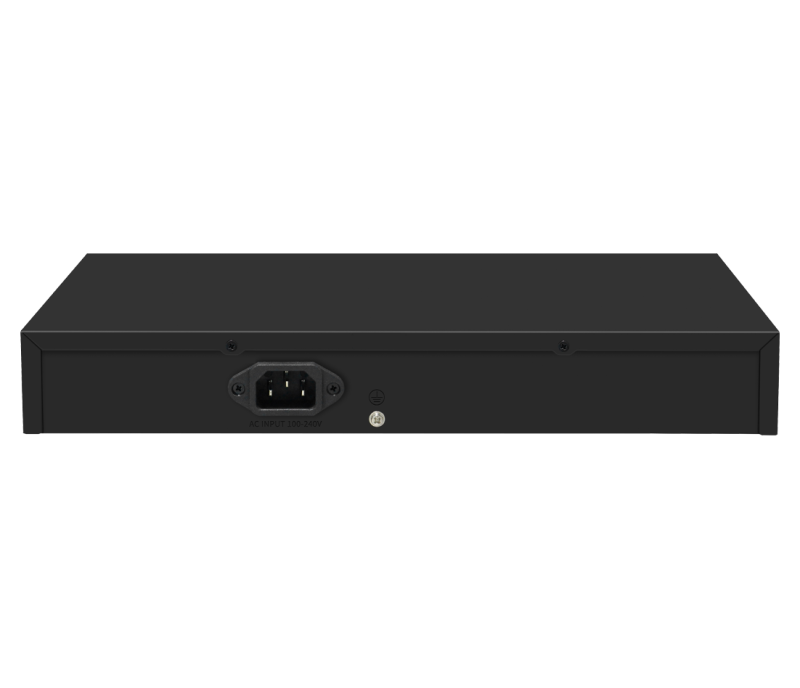

- Product structure

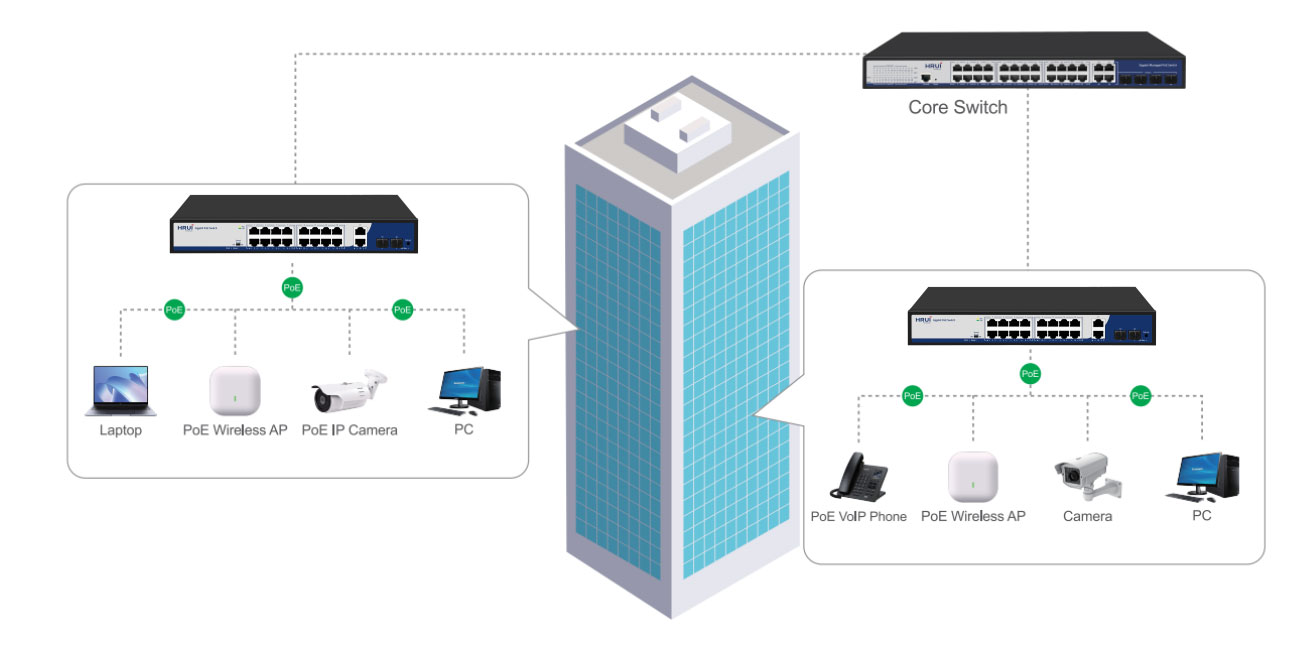

- Application topology
The HRUI AI PoE switches provide a range of models featuring both 100M/Gigabit PoE, RJ45, and SFP uplink ports. These switches meet the IEEE 802.3af/at/Hi-PoE standards for Power over Ethernet, with PoE port 1 capable of delivering a maximum output of 60W and other PoE ports capable of 30W. The devices offer three working modes: Default, VLAN (Port Isolation), and Extend. Additionally, the series supports PoE watchdog functionality in both VLAN and Extend modes, enabling the detection and automatic reboot of unresponsive or dropped PoE-powered devices.
With user-friendly installation and maintenance processes, these switches help establish a secure and high-performance network. HRUI AI PoE switches are ideal for various Ethernet access applications, including small to medium-sized enterprises, internet cafes, hotels, and schools.
FEATURES
| • Power Over Ethernet |

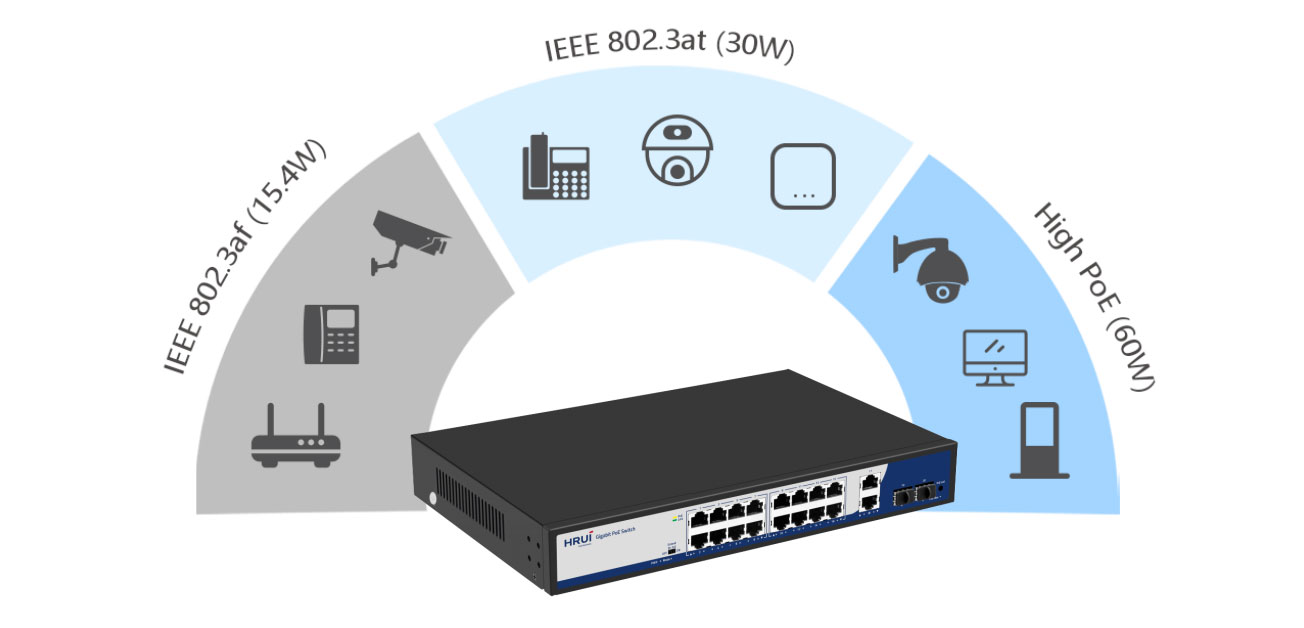

This series of switches provides PoE ports, compliant with IEEE 802.3af/at/high PoE, enabling simultaneous data and power transmission to devices via a single, convenient Ethernet cable. Specifically, PoE Port 1 offers a maximum output power of 60 watts, permitting the powering of high-power devices. By integrating power delivery into a single cable, these switches streamline cabling infrastructure and eliminate the need for separate power sources, thereby providing an efficient and cost-effective solution for powering network devices. |
|
| • Advanced Functions with DIP Switch |
Default: All ports support communication with each other, with a transmission distance of up to 100 meters and an adaptive speed of 10/100/1000Mbps. This mode disables PoE watchdog on ports. |

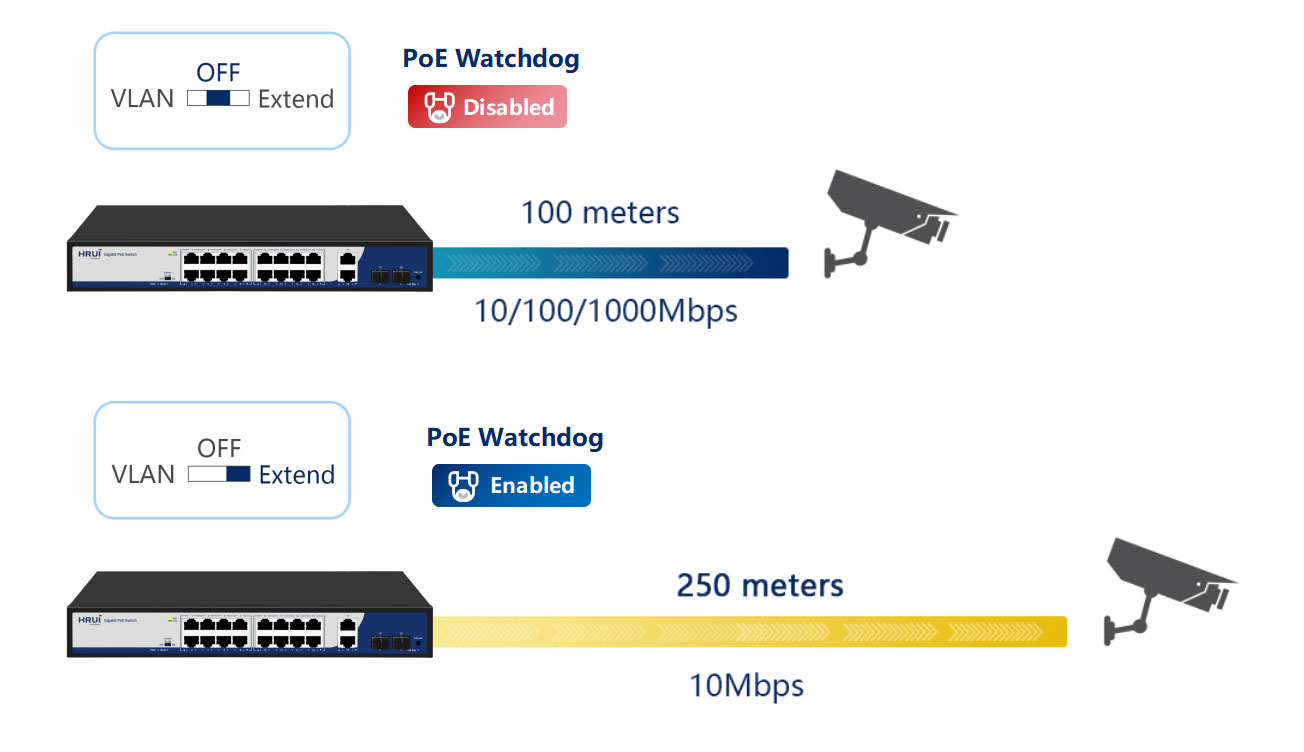

Extend: The downlink PoE & data transmission distance of port 9-16 can reach up to 250 meters, with a speed of 10Mbps. This mode enables PoE watchdog on ports. |
|
| • AI PoE Watchdog |

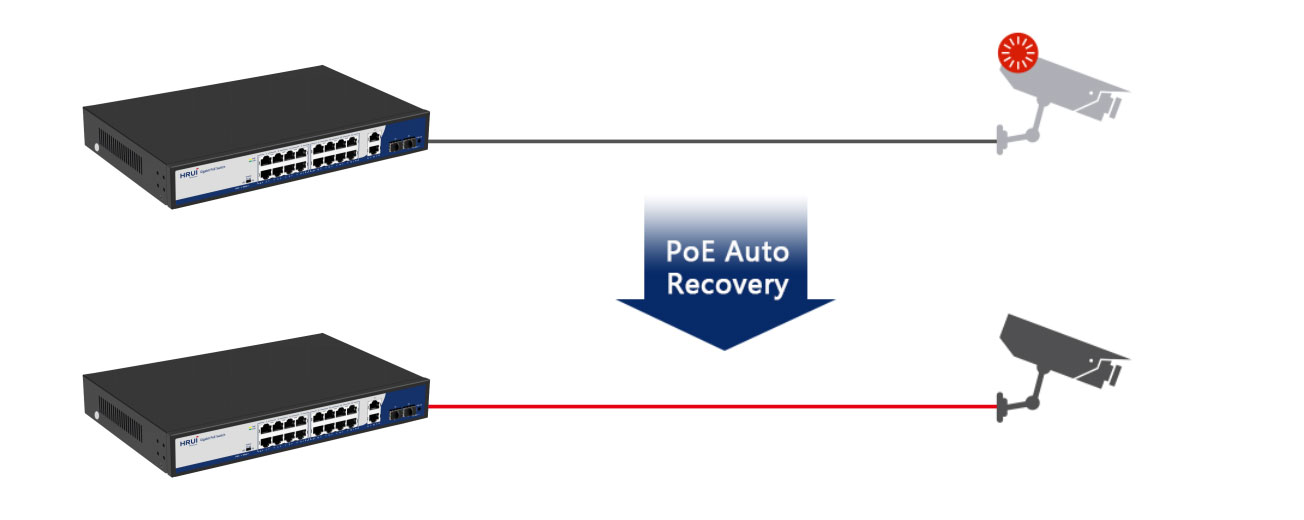

Detect and reboot dropped or unresponsive PoE-powered devices. |
|
| • Safe PoE Smart Boot-up |

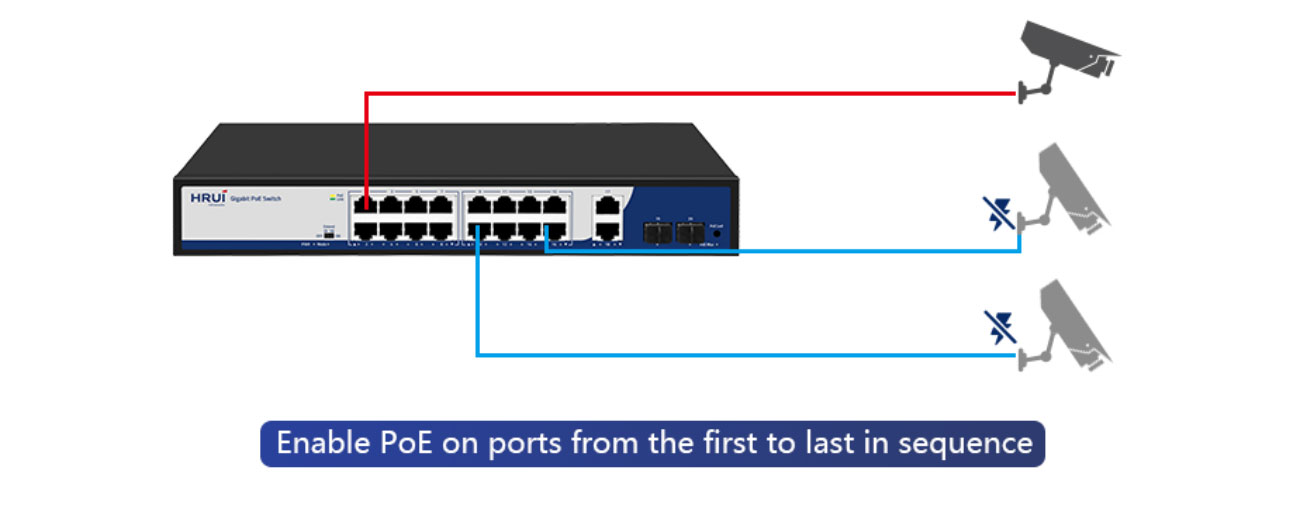

Support PoE Smart Boot-up that enables PoE on ports from the first to last in sequence to prevent damage to the power supply by sudden large currents. The function is enabled by default. |
|
| • A Clear View of Power Usage |
The product feature PoE Max indicators, allowing for easy monitoring of power consumption, enabling optimal power usage and ensuring efficient energy management. |
|
| • Plug and Play, Easy to Use |

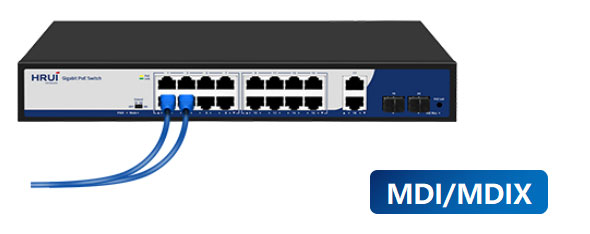

All Ethernet ports on our switches support MDI/MDIX compatibility, allowing for easy setup with no software installation or configuration needed. |
|
| • 19 Inch Rack Mout | • High Reliable Design |

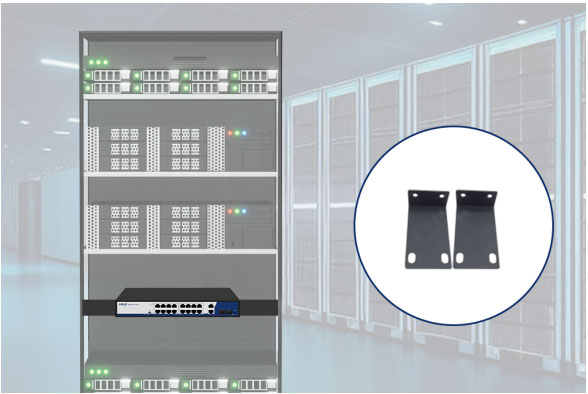

Support installed in a standard rack environment, easy to integrate with other equipment and manage cabling. | Support 4KV surge and 8KV ESD protection. |
|
|
HRUI AI PoE Switch Models
| HR900-AF-42N | HR900-AF-82N | HR900-AFG-82N | ||
 |  |  | ||
| Port Rate: 4*FE PoE + 2*FE PoE Standard: IEEE 802.3af/at Port 1-4 PoE power output ≤ 30W PoE Power Budget: 60W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 8*FE PoE + 2*FE PoE Standard: IEEE 802.3af/at Port 1-8 PoE power output ≤ 30W PoE Power Budget: 115W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 8*GE PoE + 2*GE PoE Standard: IEEE 802.3af/at/High PoE Port 1 PoE power output ≤ 60W, port 2-8 PoE power output ≤ 30W PoE Power Budget: 110W Surge Protection: 4KV Working Temperature: 0℃～40℃ | ||
| HR900-AF-2421GS-300 | HR900-AFG-1622S-200 | HR900-AFG-242S-400 | ||
 |  |  | ||
| Port Rate: 24*FE PoE + 2*GE + 1*1G SFP PoE Standard: IEEE 802.3af/at/High PoE Port 1 PoE power output ≤ 60W, port 2-24 PoE power output ≤ 30W PoE Power Budget: 290W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 16*GE PoE + 2*GE + 2*1G SFP PoE Standard: IEEE 802.3af/at/High PoE Port 1 PoE power output ≤ 60W, port 2-16 PoE power output ≤ 30W PoE Power Budget: 185W Surge Protection: 4KV Working Temperature: 0℃～40℃ | Port Rate: 24*GE PoE + 2*1G SFP PoE Standard: IEEE 802.3af/at Port 1-24 PoE power output ≤ 30W PoE Power Budget: 380W Surge Protection: 4KV Working Temperature: 0℃～40℃ |
Highlight
• 16*1000Mbps PoE ports + 2*1000Mbps RJ45 ports + 2*1000Mbps SFP ports
• Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3u, and IEEE 802.3x standards
• RJ45 port supports 10/100/1000Mbps adaptation
• When the PoE port is in Extend mode, ports 9-16 force 10Mbps to automatically activate the PoE watchdog mode
• PoE priority is enabled by default, with priority order from 1 to 16
• Flow control method: IEEE 802.3x standard is used for full duplex, and Back pressure standard is used for half duplex
• The panel indicator lights will monitor the working status and assist in fault analysis
• Support Extend mode
• 1 port supports 60W
Hardware Features & Performance | ||
Model | HR900-AFG-1622S-200 | |
General | Interface | 16 *1000Mbps PoE ports(1 port supports 60W) |
2 *1000Mbps RJ45 ports | ||
2 *1000Mbps SFP ports | ||
Port Standard | IEEE802.3 (Ethernet) | |
IEEE802.3u (Fast Ethernet) | ||
IEEE802.3ab (1000Mbps Ethernet) | ||
IEEE802.3x (Flow Control) | ||
IEEE 802.3z (1000Mbps Ethernet Fiber Standard) | ||
Performance | Switching Capacity | 40Gbps |
Packet Forwarding Rate | 29.76Mpps | |
Packet Buffer | 3Mbit | |
MAC Address Table | 2K | |
Transmission Method | Store and Forward | |
PoE | PoE Standard | IEEE802.3af （15.4W） |
IEEE802.3at （30W） | ||
IEEE 802.3bt（60W） | ||
PoE Port Output Voltage | DC 44-57V | |
PoE Ports | Port 1-16 PoE power output <30W | |
PoE Power Budget | 185W | |
Physical | Power Supply | AC 100-240V 50/60Hz |
DC 52V 3.84A | ||
Mainboard Power Consumption | 6.7W | |

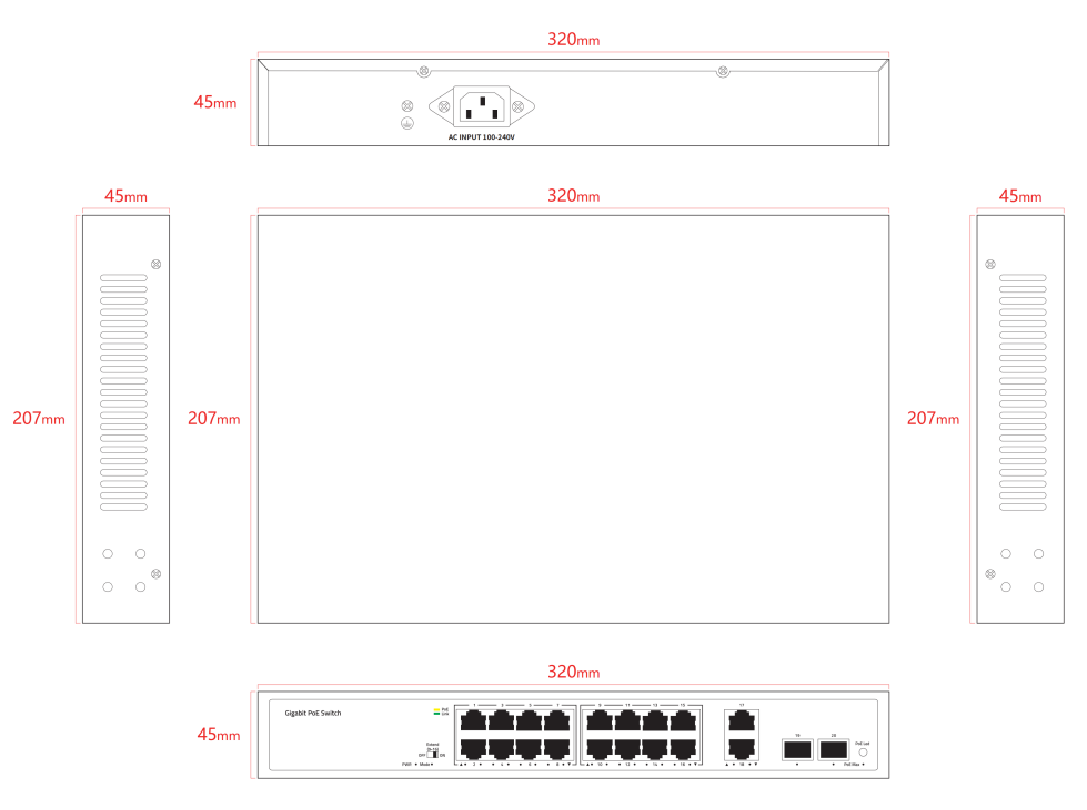

Structure Information | Product Dimensions :320*207*45mm | |
Packaging Dimensions: 370*290*85mm | ||
Product Net Weight: 1.78KG | ||
Product Gross Weight: 2.28KG | ||
Packing Information | Carton Dimensions: 445*310*390mm | |
Packing Quantity: 5PCS | ||
Packing Weight: 12.4KG | ||
Packing List | Switch 1pcs, power cord 1pcs, instruction manual 1pcs，certificate of qualification 1pcs | |
Fan Quantity | 0 | |
Installation | Desktop | |
Environment | Surge Protection | Surge protection: common mode 4KV, differential mode 2KV |
Electrostatic ESD: Air 8KV, Contact 6KV (Class B) | ||
Operating Temperature | 0~40°C | |
Storage Temperature | -40 °C to 70 °C | |
Operation Humidity | 10%~90%，non condensing | |
Storage Humidity | 5%~95%，non condensing | |
Buttons & Indicator Lights | PWR | On: Powered on |
Off: Powered off | ||
Mode | Blinking：Extend on | |
Off：Extend off | ||
1-16 Green Light | On: Link normal | |
Off: Link blocked | ||
Blinking: Data transmitting | ||
1-16 Yellow Light (PoE) | On: PoE power on | |
Off: PoE powered off | ||
PoE Max | On: indicates PoE power usage is less than 90% | |
Blinking: indicates PoE power usage of 90% ≤ P ≤ 95% | ||
Off: indicates that PoE power is used at 95%<p<100%< span=""> | ||
PoE LED Buttons | Dual color light selection: default green (link data), switch yellow light (PoE) | |
Extend Mode Buttons | OFF: All interfaces can communicate with each other, with an adaptive transmission rate of 10M/100/1000Mbps, and port PoE watchdog mode turned off; | |
ON: 9-16 ports enable extension of Ethernet cable transmission distance by 250 meters, with a transmission rate of 10Mbps, and PoE watchdog mode enabled on the port; | ||
APPLICATION
